Transformation in .NET MAUI Carousel

4 Aug 202620 minutes to read

Overview

The .NET MAUI Carousel View provides several transformation options to customize the appearance and layout of its items. You can tilt the unselected items, adjust the spacing between the selected and unselected items, and scale items to a specified value. Most of these properties apply in the Default ViewMode; spacing in the Linear mode is configured using a dedicated property.

Properties Overview

Property Type Default Value Applies To Description
RotationAngle double 0 Default Angle (in degrees) used to tilt unselected items.
Offset double 40 (desktop), 18 (mobile) Default Distance between unselected items.
SelectedItemOffset double 40 Default Distance between the selected item and other items.
ScaleOffset float 0 Default Scale factor applied to items (range: 0 to 1).
ItemSpacing double 0 Linear Spacing between items in Linear mode.

Prerequisites

Before using the SfCarousel, ensure the following NuGet package is installed in your .NET MAUI project:

  • Syncfusion.Maui.Carousel

For step-by-step setup, refer to the Getting Started documentation.

Tilt Non-Selected Items

The RotationAngle property in the Carousel control is used to tilt all unselected items at a specified angle in the Default mode. The default value is 0.

Note: If the angle value is positive, the rotation is in the clockwise direction. If the angle value is negative, the rotation is in the counterclockwise direction.

<carousel:SfCarousel x:Name="carousel"
                     ItemsSource="{Binding ImageCollection}"
                     ItemHeight="170"
                     ItemWidth="270"
                     RotationAngle="30">
    <carousel:SfCarousel.BindingContext>
        <local:CarouselViewModel/>
    </carousel:SfCarousel.BindingContext>
    <carousel:SfCarousel.ItemTemplate>
        <DataTemplate>
            <Image Source="{Binding Image}"
                   Aspect="AspectFit"/>
        </DataTemplate>
    </carousel:SfCarousel.ItemTemplate>
</carousel:SfCarousel>
CarouselViewModel carouselViewModel = new CarouselViewModel();
SfCarousel carousel = new SfCarousel()
{
    ItemHeight = 170,
    ItemWidth = 270,
    RotationAngle = 30,
    BindingContext = carouselViewModel,
    ItemsSource = carouselViewModel.ImageCollection,
    ItemTemplate = new DataTemplate(() =>
    {
        var image = new Image();
        image.SetBinding(Image.SourceProperty, "Image");
        return image;
    }),
};
// Model
public class CarouselModel
{
    public CarouselModel(string imageString)
    {
        Image = imageString;
    }
    private string _image;

    public string Image
    {
        get { return _image; }
        set { _image = value; }
    }
}

//View Model
public class CarouselViewModel
{
    public CarouselViewModel()
    {
        ImageCollection.Add(new CarouselModel("carousel_person1.png"));
        ImageCollection.Add(new CarouselModel("carousel_person2.png"));
        ImageCollection.Add(new CarouselModel("carousel_person3.png"));
        ImageCollection.Add(new CarouselModel("carousel_person4.png"));
        ImageCollection.Add(new CarouselModel("carousel_person5.png"));
    }
    private List<CarouselModel> imageCollection = new List<CarouselModel>();
    public List<CarouselModel> ImageCollection
    {
        get { return imageCollection; }
        set { imageCollection = value; }
    }
}

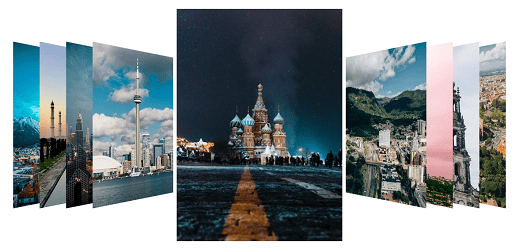

Rotation angle in .NET MAUI Carousel View.

Set Gap between the Selected Item

The distance between the selected item and other items can be customized by using the SelectedItemOffset property of the Carousel control in the Default mode. The default value is 40.

<carousel:SfCarousel x:Name="carousel"
                     ItemsSource="{Binding ImageCollection}"
                     ItemHeight="170"
                     ItemWidth="270"
                     SelectedItemOffset="60">
    <carousel:SfCarousel.BindingContext>
        <local:CarouselViewModel/>
    </carousel:SfCarousel.BindingContext>
    <carousel:SfCarousel.ItemTemplate>
        <DataTemplate >
            <Image Source="{Binding Image}"
                   Aspect="AspectFit"/>
        </DataTemplate>
    </carousel:SfCarousel.ItemTemplate>
</carousel:SfCarousel>
CarouselViewModel carouselViewModel = new CarouselViewModel();
SfCarousel carousel = new SfCarousel()
{
    ItemHeight = 170,
    ItemWidth = 270,
    SelectedItemOffset = 60,
    BindingContext = carouselViewModel,
    ItemsSource = carouselViewModel.ImageCollection,
    ItemTemplate = new DataTemplate(() =>
    {
       var image = new Image();
       image.SetBinding(Image.SourceProperty, "Image");
       return image;
    }),
};
// Model
public class CarouselModel
{
    public CarouselModel(string imageString)
    {
        Image = imageString;
    }
    private string _image;

    public string Image
    {
        get { return _image; }
        set { _image = value; }
    }
}

//View Model
public class CarouselViewModel
{
    public CarouselViewModel()
    {
        ImageCollection.Add(new CarouselModel("carousel_person1.png"));
        ImageCollection.Add(new CarouselModel("carousel_person2.png"));
        ImageCollection.Add(new CarouselModel("carousel_person3.png"));
        ImageCollection.Add(new CarouselModel("carousel_person4.png"));
        ImageCollection.Add(new CarouselModel("carousel_person5.png"));
    }
    private List<CarouselModel> imageCollection = new List<CarouselModel>();
    public List<CarouselModel> ImageCollection
    {
        get { return imageCollection; }
        set { imageCollection = value; }
    }
}

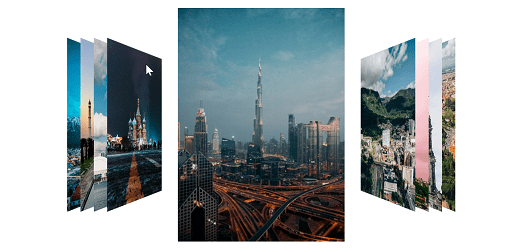

SelectedItemOffset in .NET MAUI Carousel View.

Set Gap between Unselected Items

The Offset property is used to define the distance between unselected items in the Carousel panel in the Default mode.

<carousel:SfCarousel x:Name="carousel"
                     ItemsSource="{Binding ImageCollection}"
                     ItemHeight="170"
                     ItemWidth="270"
                     Offset="60">
    <carousel:SfCarousel.BindingContext>
        <local:CarouselViewModel/>
    </carousel:SfCarousel.BindingContext>
    <carousel:SfCarousel.ItemTemplate>
        <DataTemplate >
            <Image Source="{Binding Image}"
                   Aspect="AspectFit"/>
        </DataTemplate>
    </carousel:SfCarousel.ItemTemplate>
</carousel:SfCarousel>
CarouselViewModel carouselViewModel = new CarouselViewModel();
SfCarousel carousel = new SfCarousel()
{
    ItemHeight = 170,
    ItemWidth = 270,
    Offset = 60.0,
    BindingContext = carouselViewModel,
    ItemsSource = carouselViewModel.ImageCollection,
    ItemTemplate = new DataTemplate(() =>
    {
        var image = new Image();
        image.SetBinding(Image.SourceProperty, "Image");
        return image;
    }),
};
// Model
public class CarouselModel
{
    public CarouselModel(string imageString)
    {
        Image = imageString;
    }
    private string _image;

    public string Image
    {
        get { return _image; }
        set { _image = value; }
    }
}

//View Model
public class CarouselViewModel
{
    public CarouselViewModel()
    {
        ImageCollection.Add(new CarouselModel("carousel_person1.png"));
        ImageCollection.Add(new CarouselModel("carousel_person2.png"));
        ImageCollection.Add(new CarouselModel("carousel_person3.png"));
        ImageCollection.Add(new CarouselModel("carousel_person4.png"));
        ImageCollection.Add(new CarouselModel("carousel_person5.png"));
    }
    private List<CarouselModel> imageCollection = new List<CarouselModel>();
    public List<CarouselModel> ImageCollection
    {
        get { return imageCollection; }
        set { imageCollection = value; }
    }
}

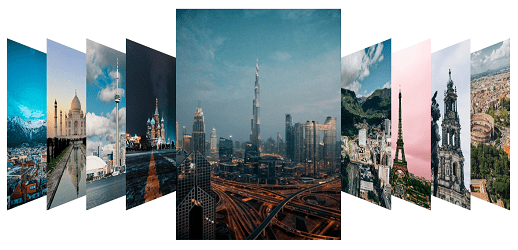

Offset in .NET MAUI Carousel View.

The ScaleOffset property in the Carousel control is used to scale all items to the specified scale value in the Default mode. The valid range is from 0 to 1 and the default value is 0.

<carousel:SfCarousel x:Name="carousel"
                     ItemsSource="{Binding ImageCollection}"
                     ItemHeight="170"
                     ItemWidth="270"
                     ScaleOffset="0.5">
    <carousel:SfCarousel.BindingContext>
        <local:CarouselViewModel/>
    </carousel:SfCarousel.BindingContext>
    <carousel:SfCarousel.ItemTemplate>
        <DataTemplate >
            <Image Source="{Binding Image}"
                   Aspect="AspectFit"/>
        </DataTemplate>
    </carousel:SfCarousel.ItemTemplate>
</carousel:SfCarousel>
CarouselViewModel carouselViewModel = new CarouselViewModel();
SfCarousel carousel = new SfCarousel()
{
    ItemHeight = 170,
    ItemWidth = 270,
    ScaleOffset = 0.5f,
    BindingContext = carouselViewModel,
    ItemsSource = carouselViewModel.ImageCollection,
    ItemTemplate = new DataTemplate(() =>
    {
        var image = new Image();
        image.SetBinding(Image.SourceProperty, "Image");
        return image;
    }),
};
// Model
public class CarouselModel
{
    public CarouselModel(string imageString)
    {
        Image = imageString;
    }
    private string _image;

    public string Image
    {
        get { return _image; }
        set { _image = value; }
    }
}

//View Model
public class CarouselViewModel
{
    public CarouselViewModel()
    {
        ImageCollection.Add(new CarouselModel("carousel_person1.png"));
        ImageCollection.Add(new CarouselModel("carousel_person2.png"));
        ImageCollection.Add(new CarouselModel("carousel_person3.png"));
        ImageCollection.Add(new CarouselModel("carousel_person4.png"));
        ImageCollection.Add(new CarouselModel("carousel_person5.png"));
    }
    private List<CarouselModel> imageCollection = new List<CarouselModel>();
    public List<CarouselModel> ImageCollection
    {
        get { return imageCollection; }
        set { imageCollection = value; }
    }
}

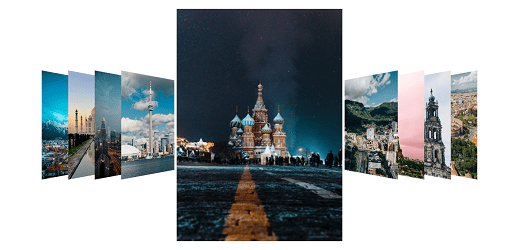

Scale offset in .NET MAUI Carousel View.

Set Item Spacing in Linear Mode

The spacing of all items in Linear mode can be configured by using the ItemSpacing property. The default value is 0.

<carousel:SfCarousel x:Name="carousel"
                     ItemsSource="{Binding ImageCollection}"
                     ItemHeight="170"
                     ItemWidth="270"
                     ItemSpacing="60"
                     ViewMode="Linear">
    <carousel:SfCarousel.BindingContext>
        <local:CarouselViewModel/>
    </carousel:SfCarousel.BindingContext>
    <carousel:SfCarousel.ItemTemplate>
        <DataTemplate >
            <Image Source="{Binding Image}"
                   Aspect="AspectFit"/>
        </DataTemplate>
    </carousel:SfCarousel.ItemTemplate>
</carousel:SfCarousel>
CarouselViewModel carouselViewModel = new CarouselViewModel();
SfCarousel carousel = new SfCarousel()
{
    ItemHeight = 170,
    ItemWidth = 270,
    ItemSpacing = 60,
    ViewMode = ViewMode.Linear,
    BindingContext = carouselViewModel,
    ItemsSource = carouselViewModel.ImageCollection,
    ItemTemplate = new DataTemplate(() =>
    {
        var image = new Image();
        image.SetBinding(Image.SourceProperty, "Image");
        return image;
    }),
};
// Model
public class CarouselModel
{
    public CarouselModel(string imageString)
    {
        Image = imageString;
    }
    private string _image;

    public string Image
    {
        get { return _image; }
        set { _image = value; }
    }
}

//View Model
public class CarouselViewModel
{
    public CarouselViewModel()
    {
        ImageCollection.Add(new CarouselModel("carousel_person1.png"));
        ImageCollection.Add(new CarouselModel("carousel_person2.png"));
        ImageCollection.Add(new CarouselModel("carousel_person3.png"));
        ImageCollection.Add(new CarouselModel("carousel_person4.png"));
        ImageCollection.Add(new CarouselModel("carousel_person5.png"));
    }
    private List<CarouselModel> imageCollection = new List<CarouselModel>();
    public List<CarouselModel> ImageCollection
    {
        get { return imageCollection; }
        set { imageCollection = value; }
    }
}

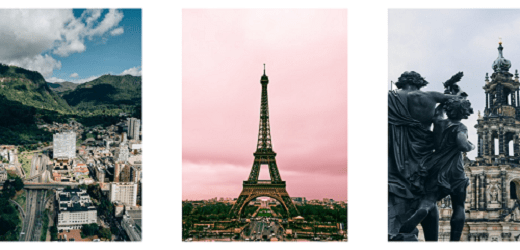

ItemSpacing in .NET MAUI Carousel View.
