Appearance in Maui Accordion (SfAccordion)
6 Dec 202318 minutes to read
The .NET MAUI SfAccordion comes with built-in support for customizing the appearance of the header.

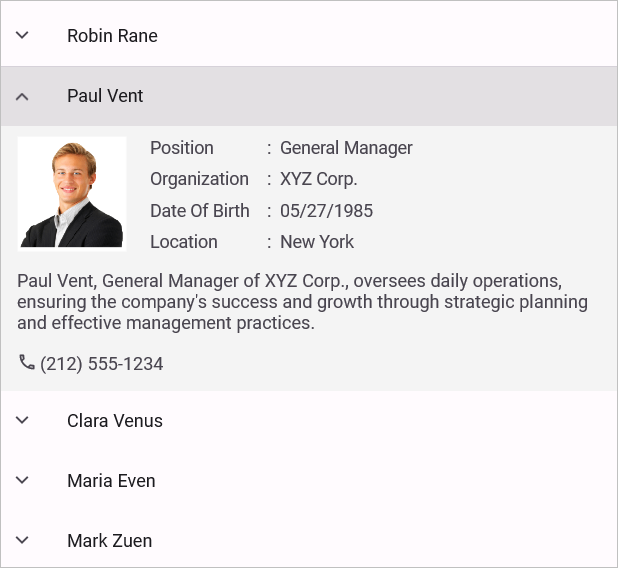

Header icon position
The SfAccordion allows you to customize the position of the header icon in each accordion item using the HeaderIconPosition property. By default, the header icon position is set to End.
<syncfusion:SfAccordion x:Name="accordion"
HeaderIconPosition="Start" />

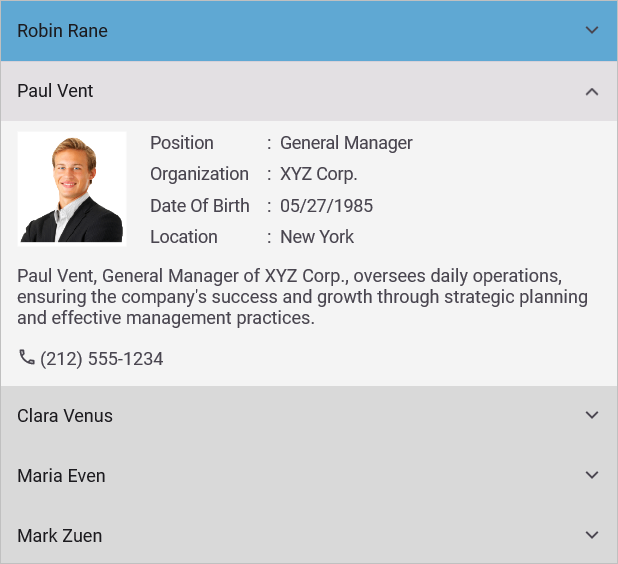

accordion.HeaderIconPosition = Syncfusion.Maui.Expander.ExpanderIconPosition.Start;Header background color customization
The SfAccordion allows you to customize the background color of the expander header by using the HeaderBackground property.
<syncfusion:SfAccordion x:Name="accordion">
<syncfusion:SfAccordion.Items>
<syncfusion:AccordionItem HeaderBackground="Pink"/>
</syncfusion:SfAccordion.Items>
</syncfusion:SfAccordion>SfAccordion accordion;
public MainPage()
{
InitializeComponent();
InitializeAccordionItems();
this.Content = accordion;
}
private void InitializeAccordionItems()
{
accordion = new SfAccordion();
accordion.Items.Add(GenerateAccordionItem());
}
public AccordionItem GenerateAccordionItem()
{
var item = new AccordionItem();
item.HeaderBackground = Colors.Pink;
return item;
}Icon color customization
The SfAccordion allows you to customize the color of the expander icon by using the HeaderIconColor property.
<syncfusion:SfAccordion x:Name="accordion">
<syncfusion:SfAccordion.Items>
<syncfusion:AccordionItem HeaderIconColor="Brown"/>
</syncfusion:SfAccordion.Items>
</syncfusion:SfAccordion>SfAccordion accordion;
public MainPage()
{
InitializeComponent();
InitializeAccordionItems();
this.Content = accordion;
}
private void InitializeAccordionItems()
{
accordion = new SfAccordion();
accordion.Items.Add(GenerateAccordionItem());
}
public AccordionItem GenerateAccordionItem()
{
var item = new AccordionItem();
item.HeaderIconColor = Colors.Brown;
return item;
}Visual State Manager

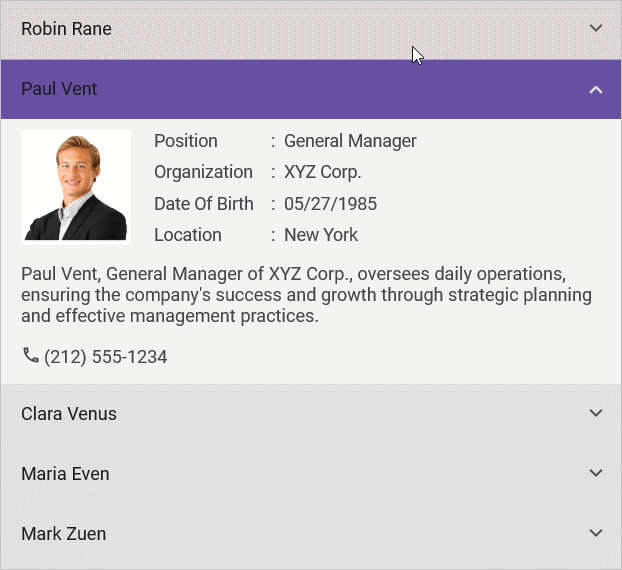

The appearance of the SfAccordion can be customized using the following VisualStates:
- Expanded
- Collapsed
- Focused
- PointerOver
- Normal
<ContentPage.Resources>
<Style TargetType="syncfusion:AccordionItem">
<Setter Property="VisualStateManager.VisualStateGroups">
<VisualStateGroupList>
<VisualStateGroup>
<VisualState Name="Expanded">
<VisualState.Setters>
<Setter Property="HeaderBackground" Value="#6750A4"/>
<Setter Property="HeaderIconColor" Value="White"/>
</VisualState.Setters>
</VisualState>
<VisualState Name="Collapsed">
<VisualState.Setters>
<Setter Property="HeaderBackground" Value="#1F1C1B1F"/>
<Setter Property="HeaderIconColor" Value="#49454F"/>
</VisualState.Setters>
</VisualState>
<VisualState Name="Focused">
<VisualState.Setters>
<Setter Property="HeaderBackground" Value="#f5a2a2"/>
<Setter Property="HeaderIconColor" Value="#422626"/>
</VisualState.Setters>
</VisualState>
<VisualState Name="PointerOver">
<VisualState.Setters>
<Setter Property="HeaderBackground" Value="#ded6d5"/>
<Setter Property="HeaderIconColor" Value="#524f4f"/>
</VisualState.Setters>
</VisualState>
<VisualState Name="Normal">
<VisualState.Setters>
<Setter Property="HeaderBackground" Value="#faf8f7"/>
<Setter Property="HeaderIconColor" Value="#000000"/>
</VisualState.Setters>
</VisualState>
</VisualStateGroup>
</VisualStateGroupList>
</Setter>
</Style>
</ContentPage.Resources>
<ContentPage.Content>
<syncfusion:SfAccordion ExpandMode="MultipleOrNone" BackgroundColor="#FAFAFA">
<syncfusion:SfAccordion.Items>
<syncfusion:AccordionItem x:Name="item1"
IsExpanded="True">
<syncfusion:AccordionItem.Header>
<Grid Padding="5,5,5,5">
<Label TextColor="{Binding HeaderIconColor, Source={x:Reference item1}}" Text="Robin Rane" VerticalTextAlignment="Center"/>
</Grid>
</syncfusion:AccordionItem.Header>
<syncfusion:AccordionItem.Content>
<Grid ColumnSpacing="10" RowSpacing="2" >
<Grid Margin="16,6,0,0">
<Grid.Resources>
<Style TargetType="Label">
<Setter Property="FontFamily" Value="Roboto-Regular"/>
</Style>
</Grid.Resources>
<Grid.RowDefinitions >
<RowDefinition Height="25"/>
<RowDefinition Height="25"/>
<RowDefinition Height="25"/>
<RowDefinition Height="25"/>
<RowDefinition Height="{OnPlatform Default=90,Android=90,WinUI=70, iOS=100,MacCatalyst=70 }"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="100"/>
<ColumnDefinition Width="100"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Frame Grid.RowSpan="4" BorderColor="Transparent" Grid.Row="0" Grid.Column="0" Padding="0" Margin="0,0,0,7">
<Image Source="emp_01.png"/>
</Frame>
<Label Text="Position" Grid.Column="1" Grid.Row="0" Margin="6,0,0,0"/>
<Label Text="Chairman" Grid.Row="0" Grid.Column="2"/>
<Label Text="Organization " Grid.Row="1" Grid.Column="1" Margin="6,0,0,0"/>
<Label Text="ABC Inc." Grid.Row="1" Grid.Column="2"/>
<Label Text="Date Of Birth " Grid.Row="2" Grid.Column="1" Margin="6,0,0,0"/>
<Label Text="09/17/1973" Grid.Row="2" Grid.Column="2"/>
<Label Text="Location " Grid.Row="3" Grid.Column="1" Margin="6,0,0,0"/>
<Label Text="Boston" Grid.Row="3" Grid.Column="2"/>
<Label Padding="0,10,0,10" Grid.Row="4" Grid.ColumnSpan="3" LineBreakMode="WordWrap"
FontSize="14" CharacterSpacing="0.25" VerticalTextAlignment="Center"
Text="Robin Rane, Chairman of ABC Inc., leads with dedication and vision.Under his guidance, the company thrives and continues to make a significant impact in the industry.">
</Label>
<StackLayout Grid.Row="5" Orientation="Horizontal" Margin="0,0,0,12">
<Label Text="" FontSize="16" Margin="0,2,2,2"
FontFamily='{OnPlatform Android=AccordionFontIcons.ttf#,WinUI=AccordionFontIcons.ttf#AccordionFontIcons,MacCatalyst=AccordionFontIcons,iOS=AccordionFontIcons}'
VerticalOptions="Center" VerticalTextAlignment="Center"/>
<Label Text="(617) 555-1234" Grid.Column="1" VerticalOptions="Center" CharacterSpacing="0.25" FontSize="14"/>
</StackLayout>
</Grid>
</Grid>
</syncfusion:AccordionItem.Content>
</syncfusion:AccordionItem>
</syncfusion:SfAccordion.Items>
</syncfusion:SfAccordion>
</ContentPage.Content>
</ContentPage>
NOTE
