Scrolling in .NET MAUI Chat (SfChat)

15 Sep 20259 minutes to read

Scroll to message

You can scroll to a particular message programmatically using the SfChat.ScrollToMessage(Object) method.

MainPage.xaml

<StackLayout>
        <Button x:Name="ScrollTo" Text="Scroll to message" HeightRequest="100" Clicked="ScrollTo_Clicked" />
        <sfChat:SfChat x:Name="sfChat"
            Messages="{Binding Messages}"
            CurrentUser="{Binding CurrentUser}"
            CanAutoScrollToBottom="False"/>
    </StackLayout>

MainPage.xaml.cs

private void ScrollTo_Clicked(object sender, EventArgs e)
    {
        // Scroll to the sixth message in the collection.
        this.sfChat.ScrollToMessage(this.viewModel.Messages[5]);
    }

Auto scroll chat control to bottom when new message is added

By default, the SfChat control is scrolled to the bottom to show the newly added message. If you want to disable this auto scroll, set CanAutoScrollToBottom as false.

MainPage.xaml

<sfChat:SfChat x:Name="sfChat"
                Messages="{Binding Messages}"
                CurrentUser="{Binding CurrentUser}"
                CanAutoScrollToBottom="False"/>

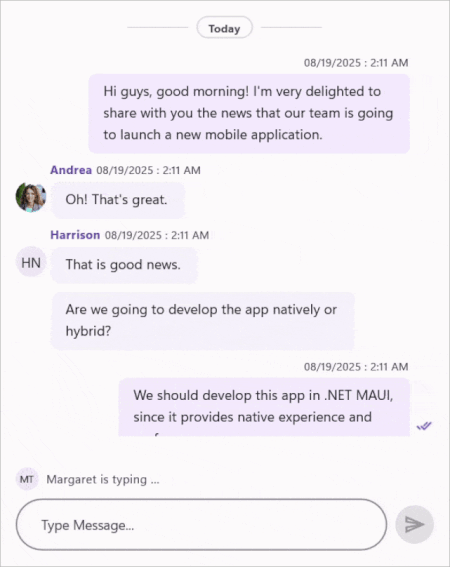

Scroll to bottom button

The SfChat control provides the option to display a scroll to bottom button by setting the ShowScrollToBottomButton property to true. This button appears when scrolled up through older messages and allows quick navigation back to the latest message in the conversation.

XAML

<sfChat:SfChat x:Name="sfChat"
               Messages="{Binding Messages}"
               CurrentUser="{Binding CurrentUser}"
               ShowScrollToBottomButton="True"/>

C#

SfChat sfChat = new SfChat();
ViewModel viewModel = new ViewModel();
sfChat.Messages = viewModel.Messages;
sfChat.CurrentUser = viewModel.CurrentUser;
sfChat.ShowScrollToBottomButton = true;

Scroll to bottom button customization

The SfChat control allows you to fully customize the scroll to bottom button appearance by using the ScrollToBottomButtonTemplate property. This property lets you define a custom view and style.

XAML

<ContentPage.Resources>
    <ResourceDictionary>
        <DataTemplate x:Key="scrollToBottomButtonTemplate">
            <Grid>
                <Label Text="↓"
                       FontSize="30"
                       FontAttributes="Bold"
                       HorizontalOptions="Center"
                       VerticalOptions="Center" />
                       ...
            </Grid>
        </DataTemplate>
    </ResourceDictionary>
</ContentPage.Resources>
<ContentPage.Content>
       <sfChat:SfChat x:Name="sfChat"
                Messages="{Binding Messages}"
                CurrentUser="{Binding CurrentUser}"
                ShowScrollToBottomButton="True"
                ScrollToBottomButtonTemplate="{StaticResource scrollToBottomButtonTemplate}"/>
</ContentPage.Content>

C#

namespace MauiChat
{
    public partial class MainPage : ContentPage
    {
        SfChat sfChat;
        ViewModel viewModel;

        public MainPage()
        {
            InitializeComponent();
            this.viewModel = new ViewModel();

            this.sfChat = new SfChat
            {
                Messages = viewModel.Messages,
                CurrentUser = viewModel.CurrentUser,
                ShowScrollToBottomButton = true,
                ScrollToBottomButtonTemplate = new DataTemplate(() =>
                {
                    var grid = new Grid();
                    var label = new Label
                    {
                        Text = "↓",
                        FontSize = 30,
                        FontAttributes = FontAttributes.Bold,
                        HorizontalOptions = LayoutOptions.Center,
                        VerticalOptions = LayoutOptions.Center
                    };
                    grid.Children.Add(label);
                    return grid;
                })
            };

            this.Content = sfChat;
        }
    }
}

Scrolled event

The SfChat control comes with a built-in Scrolled event that will be fired whenever the chat control is scrolled. You can get the current scroll offset, whether scrolling has reached the top or bottom of the message list in the ChatScrolledEventArgs. You can handle this event to restrict the auto-scroll in chat for newly added messages, if the user had already scrolled up manually and was currently not at the bottom of the chat when the new message was added.

XAML

<sfChat:SfChat x:Name="sfChat"
                Messages="{Binding Messages}"
                CurrentUser="{Binding CurrentUser}"
                Scrolled="sfChat_Scrolled"/>

C#

sfChat.Scrolled += sfChat_Scrolled;

    private void sfChat_Scrolled(object? sender, ChatScrolledEventArgs e)
    {
        // The chat will not be auto scrolled to the bottom
        // if the user is not currently at the bottom end of the chat at the time of the arrival of the new message
        // but rather already manually scrolled above to read old messages.
        sfChat.CanAutoScrollToBottom = e.IsBottomReached;
    }
