UrlAdaptor in Syncfusion TypeScript Grid Control

18 Nov 201820 minutes to read

The UrlAdaptor serves as the base adaptor for facilitating communication between remote data services and an UI control. It enables seamless data binding and interaction with custom API services or any remote service through URLs. The UrlAdaptor is particularly useful for the scenarios where a custom API service with unique logic for handling data and CRUD operations is in place. This approach allows for custom handling of data and CRUD operations, and the resultant data returned in the result and count format for display in the Syncfusion^® TypeScript Grid control.

This section describes a step-by-step process for retrieving data using UrlAdaptor, then binding it to the TypeScript Grid control to facilitate data and CRUD operations.

The Syncfusion^® Grid control provides built-in support for handling various data operations such as searching, sorting, filtering, aggregate and paging on the server-side. These operations can be handled using methods such as PerformSearching, PerformFiltering, PerformSorting, PerformTake and PerformSkip available in the Syncfusion.EJ2.AspNet.Core package. Let’s explore how to manage these data operations using the UrlAdaptor.

In an API service project, add Syncfusion.EJ2.AspNet.Core by opening the NuGet package manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution), search and install it.

To access DataManagerRequest and QueryableOperation, import Syncfusion.EJ2.Base in GridController.cs file.
In the UrlAdaptor configuration, the properties of the DataManager object are encapsulated within an object named value. To access the DataManager properties, a dedicated class is created, representing the value object.
  // Model for handling data manager requests
  public class DataManager
  {
      public required DataManagerRequest Value { get; set; }
  }

Handling searching operation

To handle searching operation, ensure that your API endpoint supports custom searching criteria. Implement the searching logic on the server-side using the PerformSearching method from the QueryableOperation class. This allows the custom data source to undergo searching based on the criteria specified in the incoming DataManagerRequest object

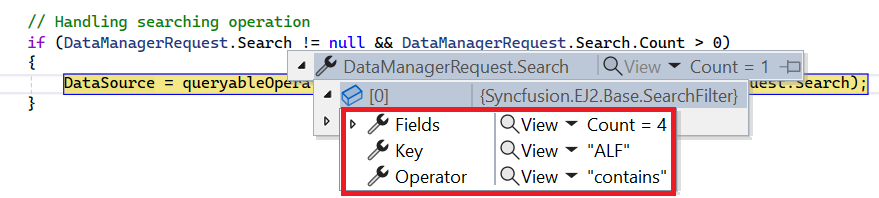

UrlAdaptor searching

GridController.cs
[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  // Handling Searching
  if (DataManagerRequest.Search != null && DataManagerRequest.Search.Count > 0)
  {
      DataSource = queryableOperation.PerformSearching(DataSource, DataManagerRequest.Search);
  }
  // Get the total records count
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}

Handling filtering operation

To handle filtering operation, ensure that your API endpoint supports custom filtering criteria. Implement the filtering logic on the server-side using the PerformFilteringmethod from the QueryableOperation class. This allows the custom data source to undergo filtering based on the criteria specified in the incoming DataManagerRequest object.

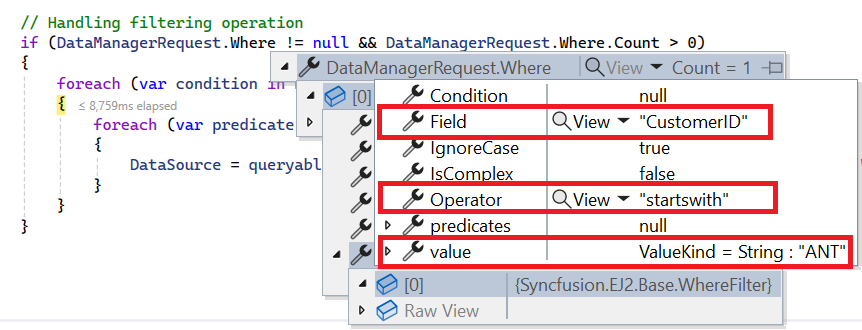

Single column filtering

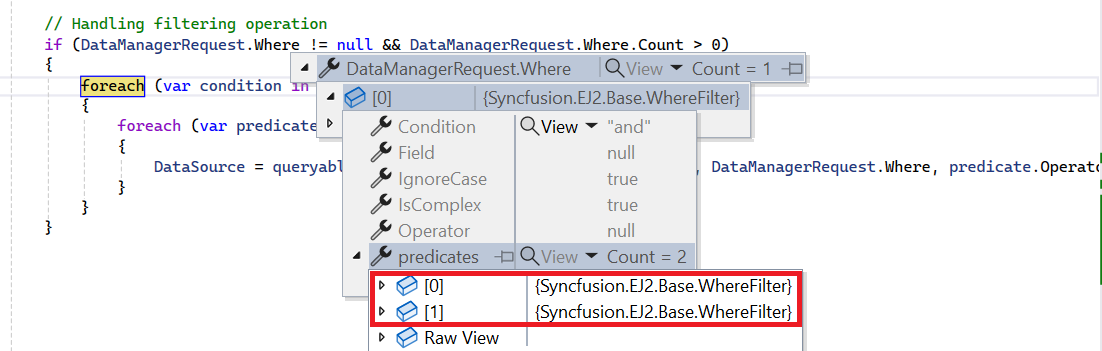

Multi column filtering

GridController.cs
[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  if (DataManagerRequest.Where != null && DataManagerRequest.Where.Count > 0)
  {
    // Handling filtering operation
    foreach (var condition in DataManagerRequest.Where)
    {
      foreach (var predicate in condition.predicates)
      {
        DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerRequest.Where, predicate.Operator);
      }
    }
  }
  // Get the total records count
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}

Handling sorting operation

To handle sorting operation, ensure that your API endpoint supports custom sorting criteria. Implement the sorting logic on the server-side using the PerformSorting method from the QueryableOperation class. This allows the custom data source to undergo sorting based on the criteria specified in the incoming DataManagerRequest object.

Single column sorting

Multi column sorting

GridController.cs
[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database)
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

  // Handling Sorting operation
  if (DataManagerRequest.Sorted != null && DataManagerRequest.Sorted.Count > 0)
  {
    DataSource = queryableOperation.PerformSorting(DataSource, DataManagerRequest.Sorted);
  }

  // Get the total count of records
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request
  return new { result = DataSource, count = totalRecordsCount };
}

Handling paging operation

To handle paging operation, ensure that your API endpoint supports custom paging criteria. Implement the paging logic on the server-side using the PerformTake and PerformSkip method from the QueryableOperation class. This allows the custom data source to undergo paging based on the criteria specified in the incoming DataManagerRequest object.

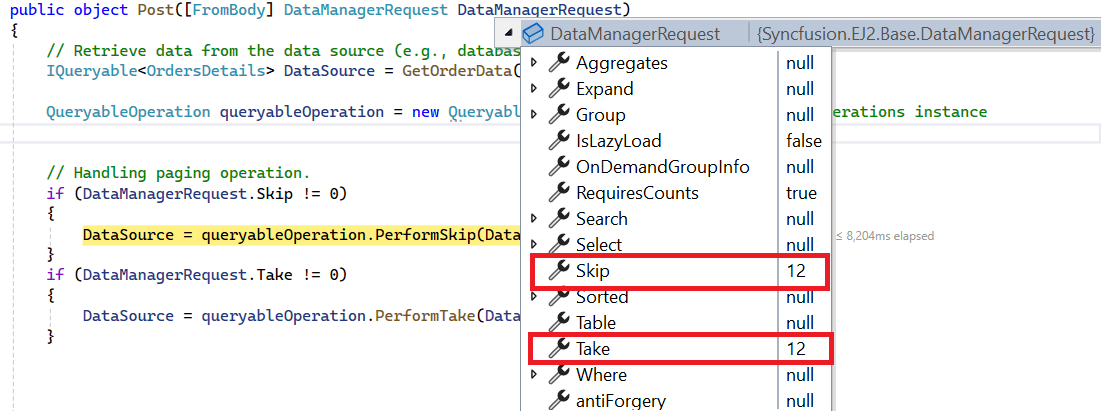

UrlAdaptor paging

GridController.cs
[HttpPost]
public object Post([FromBody] DataManager DataManagerRequest)
{
    // Retrieve data from the data source (e.g., database)
    IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

    // Get the total records count
    int totalRecordsCount = DataSource.Count();

    QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance

    // Retrieve data manager value
    DataManagerRequest DataManagerParams = DataManagerRequest.Value;

    // Handling paging operation.
    if (DataManagerParams.Skip != 0)
    {
        // Paging
        DataSource = queryableOperation.PerformSkip(DataSource, DataManagerParams.Skip);
    }
    if (DataManagerParams.Take != 0)
    {
        DataSource = queryableOperation.PerformTake(DataSource, DataManagerParams.Take);
    }

    // Return data based on the request
    return new { result = DataSource, count = totalRecordsCount };
}

// Model for handling data manager requests
public class DataManager
{
    public required DataManagerRequest Value { get; set; }
}

Handling CRUD operations

The TypeScript Grid Control seamlessly integrates CRUD (Create, Read, Update, Delete) operations with server-side controller actions through specific properties: insertUrl, removeUrl, updateUrl, crudUrl, and batchUrl. These properties enable the grid to communicate with the data service for every grid action, facilitating server-side operations.

CRUD operations mapping:

CRUD operations within the grid can be mapped to server-side controller actions using specific properties:

insertUrl: Specifies the URL for inserting new data.
removeUrl: Specifies the URL for removing existing data.
updateUrl: Specifies the URL for updating existing data.
crudUrl: Specifies a single URL for all CRUD operations.
batchUrl: Specifies the URL for batch editing.

To enable editing in TypeScript Grid control, refer to the editing documentation. In the below example, the inline edit mode is enabled and toolbar property is configured to display toolbar items for editing purposes.

Normal/Inline editing is the default edit mode for the Grid control. To enable CRUD operations, ensure that the isPrimaryKey property is set to true for a specific Grid column, ensuring that its value is unique.

The below class is used to structure data sent during CRUD operations.

public class CRUDModel<T> where T : class
{
  public string? action { get; set; }
  public string? keyColumn { get; set; }
  public object? key { get; set; }
  public T? value { get; set; }
  public List<T>? added { get; set; }
  public List<T>? changed { get; set; }
  public List<T>? deleted { get; set; }
  public IDictionary<string, object>? @params { get; set; }
}

Insert operation:

To insert a new record, utilize the insertUrl property to specify the controller action mapping URL for the insert operation. The newly added record details are bound to the newRecord parameter.

Insert record

/// <summary>
/// Inserts a new data item into the data collection.
/// </summary>
/// <param name="newRecord">It contains the new record detail which is need to be inserted.</param>
/// <returns>Returns void</returns>
[HttpPost]
[Route("api/[controller]/Insert")]
public void Insert([FromBody] CRUDModel<OrdersDetails> newRecord)
{
    // Check if new record is not null
    if (newRecord.value != null)
    {
        // Insert new record
        OrdersDetails.GetAllRecords().Insert(0, newRecord.value);
    }
}

Update operation:

For updating existing records, utilize the updateUrl property to specify the controller action mapping URL for the update operation. The updated record details are bound to the updatedRecord parameter.

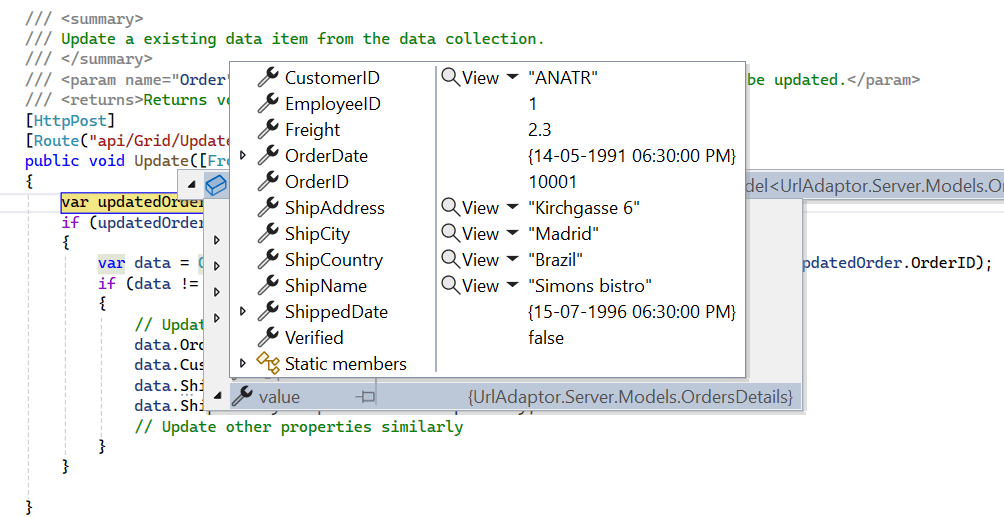

Update record

/// <summary>
/// Update a existing data item from the data collection.
/// </summary>
/// <param name="updatedRecord">It contains the updated record detail which is need to be updated.</param>
/// <returns>Returns void</returns>
[HttpPost]
[Route("api/[controller]/Update")]
public void Update([FromBody] CRUDModel<OrdersDetails> updatedRecord)
{
    // Retrieve updated order
    var updatedOrder = updatedRecord.value;
    if (updatedOrder != null)
    {
        // Find existing record
        var data = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == updatedOrder.OrderID);
        if (data != null)
        {
            // Update existing record
            data.OrderID = updatedOrder.OrderID;
            data.CustomerID = updatedOrder.CustomerID;
            data.ShipCity = updatedOrder.ShipCity;
            data.ShipCountry = updatedOrder.ShipCountry;
            // Update other properties similarly
        }
    }
}

Delete operation:

To delete existing records, use the removeUrl property to specify the controller action mapping URL for the delete operation. The primary key value of the deleted record is bound to the deletedRecord parameter.

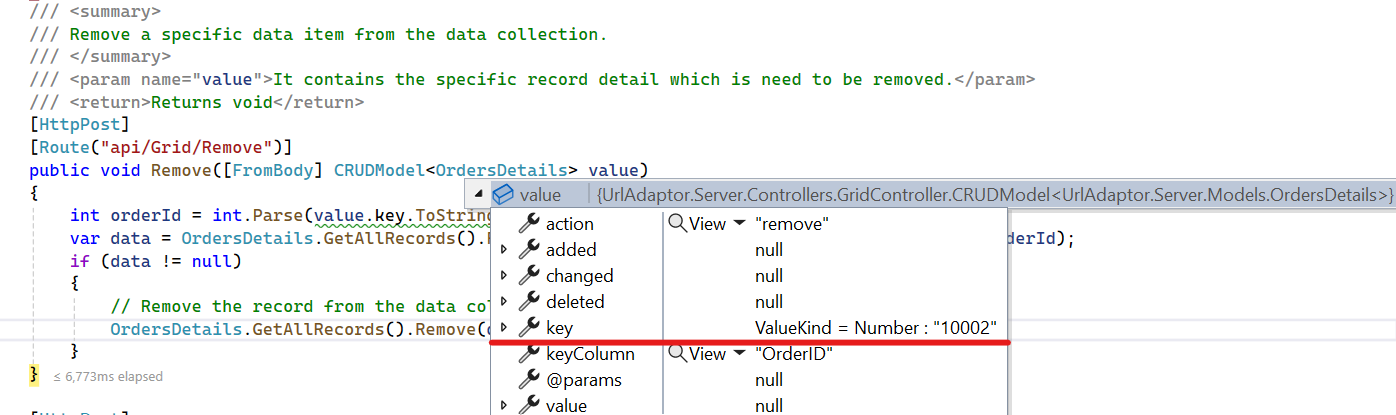

Delete Record

/// <summary>
/// Remove a specific data item from the data collection.
/// </summary>
/// <param name="deletedRecord">It contains the specific record detail which is need to be removed.</param>
/// <return>Returns void</return>
[HttpPost]
[Route("api/[controller]/Remove")]
public void Remove([FromBody] CRUDModel<OrdersDetails> deletedRecord)
{
    int orderId = int.Parse(deletedRecord.key.ToString()); // get key value from the deletedRecord
    var data = OrdersDetails.GetAllRecords().FirstOrDefault(orderData => orderData.OrderID == orderId);
    if (data != null)
    {
        // Remove the record from the data collection
        OrdersDetails.GetAllRecords().Remove(data);
    }
}

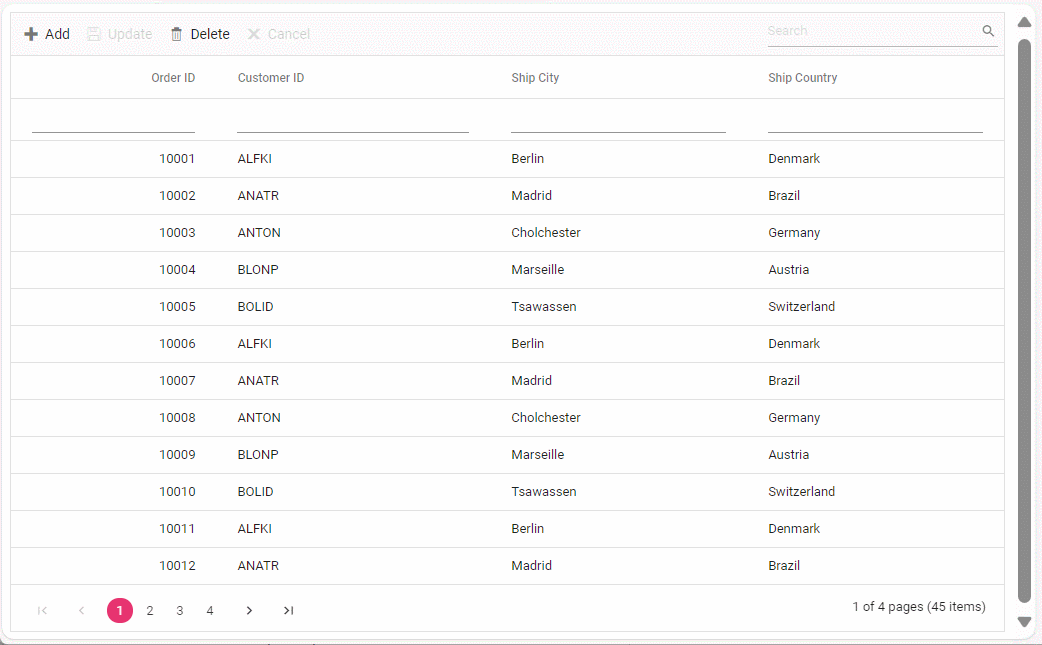

UrlAdaptor CRUD operations

Single method for performing all CRUD operations:

Using the crudUrl property, the controller action mapping URL can be specified to perform all the CRUD operation at server-side using a single method instead of specifying separate controller action method for CRUD (insert, update and delete) operations.

The following code example describes the above behavior.

[HttpPost]
[Route("api/[controller]/CrudUpdate")]
public void CrudUpdate([FromBody] CRUDModel<OrdersDetails> request)
{
  // perform update operation
  if (request.action == "update")
  {
    var orderValue = request.value;
    OrdersDetails existingRecord = OrdersDetails.GetAllRecords().Where(or => or.OrderID == orderValue.OrderID).FirstOrDefault();
    existingRecord.OrderID = orderValue.OrderID;
    existingRecord.CustomerID = orderValue.CustomerID;
    existingRecord.ShipCity = orderValue.ShipCity;
  }
  // perform insert operation
  else if (request.action == "insert")
  {
    OrdersDetails.GetAllRecords().Insert(0, request.value);
  }
  // perform remove operation
  else if (request.action == "remove")
  {
    OrdersDetails.GetAllRecords().Remove(OrdersDetails.GetAllRecords().Where(or => or.OrderID == int.Parse(request.key.ToString())).FirstOrDefault());
  }
}

Batch operation:

To perform batch operation, define the edit mode as Batch and specify the batchUrl property in the DataManager. Use the Add toolbar button to insert new row in batch editing mode. To edit a cell, double-click the desired cell and update the value as required. To delete a record, simply select the record and press the Delete toolbar button. Now, all CRUD operations will be executed in single request. Clicking the Update toolbar button will update the newly added, edited, or deleted records from the OrdersDetails table using a single API POST request.

[HttpPost]
[Route("api/[controller]/BatchUpdate")]
public IActionResult BatchUpdate([FromBody] CRUDModel<OrdersDetails> batchOperation)
{
  if (batchOperation.added != null)
  {
    foreach (var addedOrder in batchOperation.added)
    {
      OrdersDetails.GetAllRecords().Insert(0, addedOrder);
    }
  }
 if (batchOperation.changed != null)
  {
    foreach (var changedOrder in batchOperation.changed)
    {
      var existingOrder = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == changedOrder.OrderID);
      if (existingOrder != null)
      {
        existingOrder.CustomerID = changedOrder.CustomerID;
        existingOrder.ShipCity = changedOrder.ShipCity;
        // Update other properties as needed
      }
    }
  }
if (batchOperation.deleted != null)
  {
    foreach (var deletedOrder in batchOperation.deleted)
    {
      var orderToDelete = OrdersDetails.GetAllRecords().FirstOrDefault(or => or.OrderID == deletedOrder.OrderID);
      if (orderToDelete != null)
      {
        OrdersDetails.GetAllRecords().Remove(orderToDelete);
      }
    }
  }
  return Json(batchOperation);
}

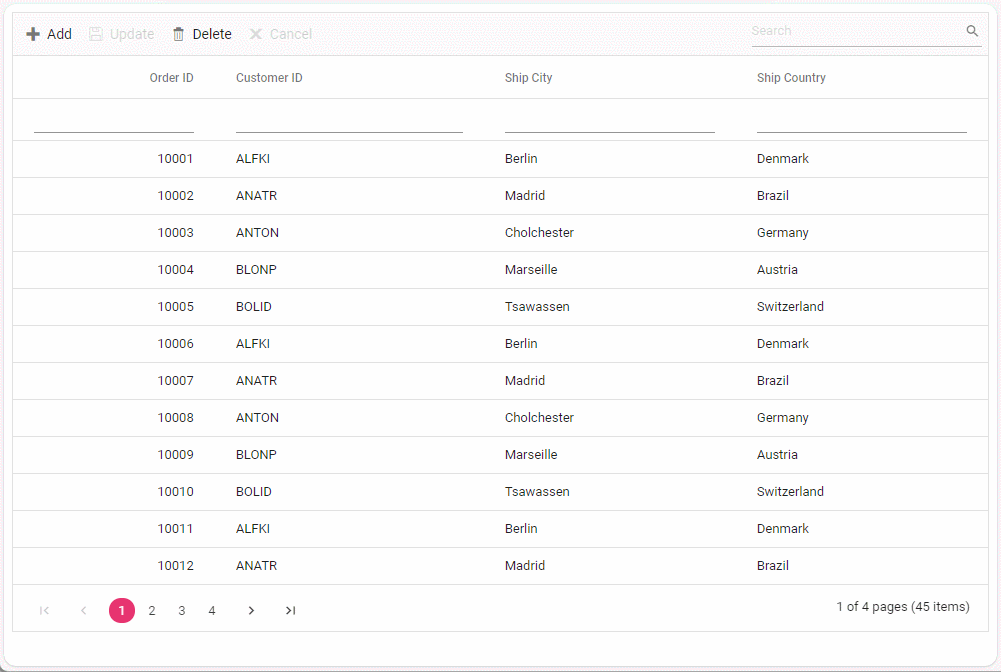

UrlAdaptor Batch Editing

Foreign key column with UrlAdaptor

Configuration of foreign key column with remote data using UrlAdaptor requires assigning the DataManager instance with the endpoint URL to the particular column data source along with foreign key field and foreign key value properties. When both grid and foreign key column uses a UrlAdaptor, the grid data and the foreign key data are fetched separately from their respective remote endpoints. During operations such as filtering or sorting, the grid sends requests to the server based on the foreign key field and its corresponding value.

Handling filter and search operation

Filtering a foreign-key column automatically shows the related text value via foreignKeyValue property, while the actual filtering is performed using the foreignKeyField property. This ensures that the filter request sent to the server uses the actual “CustomerID” field value, allowing the main data source to be filtered accurately.

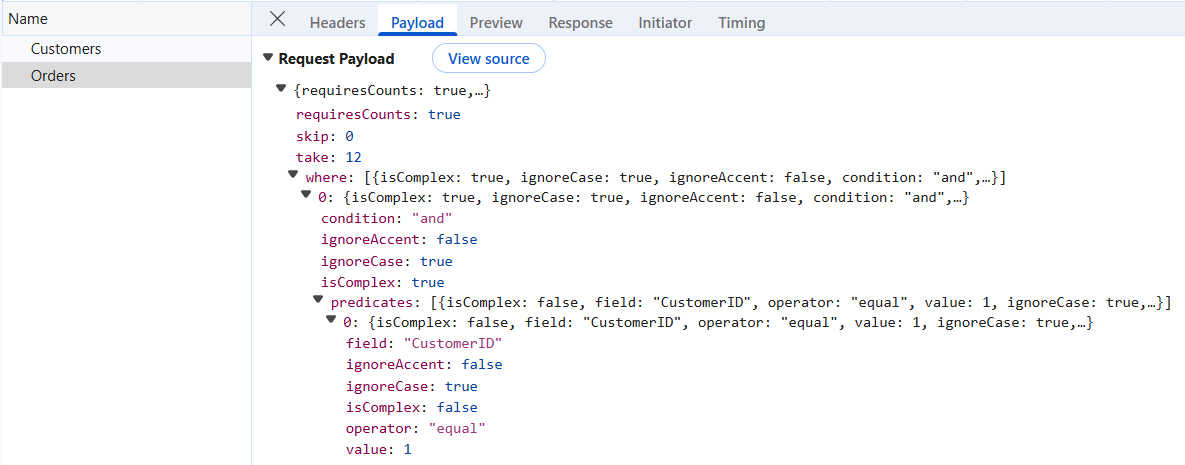

ForeignKey column filtering

[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source.
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

  // Handling filtering operation
  if (DataManagerRequest.Where != null && DataManagerRequest.Where.Count > 0)
  {
    DataSource = operation.PerformFiltering(DataSource, DataManagerRequest.Where, DataManagerRequest.Where[0].Operator);
  }

  // Get the total count of records.
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request.
  return new { result = DataSource, count = totalRecordsCount };

Search process in a grid with foreign key columns creates a filter query for each column using the provided search term. For foreign key columns specifically, the grid first queries the associated foreign key data source to retrieve the underlying field value that matches the search term. It then constructs a filter query using that value and the column’s field, applying it to the main dataset.

Handling sort operation

Sort operation on a foreign key column orders records based on the underlying “CustomerID” field value. The sorting query sent to the server includes the corresponding foreign key value. To sort by the foreign key value, supply the foreign key’s data source to the sorted query within the PerformSorting method.

ForeignKey column Sorting

[HttpPost]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
  // Retrieve data from the data source (e.g., database).
  IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();

  QueryableOperation queryableOperation = new QueryableOperation(); // Initialize QueryableOperation instance.

  if (DataManagerRequest.Sorted != null && DataManagerRequest.Sorted.Count > 0) //Sorting
  {
    for (int i = 0; i < DataManagerRequest.Sorted.Count; i++)
    {
      if (DataManagerRequest.Sorted[i].ForeignKeyValue == "CustomerName")
      {
        DataManagerRequest.Sorted[i].ForeignKeyDataSource = GetCustomerData().AsQueryable();
      }
    }
    DataSource = operation.PerformSorting(DataSource, DataManagerRequest.Sorted);
  }
  // Get the total count of records.
  int totalRecordsCount = DataSource.Count();

  // Return data based on the request.
  return new { result = DataSource, count = totalRecordsCount };
}

Sort operation for a foreign key column based on its foreign key value mandates including the foreign key data source in the sorted query of the DataManager request on the server. If the foreign key data source is not passed, the sorting operation will be performed based on the column field.
