Row selection in JavaScript Grid control
18 Nov 201824 minutes to read
Row selection in the Grid control allows you to interactively select specific rows or ranges of rows within the grid. This selection can be done effortlessly through mouse clicks or arrow keys (up, down, left, and right). This feature is useful when you want to highlight, manipulate, or perform actions on specific row within the Grid.
To enable row selection, you should set the selectionSettings->mode property to either Row or Both. This property determines the selection mode of the grid.
Single row selection
Single row selection allows you to select a single row at a time within the Grid. This feature is useful when you want to focus on specific rows or perform actions on the data within a particular row.
To enable single row selection, set the selectionSettings->mode property to Row and the selectionSettings->type property to Single. This configuration allows you to select a only one row at a time within the grid.
Here’s an example of how to enable single row selection using properties:
Multiple row selection
Multiple row selection allows you to select multiple rows within the Grid. This feature is valuable when you need to perform actions on several rows simultaneously or focus on specific data areas.
To enable multiple row selection, set the selectionSettings->mode property to Row and the selectionSettings->type property to Multiple. This configuration allows you to select a multiple rows at a time within the grid.
Here’s an example of how to enable multiple rows selection using properties:
Select row at initial rendering
You have the ability to select a specific row during the initial rendering of the Grid control. This feature is particularly useful when you want to highlight or pre-select a specific row in the grid. To achieve this, you can utilize the selectedRowIndex property provided by the Grid control.
In the following example, it demonstrates how to select a row at initial rendering:
Select rows in any page based on index value
The Grid allows you to select rows in any page based on their index value. This feature is useful when you want to perform specific actions on rows, such as highlighting, applying styles, or executing operations, regardless of their location across multiple pages within the grid.
To achieve this, you can utilize the selectRow method and the goToPage method of the Grid control. By handling the change event of DropDownList control, you can implement the logic to navigate to the desired page and select the row based on the index value.
Additionally, by handling the actionComplete event of the Grid, you can maintain the selection of the desired row after completing the paging action.
The following example demonstrates how to select rows in any page based on index value using actionComplete and change event:
Multiple row selection by single click on row
The Grid control allows you to perform multiple row selection by simply clicking on rows one by one without pressing CTRL or SHIFT keys. This means that when you click on a row, it will be selected, and clicking on another row will add it to the selection without deselecting the previously selected rows. To deselect a previously selected row, you can click on the row again, and it will be unselected.
To enable the simple multiple row selection, you need to set the selectionSettings->enableSimpleMultiRowSelection property to true.
The following example demonstrates how to enable multiple row selection with a single click on the Grid row using enableSimpleMultiRowSelection property:
Select rows externally
You can perform single row selection, multiple row selection, and range of row selection externally in a Grid using built-in methods. This feature allows you to interact with specific rows within the Grid. The following topic demonstrates how you can achieve these selections using methods.
Single row selection
Single row selection allows you to select a single row at a time within the Grid. This feature is useful when you want to focus on specific rows or perform actions on the data within a particular row.
To achieve single row selection, you can use the selectRow method. This method allows you to programmatically select a specific row within the Grid by specifying its index.
The following example demonstrates how to select a single row within the Grid by obtaining the selected row index through a textbox control and passing these row index as argument to the selectRow method. When the button event is triggered by clicking the Select Row button, a single row is selected within the Grid:
Multiple rows selection
The JavaScript Grid allows you to select multiple rows within the grid simultaneously. This feature is valuable when you need to perform actions or operations on several rows at once or focus on specific areas of your data.
To achieve multiple row selection, you can use the selectRows method. This method allows you to select a collection of rows by specifying their indexes, giving you the ability to interact with multiple rows together.
The following example, demonstrates how to select multiple rows in the Grid by calling the selectRows method within the button click event and passing an array of row indexes as arguments.
Range of rows selection
Range of row selection in the Grid enables you to select a continuous range of rows within the grid. This feature is particularly useful when you want to perform actions on multiple rows simultaneously or focus on a specific range of data.
To achieve range of row selection, you can use the selectRowsByRange method. This method selects a range of rows from start and end row indexes.
The following example, demonstrates how to select a range of rows within the Grid by obtaining the selected rows start index and end index through textbox controls. Then, pass these start index and end index as arguments to the selectRowsByRange method. When you trigger the button event by clicking the Select Rows button, a range of rows is selected within the Grid.
Select grid rows based on certain condition
You can programmatically select specific rows in the JavaScript Grid control based on a certain condition. This feature is particularly useful when you need to dynamically highlight or manipulate specific rows in the grid based on custom conditions. This functionality can be achieved using the selectRows method in the dataBound event of Grid.
In the below demo, we have selected the grid rows only when EmployeeID column value greater than 3.
How to get selected row indexes
You can retrieve the indexes of the currently selected rows in the Grid control. This feature is particularly useful when you need to perform actions or operations specifically on the selected rows.
To achieve this, you can leverage the getSelectedRowIndexes method, which returns an array of numbers representing the indexes of the selected rows.
The following example demonstrates how to get selected row indexes using getSelectedRowIndexes method:
How to get selected records on various pages
The Grid control allows you to retrieve the selected records even when navigating to different pages. This feature is useful when working with large data sets and allows you to perform actions on the selected records across multiple pages.
To persist the selection across pages, you need to enable the persistSelection property. By default, this property is set to false. To enable it, set the value to true in the selectionSettings property of the Grid control.
To retrieve the selected records from different pages, you can use the getSelectedRecords method. This method returns an array of the selected records.
The following example demonstrates how to retrieve selected records from various pages using the getSelectedRecords method and display OrderID in a dialog when a button is clicked:
To persist the grid selection, it is necessary to define any one of the columns as a primary key using the columns property.
How to get selected records
The get selected records allows you to retrieve the data of the selected rows from the Grid control. This can be particularly useful when you need to perform actions on the selected data or display specific information based on the selected rows.
To retrieve the selected records, you can use the getSelectedRecords method. This method allows you to obtain an array of objects representing the selected records.
Here’s an example that displays the selected row count using the getSelectedRecords method:
Clear row selection programmatically
Clearing row selection programmatically in the Grid control is a useful feature when you want to remove any existing row selections. To achieve this, you can use the clearRowSelection method.
The
clearRowSelectionmethod is applicable when the selection type is set to Multiple or Single.
The following example demonstrates how to clear row selection by calling the clearRowSelection method in the button click event.
Row selection events
The Grid provides several events related to row selection that allow you to respond to and customize the behavior of row selection. These events give you control over various aspects of row selection. Here are the available row selection events:
rowSelecting: This event is triggered before any row selection occurs. It provides an opportunity to implement custom logic or validation before a row is selected, allowing you to control the selection process.
rowSelected: This event is triggered after a row is successfully selected. You can use this event to perform actions or updates when a row is selected.
rowDeselecting: This event is triggered just before a selected row is deselected. It allows you to perform custom logic or validation to decide whether the row should be deselected or not.
rowDeselected: This event is triggered when a particular selected row is deselected. You can use this event to perform actions or validations when a row is no longer selected.
In the following example, row selection is canceled when the value of CustomerID is equal to VINET within the rowSelecting event. The background color changes to green when the value of Freight is greater than 10 and less than or equal to 140, triggering the rowDeselected event. The background color changes to red when the value of Freight is less than or equal to 10 during the rowDeselected event. Furthermore, the background color changes to yellow when the value of Freight is greater than 140 during the rowDeselected event. A notification message is displayed to indicate which event was triggered whenever a row is selected.
Pass selected records to server using AJAX
The Syncfusion JavaScript Grid allows you to select multiple or single records and send them to the server using AJAX requests. This feature is useful for scenarios where you need to process or manipulate selected data on the server side.
To achieve passing selected records to the server using AJAX requests in the Syncfusion JavaScript Grid, follow these steps:
Step 3: In your JavaScript control HTML file (e.g., index.html), add a button to trigger the AJAX call and include the Syncfusion JavaScript Grid with necessary configurations.
Step 5: On the server side, create a controller named GridController.cs under the Controllers folder to handle incoming requests and process selected records. Add the following code:
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.Base;
using SelectedReacord.Models;
namespace SelectedReacord.Controllers
{
[ApiController]
public class GridController : Controller
{
[HttpPost]
[Route("api/[controller]")]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize DataOperations instance.
// Handling searching operation.
if (DataManagerRequest.Search != null && DataManagerRequest.Search.Count > 0)
{
DataSource = queryableOperation.PerformSearching(DataSource, DataManagerRequest.Search);
}
// Handling filtering operation.
if (DataManagerRequest.Where != null && DataManagerRequest.Where.Count > 0)
{
foreach (var condition in DataManagerRequest.Where)
{
foreach (var predicate in condition.predicates)
{
DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerRequest.Where, predicate.Operator);
}
}
}
// Handling sorting operation.
if (DataManagerRequest.Sorted != null && DataManagerRequest.Sorted.Count > 0)
{
DataSource = queryableOperation.PerformSorting(DataSource, DataManagerRequest.Sorted);
}
// Get the total count of records.
int totalRecordsCount = DataSource.Count();
// Handling paging operation.
if (DataManagerRequest.Skip != 0)
{
DataSource = queryableOperation.PerformSkip(DataSource, DataManagerRequest.Skip);
}
if (DataManagerRequest.Take != 0)
{
DataSource = queryableOperation.PerformTake(DataSource, DataManagerRequest.Take);
}
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
[HttpGet]
[Route("api/[controller]")]
public List<OrdersDetails> GetOrderData()
{
var data = OrdersDetails.GetAllRecords().ToList();
return data;
}
[HttpPost]
[Route("api/[controller]/SelectRecord")]
public ActionResult SelectRecord([FromBody] List<Gridcolumns> row)
{
return Json(row);
}
public class SelectedModel
{
public List<Gridcolumns> rowData { get; set; }
}
public class Gridcolumns
{
public int OrderID { get; set; }
public string CustomerID { get; set; }
public int EmployeeID { get; set; }
public DateTime OrderDate { get; set; }
}
}
}Step 6: Create a model class named OrdersDetails.cs under the Models folder in the server-side project to represent the order data. Add the following code:
namespace SelectedReacord.Models
{
public class OrdersDetails
{
public static List<OrdersDetails> order = new List<OrdersDetails>();
public OrdersDetails()
{
}
public OrdersDetails(
int OrderID, string CustomerId, int EmployeeId, double Freight, bool Verified,
DateTime OrderDate, string ShipCity, string ShipName, string ShipCountry,
DateTime ShippedDate, string ShipAddress)
{
this.OrderID = OrderID;
this.CustomerID = CustomerId;
this.EmployeeID = EmployeeId;
this.Freight = Freight;
this.ShipCity = ShipCity;
this.Verified = Verified;
this.OrderDate = OrderDate;
this.ShipName = ShipName;
this.ShipCountry = ShipCountry;
this.ShippedDate = ShippedDate;
this.ShipAddress = ShipAddress;
}
public static List<OrdersDetails> GetAllRecords()
{
if (order.Count() == 0)
{
int code = 10000;
for (int i = 1; i < 10; i++)
{
order.Add(new OrdersDetails(code + 1, "ALFKI", i + 0, 2.3 * i, false, new DateTime(1991, 05, 15), "Berlin", "Simons bistro", "Denmark", new DateTime(1996, 7, 16), "Kirchgasse 6"));
order.Add(new OrdersDetails(code + 2, "ANATR", i + 2, 3.3 * i, true, new DateTime(1990, 04, 04), "Madrid", "Queen Cozinha", "Brazil", new DateTime(1996, 9, 11), "Avda. Azteca 123"));
order.Add(new OrdersDetails(code + 3, "ANTON", i + 1, 4.3 * i, true, new DateTime(1957, 11, 30), "Cholchester", "Frankenversand", "Germany", new DateTime(1996, 10, 7), "Carrera 52 con Ave. Bolívar #65-98 Llano Largo"));
order.Add(new OrdersDetails(code + 4, "BLONP", i + 3, 5.3 * i, false, new DateTime(1930, 10, 22), "Marseille", "Ernst Handel", "Austria", new DateTime(1996, 12, 30), "Magazinweg 7"));
order.Add(new OrdersDetails(code + 5, "BOLID", i + 4, 6.3 * i, true, new DateTime(1953, 02, 18), "Tsawassen", "Hanari Carnes", "Switzerland", new DateTime(1997, 12, 3), "1029 - 12th Ave. S."));
code += 5;
}
}
return order;
}
public int? OrderID { get; set; }
public string? CustomerID { get; set; }
public int? EmployeeID { get; set; }
public double? Freight { get; set; }
public string? ShipCity { get; set; }
public bool? Verified { get; set; }
public DateTime OrderDate { get; set; }
public string? ShipName { get; set; }
public string? ShipCountry { get; set; }
public DateTime ShippedDate { get; set; }
public string? ShipAddress { get; set; }
}
}Step 7: In the Program.cs file, add the following code:
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddCors(options =>
{
options.AddDefaultPolicy(builder =>
{
builder.AllowAnyOrigin().AllowAnyMethod().AllowAnyHeader();
});
});
builder.Services.AddControllers();
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();
var app = builder.Build();
// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI();
}
app.UseDefaultFiles();
app.UseStaticFiles();
app.UseCors();
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();

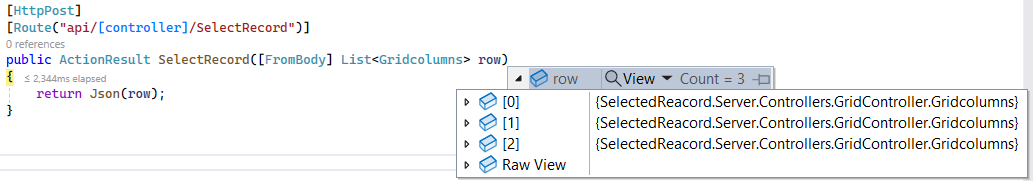

app.Run();The following screenshot shows how to pass selected records to the server:
Pass selected records to server using FETCH
The Syncfusion JavaScript Grid allows you to select multiple or single records and send them to the server using Fetch requests. This feature is useful for scenarios where you need to process or manipulate selected data on the server side.
To achieve passing selected records to the server using Fetch requests in the Syncfusion JavaScript Grid, follow these steps:
Step 3: In your JavaScript control HTML file (e.g., index.html), add a button to trigger the Fetch call and include the Syncfusion JavaScript Grid with necessary configurations.
Step 5: On the server side, create a controller named GridController.cs under the Controllers folder to handle incoming requests and process selected records. Add the following code:
using Microsoft.AspNetCore.Http;
using Microsoft.AspNetCore.Mvc;
using Syncfusion.EJ2.Base;
using SelectedReacord.Models;
namespace SelectedReacord.Controllers
{
[ApiController]
public class GridController : Controller
{
[HttpPost]
[Route("api/[controller]")]
public object Post([FromBody] DataManagerRequest DataManagerRequest)
{
// Retrieve data from the data source (e.g., database).
IQueryable<OrdersDetails> DataSource = GetOrderData().AsQueryable();
QueryableOperation queryableOperation = new QueryableOperation(); // Initialize DataOperations instance.
// Handling searching operation.
if (DataManagerRequest.Search != null && DataManagerRequest.Search.Count > 0)
{
DataSource = queryableOperation.PerformSearching(DataSource, DataManagerRequest.Search);
}
// Handling filtering operation.
if (DataManagerRequest.Where != null && DataManagerRequest.Where.Count > 0)
{
foreach (var condition in DataManagerRequest.Where)
{
foreach (var predicate in condition.predicates)
{
DataSource = queryableOperation.PerformFiltering(DataSource, DataManagerRequest.Where, predicate.Operator);
}
}
}
// Handling sorting operation.
if (DataManagerRequest.Sorted != null && DataManagerRequest.Sorted.Count > 0)
{
DataSource = queryableOperation.PerformSorting(DataSource, DataManagerRequest.Sorted);
}
// Get the total count of records.
int totalRecordsCount = DataSource.Count();
// Handling paging operation.
if (DataManagerRequest.Skip != 0)
{
DataSource = queryableOperation.PerformSkip(DataSource, DataManagerRequest.Skip);
}
if (DataManagerRequest.Take != 0)
{
DataSource = queryableOperation.PerformTake(DataSource, DataManagerRequest.Take);
}
// Return data based on the request.
return new { result = DataSource, count = totalRecordsCount };
}
[HttpGet]
[Route("api/[controller]")]
public List<OrdersDetails> GetOrderData()
{
var data = OrdersDetails.GetAllRecords().ToList();
return data;
}
[HttpPost]
[Route("api/[controller]/SelectRecord")]
public ActionResult SelectRecord([FromBody] List<Gridcolumns> row)
{
return Json(row);
}
public class SelectedModel
{
public List<Gridcolumns> rowData { get; set; }
}
public class Gridcolumns
{
public int OrderID { get; set; }
public string CustomerID { get; set; }
public int EmployeeID { get; set; }
public DateTime OrderDate { get; set; }
}
}
}Step 6: Create a model class named OrdersDetails.cs under the Models folder in the server-side project to represent the order data. Add the following code:
namespace SelectedReacord.Models
{
public class OrdersDetails
{
public static List<OrdersDetails> order = new List<OrdersDetails>();
public OrdersDetails()
{
}
public OrdersDetails(
int OrderID, string CustomerId, int EmployeeId, double Freight, bool Verified,
DateTime OrderDate, string ShipCity, string ShipName, string ShipCountry,
DateTime ShippedDate, string ShipAddress)
{
this.OrderID = OrderID;
this.CustomerID = CustomerId;
this.EmployeeID = EmployeeId;
this.Freight = Freight;
this.ShipCity = ShipCity;
this.Verified = Verified;
this.OrderDate = OrderDate;
this.ShipName = ShipName;
this.ShipCountry = ShipCountry;
this.ShippedDate = ShippedDate;
this.ShipAddress = ShipAddress;
}
public static List<OrdersDetails> GetAllRecords()
{
if (order.Count() == 0)
{
int code = 10000;
for (int i = 1; i < 10; i++)
{
order.Add(new OrdersDetails(code + 1, "ALFKI", i + 0, 2.3 * i, false, new DateTime(1991, 05, 15), "Berlin", "Simons bistro", "Denmark", new DateTime(1996, 7, 16), "Kirchgasse 6"));
order.Add(new OrdersDetails(code + 2, "ANATR", i + 2, 3.3 * i, true, new DateTime(1990, 04, 04), "Madrid", "Queen Cozinha", "Brazil", new DateTime(1996, 9, 11), "Avda. Azteca 123"));
order.Add(new OrdersDetails(code + 3, "ANTON", i + 1, 4.3 * i, true, new DateTime(1957, 11, 30), "Cholchester", "Frankenversand", "Germany", new DateTime(1996, 10, 7), "Carrera 52 con Ave. Bolívar #65-98 Llano Largo"));
order.Add(new OrdersDetails(code + 4, "BLONP", i + 3, 5.3 * i, false, new DateTime(1930, 10, 22), "Marseille", "Ernst Handel", "Austria", new DateTime(1996, 12, 30), "Magazinweg 7"));
order.Add(new OrdersDetails(code + 5, "BOLID", i + 4, 6.3 * i, true, new DateTime(1953, 02, 18), "Tsawassen", "Hanari Carnes", "Switzerland", new DateTime(1997, 12, 3), "1029 - 12th Ave. S."));
code += 5;
}
}
return order;
}
public int? OrderID { get; set; }
public string? CustomerID { get; set; }
public int? EmployeeID { get; set; }
public double? Freight { get; set; }
public string? ShipCity { get; set; }
public bool? Verified { get; set; }
public DateTime OrderDate { get; set; }
public string? ShipName { get; set; }
public string? ShipCountry { get; set; }
public DateTime ShippedDate { get; set; }
public string? ShipAddress { get; set; }
}
}Step 7: In the Program.cs file, add the following code:
var builder = WebApplication.CreateBuilder(args);
builder.Services.AddCors(options =>
{
options.AddDefaultPolicy(builder =>
{
builder.AllowAnyOrigin().AllowAnyMethod().AllowAnyHeader();
});
});
builder.Services.AddControllers();
builder.Services.AddEndpointsApiExplorer();
builder.Services.AddSwaggerGen();
var app = builder.Build();
// Configure the HTTP request pipeline.
if (app.Environment.IsDevelopment())
{
app.UseSwagger();
app.UseSwaggerUI();
}
app.UseDefaultFiles();
app.UseStaticFiles();
app.UseCors();
app.UseHttpsRedirection();
app.UseAuthorization();
app.MapControllers();
app.Run();The following screenshot shows how to pass selected records to the server:
