Getting started with Blazor Pivot Table component in Hybrid MAUI App

18 Nov 201811 minutes to read

This section guides you through the steps to add the Blazor Pivot Table component in a Blazor MAUI App using Visual Studio and Visual Studio Code.

Want to simplify your Blazor development?
Explore the power of Blazor components with Syncfusion® AI Coding Assistants. Easily integrate components, set up projects, and get real-time, context-aware code suggestions in AI-powered IDEs like Visual Studio Code, Cursor, CodeStudio, and more. Learn more about AI Coding Assistants.

Prerequisites

To use the MAUI project templates, install the Mobile development with the .NET extension for Visual Studio. For more details, refer to here or the Syncfusion® Blazor Extension.

Create a new Blazor MAUI app in Visual Studio

Create a Blazor MAUI App using Visual Studio via Microsoft templates. For detailed instructions, refer to the Blazor MAUI App Getting Started documentation.

Prerequisites

To use the MAUI project templates, install the Mobile development with the .NET extension for Visual Studio Code. For more details, refer to here or the Syncfusion® Blazor Extension.

Create a new Blazor MAUI app in Visual Studio Code

Create a Blazor MAUI App using Visual Studio Code via Microsoft templates or the Syncfusion® Blazor Extension. For detailed instructions, refer to the Blazor MAUI App Getting Started documentation.

Alternatively, create a MAUI application by using the following command in the integrated terminal (Ctrl+`).

dotnet new maui-blazor -o MauiBlazorApp
cd MauiBlazorApp

Install required Blazor packages

Install Syncfusion.Blazor.PivotTable and Syncfusion.Blazor.Themes NuGet packages using the NuGet Package Manager in Visual Studio (Tools → NuGet Package Manager → Manage NuGet Packages for Solution).

The packages can also be installed using the integrated terminal in Visual Studio Code or the .NET CLI. Run the following commands in the integrated terminal (Ctrl+`) or command line:

dotnet add package Syncfusion.Blazor.PivotTable --version 34.1.29
dotnet add package Syncfusion.Blazor.Themes --version 34.1.29

To install via Package Manager Console, run the following commands:

Install-Package Syncfusion.Blazor.PivotTable -Version 34.1.29
Install-Package Syncfusion.Blazor.Themes -Version 34.1.29

NOTE

All Syncfusion Blazor packages are available on nuget.org. See the NuGet packages topic for details.

Add import namespaces

After the packages are installed, open the ~/Components/_Imports.razor file and add the Syncfusion.Blazor and Syncfusion.Blazor.PivotView namespaces.

@using Syncfusion.Blazor
@using Syncfusion.Blazor.PivotView

Register Blazor service

Register the Blazor service in the ~/MauiProgram.cs file.

....
using Syncfusion.Blazor;

....

public static class MauiProgram
{
    public static MauiApp CreateMauiApp()
    {
        ....
        builder.Services.AddSyncfusionBlazor();
        ....
    }
}

Add stylesheet and script resources

The theme stylesheet and script can be accessed from NuGet through Static Web Assets. Include the stylesheet and script references in the ~/index.html file.

<link href="_content/Syncfusion.Blazor.Themes/fluent2.css" rel="stylesheet" />
<script src="_content/Syncfusion.Blazor.Core/scripts/syncfusion-blazor.min.js" type="text/javascript"></script>

NOTE

Check out the Blazor Themes topic to discover various methods (Static Web Assets, CDN, and CRG) for referencing themes in your Blazor application. Also, check out the Adding Script Reference topic to learn different approaches for adding script references in your Blazor application.

Add Blazor Pivot Table component

Add the Blazor Pivot Table component in the ~/Pages/Home.razor file.

@using Syncfusion.Blazor.PivotView

<SfPivotView TValue="ProductDetails" Height="300">
     <PivotViewDataSourceSettings DataSource="@dataSource">
        <PivotViewColumns>
            <PivotViewColumn Name="Year"></PivotViewColumn>
            <PivotViewColumn Name="Quarter"></PivotViewColumn>
        </PivotViewColumns>
        <PivotViewRows>
            <PivotViewRow Name="Country"></PivotViewRow>
            <PivotViewRow Name="Products"></PivotViewRow>
        </PivotViewRows>
        <PivotViewValues>
            <PivotViewValue Name="Sold" Caption="Units Sold"></PivotViewValue>
            <PivotViewValue Name="Amount" Caption="Sold Amount"></PivotViewValue>
        </PivotViewValues>
        <PivotViewFormatSettings>
            <PivotViewFormatSetting Name="Amount" Format="C"></PivotViewFormatSetting>
        </PivotViewFormatSettings>
    </PivotViewDataSourceSettings>
</SfPivotView>

@code{
    public List<ProductDetails> dataSource { get; set; }
    protected override void OnInitialized()
    {
        this.dataSource = ProductDetails.GetProductData().ToList();
    }
}
public class ProductDetails
{
    public int Sold { get; set; }
    public double Amount { get; set; }
    public string Country { get; set; }
    public string Products { get; set; }
    public string Year { get; set; }
    public string Quarter { get; set; }

    public static List<ProductDetails> GetProductData()
    {
        List<ProductDetails> productData = new List<ProductDetails>();
        productData.Add(new ProductDetails { Sold = 31, Amount = 52824, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 51, Amount = 86904, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q2" });
        productData.Add(new ProductDetails { Sold = 90, Amount = 153360, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q3" });
        productData.Add(new ProductDetails { Sold = 25, Amount = 42600, Country = "France", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q4" });
        productData.Add(new ProductDetails { Sold = 16, Amount = 27264, Country = "France", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 83, Amount = 124422, Country = "France", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 51, Amount = 92824, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2022", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 97, Amount = 86008, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2023", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 15, Amount = 137800, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 96, Amount = 77264, Country = "Germany", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 23, Amount = 24422, Country = "Germany", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 85, Amount = 237800, Country = "United States", Products = "Mountain Bikes", Year = "FY 2024", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 76, Amount = 97264, Country = "United States", Products = "Mountain Bikes", Year = "FY 2025", Quarter = "Q1" });
        productData.Add(new ProductDetails { Sold = 53, Amount = 94422, Country = "United States", Products = "Road Bikes", Year = "FY 2022", Quarter = "Q1" });
        return productData;
    }
}

How to run the sample on Windows

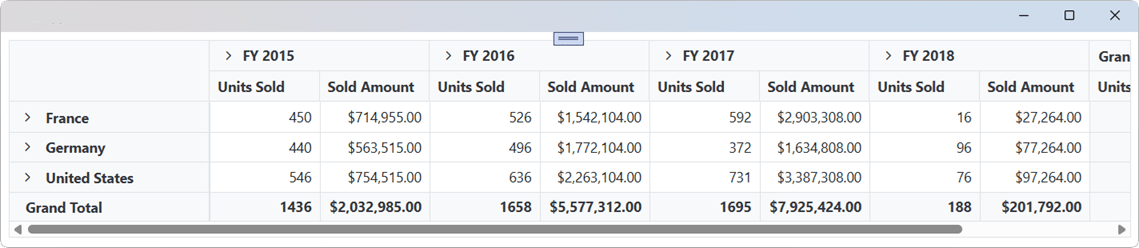

To see the Pivot Table in action, run your Blazor MAUI app on a Windows machine. The app will display the Pivot Table as shown below.

Blazor Pivot Table Component

How to run the sample on Android

To run the Blazor Pivot Table in your Blazor MAUI app on an Android emulator, follow the steps below.

  1. Set up and start the Android emulator. For help, see the Android Device Manager guide.

  2. Run your app using the emulator to view the Pivot Table, as shown below.

NOTE

If you face any issues with the Android emulator, check the Troubleshooting Android Emulator guide for solutions.

Blazor Pivot Table with Formatting

NOTE

View Sample in GitHub.
