Cards in .NET MAUI Kanban Board (SfKanban)

18 Nov 201820 minutes to read

The default elements of a card can be customized using the below properties of KanbanModel.

  • Title - Used to set the title of a card.
  • ImageURL - Used to set the image URL of a card. The image will be displayed at right side in default card template.
  • Category - Used to set the category of a card. Based on the category the cards will be added to the respective columns.
  • Description - Used to set the description text of a card.
  • IndicatorFill - Used to specify the indicator color of a card.
  • Tags - Used to specify the tags of a card. The tags will be displayed at bottom in default card template.
  • ID - Used to set the ID of a card.

NOTE

  • The image URL can be set in two ways: using an assembly reference or a local assembly. Ensure that the image is stored in the Resources/Images folder for assembly references.
  • When a custom data model is assigned to the ItemsSource property of the SfKanban control, each card’s BindingContext is set to an instance of that model. Therefore, bindings within the CardTemplate must directly reference the properties defined in the custom model.
  • The default card UI is not applicable when using a custom data model. To render the card content correctly, you must define a custom DataTemplate using the CardTemplate property.
  • C#
    • new KanbanModel()
{
    ID = 1,
    Title = "iOS - 1002",
    ImageURL = "Image1.png",
    Category = "Open",
    Description = "Analyze customer requirements",
    IndicatorFill = Colors.Red;
    Tags = new List<string> { "Incident", "Customer" }
});

    Template

    You can replace the entire card template with your own design using CardTemplate property of SfKanban. The following code snippet and screenshot illustrates this.

    <kanban:SfKanban.CardTemplate >

<DataTemplate>
    <StackLayout WidthRequest="250" Orientation="Vertical" BackgroundColor="Gray" Padding="10,10,10,10">

        <StackLayout  Orientation="Horizontal">

            <Label Text="{Binding Title}" TextColor="Silver" HorizontalOptions="StartAndExpand" >
            </Label>

        </StackLayout>

        <StackLayout  Orientation="Horizontal">

            <Label Text="{Binding Description}" WidthRequest="150" FontSize="14" TextColor="Silver" LineBreakMode="WordWrap" ></Label>
            <Image Source="{Binding ImageURL}" HeightRequest="50" WidthRequest="50"  ></Image>

        </StackLayout>

    </StackLayout>
</DataTemplate>

</kanban:SfKanban.CardTemplate>
    var cardTemplate = new DataTemplate(() =>
{

    StackLayout root = new StackLayout()
    {
        WidthRequest = 250,
        Orientation = StackOrientation.Vertical,
        Padding = new Thickness(10),
        BackgroundColor = Colors.Gray
    };

    HorizontalStackLayout titleLayout = new HorizontalStackLayout();
    Label title = new Label()
    {
        TextColor = Colors.Silver,
        HorizontalOptions = LayoutOptions.Start
    };
    title.SetBinding(Label.TextProperty, new Binding("Title"));
    titleLayout.Children.Add(title);

    StackLayout contentLayout = new StackLayout()
    {
        Orientation = StackOrientation.Horizontal
    };
    Label desc = new Label()
    {
        WidthRequest = 150,
        FontSize = 14,
        TextColor = Colors.Silver,
        LineBreakMode = LineBreakMode.WordWrap
    };
    desc.SetBinding(Label.TextProperty, new Binding("Description"));
    Image image = new Image()
    {
        HeightRequest = 50,
        WidthRequest = 50
    };
    image.SetBinding(Image.SourceProperty, new Binding("ImageURL"));
    contentLayout.Children.Add(desc);
    contentLayout.Children.Add(image);

    root.Children.Add(titleLayout);
    root.Children.Add(contentLayout);
    return root;
});

kanban.CardTemplate = cardTemplate;

    Creating a custom model

    You can also map a custom data model to the Kanban control. The following steps demonstrate how to render tasks using the .NET MAUI Kanban control with corresponding custom data properties.

    • Create a data model for Kanban: Create a simple data model in a new class file as shown in the following example code.

    • Create view model: Create a view model class to set values for the properties listed in the model class as shown in the following example code.

    • Bind item source for Kanban: To populate the Kanban card items, utilize the ItemsSource property of the SfKanban control. Additionally, ensure that the following properties of SfKanban are mapped from corresponding properties in the ItemsSource while initializing the Kanban control.

    The ColumnMappingPath specifies the name of the property within the data object that is used to generate columns in the Kanban control when AutoGenerateColumns is set to true.

    • Defining columns in the Kanban Board: The Columns in the Kanban board are mapped based on the values of a specified property (e.g., “Status”) from your custom data model. The ColumnMappingPath specifies the name of the property within the data object that is used to generate columns in the Kanban control when AutoGenerateColumns is set to true.

    Alternatively, you can manually define columns by setting AutoGenerateColumns to false and adding instances of KanbanColumn to the Columns collection of the SfKanban control. Based on the property specified in ColumnMappingPath, the Kanban control will generate the columns and render the corresponding cards accordingly.

    Let’s look at the practical code example:

    <kanban:SfKanban x:Name="kanban"
                 ItemsSource="{Binding TaskDetails}"
                 ColumnMappingPath="Status">
    <kanban:SfKanban.CardTemplate>
        <DataTemplate>
            <Border Stroke="Black"
                    StrokeThickness="1"
                    Background="#F3CFCE">
                <VerticalStackLayout Margin="10">
                    <Label Text="{Binding Title}"
                           HorizontalTextAlignment="Center"
                           FontAttributes="Bold"
                           FontSize="14" />
                    <Label Text="{Binding Description}"
                           HorizontalTextAlignment="Center"
                           FontSize="12"
                           LineBreakMode="WordWrap"
                           Margin="5" />
                </VerticalStackLayout>
            </Border>
        </DataTemplate>
    </kanban:SfKanban.CardTemplate>
    <kanban:SfKanban.BindingContext>
        <local:KanbanViewModel />
    </kanban:SfKanban.BindingContext>
</kanban:SfKanban>
    SfKanban kanban = new SfKanban();
KanbanViewModel viewModel = new KanbanViewModel();
kanban.ColumnMappingPath = "Status";
kanban.CardTemplate = new DataTemplate(() =>
{
    var titleLabel = new Label
    {
        HorizontalTextAlignment = TextAlignment.Center,
        FontAttributes = FontAttributes.Bold,
        FontSize = 14
    };

    titleLabel.SetBinding(Label.TextProperty, "Title");

    var descriptionLabel = new Label
    {
        HorizontalTextAlignment = TextAlignment.Center,
        FontSize = 12,
        LineBreakMode = LineBreakMode.WordWrap,
        Margin = new Thickness(5)
    };

    descriptionLabel.SetBinding(Label.TextProperty, "Description");

    var stackLayout = new VerticalStackLayout
    {
        Margin = new Thickness(10),
        Children = { titleLabel, descriptionLabel }
    };

    var border = new Border
    {
        Stroke = Colors.Black,
        StrokeThickness = 1,
        Background = Color.FromArgb("#F3CFCE"),
        Content = stackLayout
    };

    return border;
});

kanban.ItemsSource = viewModel.TaskDetails;
this.Content = kanban;
    public class TaskDetails
{
    public string Title { get; set; }
    public string Description  { get; set; }
    public object Status { get; set; }
}
    public class KanbanViewModel
{
    public ObservableCollection<TaskDetails> TaskDetails { get; set; }
    public KanbanViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    private ObservableCollection<TaskDetails> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<TaskDetails>();

        TaskDetails taskDetail = new TaskDetails();
        taskDetail.Title = "UWP Issue";
        taskDetail.Description = "Sorting is not working properly in DateTimeAxis";
        taskDetail.Status = "Postponed";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "WPF Issue";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Status = "Open";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Status = "In Progress";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "UWP Issue";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Status = "In Progress";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "WF Issue";
        taskDetail.Description = "HorizontalAlignment for tooltip is not working";
        taskDetail.Status = "In Progress";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "WPF Issue";
        taskDetail.Description = "In minimized state, first and last segments have incorrect spacing";
        taskDetail.Status = "Code Review";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "WPF Issue";
        taskDetail.Description = "In minimized state, first and last segments have incorrect spacing";
        taskDetail.Status = "Code Review";
        taskDetails.Add(taskDetail);

        taskDetail = new TaskDetails();
        taskDetail.Title = "New Feature";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Status = "Closed";
        taskDetails.Add(taskDetail);

        return taskDetails;
    }
}

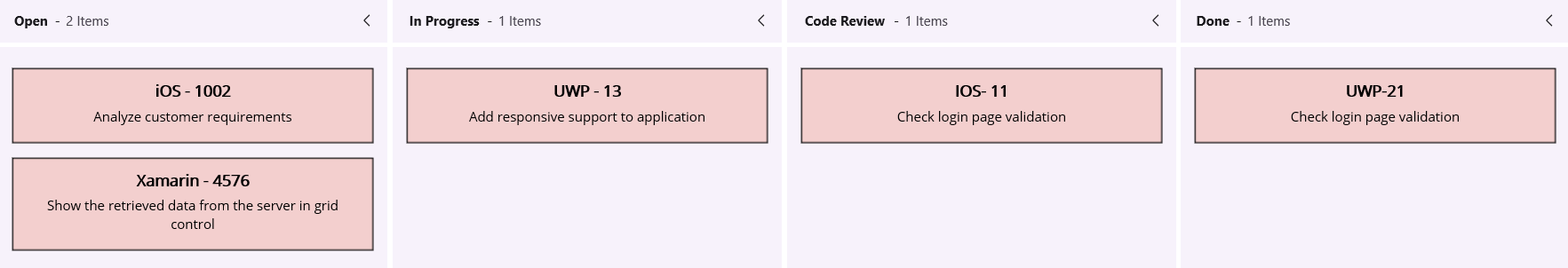

    The following screenshot illustrates the result of the above code.

    defining-columns-using-custom-modelin-maui-kanban

    NOTE

    When using a custom data model, the default card UI is not applicable. You must define a custom DataTemplate using the CardTemplate property to render the card content appropriately.

    Data template selector

    You can customize the appearance of each card with different templates based on specific constraints using DataTemplateSelector.

    Create a data template selector

    Create a custom class by inheriting DataTemplateSelector, and override the OnSelectTemplate method to return the DataTemplate for that item. At runtime, the SfKanban invokes the OnSelectTemplate method for each item and passes the data object as parameter.

    public class KanbanTemplateSelector : DataTemplateSelector
{
    private readonly DataTemplate menuTemplate;
    private readonly DataTemplate orderTemplate;
    private readonly DataTemplate readyToServeTemplate;
    private readonly DataTemplate deliveryTemplate;

    public KanbanTemplateSelector()
    {
        menuTemplate = new DataTemplate(typeof(MenuTemplate));
        orderTemplate = new DataTemplate(typeof(OrderTemplate));
        readyToServeTemplate = new DataTemplate(typeof(ReadyToServeTemplate));
        deliveryTemplate = new DataTemplate(typeof(DeliveryTemplate));
    }

    protected override DataTemplate OnSelectTemplate(object item, BindableObject container)
    {
        var data = item as CustomKanbanModel;
        if (data == null)
            return null;

        string category = data.Category?.ToString();

        return category.Equals("Menu") ? menuTemplate :
        category.Equals("Dining") || category.Equals("Delivery") ? orderTemplate :
        category.Equals("Ready to Serve") ? readyToServeTemplate : deliveryTemplate;
    }
}

    Applying the data template selector

    Assign custom DataTemplateSelector to the CardTemplate of the SfKanban in either XAML or C#.

    <ContentPage xmlns="http://schemas.microsoft.com/dotnet/2021/maui"
            xmlns:x="http://schemas.microsoft.com/winfx/2009/xaml"
            x:Class="SimpleSample.MainPage"
            xmlns:kanban="clr-namespace:Syncfusion.Maui.Kanban;assembly=Syncfusion.Maui.Kanban"
            xmlns:local="clr-namespace:SimpleSample;assembly=SimpleSample">

    <ContentPage.Resources>
        <ResourceDictionary>
        <local:KanbanTemplateSelector x:Key="kanbanTemplateSelector" />
        </ResourceDictionary>
    </ContentPage.Resources>

    <ContentPage.BindingContext>
        <local:KanbanCustomViewModel />
    </ContentPage.BindingContext>

    <kanban:SfKanban x:Name="kanban" HorizontalOptions="FillAndExpand"
                    VerticalOptions="FillAndExpand" ItemsSource="{Binding Cards}"
                    CardTemplate="{StaticResource kanbanTemplateSelector}" >

    ...

    </kanban:SfKanban>

</ContentPage>
    SfKanban kanban = new SfKanban();
kanban.ItemsSource = viewModel.Cards;
kanban.CardTemplate = new KanbanTemplateSelector();

    NOTE

    When using a custom data model, the default card UI is not applicable. To render the card content, you must define a custom DataTemplate using the CardTemplate property.
