Working with Cell Formatting

9 Apr 202113 minutes to read

This section covers the various formatting options in a cell or a range.

Create a Style

The following code shows how to create and apply cell style.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    //Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    //Creating a new style with all properties.
    final Style style = workbook.styles.add('Style1');
    // set back color by hexa decimal.
    style.backColor = '#FF5050';
    // set back color by RGB values.
    style.backColorRgb = Color.fromARGB(255, 34, 244, 0);
    // set font name.
    style.fontName = 'Aldhabi';
    // set font color by hexa decimal.
    style.fontColor = '#138939';
    // set font color by RGB values.
    style.fontColorRgb = Color.fromARGB(255, 244, 0, 34);
    // set font size.
    style.fontSize = 16;
    // set font bold.
    style.bold = true;
    // set font italic.
    style.italic = true;
    // set font underline.
    style.underline = true;
    // set rotation.
    style.rotation = 120;
    // set horizontal alignment.
    style.hAlign = HAlignType.center;
    // set veritical alignment.
    style.vAlign = VAlignType.bottom;
    // set indent value.
    style.indent = 1;
    // set top bordera line style.
    style.borders.top.lineStyle = LineStyle.double;
    // set top borders color by hexa decimal.
    style.borders.top.color = '#FFFF66';
    // set right bordera line style.
    style.borders.right.lineStyle = LineStyle.thick;
    // set right borders color by RGB values.
    style.borders.right.colorRgb = Color.fromARGB(255, 0, 34, 244);
    // set wrap text.
    style.wrapText = true;
    // set number format to cell.
    style.numberFormat = '_(\$* #,##0_)';

    // Add style.
    workbook.styles.addStyle(style);

    //Apply cellStyle.
    sheet.getRangeByName('A1').cellStyle = style;

    // Save and dispose the document.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('CreateCellStyle.xlsx').writeAsBytes(bytes);

    Apply Global Style

    The Flutter XlsIO adds styles globally that can be applied to one or more cells in a workbook. This is a recommended approach to apply single style in different rows and columns, which improves memory and performance considerably.

    The following code snippet illustrates how to apply global style.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    // Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    // Set value to cell.
    sheet.getRangeByName('A1').setText('Name');
    sheet.getRangeByName('A2').setText('John');
    sheet.getRangeByName('A3').setText('Ashok');
    sheet.getRangeByName('A4').setText('Vicki');
    sheet.getRangeByName('B1').setText('Mark1');
    sheet.getRangeByName('B2').setNumber(10);
    sheet.getRangeByName('B3').setNumber(39);
    sheet.getRangeByName('B4').setNumber(25);
    sheet.getRangeByName('C1').setText('Mark2');
    sheet.getRangeByName('C2').setNumber(49);
    sheet.getRangeByName('C3').setNumber(23);
    sheet.getRangeByName('C4').setNumber(13);
    sheet.getRangeByName('D1').setText('Mark3');
    sheet.getRangeByName('D2').setNumber(24);
    sheet.getRangeByName('D3').setNumber(30);
    sheet.getRangeByName('D4').setNumber(10);

    //Defining a global style with properties.
    final Style globalStyle = workbook.styles.add('globalStyle');
    globalStyle.backColor = '#37D8E9';
    globalStyle.fontName = 'Times New Roman';
    globalStyle.fontSize = 12;
    globalStyle.fontColor = '#C67878';
    globalStyle.italic = true;
    globalStyle.bold = true;
    globalStyle.underline = true;
    globalStyle.wrapText = true;
    globalStyle.hAlign = HAlignType.center;
    globalStyle.vAlign = VAlignType.center;
    globalStyle.borders.all.lineStyle = LineStyle.thick;
    globalStyle.borders.all.color = '#9954CC';

    final Style globalStyle1 = workbook.styles.add('globalStyle1');
    globalStyle1.fontSize = 14;
    globalStyle1.fontColor = '#362191';
    globalStyle1.hAlign = HAlignType.center;
    globalStyle1.vAlign = VAlignType.center;
    globalStyle1.borders.bottom.lineStyle = LineStyle.thin;
    globalStyle1.borders.bottom.color = '#829193';
    globalStyle1.numberFormat = '0.00';

    //Apply GlobalStyle
    sheet.getRangeByName('A1:D1').cellStyle = globalStyle;

    //Apply GlobalStyle1
    sheet.getRangeByName('B2:D4').cellStyle = globalStyle1;

    // Save and dispose the document.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('ApplyGlobalStyle.xlsx').writeAsBytes(bytes);

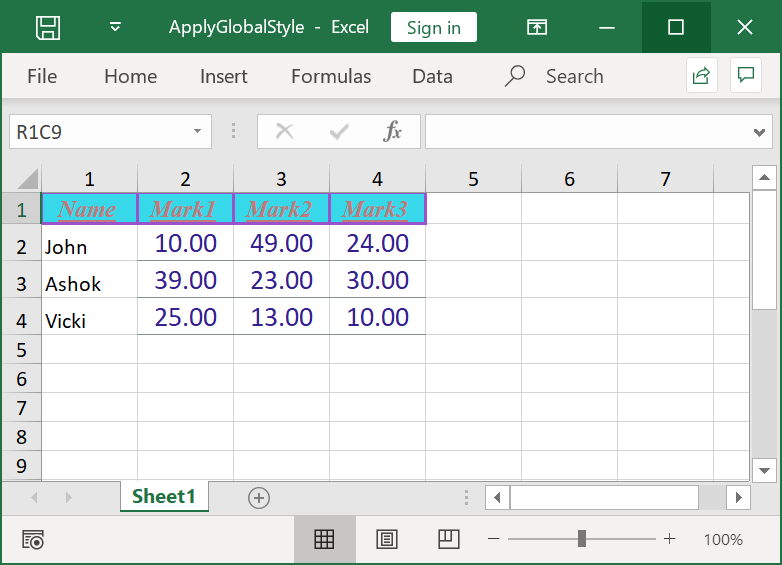

    globalstyle

    Apply Number Formats

    Number Formats are codes that helps to control the appearance of cell values especially numbers in an Excel document. Excel recognizes the numbers in various formats like:

    • Number
    • Currency
    • Percentage
    • DateTime
    • Accounting
    • Scientific
    • Fraction and
    • Text

    This number format can be of maximum 4 parts, separated by semicolons. They are:

    • Positive Numbers
    • Negative Numbers
    • Zeros
    • Text

    Each part is an individual number format. Default format is “General”, it means anything that will fit.

    The following table shows various custom formatting codes:

    Number Code Description
    General General number format.
    0 (zero) Digit placeholder. This code pads the value with zeros to fill the format.
    # Digit placeholder. This code does not display extra zeros.
    ? Digit placeholder. This code leaves a space for insignificant zeros but does not display them.
    . (period) Decimal placeholder. The decimal placeholder determines how many digits are displayed to the left and right of the decimal separator.
    % Percentage placeholder. Multiplies by 100 and adds the % character.
    , (comma) Thousands separator. A comma followed by a placeholder (0 or #) scales the number by a thousand.
    E+ E- e+ e- Scientific notation.
    Text Code Description
    $ - + / ( ) : space These characters are displayed in the number. To display any other character, enclose the character in quotation marks or precede it with a backslash.
    \character This code displays the succeeding character you specify.

    Note Typing !, ^, &, ', ~, {, }, =, <, or > automatically places a backslash in front of the character.
    "text" This code displays the text.
    * This code repeats the next character in the format to fill the column width.

    Note: Only one asterisk per section of a format is allowed.
    _ (underscore) This code skips the width of the next character. This code is commonly used as "_)" (without the quotation marks) to leave space for a closing parenthesis in a positive number format when the negative number format includes parentheses.

    This allows the values to line up at the decimal point.
    @ Text placeholder.
    Date Code Description
    m Month as a number without leading zeros (1-12).
    mm Month as a number with leading zeros (01-12).
    mmm Month as an abbreviation (Jan - Dec).
    mmmm Unabbreviated Month (January - December).
    d Day without leading zeros (1-31).
    dd Day with leading zeros (01-31).
    ddd Week day as an abbreviation (Sun - Sat).
    dddd Unabbreviated week day (Sunday - Saturday).
    yy Year as a two-digit number (for example, 96).
    yyyy Year as a four-digit number (for example, 1996).
    Time Code Description
    h Hours as a number without leading zeros (0-23).
    hh Hours as a number with leading zeros (00-23).
    m Minutes as a number without leading zeros (0-59).
    mm Minutes as a number with leading zeros (00-59).
    s Seconds as a number without leading zeros (0-59).
    ss Seconds as a number with leading zeros (00-59).
    AM/PM am/pm Time based on the twelve-hour clock.
    Miscellaneous Code Description
    [BLACK], [BLUE], [CYAN], [GREEN], [MAGENTA], [RED], [WHITE], [YELLOW], [COLOR n] These codes display the characters in the specified colors.

    Note: n is a value from 1 to 56 and refers to the nth color in the color palette.
    [Condition value] Condition may be <, >, =, >=, <=, <> and value may be any number.

    Note: A number format may contain up to two conditions.

    XlsIO provides support for reading and writing various built-in and custom number formats in a cell by using the NumberFormat property of Range class.

    The following code snippet illustrates how to set different number formats in a worksheet range.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    // Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    sheet.getRangeByName('A1').setText('DATA');
    sheet.getRangeByName('B1').setText('FORMAT');
    sheet.getRangeByName('C1').setText('RESULT');

    final Style headingStyle = workbook.styles.add('HeadingStyle');
    headingStyle.bold = true;
    headingStyle.hAlign = HAlignType.center;
    headingStyle.wrapText = true;
    sheet.getRangeByName('A1:C1').cellStyle = headingStyle;

    // Applying different number formats.
    sheet.getRangeByName('A2').setNumber(100.23);
    sheet.getRangeByName('B2').setText('0.00');
    sheet.getRangeByName('C2').numberFormat = ('0.00');
    sheet.getRangeByName('C2').setNumber(100.23);
    sheet.getRangeByName('A3').setNumber(43782);
    sheet.getRangeByName('B3').setText('###,##');
    sheet.getRangeByName('C3').numberFormat = '###,##';
    sheet.getRangeByName('C3').setNumber(43782);
    sheet.getRangeByName('A4').setNumber(-500);
    sheet.getRangeByName('B4').setText('[Blue]#,##0');
    sheet.getRangeByName('C4').numberFormat = '[Blue]#,##0';
    sheet.getRangeByName('C4').setNumber(-500);
    sheet.getRangeByName('A5').setNumber(0.0123);
    sheet.getRangeByName('B5').setText('0.0000');
    sheet.getRangeByName('C5').numberFormat = '0.0000';
    sheet.getRangeByName('C5').setNumber(0.0123);
    sheet.getRangeByName('A6').setNumber(1.20);
    sheet.getRangeByName('B6').setText('0.00E+00');
    sheet.getRangeByName('C6').numberFormat = '0.00E+00';
    sheet.getRangeByName('C6').setNumber(1.20);

    // Applying percentage format.
    sheet.getRangeByName('A7').setNumber(1.20);
    sheet.getRangeByName('B7').setText('0.00%');
    sheet.getRangeByName('C7').numberFormat = '0.00%';
    sheet.getRangeByName('C7').setNumber(1.20);

    // Applying date format.
    sheet.getRangeByName('A8').setText(DateTime(2005, 12, 25).toString());
    sheet.getRangeByName('B8').setText('m/d/yyyy');
    sheet.getRangeByName('C8').numberFormat = 'm/d/yyyy';
    sheet.getRangeByName('C8').setDateTime(DateTime(2005, 12, 25));

    // Applying currency format.
    sheet.getRangeByName('A9').setNumber(1.20);
    sheet.getRangeByName('B9').setText('\$#,##0.00');
    sheet.getRangeByName('C9').numberFormat = '\$#,##0.00';
    sheet.getRangeByName('C9').setNumber(1.20);

    // Applying accounting format.
    sheet.getRangeByName('A10').setNumber(234);
    sheet.getRangeByName('B10').setText('_(\$* #,##0_)');
    sheet.getRangeByName('C10').numberFormat = '_(\$* #,##0_)';
    sheet.getRangeByName('C10').setNumber(234);

    sheet.getRangeByName('A1').columnWidth = 21;
    sheet.getRangeByName('B1:C1').columnWidth = 13;

    // save and dispose workbook.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('NumberFormats.xlsx').writeAsBytes(bytes);

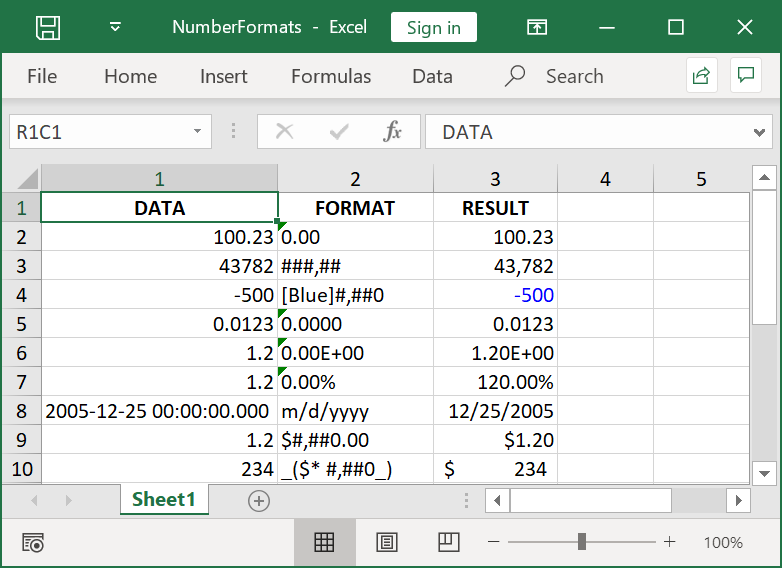

    numberformat

    Access display text

    Cell values can be accessed as text, number, dateTime and formula of Range class. In addition to this, there is another property DisplayText in Range, which returns a resultant value of a cell with its number format applied.

    The following code example illustrates how to display the text of a cell.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    // Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    final Range range1 = sheet.getRangeByIndex(1, 1);
    range1.numberFormat = '0%';

    // Set value to the cell.
    range1.setNumber(10);

    // Get display text of the cell.
    range1.displayText;

    // Save and dispose workbook.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('DisplayText.xlsx').writeAsBytes(bytes);

    Merging and Un-Merging Cells

    The cells can be merged using the merge() method in Range as shown as follows.

  • dart
  • // Merging Cells from A1 to A6
    sheet.getRangeByName('A1:A6').merge();

    Merged cells can be unmerged using the unmerge() method in Range as shown below.

  • dart
  • // UnMerging Cells from A1 to A6
    sheet.getRangeByName('A1:A6').unmerge();

    The below code shows merging and unmerging worksheet cells.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    // Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    //Merging Cells from A16 to C16.
    sheet.getRangeByName('A1:C16').merge();

    //UnMerging Cells from A1 to C16.
    sheet.getRangeByName('A1:C16').unmerge();

    // Save and dispose workbook.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('MergeUnMerge.xlsx').writeAsBytes(bytes);

    Apply Built-in Style

    The following code snippet explains how to add builtInStyle for a worksheet range.

  • dart
  • // Create a new Excel document.
    final Workbook workbook = Workbook();

    // Accessing worksheet via index.
    final Worksheet sheet = workbook.worksheets[0];

    // Set text worksheet.
    sheet.getRangeByName('A2').setText('Sample');

    // Set built in style.
    sheet.getRangeByName('A2').builtInStyle = BuiltInStyles.checkCell;

    // save and dispose workbook.
    final List<int> bytes = workbook.saveAsStream();
    workbook.dispose();

    File('BuiltInStyle.xlsx').writeAsBytes(bytes);
