Getting Started with Flutter Range Slider (SfRangeSlider)

18 Nov 201824 minutes to read

This section explains the steps required to add the range slider widget and its elements such as numeric and date values, ticks, labels and tooltips, covering only the basic features needed to get started with the Syncfusion® range slider.

To get started quickly with our Flutter Range Slider widget, check out this video.

Add Flutter range slider to an application

Create a simple project using the instructions given in the Getting Started with your first Flutter app documentation.

Add dependency

Add the Syncfusion® Flutter range slider dependency to your pubspec.yaml file.

dependencies:

syncfusion_flutter_sliders: ^xx.x.xx

NOTE

Here xx.x.xx denotes the current version of Syncfusion Flutter Sliders package.

Get packages

Run the following command to get the required packages.

flutter pub get

Import package

Import the following package in your Dart code.

import 'package:syncfusion_flutter_sliders/sliders.dart';

Initialize range slider

After importing the package, initialize the range slider widget as a child of any widget. Here, the range slider widget is added as a child of the Container widget. The default values of the min and max properties of the SfRangeSlider are 0.0 and 1.0 respectively. So, the values property must be given within the range.

NOTE

The range slider passes the new values to the onChanged callback but does not change its state until the parent widget rebuilds the range slider with the new values.

Horizontal

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(0.3, 0.7);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
            body: Center(
                child: Container(
                    child: SfRangeSlider(
                  values: _values,
                  onChanged: (SfRangeValues newValues) {
                    setState(() {
                      _values = newValues;
                    });
                  },
                )))));
  }
}

Default range slider

Vertical

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(0.3, 0.7);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
            body: Center(
                child: Container(
                    child: SfRangeSlider.vertical(
                  values: _values,
                  onChanged: (SfRangeValues newValues) {
                    setState(() {
                      _values = newValues;
                    });
                  },
                )))));
  }
}

Default range slider

Handle range change

The onChanged callback is used to get the current values of the range slider when the user selects a value through interaction.

NOTE

The range slider passes the new values to the callback but does not change its state until the parent widget rebuilds the range slider with the new values.

Horizontal

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(3.0, 7.0);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
            body: Center(
                child: SfRangeSlider(
      min: 0.0,
      max: 10.0,
      values: _values,
      onChanged: (SfRangeValues newValues) {
        setState(() {
          _values = newValues;
        });
      },
    ))));
  }
}

Handle range slider

Vertical

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(3.0, 7.0);

  @override
  Widget build(BuildContext context) {
    return MaterialApp(
        home: Scaffold(
            body: Center(
                child: SfRangeSlider.vertical(
      min: 0.0,
      max: 10.0,
      values: _values,
      onChanged: (SfRangeValues newValues) {
        setState(() {
          _values = newValues;
        });
      },
    ))));
  }
}

Handle range slider

Set numeric range

You can show numeric values in the range slider by setting double values to the min, max and values properties.

Horizontal

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showLabels: true,
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

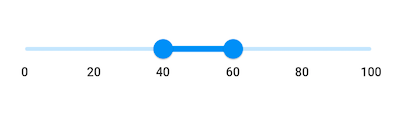

Numeric range slider

Vertical

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider.vertical(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showLabels: true,
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

Numeric range slider

Set date range

You can show date values in the range slider by setting DateTime values to the min, max and values properties.

NOTE

You must import intl package for formatting date range slider using the DateFormat class.

Horizontal

import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  DateTime _min = DateTime(2008, 01, 01);
  DateTime _max = DateTime(2018, 01, 01);
  SfRangeValues _values =
      SfRangeValues(DateTime(2012, 01, 01), DateTime(2014, 01, 01));

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider(
            min: _min,
            max: _max,
            values: _values,
            interval: 2,
            showLabels: true,
            dateIntervalType: DateIntervalType.years,
            dateFormat: DateFormat.y(),
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

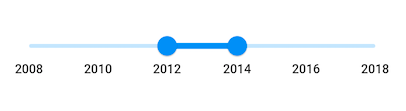

DateTime range slider

Vertical

import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  DateTime _min = DateTime(2008, 01, 01);
  DateTime _max = DateTime(2018, 01, 01);
  SfRangeValues _values =
      SfRangeValues(DateTime(2012, 01, 01), DateTime(2014, 01, 01));

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider.vertical(
            min: _min,
            max: _max,
            values: _values,
            interval: 2,
            showLabels: true,
            dateIntervalType: DateIntervalType.years,
            dateFormat: DateFormat.y(),
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

DateTime range slider

Enable ticks

You can enable ticks in the range slider using the showTicks property.

Horizontal

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showTicks: true,
            showLabels: true,
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

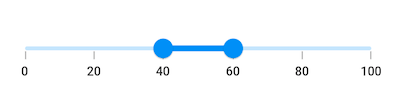

Numeric range slider

Vertical

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider.vertical(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showTicks: true,
            showLabels: true,
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

Numeric range slider

Inverse the horizontal range slider

You can invert the horizontal range slider by wrapping the range slider in the Directionality widget and setting the textDirection property to TextDirection.rtl. The Directionality widget only affects horizontal sliders; to invert a vertical range slider, use the isInversed property described in the Inverse the vertical range slider section.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(20.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Directionality(
        textDirection: TextDirection.rtl,
        child: SfRangeSlider(
          min: 0,
          max: 100,
          values: _values,
          interval: 20,
          showTicks: true,
          showLabels: true,
          onChanged: (SfRangeValues newValues) {
            setState(() {
              _values = newValues;
            });
          },
        ),
      ),
    );
  }
}

Inversed horizontal range slider

Inverse the vertical range slider

You can invert the vertical range slider using the isInversed property. The default value of the isInversed property is false.

import 'package:flutter/material.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  SfRangeValues _values = const SfRangeValues(20.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: SfRangeSlider.vertical(
        min: 0,
        max: 100,
        values: _values,
        interval: 20,
        isInversed: true,
        showTicks: true,
        showLabels: true,
        onChanged: (SfRangeValues newValues) {
          setState(() {
            _values = newValues;
          });
        },
      ),
    );
  }
}

Inversed vertical range slider

Add prefix/suffix to labels

You can add prefix or suffix to the labels using the numberFormat or dateFormat properties.

NOTE

The format type (numeric or date) of the range slider is determined based on the values specified in min, max and values properties.

IMPORTANT

You must import intl package for formatting date range slider using the DateFormat class and for formatting numeric range slider using the NumberFormat class.

Horizontal

import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showTicks: true,
            showLabels: true,
            numberFormat: NumberFormat("\$"),
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

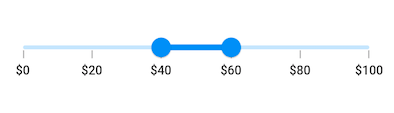

Format label

Vertical

import 'package:flutter/material.dart';
import 'package:intl/intl.dart';
import 'package:syncfusion_flutter_sliders/sliders.dart';

class HomePage extends StatefulWidget {
  @override
  _HomePageState createState() => _HomePageState();
}

class _HomePageState extends State<HomePage> {
  final double _min = 0;
  final double _max = 100;
  SfRangeValues _values = const SfRangeValues(40.0, 60.0);

  @override
  Widget build(BuildContext context) {
    return Scaffold(
      body: Center(
        child: Container(
          child: SfRangeSlider.vertical(
            min: _min,
            max: _max,
            values: _values,
            interval: 20,
            showTicks: true,
            showLabels: true,
            numberFormat: NumberFormat("\$"),
            onChanged: (SfRangeValues value) {
              setState(() {
                _values = value;
              });
            },
          ),
        ),
      ),
    );
  }
}

Format label
