Appearance customization in Flutter Pyramid Chart (SfPyramidChart)

16 Oct 20236 minutes to read

Chart sizing

Chart renders based on the parent widget size. If you need the chart to be rendered in specific size, then set the size(width/height) to the parent widget.

DART
@override
    Widget build(BuildContext context) {
      final List<ChartData> chartData = [
            ChartData('Jan', 35),
            ChartData('Feb', 28),
            ChartData('Mar', 38),
            ChartData('Apr', 32),
            ChartData('May', 40)
        ];
        return Scaffold(
          body: Center(
            child: Container(
              height: 300,
              width: 350,
              child: SfPyramidChart(
                series: PyramidSeries<ChartData, String>(
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                yValueMapper: (ChartData data, _) => data.y)
               )
             )
           )
         );
        }
    class ChartData {
      ChartData(this.x, this.y);
      final String x;
      final double y;
    }

Chart margin

Margin to the chart can be specified using the margin property.

DART
@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
            child: Container(
              child: SfPyramidChart(
                borderColor: Colors.red,
              borderWidth: 2,
              margin: EdgeInsets.all(15),
              series: PyramidSeries<ChartData, String>(
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                yValueMapper: (ChartData data, _) => data.y)
              )
            )
          )
      );
    }

margin

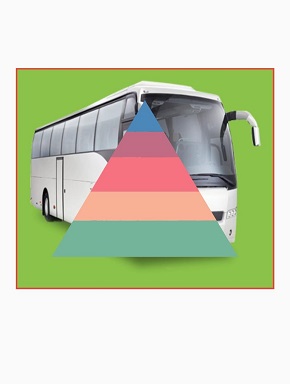

Chart area customization

You can customize the area of the chart using the below properties.

backgroundColor - used to change the chart area background color.
backgroundImage - used to set the image path.

DART
@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Center(
            child: Container(
              height: 300,
              width: 350,
              child: SfPyramidChart(
                backgroundColor: Colors.lightGreen,
                backgroundImage: AssetImage('images/liveChart.png'),
                series: PyramidSeries<ChartData, String>(
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                yValueMapper: (ChartData data, _) => data.y,)
              )
            )
          )
        );
      }

customization
