Right To Left (RTL) in Flutter Circular Chart (SfCircularChart)

13 Oct 20238 minutes to read

Circular chart supports right to left rendering. But series and other chart elements rendering will be the same for both LTR and RTL except legend and tooltip.

RTL rendering ways

Right to left rendering can be switched in the following ways:

Wrapping the SfCircularChart with Directionality widget

To change the rendering direction from right to left, you can wrap the SfCircularChart widget inside the Directionality widget and set the textDirection property as TextDirection.rtl.

@override
    Widget build(BuildContext context) {
      return Scaffold(
        body: Directionality(
          textDirection: TextDirection.rtl,
          child: SfCircularChart(
              //...
          ),
        ),
      );
    }

Changing the locale to RTL languages

To change the chart rendering direction from right to left, you can change the locale to any of the RTL languages such as Arabic, Persian, Hebrew, Pashto, and Urdu.

/// Package import
    import 'package:flutter_localizations/flutter_localizations.dart';
    import 'package:syncfusion_localizations/syncfusion_localizations.dart';

    // ...

    @override
    Widget build(BuildContext context) {
      return MaterialApp(
        localizationsDelegates: [
          GlobalMaterialLocalizations.delegate,
          GlobalWidgetsLocalizations.delegate,
        ],
        supportedLocales: <Locale>[
          Locale('en'),
          Locale('ar'),
          // ... other locales the app supports
        ],
        locale: Locale('ar'),
        home: Scaffold(
          body: SfCircularChart(
            //...
          ),
        )
      );
    }

RTL supported chart elements

Legend

Right to left rendering is effective for the legend in the chart. Legend items will be rendered from right to left direction. i.e. the legend text will appear on the left first, followed by the legend icon on the right.

@override
    Widget build(BuildContext context) {
      final List<ChartData> chartData = <ChartData>[
        ChartData('Jan', 24),
        ChartData('Feb', 20),
        ChartData('Mar', 35),
        ChartData('Apr', 27),
        ChartData('May', 30),
      ];
      return Scaffold(
        body: Directionality(
          textDirection: TextDirection.rtl,
          child: SfCircularChart(
            legend: Legend(
              isVisible: true
            ),
            series: <CircularSeries<ChartData, String>>[
              PieSeries<ChartData, String>(
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                yValueMapper: (ChartData data, _) => data.y,
              )
            ]
          )
        )
      );
    }

    class ChartData {
      ChartData(this.x, this.y);
        final String x;
        final int y;
    }

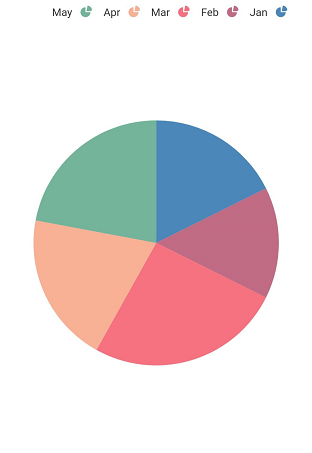

Legend RTL

Tooltip

Right-to-left rendering is applicable for tooltip elements. Here, the tooltip content renders at first and followed by that the marker on the right. By default, the tooltip content will be point.x : point.y, in RTL rendering the tooltip content will be point.y : point.x. If you wish the format to be applied as it is despite RTL rendering in this case, you can make use of onTooltipRender callback.

late TooltipBehavior _tooltipBehavior;

    @override
    void initState(){
      _tooltipBehavior = TooltipBehavior(enable: true);
      super.initState();
    }

    @override
    Widget build(BuildContext context) {
      final List<ChartData> chartData = <ChartData>[
        ChartData('Jan', 24),
        ChartData('Feb', 20),
        ChartData('Mar', 35),
        ChartData('Apr', 27),
        ChartData('May', 30),
      ];
      return Scaffold(
        body: Directionality(
          textDirection: TextDirection.rtl,
          child: SfCircularChart(
            tooltipBehavior: _tooltipBehavior,
            series: <CircularSeries<ChartData, String>>[
              PieSeries<ChartData, String>(
                dataSource: chartData,
                xValueMapper: (ChartData data, _) => data.x,
                yValueMapper: (ChartData data, _) => data.y,
              )
            ]
          )
        )
      );
    }

    class ChartData {
      ChartData(this.x, this.y);
        final String x;
        final int y;
    }

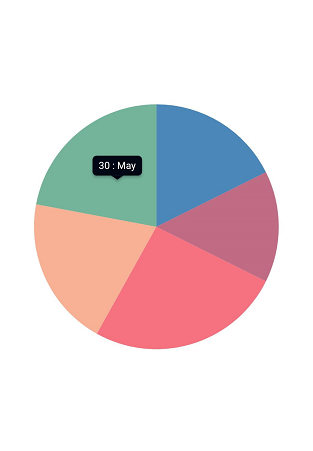

Tooltip RTL
