Data label in Flutter Circular Charts (SfCircularChart)

11 Apr 202224 minutes to read

Data label can be added to a chart series by enabling the isVisible property in the dataLabelSettings. You can use the following properties to customize the appearance.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child: SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, double>(
                                dataSource: chartData,
                                pointColorMapper: (ChartData data, _) => data.color,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelSettings: DataLabelSettings(
                                    // Renders the data label
                                    isVisible: true
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

DataLabel

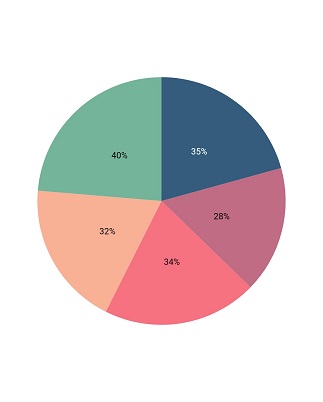

Formatting label content

Data label considers the format used in the Circular series by default. In the below code snippet, we have specified format for the data label in the dataLabelMapper and you can see that the same format is applied to the data label.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child: SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, double>(
                                dataSource: [
                                    // Bind data source
                                   ChartData('Jan', 35, '35%'),
                                   ChartData('Feb', 28, '28%'),
                                   ChartData('Mar', 34, '34%'),
                                   ChartData('Apr', 32,  '32%'),
                                   ChartData('May', 40, '40%')
                                ],
                                color: Colors.red,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelMapper: (ChartData data, _) => data.text,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

DataLabel format

Positioning the labels

The labelAlignment property is used to position the Circular chart type data labels at ChartDataLabelAlignment.top, ChartDataLabelAlignment.bottom, ChartDataLabelAlignment.auto, ChartDataLabelAlignment.outer and ChartDataLabelAlignment.middle position of the actual data point position. By default, labels are ChartDataLabelAlignment.auto positioned. You can move the labels horizontally and vertically using OffsetX and OffsetY properties respectively.

The labelPosition property is used to place the circular series data labels either ChartDataLabelPosition.inside or ChartDataLabelPosition.outside. By default the label of circular chart is placed ChartDataLabelPosition.inside the series.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child: SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, double>(
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true,
                                    // Positioning the data label
                                    labelPosition: ChartDataLabelPosition.outside
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

Data label position

Note: The labelAlignment property is used to position the Cartesian chart labels whereas labelPosition property is used to position the circular chart labels.

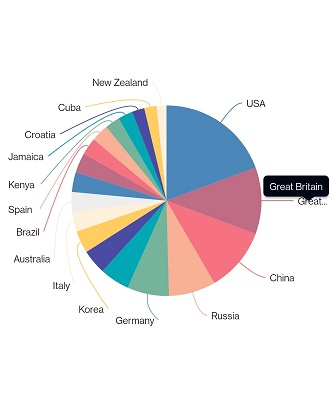

Smart labels

This feature is used to arrange the data labels smartly and avoid the intersection when there is overlapping of labels. The enum property called the LabelIntersectAction.shift in labelIntersectAction is used to arrange the data labels smartly when labels get intersect. By default, the label intersection action property is LabelIntersectAction.shift.

If the labelPosition is ChartDataLabelPosition.inside and the labelIntersectAction is LabelIntersectAction.shift, then the overlapped labels will shift to outside the slices and arrange smartly. If the labelPosition is ChartDataLabelPosition.inside and the labelIntersectAction is LabelIntersectAction.hide, then the overlapped labels will be hidden.

If the labelPosition is ChartDataLabelPosition.outside and the labelIntersectAction is LabelIntersectAction.shift, then the overlapped labels arrange smartly. If the labelPosition is ChartDataLabelPosition.outside and the labelIntersectAction is LabelIntersectAction.hide, then the overlapped labels will be hidden.

If the labelIntersectAction is LabelIntersectAction.none, then the overlapped labels will be visible irrespective of labelPosition.

When the labelIntersectAction is LabelIntersectAction.shift, and if the data label goes out of the chart area, then the labels got trimmed and the tooltip is shown when clicking/tapping the data label. The values of the labelIntersectAction are listed below.

Note: The smart label positioning is applicable only for the pie and doughnut series.

@override
    Widget build(BuildContext context) {
      final List<ChartData> chartData = <ChartData>[
          ChartData(x: 'USA', y: 46),
          ChartData(x: 'Great Britain', y: 27),
          ChartData(x: 'China', y: 26),
          ChartData(x: 'Russia', y: 19),
          ChartData(x: 'Germany', y: 17),
          ChartData(x: 'Japan', y: 12),
          ChartData(x: 'France', y: 10),
          ChartData(x: 'Korea', y: 9),
          ChartData(x: 'Italy', y: 8),
          ChartData(x: 'Australia', y: 8),
          ChartData(x: 'Netherlands', y: 8),
          ChartData(x: 'Hungary', y: 8),
          ChartData(x: 'Brazil', y: 7),
          ChartData(x: 'Spain', y: 7),
          ChartData(x: 'Kenya', y: 6),
          ChartData(x: 'Jamaica', y: 6),
          ChartData(x: 'Croatia', y: 5),
          ChartData(x: 'Cuba', y: 5),
          ChartData(x: 'New Zealand', y: 4)
      ];
      return SfCircularChart(
        series: <CircularSeries<ChartData, String>>[
          PieSeries<ChartData, String>(
            dataSource: chartData,
            xValueMapper: (ChartData data, _) => data.x,
            yValueMapper: (ChartData data, _) => data.y,
            dataLabelMapper: (ChartData data, _) => data.x,
            radius: '60%',
            dataLabelSettings: DataLabelSettings(
              isVisible: true,
              // Avoid labels intersection
              labelIntersectAction: LabelIntersectAction.shift,
              labelPosition: ChartDataLabelPosition.outside,
              connectorLineSettings: ConnectorLineSettings(
                type: ConnectorType.curve, length: '25%')
              )
          )
        ]);
    }

    class ChartData {
      ChartData({this.x, this.y});
      final String? x;
      final num? y;
    }

Smart labels

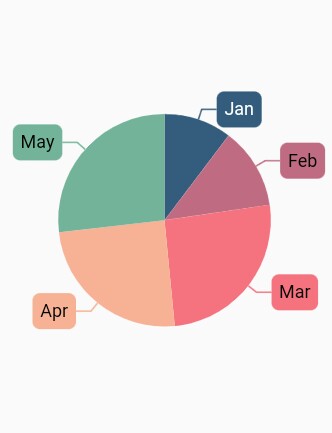

Apply series color

The useSeriesColor property is used to apply the series color to background color of the data labels. The default value of this property is false.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child:SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, double>(
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelMapper: (ChartData data, _) => data.x,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true,
                                    labelPosition: ChartDataLabelPosition.outside,
                                    // Renders background rectangle and fills it with series color
                                    useSeriesColor: true
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

Series color

Connector line

This feature is used to connect label and data point using a line. It is applicable only for PieSeries and DoughnutSeries chart types. The connectorLineSettings property can be used to customize the connector line.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child: SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, double>(
                                enableSmartLabels: true,
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true,
                                    labelPosition: ChartDataLabelPosition.outside,
                                    connectorLineSettings: ConnectorLineSettings(
                                        // Type of the connector line
                                        type: ConnectorType.curve
                                    )
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

Connector line

Point text mapping

The dataLabelMapper property is used to map the text from data source.

@override
    Widget build(BuildContext context) {
        final List<ChartData> chartData = [
            ChartData('USA', 17, '17%'),
            ChartData('China', 34, '34%'),
            ChartData('Japan', 24, '24%'),
            ChartData('Africa', 30, '30%'),
            ChartData('UK', 10, '10%')
        ];

        return Scaffold(
            body: Center(
                child: Container(
                    child:SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, String>(
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                // Map the data label text for each point from the data source
                                dataLabelMapper: (ChartData data, _) => data.text,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

    class ChartData {
        ChartData(this.x, this.y, this.text);
        final String x;
        final double y;
        final String text;
    }

Data label mapper

Templating the labels

You can customize the appearance of the data label with your own template using the builder property of dataLabelSettings.

@override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child:SfCircularChart(
                        series: <CircularSeries>[
                            PieSeries<ChartData, String>(
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.x,
                                yValueMapper: (ChartData data, _) => data.y,
                                dataLabelMapper: (ChartData data, _) => data.text,
                                dataLabelSettings: DataLabelSettings(
                                    isVisible: true,
                                    // Templating the data label
                                    builder: (dynamic data, dynamic point, dynamic series, int pointIndex, int seriesIndex) {
                                        return Container(
                                        height: 30,
                                        width: 30,
                                        child: Image.asset('images/livechart.png')
                                        );
                                    }
                                )
                            )
                        ]
                    )
                )
            )
        );
    }

Label template

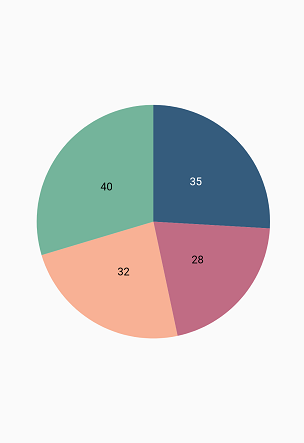

Hide data label for 0 value

Data label and its connector line in the Circular charts for the point value 0 can be hidden using the showZeroValue property. This defaults to true.

final List<ChartData> chartData = <ChartData>[
        ChartData('Jan', 35),
        ChartData('Feb', 28),
        ChartData('March', 0),
        ChartData('April', 32),
        ChartData('May', 40)
    ];

    @override
    Widget build(BuildContext context) {
        return Scaffold(
            body: Center(
                child: Container(
                    child:SfCircularChart(
                        series: <CircularSeries<ChartData, String>>[
                            PieSeries<ChartData, String>(
                                dataSource: chartData,
                                xValueMapper: (ChartData data, _) => data.xValue,
                                yValueMapper: (ChartData data, _) => data.yValue,
                                dataLabelSettings: DataLabelSettings(
                                    showZeroValue : false,
                                    isVisible: true
                                )
                            )
                        ],
                    )
                )
            )
        );
    }

datalabel0value

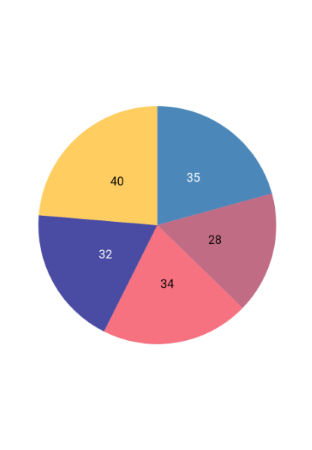

Data label saturation color

If the user didn’t provide text color to the data label, then by default, the saturation color is applied to the data label text. i.e., if the data points background color intensity is dark, then the data label will render in white color (#FFFFFF) and if the data points background color intensity is light, data label will render in black color (#000000).

label_saturation

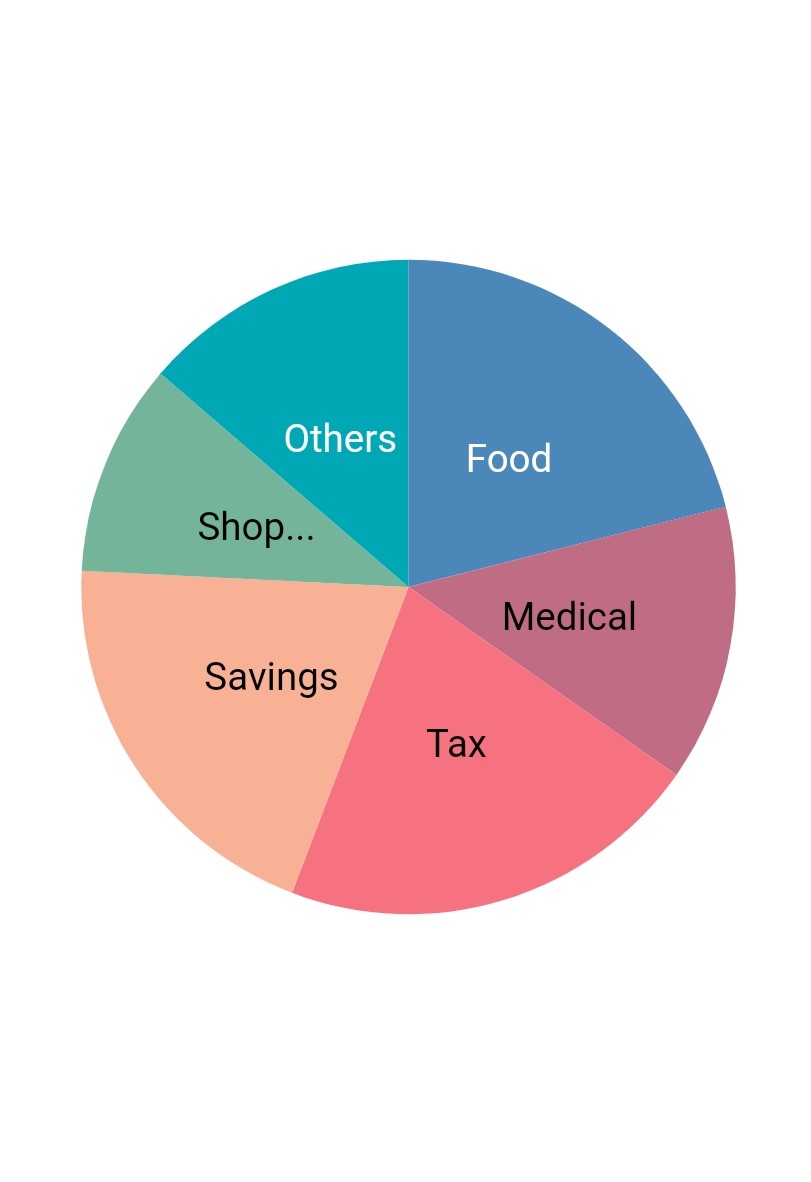

Overflow mode

Action on data labels when it’s overflowing from its region area. The overflowing data label rendering behavior can be changed based on this. If overflowMode property is set to OverflowMode.none then the labelIntersectAction takes the priority, else overflowMode takes the priority.

Defaults to OverflowMode.none.

Note: This is applicable for pie, doughnut, pyramid, and funnel series types alone.

Widget build(BuildContext context) {
        return Container(
             child: SfCircularChart(
            series: <PieSeries<ChartData, String>>[
             PieSeries<ChartData, String>(
             dataLabelSettings: DataLabelSettings(
             isVisible: true,
             overflowMode: OverflowMode.trim
                        ),
                    ),
                ],
            )
        );
    }

dataLabel_overflow
