Appointments in Flutter Event Calendar (SfCalendar)

9 Jul 202124 minutes to read

SfCalendar widget has a built-in capability to handle the appointment arrangement internally based on the CalendarDataSource. Appointment is a class, which holds the details about the appointment to be rendered in calendar.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.week,
          dataSource: _getCalendarDataSource(),
        ),
      ),
    ),
  );
}

_AppointmentDataSource _getCalendarDataSource() {
  List<Appointment> appointments = <Appointment>[];
  appointments.add(Appointment(
    startTime: DateTime.now(),
    endTime: DateTime.now().add(Duration(minutes: 10)),
    subject: 'Meeting',
    color: Colors.blue,
    startTimeZone: '',
    endTimeZone: '',
  ));

  return _AppointmentDataSource(appointments);
}

class _AppointmentDataSource extends CalendarDataSource {
  _AppointmentDataSource(List<Appointment> source){
   appointments = source;
  }
}

Calendar data source and mapping

CalendarDataSource is an abstract class used to set the appointment datasource for calendar and has properties to map the custom appointments to the calendar Appointment. Calendar supports full data binding to any type of List source. Specify the corresponding property override method to map the properties in the underlying data source to the calendar appointments in CalendarDataSource.

Property Name Description
getStartTime Maps the property name of custom class, which is equivalent for startTime of Appointment.
getEndTime Maps the property name of custom class, which is equivalent for endTime of Appointment.
getStartTimeZone Maps the property name of custom class, which is equivalent for startTimeZone of Appointment.
getEndTimeZone Maps the property name of custom class, which is equivalent for endTimeZone of Appointment.
getSubject Maps the property name of custom class, which is equivalent for subject of Appointment.
getColor Maps the property name of custom class, which is equivalent for color of Appointment.
isAllDay Maps the property name of custom class, which is equivalent for isAllDay of Appointment.
getRecurrenceRule Maps the property name of custom class, which is equivalent for recurrenceRule of Appointment.
getNotes Maps the property name of custom class which is equivalent for notes of Appointment.
getLocation Maps the property name of custom class, which is equivalent for location of Appointment.
getRecurrenceExceptionDates Maps the property name of custom class, which is equivalent for recurrenceExceptionDates of Appointment.

NOTE

  • Custom appointment class should contain two date time fields as mandatory.
class MeetingDataSource extends CalendarDataSource {
  MeetingDataSource(List<Meeting> source){
    appointments = source;
  }

  @override
  DateTime getStartTime(int index) {
    return appointments![index].from;
  }

  @override
  DateTime getEndTime(int index) {
    return appointments![index].to;
  }

  @override
  bool isAllDay(int index) {
    return appointments![index].isAllDay;
  }

  @override
  String getSubject(int index) {
    return appointments![index].eventName;
  }

  @override
  String getStartTimeZone(int index) {
    return appointments![index].startTimeZone;
  }

  @override
  String getEndTimeZone(int index) {
    return appointments![index].endTimeZone;
  }

  @override
  Color getColor(int index) {
    return appointments![index].background;
  }
}

You must call the notifier of the CalendarDataSource when the datasource collection is modified to reflect the changes on UI that is an appointment added to the datasource or removed from the datasource.

events.dataSource.clear();
events.notifyListeners(CalendarDataSourceAction.reset, null);

Creating business objects

You can create a custom class Meeting with mandatory fields from, and to.

class Meeting {
  Meeting({this.eventName = '', required this.from, required this.to, required this.background, this.isAllDay = false});

  String eventName;
  DateTime from;
  DateTime to;
  Color background;
  bool isAllDay;
}

You can map those properties of Meeting class with our calendar widget by using the CalendarDataSource override methods properties.

class MeetingDataSource extends CalendarDataSource {
  MeetingDataSource(List<Meeting> source){
    appointments = source;
  }

  @override
  DateTime getStartTime(int index) {
    return appointments![index].from;
  }

  @override
  DateTime getEndTime(int index) {
    return appointments![index].to;
  }

  @override
  bool isAllDay(int index) {
    return appointments![index].isAllDay;
  }

  @override
  String getSubject(int index) {
    return appointments![index].eventName;
  }

  @override
  String getStartTimeZone(int index) {
    return appointments![index].startTimeZone;
  }

  @override
  String getEndTimeZone(int index) {
    return appointments![index].endTimeZone;
  }

  @override
  Color getColor(int index) {
    return appointments![index].background;
  }
}

You can schedule meetings for a day by setting From and To of Meeting class. Create meetings of type List<Meeting> and assign those appointments collection Meetings to the appointments property of CalendarDataSource.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.week,
          dataSource: _getCalendarDataSource(),
        ),
      ),
    ),
  );
}

MeetingDataSource _getCalendarDataSource() {
  List<Meeting> meetings = <Meeting>[];
  meetings.add(Meeting(
      eventName: 'meeting',
      from: DateTime(2019, 12, 18, 10),
      to: DateTime(2019, 12, 18, 12),
      background: Colors.green,
      isAllDay: false));

  return MeetingDataSource(meetings);
}

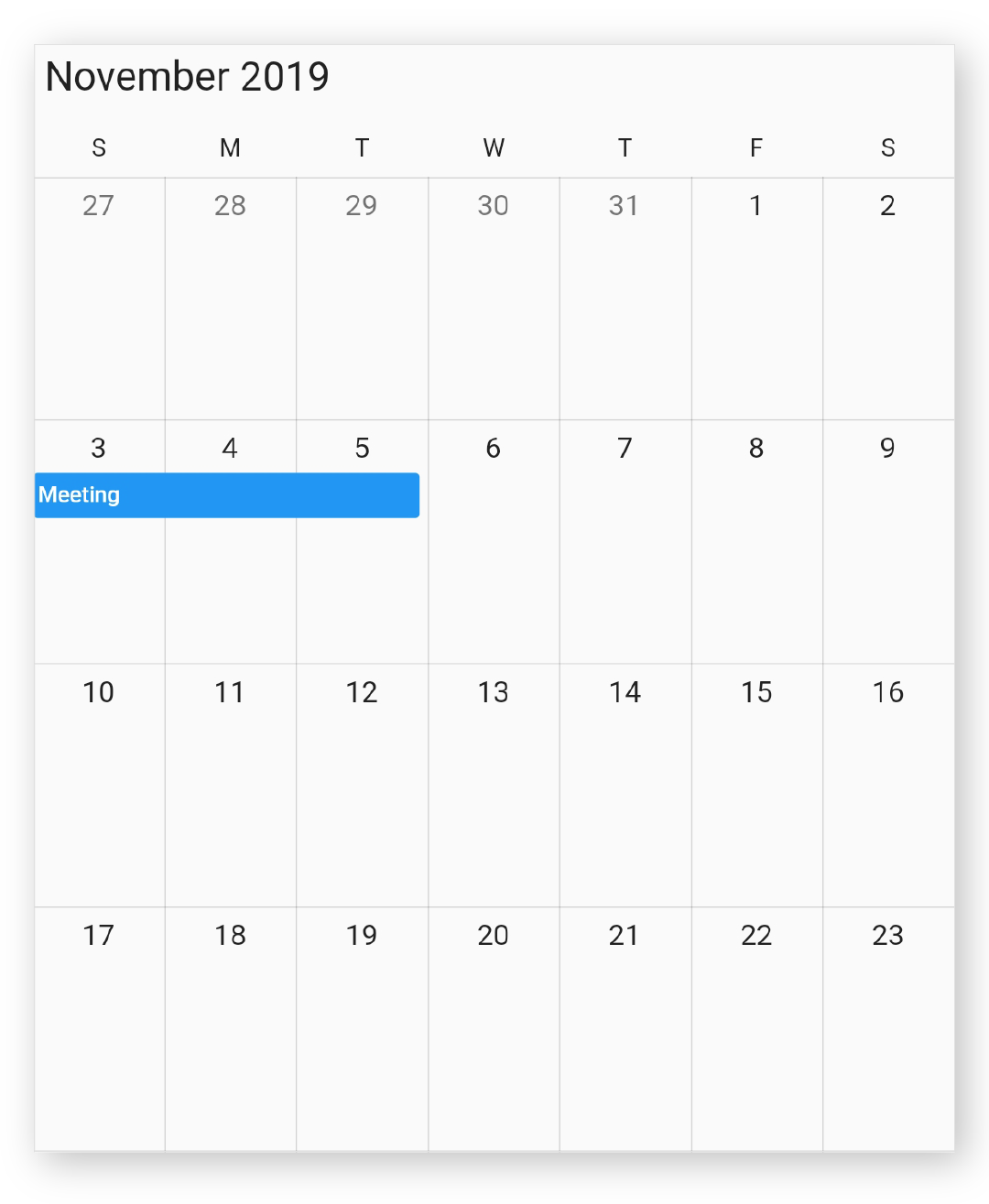

Spanned appointments

Spanned Appointment is an appointment, which lasts more than 24 hours. It does not block out time slots in SfCalendar, it will render in All-Day appointment panel exclusively.

MeetingDataSource _getCalendarDataSource() {
  List<Meeting> meetings = <Meeting>[];
  meetings.add(Meeting(
      eventName: 'meeting',
      from: DateTime(2019, 11, 03, 10),
      to: DateTime(2019, 11, 05, 12),
      background: Colors.blue));

  return MeetingDataSource(meetings);
}

Spanned appointments

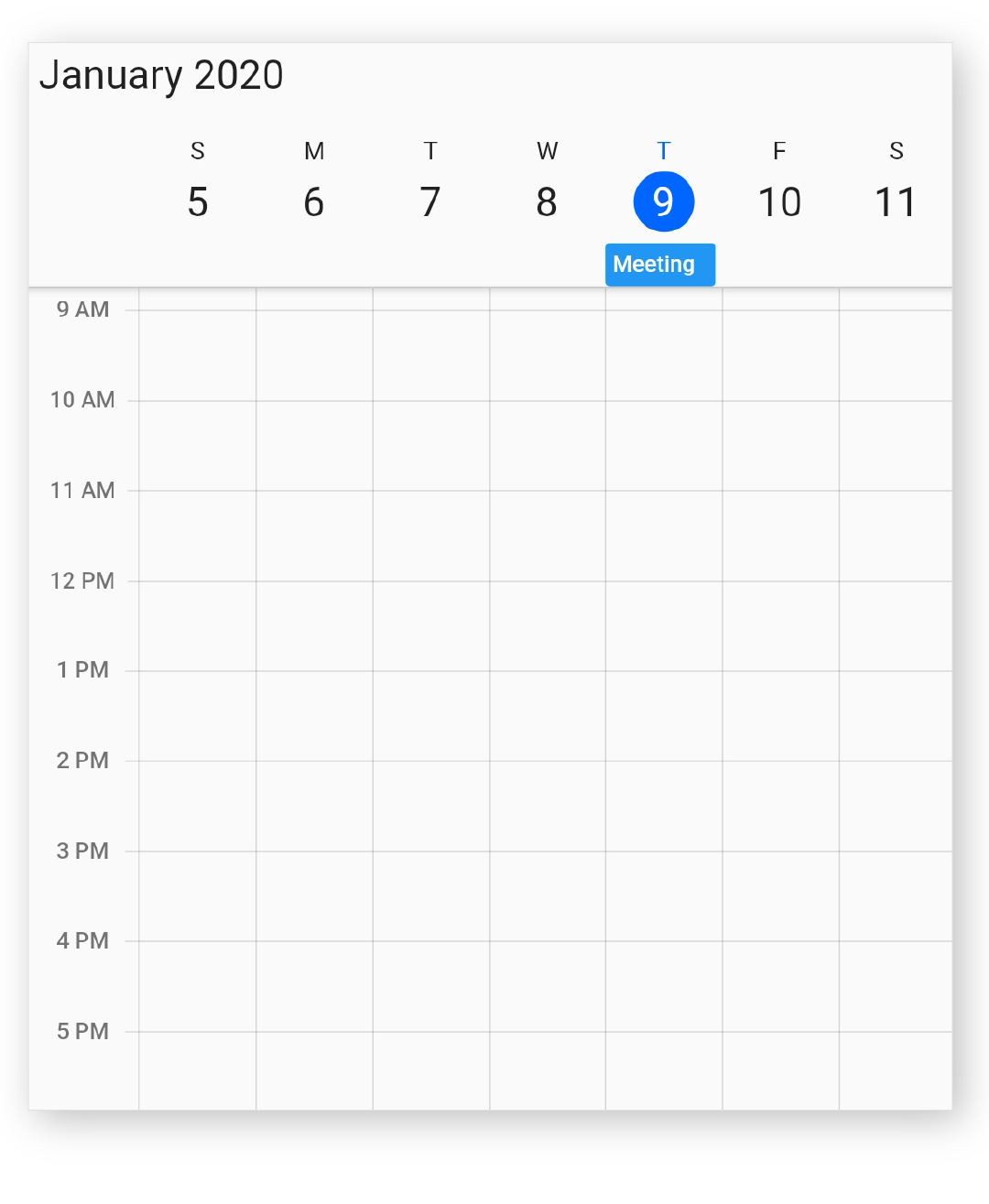

All day appointment

All-Day appointment is an appointment which is scheduled for a whole day. It can be set by using the isAllDay property in the Appointment.

_AppointmentDataSource _getCalendarDataSource() {
  List<Appointment> appointments = <Appointment>[];
  appointments.add(Appointment(
    startTime: DateTime.now(),
    endTime: DateTime.now().add(Duration(minutes: 10)),
    subject: 'Meeting',
    color: Colors.blue,
    isAllDay: true,
  ));

  return _AppointmentDataSource(appointments);
}

All day appointment

NOTE

  • Appointment which lasts through an entire day (exact 24 hours) will be considered as all day appointment without setting the IsAllDay property. For example, 06/12/2019 12:00AM to 06/12/2019 12:00AM.

Recurrence appointment

Recurring appointment on a daily, weekly, monthly, or yearly interval. Recurring appointments can be created by setting the recurrenceRule property in Appointment.

Recurrence rule

The recurrenceRule is a string value (RRULE) that contains the details of the recurrence appointments such as repeat type - daily/weekly/monthly/yearly, how many times it needs to be repeated, the interval duration, also the time period to render the appointment, and more. The recurrenceRule has the following properties and based on this property value, the recurrence appointments are rendered in the SfCalendar widget with its respective time period.

PropertyName Purpose
FREQ Maintains the Repeat type value of the appointment. (Example: Daily, Weekly, Monthly, Yearly, Every week day) Example: FREQ=DAILY;INTERVAL=1
INTERVAL Maintains the interval value of the appointments. For example, when you create the daily appointment at an interval of 2, the appointments are rendered on the days Monday, Wednesday and Friday. (creates the appointment on all days by leaving the interval of one day gap) Example: FREQ=DAILY;INTERVAL=1
COUNT It holds the appointment’s count value. For example, when the recurrence appointment count value is 10, it means 10 appointments are created in the recurrence series. Example: FREQ=DAILY;INTERVAL=1;COUNT=10
UNTIL This property is used to store the recurrence end date value. For example, when you set the end date of appointment as 6/30/2020, the UNTIL property holds the end date value when the recurrence actually ends. Example: FREQ=DAILY;INTERVAL=1;UNTIL=20200827T183000Z
BYDAY It holds the “DAY” values of an appointment to render.For example, when you create the weekly appointment, select the day(s) from the day options (Monday/Tuesday/Wednesday/Thursday/Friday/Saturday/Sunday). When Monday is selected, the first two letters of the selected day “MO” is stored in the “BYDAY” property. When you select multiple days, the values are separated by commas. Example: FREQ=WEEKLY;INTERVAL=1;BYDAY=MO,WE;COUNT=10
BYMONTHDAY This property is used to store the date value of the Month while creating the Month recurrence appointment. For example, when you create a Monthly recurrence appointment in the date 3, it means the BYMONTHDAY holds the value 3 and creates the appointment on 3rd day of every month. Example: FREQ=MONTHLY;BYMONTHDAY=3;INTERVAL=1;COUNT=10
BYMONTH This property is used to store the index value of the selected Month while creating the yearly appointments. For example, when you create the yearly appointment in the Month June, it means the index value for June month is 6 and it is stored in the BYMONTH field. The appointment is created on every 6th month of a year. Example: FREQ=YEARLY;BYMONTHDAY=16;BYMONTH=6;INTERVAL=1;COUNT=10
BYSETPOS This property is used to store the index value of the week. For example, when you create the monthly appointment in second week of the month, the index value of the second week (2) is stored in BYSETPOS. Example: FREQ=MONTHLY;BYDAY=MO;BYSETPOS=2;UNTIL=20200810T183000Z . If the property value is set to -1 and -2, the appointment will be added to the last week and second last week of the month.

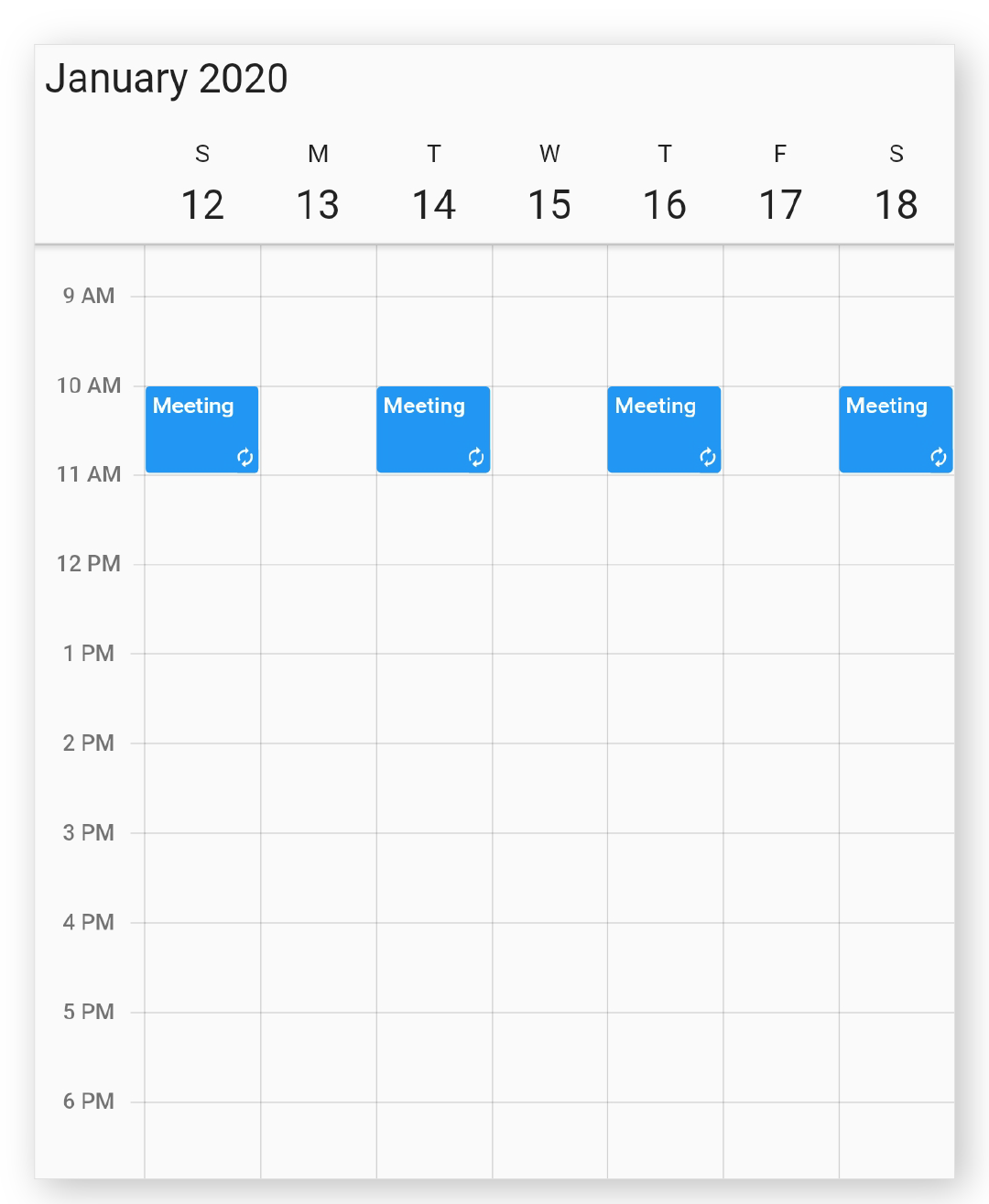

Adding recurrence appointment

Calendar appointment recurrenceRule is used to populate the required recurring appointment collection in a specific pattern. RRULE can be directly set to the recurrenceRule property of Appointment.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.week,
          dataSource: _getCalendarDataSource(),
        ),
      ),
    ),
  );
}

_AppointmentDataSource _getCalendarDataSource() {
  List<Appointment> appointments = <Appointment>[];

  appointments.add(Appointment(
      startTime: DateTime(2019, 12, 16, 10),
      endTime: DateTime(2019, 12, 16, 12),
      subject: 'Meeting',
      color: Colors.blue,
      recurrenceRule: 'FREQ=DAILY;INTERVAL=2;COUNT=10'));

  return _AppointmentDataSource(appointments);
}

class _AppointmentDataSource extends CalendarDataSource {
  _AppointmentDataSource(List<Appointment> source) {
    appointments = source;
  }
}

Adding recurrence appointment

Creating custom recurrence appointment

For creating custom recurrence appointment, you need to create a custom class Meeting with mandatory fields from, to, and recurrenceRule.

class Meeting {
  Meeting(
      {this.eventName = '',
      required this.from,
      required this.to,
      required this.background,
      this.isAllDay = false,
      this.recurrenceRule});

  String eventName;
  DateTime from;
  DateTime to;
  Color background;
  bool isAllDay;
  String? recurrenceRule;
}

You can map those properties of Meeting class with our calendar widget by using CalendarDataSource.

class MeetingDataSource extends CalendarDataSource {
  MeetingDataSource(List<Meeting> source){
    appointments = source;
  }

  @override
  DateTime getStartTime(int index) {
    return appointments![index].from;
  }

  @override
  DateTime getEndTime(int index) {
    return appointments![index].to;
  }

  @override
  bool isAllDay(int index) {
    return appointments![index].isAllDay;
  }

  @override
  String getSubject(int index) {
    return appointments![index].eventName;
  }

  @override
  Color getColor(int index) {
    return appointments![index].background;
  }

  @override
  String getRecurrenceRule(int index) {
    return appointments![index].recurrenceRule;
  }
}

You can schedule recurring meetings for daily, weekly, monthly, or yearly interval by setting recurrenceRule of Meeting class. Create meetings of type List and assign those appointments collection Meetings to the `appointments` property of `CalendarDataSource`.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.week,
          dataSource: _getCalendarDataSource(),
        ),
      ),
    ),
  );
}

MeetingDataSource _getCalendarDataSource() {
  List<Meeting> meetings = <Meeting>[];
  meetings.add(Meeting(
      eventName: 'meeting',
      from: DateTime(2019, 12, 18, 10),
      to: DateTime(2019, 12, 18, 12),
      background: Colors.green,
      isAllDay: false,
      recurrenceRule: 'FREQ=WEEKLY;BYDAY=MO,WE,FR;INTERVAL=1;COUNT=10'));
  return MeetingDataSource(meetings);
}}

class MeetingDataSource extends CalendarDataSource {
  MeetingDataSource(List<Meeting> source){
    appointments = source;
  }

  @override
  DateTime getStartTime(int index) {
    return appointments![index].from;
  }

  @override
  DateTime getEndTime(int index) {
    return appointments![index].to;
  }

  @override
  bool isAllDay(int index) {
    return appointments![index].isAllDay;
  }

  @override
  String getSubject(int index) {
    return appointments![index].eventName;
  }

  @override
  Color getColor(int index) {
    return appointments![index].background;
  }

  @override
  String getRecurrenceRule(int index) {
    return appointments![index].recurrenceRule;
  }
}

class Meeting {
  Meeting({this.eventName = '',
    required this.from,
    required this.to,
    required this.background,
    this.isAllDay = false,
    this.recurrenceRule});

  String eventName;
  DateTime from;
  DateTime to;
  Color background;
  bool isAllDay;
  String? recurrenceRule;
}

How to get the Recurrence editor field values from RRULE?

You can get the Recurrence properties form RRULE by using the parseRRule method from calendar.

DateTime dateTime = DateTime(2020, 03, 15);
RecurrenceProperties recurrenceProperties =
    SfCalendar.parseRRule('FREQ=DAILY;INTERVAL=1;COUNT=1', dateTime);

Recurrence properties retrieved from above method,
recurrenceProperties.recurrenceType = RecurrenceType.daily;
recurrenceProperties.interval = 1;
recurrenceProperties.recurrenceCount = 3;
recurrenceProperties.recurrenceRange = RecurrenceRange.count;

How to get the recurrence dates from RRULE?

You can get the occurrences date time list of recurring appointment from RRULE using the getRecurrenceDateTimeCollection method of SfCalendar.

DateTime dateTime = DateTime(2020, 03, 15);
List<DateTime> dateCollection = SfCalendar.getRecurrenceDateTimeCollection(
    'FREQ=DAILY;INTERVAL=1;COUNT=3', dateTime);

The following occurrence dates can be retrieved from the given RRULE:
var date0 = 3/15/2019;
var date1 = 3/16/2019;
var date2 = 3/16/2019;

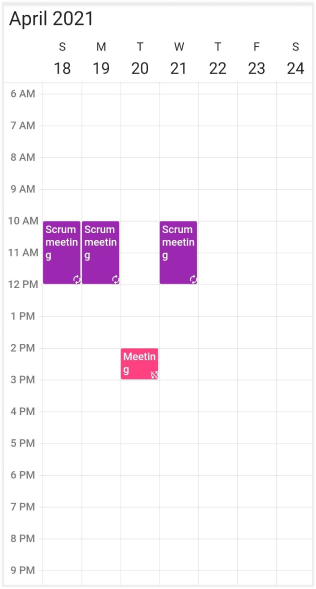

Recurrence pattern exceptions

You can delete or change any recurrence pattern appointment by handling exception dates and exception appointments to that recurring appointment.

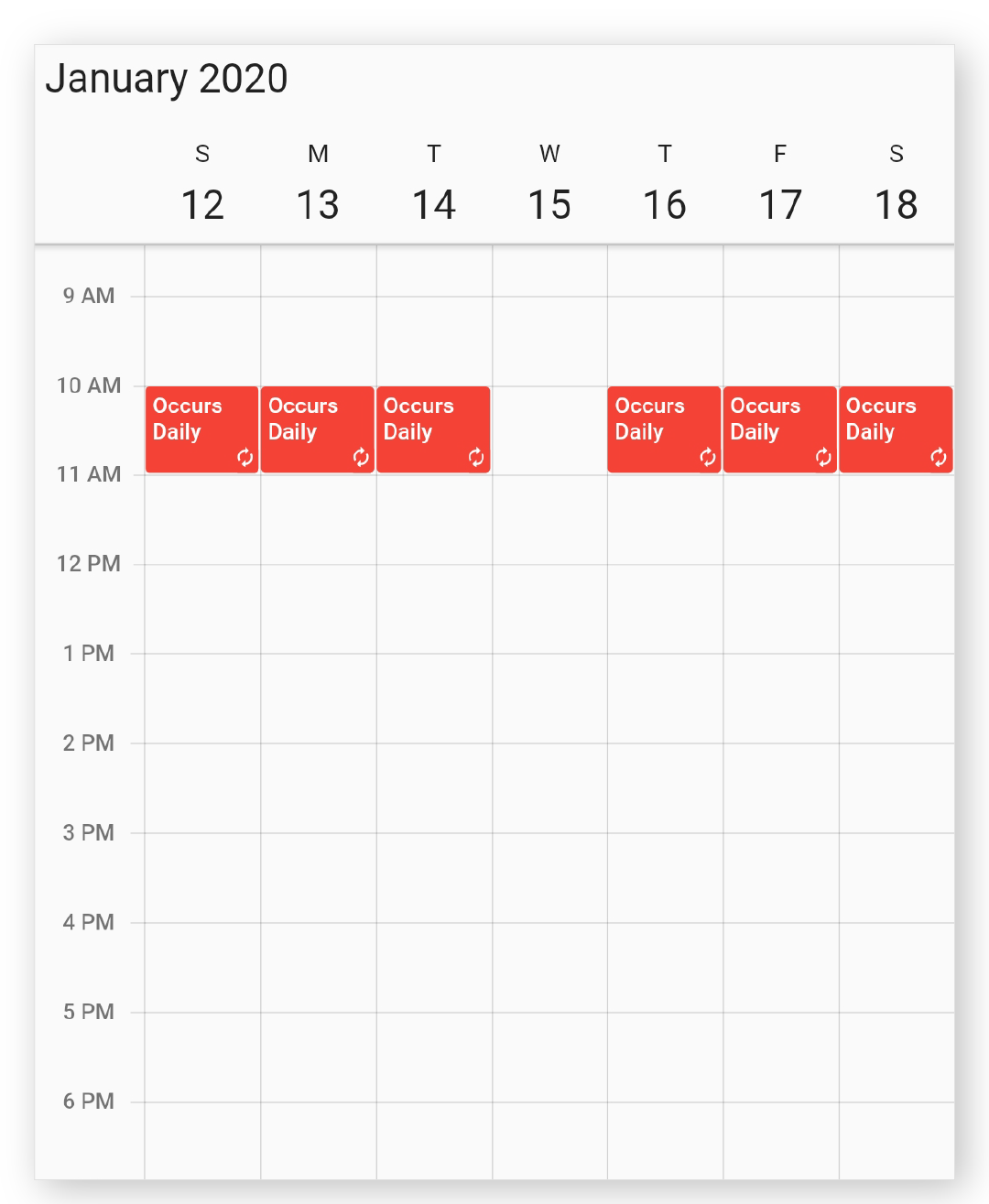

Recurrence exception dates

You can delete any occurrence appointment, which exception from the recurrence pattern appointment by adding exception dates to the recurring appointment.

Recurrence exception appointment

You can also change any occurrence appointment, which exception from recurrence pattern appointment by adding the recurrence exception appointment to the calendar dataSource.

Create recurrence exceptions for calendar appointment

You can add the recurrence exception appointments and recurrence exception dates to Appointment or remove them from Appointment by using its recurrenceExceptionDates property.

Delete occurrence from recurrence pattern appointment or adding exception dates to recurrence pattern appointment

You can delete any of occurrence, which is an exception from the recurrence pattern appointment by using the recurrenceExceptionDates property of Appointment. The deleted occurrence date will be considered as recurrence exception dates.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.week,
          dataSource: _getCalendarDataSource(),
        ),
      ),
    ),
  );
}

_AppointmentDataSource _getCalendarDataSource() {
  List<Appointment> appointments = <Appointment>[];

  DateTime exceptionDate = DateTime(2019, 12, 20);
  appointments.add(Appointment(
      startTime: DateTime(2019, 12, 16, 10),
      endTime: DateTime(2019, 12, 16, 12),
      subject: 'Occurs daily',
      color: Colors.red,
      recurrenceRule: 'FREQ=DAILY;COUNT=20',
      recurrenceExceptionDates: <DateTime>[exceptionDate]));

  return _AppointmentDataSource(appointments);
}

class _AppointmentDataSource extends CalendarDataSource {
  _AppointmentDataSource(List<Appointment> source) {
    appointments = source;
  }
}

Recurrence exceptiondate

NOTE

  • Exception dates should be Universal Time Coordinates (UTC) time zone.

Create recurrence exceptions for custom appointment

You can add the recurrence exception appointments and recurrence exception dates to the CustomAppointment or remove them from CustomAppointment, you can create a custom class Meeting with mandatory field RecurrenceExceptionDates.

Delete occurrence from recurrence pattern appointment or adding exception dates to recurrence pattern appointment

You can delete any occurrence, which is an exception from the recurrence pattern appointment by using the getRecurrenceExceptionDates override method of CalendarDataSource, which is used to map the exception dates to the calendar recurrence appointment. The deleted occurrence date will be considered as recurrence exception dates.
To add the exception dates in the recurrence series of custom appointment, add the recurrenceExceptionDates property to custom class Meeting.

@override
Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Container(
          child: SfCalendar(
            view: CalendarView.week,
            dataSource: _getCalendarDataSource(),
          ),
        ),
      ),
    );
}

MeetingDataSource _getCalendarDataSource() {
  List<Meeting> meetings = <Meeting>[];

  DateTime exceptionDate = DateTime(2019, 12, 24);
  meetings.add(Meeting(
      eventName: 'meeting',
      from: DateTime(2019, 12, 18, 10),
      to: DateTime(2019, 12, 18, 12),
      background: Colors.green,
      isAllDay: false,
      recurrenceRule: 'FREQ=DAILY;COUNT=20',
      exceptionDates: <DateTime>[exceptionDate]));

  return MeetingDataSource(meetings);
}

class MeetingDataSource extends CalendarDataSource {
  MeetingDataSource(List<Meeting> source) {
    appointments = source;
  }

  @override
  DateTime getStartTime(int index) {
    return appointments![index].from;
  }

  @override
  DateTime getEndTime(int index) {
    return appointments![index].to;
  }

  @override
  bool isAllDay(int index) {
    return appointments![index].isAllDay;
  }

  @override
  String getSubject(int index) {
    return appointments![index].eventName;
  }

  @override
  Color getColor(int index) {
    return appointments![index].background;
  }

  @override
  String getRecurrenceRule(int index) {
    return appointments![index].recurrenceRule;
  }

  @override
  List<DateTime> getRecurrenceExceptionDates(int index) {
    return appointments![index].exceptionDates;
  }
}

class Meeting {
  Meeting(
      {this.eventName = '',
      required this.from,
      required this.to,
      required this.background,
      this.isAllDay = false,
      this.recurrenceRule,
      this.exceptionDates});

  String eventName;
  DateTime from;
  DateTime to;
  Color background;
  bool isAllDay;
  String? recurrenceRule;
  List<DateTime>? exceptionDates;
}

NOTE

  • Exception dates should be Universal Time Coordinates (UTC) time zone.

Add exception appointment to the recurrence series

Add an exception appointment that is changed or modified occurrence of the recurrence pattern appointment to the dateSource of the SfCalendar. To add a changed occurrence, ensure to set the RecurrenceId of that occurrence, and add the date of that occurrence to the RecurrenceExceptionDates of recurrence pattern appointment. The RecurrenceId of the changed occurrence should hold the exact recurrence pattern appointment Id. We can get the type of appointment from the appointmentType property.

@override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: Container(
          child: SfCalendar(
            view: CalendarView.week,
            dataSource: _getDataSource(),
          ),
        ),
      ),
    );
  }
AppointmentDataSource _getDataSource() {
  final List<Appointment> appointments = <Appointment>[];
  final DateTime exceptionDate = DateTime(2021, 04, 20);

  final Appointment recurrenceAppointment = Appointment(
    startTime: DateTime(2021, 04, 12, 10),
    endTime: DateTime(2021, 04, 12, 12),
    subject: 'Scrum meeting',
    id: '01',
    recurrenceRule: 'FREQ=DAILY;INTERVAL=1;COUNT=10',
    color: Colors.purple,
    recurrenceExceptionDates: <DateTime>[exceptionDate],
  );
  appointments.add(recurrenceAppointment);

  final Appointment exceptionAppointment = Appointment(
      startTime: exceptionDate.add(const Duration(hours: 14)),
      endTime: exceptionDate.add(const Duration(hours: 15)),
      subject: 'Meeting',
      id: '02',
      color: Colors.pinkAccent,
      recurrenceId: recurrenceAppointment.id);

  appointments.add(exceptionAppointment);

  return AppointmentDataSource(appointments);
}

Recurrence Series in Flutter Calendar

NOTE

  • The RecurrenceId of the changed occurrence should hold the exact recurrence pattern appointment Id.
  • The exception appointment should be a normal appointment, and should not be created as recurring appointment, since its occurrence is from recurrence pattern.
  • The exception recurrence appointment does not have the RecurrenceRule, so for an exception appointment, it will be reset to empty.

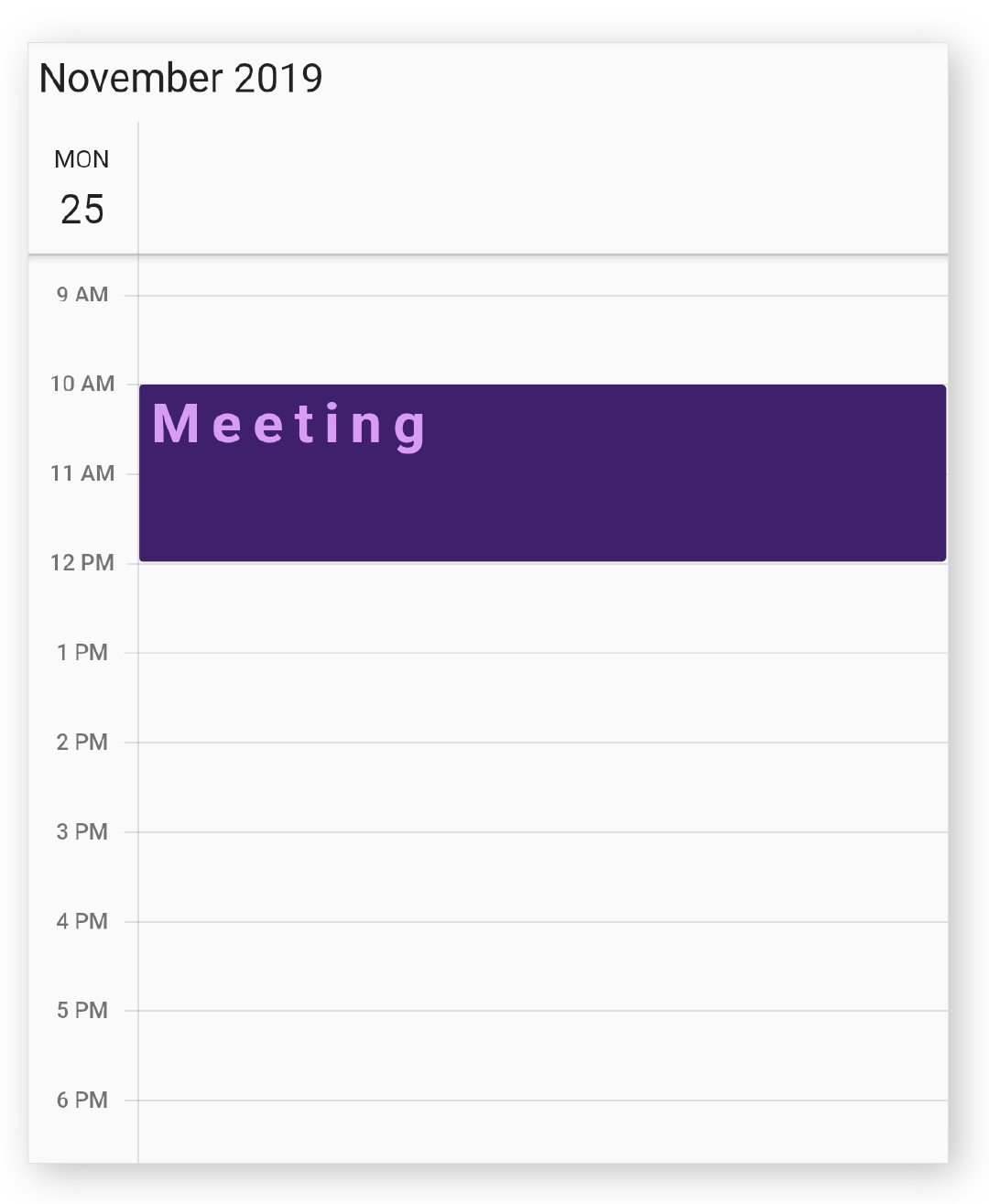

Appearance customization

The Calendar appointment text style can be customized by using the appointmentTextStyle property of the calendar.

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: Container(
        child: SfCalendar(
          view: CalendarView.day,
          dataSource: _getCalendarDataSource(),
          appointmentTextStyle: TextStyle(
              fontSize: 25,
              color: Color(0xFFd89cf6),
              letterSpacing: 5,
              fontWeight: FontWeight.bold),
        ),
      ),
    ),
  );
}

Appearance customization

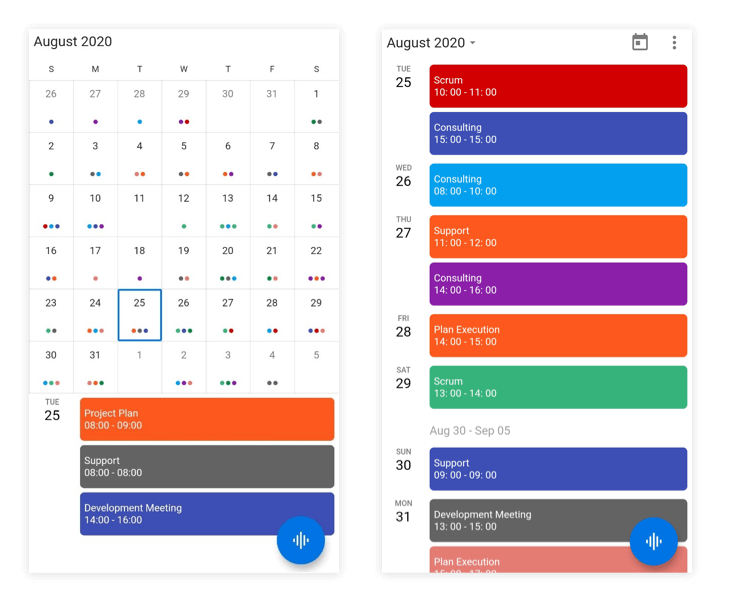

Appointment time format

You can customize the displaying time format in the appointment widget in the month agenda view and schedule view of calendar by specifying the appointmentTimeTextFormat property of the SfCalendar.

@override
 Widget build(BuildContext context) {
   return SfCalendar(
     view: CalendarView.month,
     dataSource: _calendarDataSource,
     appointmentTimeTextFormat: 'HH:mm',
     monthViewSettings: MonthViewSettings(
         showAgenda: true
     ),
   );
 }

Appointment time format

Appointment helper

Get visible appointments

You can get the list of visible appointments by using the getVisibleAppointments method available in the Calendar data source.

@override
initState() {
  _calendarController = CalendarController();
  _dataSource = _getCalendarDataSource();
  super.initState();
}

@override
Widget build(BuildContext context) {
  return MaterialApp(
    home: Scaffold(
      body: SfCalendar(
        view: CalendarView.month,
        controller: _calendarController,
        dataSource: _dataSource,
        onViewChanged: (ViewChangedDetails details) {
          List<DateTime> dates = details.visibleDates;
          String calendarTimeZone = '';
          List<Object> appointment = _dataSource.getVisibleAppointments(
              dates[0], calendarTimeZone,
              dates[(details.visibleDates.length) - 1]);
         },
       ),
     ),
   );
 }
}

NOTE

  • The startTime specifies the starting date from which the appointments should be obtained.

Get occurrence appointment

Gets an occurrence at the specified date within a series of recurring appointments by using the getOccurrenceAppointment.

@override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: SfCalendar(
          view: CalendarView.month,
          controller: _calendarController,
          dataSource: _dataSource,
          onTap: (CalendarTapDetails details) {
            final DateTime? date = details.date;
            final Appointment? occurrenceAppointment =
                _dataSource.getOccurrenceAppointment(recurrenceApp, date!, '');
          },
        ),
      ),
    );
  }

NOTE

  • If there is no appointment occurring on the date specified, null is returned.
  • The patternAppointment is required for the start appointment in a recurrence series, from which the occurrence appointments are cloned with the pattern appointment characteristics.
  • The date is required for the occurrence appointment.

Get pattern appointment

Gets the pattern appointment for the specified occurrence by using the getPatternAppointment.

@override
  Widget build(BuildContext context) {
    return MaterialApp(
      home: Scaffold(
        body: SfCalendar(
          view: CalendarView.month,
          controller: _calendarController,
          dataSource: _dataSource,
          onTap: (CalendarTapDetails details) {
            if (details.appointments!.isNotEmpty &&
                details.appointments != null) {
              final dynamic occurrenceAppointment = details.appointments![0];
              final Appointment? patternAppointment =
                  _dataSource.getPatternAppointment(occurrenceAppointment, '')
                      as Appointment?;
            }
          },
        ),
      ),
    );
  }

NOTE

  • The occurrenceAppointment is necessary in order to receive the Pattern appointment.

See also
