Programmatically Get Differences

23 Sep 202624 minutes to read

The semantic text comparison feature provides programmatic access to all differences found between two PDF documents. Using the semanticTextCompare() method on PdfViewerComponent, you can retrieve structured difference data for custom processing, reporting, or integration with other workflows.

Overview

The comparison provides:

Async comparison API - Use semanticTextCompare() to compare documents programmatically
Difference array access - Get all detected differences with type and content
Structured data - Each difference contains text, type, location, and page information
Categorized results - Differences grouped by type (Added, Deleted, Modified)
Custom processing - Export, filter, or analyze differences programmatically

Prerequisites

Syncfusion React PDF Viewer installed
PdfViewerComponent available
Two PDF documents loaded for comparison
Semantic text comparison feature enabled

Steps

Step 1: Import required components

App.jsx
import { PdfViewerComponent, Inject, Toolbar, Magnification, Navigation, Annotation, LinkAnnotation, BookmarkView, ThumbnailView, Print, TextSelection, TextSearch, FormFields, FormDesigner, PageOrganizer } from '@syncfusion/ej2-react-pdfviewer';
import React, { useRef, useState } from 'react';

Step 2: Create the dual viewer comparison setup

Set up two side-by-side PDF viewers with semantic text comparison:

App.jsx
export default function App() {
  const viewer1Ref = useRef(null);
  const viewer2Ref = useRef(null);
  const [loadedCount, setLoadedCount] = useState(0);
  const [viewersLoaded, setViewersLoaded] = useState(false);
  const [synchronizationEnabled, setSynchronizationEnabled] = useState(true);
  const [highlightsEnabled, setHighlightsEnabled] = useState(true);

  const handleDocumentLoad = () => {
    setLoadedCount((prev) => {
      const newCount = prev + 1;
      if (newCount === 2 && viewer1Ref.current && viewer2Ref.current) {
        setViewersLoaded(true);
        viewer1Ref.current.syncViewers(viewer2Ref.current, synchronizationEnabled);
      }
      return newCount;
    });
  };

  return (
    <div style={{ height: '100%', width: '100%' }}>
      {/* PDF Viewers Container */}
      <div style={{
        display: 'flex',
        height: '600px',
        gap: 0
      }}>
        {/* Viewer 1 - Original Document */}
        <div style={{ width: '50%', height: '100%', borderRight: '1px solid #ccc' }}>
          <PdfViewerComponent
            ref={viewer1Ref}
            id="pdfViewer1"
            documentPath="https://cdn.syncfusion.com/content/pdf/original-document.pdf"
            resourceUrl="https://cdn.syncfusion.com/ej2/34.2.4/dist/ej2-pdfviewer-lib"
            documentLoad={handleDocumentLoad}
            style={{ height: '100%', width: '100%' }}
          >
            <Inject services={[
              Toolbar,
              Magnification,
              Navigation,
              Annotation,
              LinkAnnotation,
              BookmarkView,
              ThumbnailView,
              Print,
              TextSelection,
              TextSearch,
              FormFields,
              FormDesigner,
              PageOrganizer
            ]} />
          </PdfViewerComponent>
        </div>

        {/* Viewer 2 - Modified Document */}
        <div style={{ width: '50%', height: '100%' }}>
          <PdfViewerComponent
            ref={viewer2Ref}
            id="pdfViewer2"
            documentPath="https://cdn.syncfusion.com/content/pdf/modified-document.pdf"
            resourceUrl="https://cdn.syncfusion.com/ej2/34.2.4/dist/ej2-pdfviewer-lib"
            documentLoad={handleDocumentLoad}
            style={{ height: '100%', width: '100%' }}
          >
            <Inject services={[
              Toolbar,
              Magnification,
              Navigation,
              Annotation,
              LinkAnnotation,
              BookmarkView,
              ThumbnailView,
              Print,
              TextSelection,
              TextSearch,
              FormFields,
              FormDesigner,
              PageOrganizer
            ]} />
          </PdfViewerComponent>
        </div>
      </div>
    </div>
  );
}

Step 3: Perform semantic text comparison

Compare the documents programmatically and access differences:

App.jsx
const handleCompare = async () => {
  if (!viewersLoaded || !viewer1Ref.current || !viewer2Ref.current) {
    return;
  }

  const options = {
    beforeColor: '#FF0000',      // Red for original
    afterColor: '#00FF00',       // Green for modified
    beforeColorOpacity: 0.4,
    afterColorOpacity: 0.4,
    enableHighlights: highlightsEnabled,
  };

  try {
    const result = await viewer1Ref.current.semanticTextCompare(viewer2Ref.current, options);
    console.log('Full Comparison Result:', result);

    // Access annotations from both documents
    const originalAnnotations = result?.originalDocumentAnnotations || [];
    const modifiedAnnotations = result?.modifiedDocumentAnnotations || [];
    const totalTextDiffCount = result?.totalTextDiffCount || 0;

    console.log('Total Text Differences:', totalTextDiffCount);

    // Extract and categorize all differences
    let addedCount = 0;
    let deletedCount = 0;
    let modifiedCount = 0;

    // Process original document annotations (deletions and modifications)
    originalAnnotations.forEach((pageAnnotations) => {
      pageAnnotations.differenceAnnotations?.forEach((diff) => {
        const type = diff.textDiffType;
        if (type === 'deleted') deletedCount++;
        if (type === 'modified') modifiedCount++;
        if (type === 'added') addedCount++;
      });
    });

    console.log('Added:', addedCount);
    console.log('Deleted:', deletedCount);
    console.log('Modified:', modifiedCount);
  } catch (error) {
    console.error('Error during comparison:', error);
  }
};

Step 4: Generate comparison report

Generate a detailed report with differences grouped by page:

App.jsx
const generateReport = async () => {
  if (!viewer1Ref.current || !viewer2Ref.current) return;

  const options = {
    beforeColor: '#FF0000',
    afterColor: '#00FF00',
    beforeColorOpacity: 0.4,
    afterColorOpacity: 0.4,
    enableHighlights: true,
  };

  try {
    const result = await viewer1Ref.current.semanticTextCompare(viewer2Ref.current, options);

    const originalAnnotations = result?.originalDocumentAnnotations || [];
    const modifiedAnnotations = result?.modifiedDocumentAnnotations || [];
    const totalTextDiffCount = result?.totalTextDiffCount || 0;

    let addedCount = 0;
    let deletedCount = 0;
    let modifiedCount = 0;
    const byPage = {};

    // Process all annotations
    originalAnnotations.forEach((pageAnnotations) => {
      const pageNum = pageAnnotations.pageNumber;
      if (!byPage[pageNum]) {
        byPage[pageNum] = { deleted: 0, added: 0, modified: 0 };
      }

      pageAnnotations.differenceAnnotations?.forEach((diff) => {
        const type = diff.textDiffType;
        if (type === 'deleted') {
          deletedCount++;
          byPage[pageNum].deleted++;
        } else if (type === 'added') {
          addedCount++;
          byPage[pageNum].added++;
        } else if (type === 'modified') {
          modifiedCount++;
          byPage[pageNum].modified++;
        }
      });
    });

    modifiedAnnotations.forEach((pageAnnotations) => {
      const pageNum = pageAnnotations.pageNumber;
      if (!byPage[pageNum]) {
        byPage[pageNum] = { deleted: 0, added: 0, modified: 0 };
      }

      pageAnnotations.differenceAnnotations?.forEach((diff) => {
        const type = diff.textDiffType;
        if (type === 'deleted') {
          deletedCount++;
          byPage[pageNum].deleted++;
        } else if (type === 'added') {
          addedCount++;
          byPage[pageNum].added++;
        } else if (type === 'modified') {
          modifiedCount++;
          byPage[pageNum].modified++;
        }
      });
    });

    const report = {
      totalDifferences: totalTextDiffCount,
      summary: {
        added: addedCount,
        deleted: deletedCount,
        modified: modifiedCount
      },
      byPage: byPage
    };

    console.log('Comparison Report:', report);
    return report;
  } catch (error) {
    console.error('Error generating report:', error);
  }
};

Step 5: Add control buttons and synchronization

Manage synchronization, highlights, and comparison controls:

App.jsx
const handleToggleSync = () => {
  const newSyncState = !synchronizationEnabled;
  setSynchronizationEnabled(newSyncState);

  if (viewer1Ref.current && viewer2Ref.current) {
    viewer1Ref.current.syncViewers(viewer2Ref.current, newSyncState);
  }
};

const handleToggleHighlights = async () => {
  const newHighlightsState = !highlightsEnabled;
  setHighlightsEnabled(newHighlightsState);

  // Re-apply comparison with updated highlight state
  if (viewersLoaded && viewer1Ref.current && viewer2Ref.current) {
    const options = {
      beforeColor: '#FF0000',
      afterColor: '#00FF00',
      beforeColorOpacity: 0.4,
      afterColorOpacity: 0.4,
      enableHighlights: newHighlightsState,
    };

    try {
      // Clear previous comparison
      viewer1Ref.current.removeSemanticTextCompare?.(viewer2Ref.current);
      // Apply new comparison with updated highlights state
      const result = await viewer1Ref.current.semanticTextCompare(viewer2Ref.current, options);
      console.log('Highlights updated:', result);
    } catch (error) {
      console.error('Error updating highlights:', error);
    }
  }
};

const handleClearAnnotations = () => {
  if (viewer1Ref.current && viewer2Ref.current) {
    viewer1Ref.current.removeSemanticTextCompare?.(viewer2Ref.current);
  }
};

// Control Buttons
const ControlPanel = () => (
  <div style={{
    display: 'flex',
    gap: '8px',
    padding: '12px',
    backgroundColor: '#f5f5f5',
    borderBottom: '1px solid #ddd'
  }}>
    <button onClick={handleCompare} style={{
      padding: '8px 16px',
      backgroundColor: '#007bff',
      color: 'white',
      border: 'none',
      borderRadius: '4px',
      cursor: 'pointer'
    }}>
      Compare Documents
    </button>
    <button onClick={handleToggleHighlights} style={{
      padding: '8px 16px',
      backgroundColor: '#28a745',
      color: 'white',
      border: 'none',
      borderRadius: '4px',
      cursor: 'pointer'
    }}>
      {highlightsEnabled ? 'Disable Highlights' : 'Enable Highlights'}
    </button>
    <button onClick={handleToggleSync} style={{
      padding: '8px 16px',
      backgroundColor: '#ffc107',
      color: 'black',
      border: 'none',
      borderRadius: '4px',
      cursor: 'pointer'
    }}>
      {synchronizationEnabled ? 'Disable Sync' : 'Enable Sync'}
    </button>
    <button onClick={handleClearAnnotations} style={{
      padding: '8px 16px',
      backgroundColor: '#dc3545',
      color: 'white',
      border: 'none',
      borderRadius: '4px',
      cursor: 'pointer'
    }}>
      Clear Annotations
    </button>
  </div>
);

Viewing differences

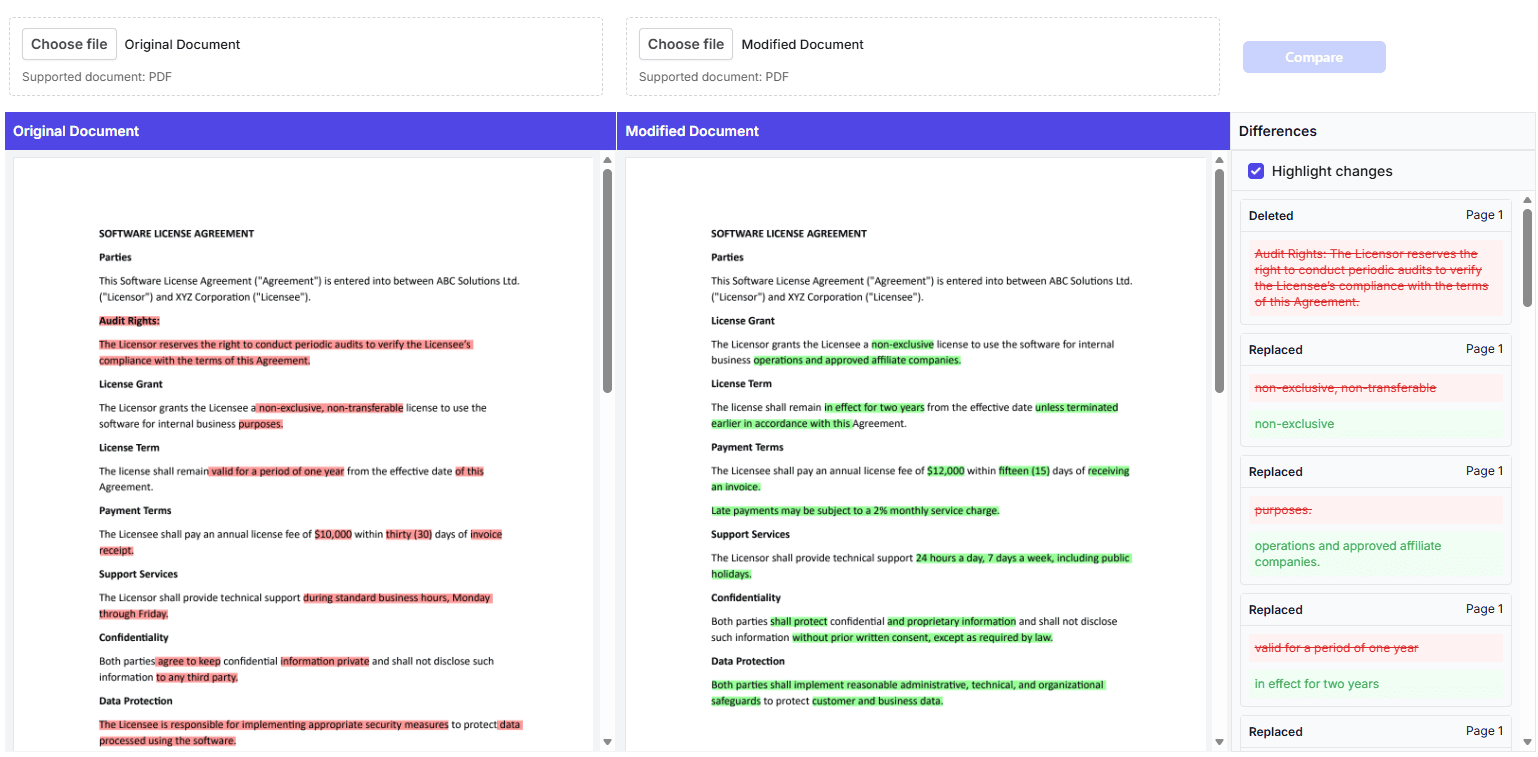

Differences panel shows all detected changes

The differences panel on the right displays all detected differences categorized by type:

Deleted - Text removed from the original document (shown in red in the document)
Replaced - Text that was modified or changed
Each item shows the page number and change details

Difference object structure

Each difference object contains:

Property	Type	Description
`type`	string	Type of difference: ‘Added’, ‘Deleted’, or ‘Modified’
`text`	string	The actual text content of the difference
`pageNumber`	number	Page number where difference is located (1-based)
`bounds`	object	Position and size of the difference
`bounds.x`	number	X coordinate of the difference
`bounds.y`	number	Y coordinate of the difference
`bounds.width`	number	Width of the text bounding box
`bounds.height`	number	Height of the text bounding box

Common use cases

Filter differences by type

App.jsx
const getDifferencesByType = async (type) => {
    if (!viewer1Ref.current || !viewer2Ref.current) return [];

    const options = {
        beforeColor: '#FF0000',
        afterColor: '#00FF00',
        beforeColorOpacity: 0.4,
        afterColorOpacity: 0.4,
        enableHighlights: true,
    };

    try {
        const result = await viewer1Ref.current.semanticTextCompare(viewer2Ref.current, options);

        const originalAnnotations = result?.originalDocumentAnnotations || [];
        const modifiedAnnotations = result?.modifiedDocumentAnnotations || [];
        const differences = [];

        // Extract differences by type from original annotations
        originalAnnotations.forEach((pageAnnotations) => {
          pageAnnotations.differenceAnnotations?.forEach((diff) => {
            if (diff.textDiffType === type.toLowerCase()) {
              differences.push({
                pageNumber: pageAnnotations.pageNumber,
                type: diff.textDiffType,
                text: diff.textDiffData,
                bounds: diff.annotation?.bounds,
                color: diff.annotation?.color
              });
            }
          });
        });

        // Extract differences by type from modified annotations
        modifiedAnnotations.forEach((pageAnnotations) => {
          pageAnnotations.differenceAnnotations?.forEach((diff) => {
            if (diff.textDiffType === type.toLowerCase()) {
              const exists = differences.find(d =>
                d.pageNumber === pageAnnotations.pageNumber &&
                d.text === diff.textDiffData
              );
              if (!exists) {
                differences.push({
                  pageNumber: pageAnnotations.pageNumber,
                  type: diff.textDiffType,
                  text: diff.textDiffData,
                  bounds: diff.annotation?.bounds,
                  color: diff.annotation?.color
                });
              }
            }
          });
        });

        console.log(`${type} differences (${differences.length}):`, differences);
        return differences;
    } catch (error) {
        console.error('Error filtering differences:', error);
        return [];
    }
};

// Usage
const addedDifferences = await getDifferencesByType('added');
const deletedDifferences = await getDifferencesByType('deleted');
const modifiedDifferences = await getDifferencesByType('modified');

Group differences by page

App.jsx
const groupDifferencesByPage = async () => {
    if (!viewer1Ref.current || !viewer2Ref.current) return {};

    const options = {
        beforeColor: '#FF0000',
        afterColor: '#00FF00',
        beforeColorOpacity: 0.4,
        afterColorOpacity: 0.4,
        enableHighlights: true,
    };

    try {
        const result = await viewer1Ref.current.semanticTextCompare(viewer2Ref.current, options);

        const originalAnnotations = result?.originalDocumentAnnotations || [];
        const modifiedAnnotations = result?.modifiedDocumentAnnotations || [];
        const grouped = {};

        // Group original document differences by page
        originalAnnotations.forEach((pageAnnotations) => {
          const pageNum = pageAnnotations.pageNumber;
          if (!grouped[pageNum]) {
            grouped[pageNum] = { original: [], modified: [] };
          }

          pageAnnotations.differenceAnnotations?.forEach((diff) => {
            grouped[pageNum].original.push({
              type: diff.textDiffType,
              text: diff.textDiffData,
              bounds: diff.annotation?.bounds,
              color: diff.annotation?.color
            });
          });
        });

        // Group modified document differences by page
        modifiedAnnotations.forEach((pageAnnotations) => {
          const pageNum = pageAnnotations.pageNumber;
          if (!grouped[pageNum]) {
            grouped[pageNum] = { original: [], modified: [] };
          }

          pageAnnotations.differenceAnnotations?.forEach((diff) => {
            grouped[pageNum].modified.push({
              type: diff.textDiffType,
              text: diff.textDiffData,
              bounds: diff.annotation?.bounds,
              color: diff.annotation?.color
            });
          });
        });

        console.log('Differences grouped by page:', grouped);
        return grouped;
    } catch (error) {
        console.error('Error grouping differences:', error);
        return {};
    }
};

Search docs

Ask Syncfusion AI Assistant

Search docs

Ask Syncfusion AI Assistant

Programmatically Get Differences

Overview

Prerequisites

Steps

Step 1: Import required components

Step 2: Create the dual viewer comparison setup

Step 3: Perform semantic text comparison

Step 4: Generate comparison report

Step 5: Add control buttons and synchronization

Viewing differences

Difference object structure

Common use cases

Filter differences by type

Group differences by page

Programmatically Get Differences

Overview

Prerequisites

Steps

Step 1: Import required components

Step 2: Create the dual viewer comparison setup

Step 3: Perform semantic text comparison

Step 4: Generate comparison report

Step 5: Add control buttons and synchronization

Viewing differences

Difference object structure

Common use cases

Filter differences by type

Group differences by page

Related topics
