Redaction in mobile view in React PDF Viewer

4 Mar 20263 minutes to read

Overview

This tutorial teaches you how to enable and use the Redaction tools in the Syncfusion React PDF Viewer optimized for mobile (phone/tablet) screens. You will add a redaction button to the viewer toolbar, open the viewer on a small-screen layout, create selective and page-wide redactions, customize appearance, and apply redactions permanently.

Outcome: a working React sample where users can mark content for redaction using touch, configure appearance, and apply redactions.

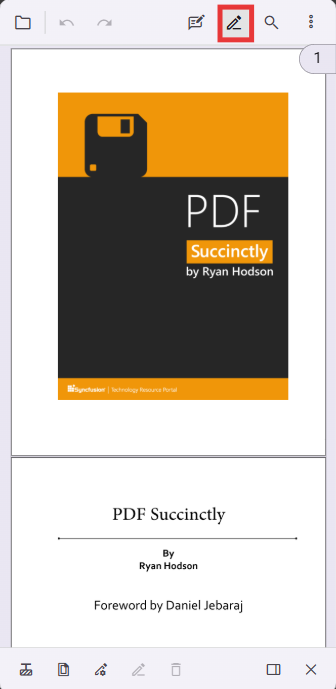

Redaction toolbar displayed at bottom of mobile PDF viewer

NOTE

In mobile view the redaction toolbar appears at the bottom of the viewer for easy thumb access. Mobile layout activates automatically on small screens.

Prerequisites

Steps

  1. Add the PdfViewer to your React app and include the redaction toolbar item.

    • Enable the redaction tool with the code example in this guide. The example includes a toolbar entry for RedactionEditTool which enables redaction controls in the viewer.

  2. Start the app and open it on a narrow viewport (phone width) to trigger mobile layout.

  3. Use the mobile redaction toolbar (bottom of the screen) to:
    • Draw redaction boxes with the Redaction Annotation tool (touch & drag)
    • Use Page Redaction to redact odd/even/specified pages
    • Open Redaction Properties to change overlay color, overlay text, and font
  4. Review annotations, then tap Apply Redactions to permanently remove content.

Understanding mobile redaction toolbar tools

When entering redaction mode in mobile view, a specialized redaction toolbar appears with tools optimized for touch. Each tool supports a specific step in the redaction workflow.

Redaction annotation tool

The Redaction Annotation tool creates rectangular overlays that mark content for removal. Touch and drag to draw boxes; overlays remain editable until applied.

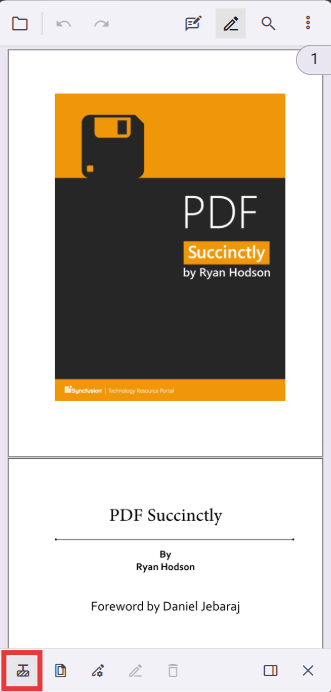

Redaction annotation tool overlay preview

Page redaction tool

Use Page Redaction to redact whole pages or page ranges (odd, even, specific ranges). This helps remove patterns of sensitive pages quickly.

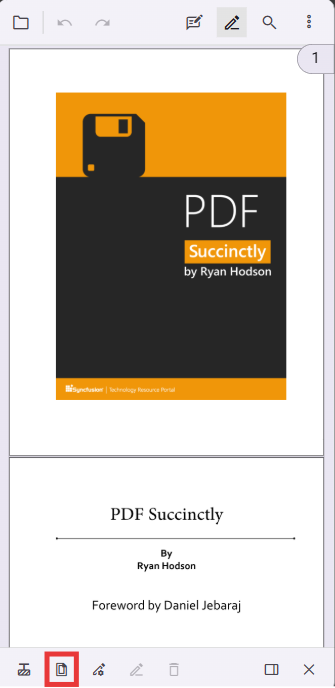

Page redaction tool options and dialog

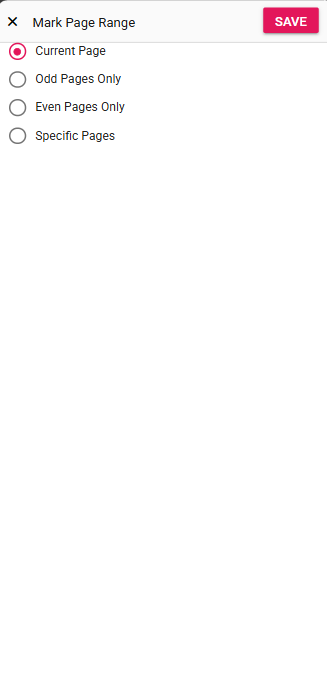

Page redaction dialog preview

Redaction properties tool

Open Redaction Properties to change overlay fill color, outline color, overlay text, text color, font and alignment before applying.

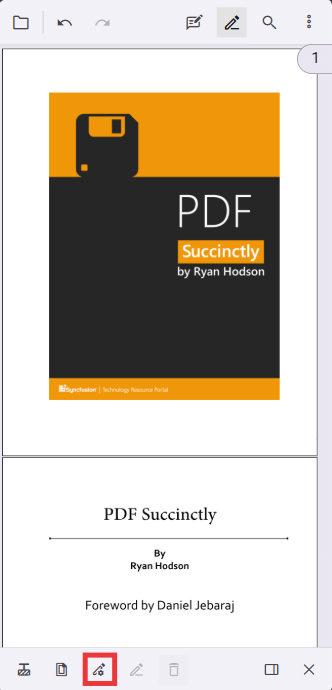

Redaction properties options preview

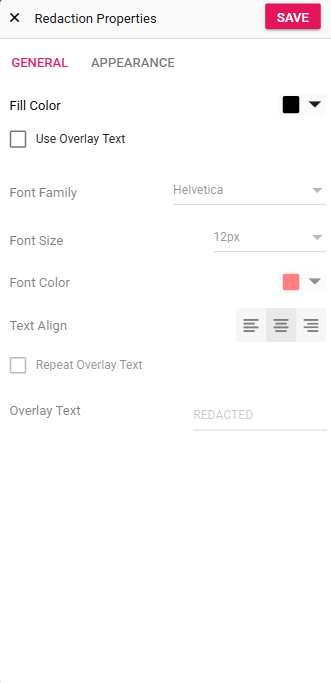

Redaction properties dialog preview

Applying redactions in mobile view

Applying redactions is permanent. Back up the original document before applying.

  1. Review all redaction marks and configurations.

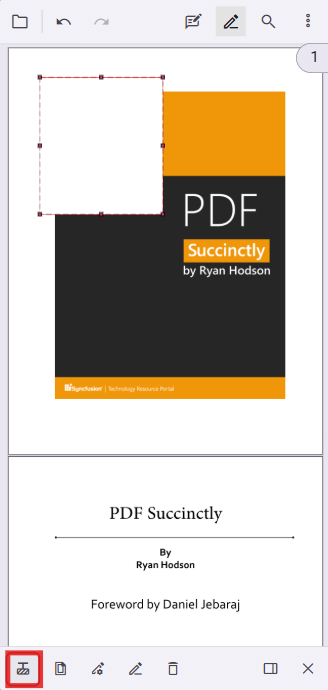

    Review redaction annotations before applying

  2. Tap the Apply Redactions button in the redaction toolbar.

    Apply redaction button in mobile view

  3. Confirm the action when prompted — this operation is irreversible.

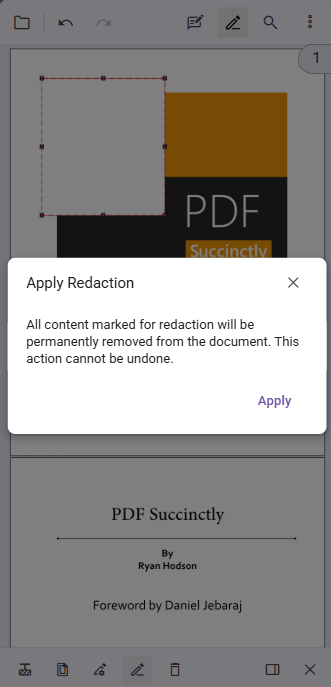

    Apply redaction confirmation dialog

  4. After applying, the selected content is permanently removed and replaced according to redaction properties.

    Result of applied redaction

Removing redaction annotations

To remove a redaction annotation prior to applying it: enter Redaction Edit mode, tap the annotation to select it and choose Delete.

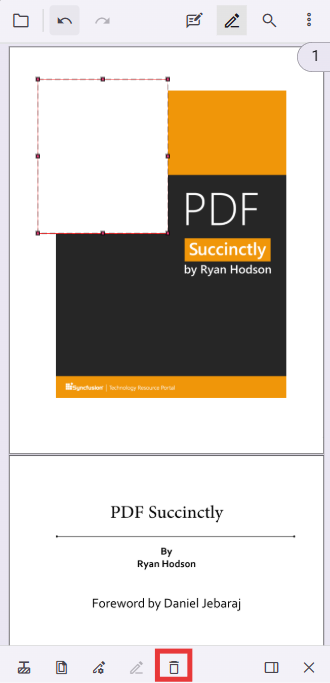

Delete a redaction annotation before applying

Mobile redaction workflow

  1. Tap the Redaction button in the main toolbar to open the mobile redaction toolbar at the bottom.
  2. Choose Redaction Annotation to draw boxes by touch-and-drag.
  3. Use Redaction Properties to set fill color and overlay text.
  4. Tap Apply Redactions to make changes permanent (this is irreversible).

Troubleshooting

  • If toolbar or redaction controls don’t appear: ensure your toolbarSettings includes RedactionEditTool and that the Inject list contains Annotation.
  • If the viewer is blank: confirm resourceUrl points to the correct Syncfusion PDF Viewer resource package version.
  • For production builds, ensure your app serves the WASM and resource files from resourceUrl or a hosted CDN.
