Redaction toolbar customization
The redaction toolbar can be customized by rearranging existing items, disabling default items, and adding custom items. New items can be placed at specific index positions among the existing items.
Enable the redaction toolbar on desktop
Show the redaction toolbar on desktop by including the required ToolbarItems in the SfPdfViewer2 component.
The following example demonstrates how to enable the redaction toolbar on desktop.
@page "/"
<SfPdfViewer2 Height="100%" Width="100%" DocumentPath="Annotations.pdf">
<PdfViewerToolbarSettings ToolbarItems="ToolbarItems"></PdfViewerToolbarSettings>
</SfPdfViewer2>
@code {
private List<ToolbarItem> ToolbarItems = new List<ToolbarItem>();
protected override void OnInitialized()
{
ToolbarItems = new List<ToolbarItem>()
{
ToolbarItem.OpenOption,
ToolbarItem.PageNavigationTool,
ToolbarItem.MagnificationTool,
ToolbarItem.SelectionTool,
ToolbarItem.PanTool,
ToolbarItem.UndoRedoTool,
ToolbarItem.CommentTool,
ToolbarItem.SubmitForm,
ToolbarItem.SearchOption,
ToolbarItem.AnnotationEditTool,
ToolbarItem.Redaction, // Enables Redaction toolbar
ToolbarItem.FormDesigner,
ToolbarItem.PrintOption,
ToolbarItem.DownloadOption
};
}

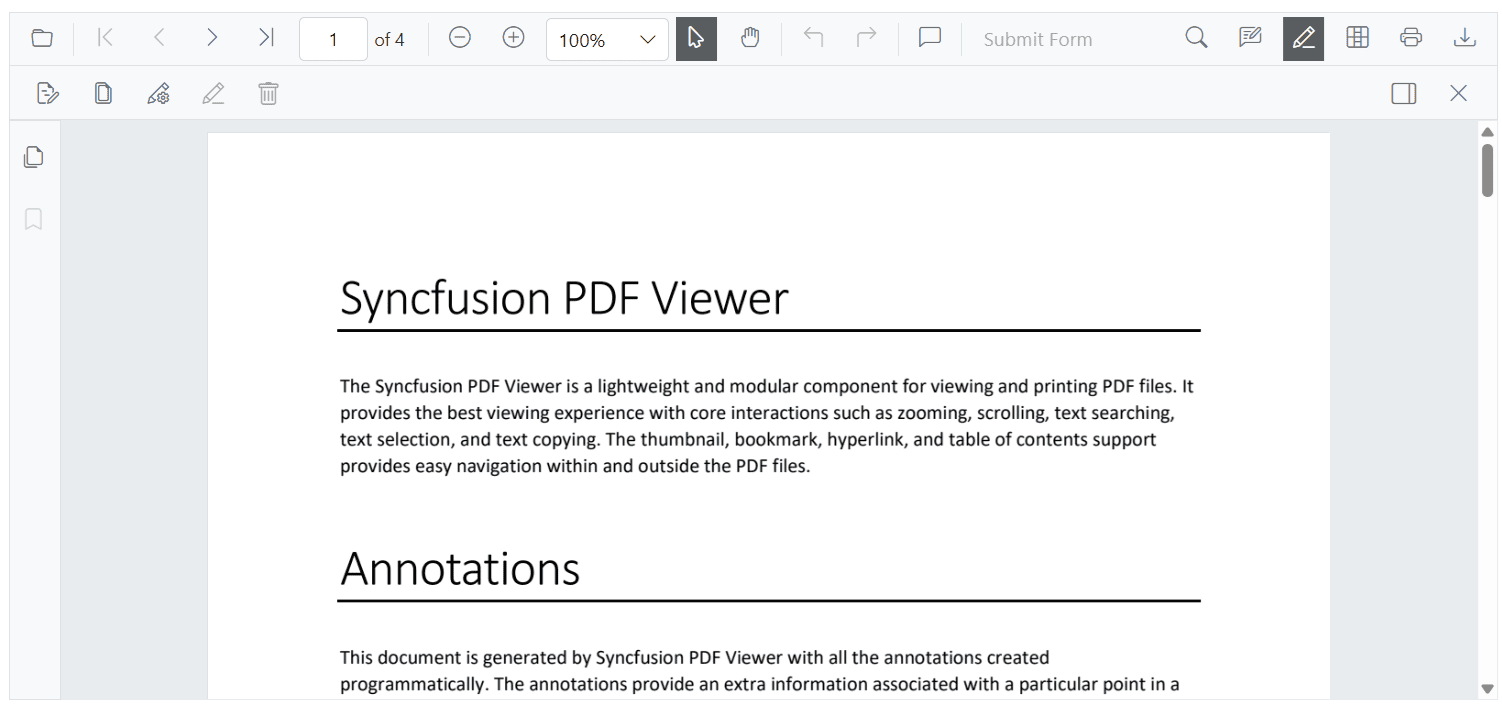

}Refer to the following image for the desktop view.
Enable the redaction toolbar on mobile
Show the redaction toolbar on mobile by configuring the MobileToolbarItems property.
The following example demonstrates how to enable the redaction toolbar on mobiles.
@page "/"
<SfPdfViewer2 Height="100%" Width="100%" DocumentPath="Annotations.pdf">
<PdfViewerToolbarSettings MobileToolbarItems="MobileToolbarItems"></PdfViewerToolbarSettings>
</SfPdfViewer2>
@code {
private List<MobileToolbarItem> MobileToolbarItems = new List<MobileToolbarItem>();
protected override void OnInitialized()
{
MobileToolbarItems = new List<MobileToolbarItem>()
{
MobileToolbarItem.Open,
MobileToolbarItem.UndoRedo,
MobileToolbarItem.EditAnnotation,
MobileToolbarItem.Redaction, // Enables Redaction toolbar
MobileToolbarItem.FormDesigner,
MobileToolbarItem.Search
};
}

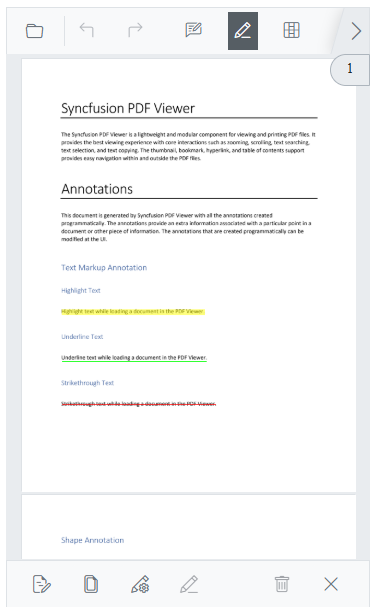

}Refer to the following image for the mobile view.
Show or hide the redaction toolbar
Show or hide the redaction toolbar using the built-in toolbar icon or programmatically with the ShowRedactionToolbar API.
Display the redaction toolbar using the toolbar icon
When ToolbarItem.Redaction or MobileToolbarItem.Redaction is enabled, selecting the redaction icon in the primary toolbar toggles the redaction toolbar.
Refer to the following image for details.
Display the redaction toolbar programmatically
Control visibility through application logic by invoking the ShowRedactionToolbar method on the viewer instance.
The following example demonstrates how to toggle the visibility of the redaction toolbar using a button:
private void ToggleRedactionToolbar()
{
isRedactionToolbarVisible = !isRedactionToolbarVisible;
SfPdfViewer2.ShowRedactionToolbar(isRedactionToolbarVisible);

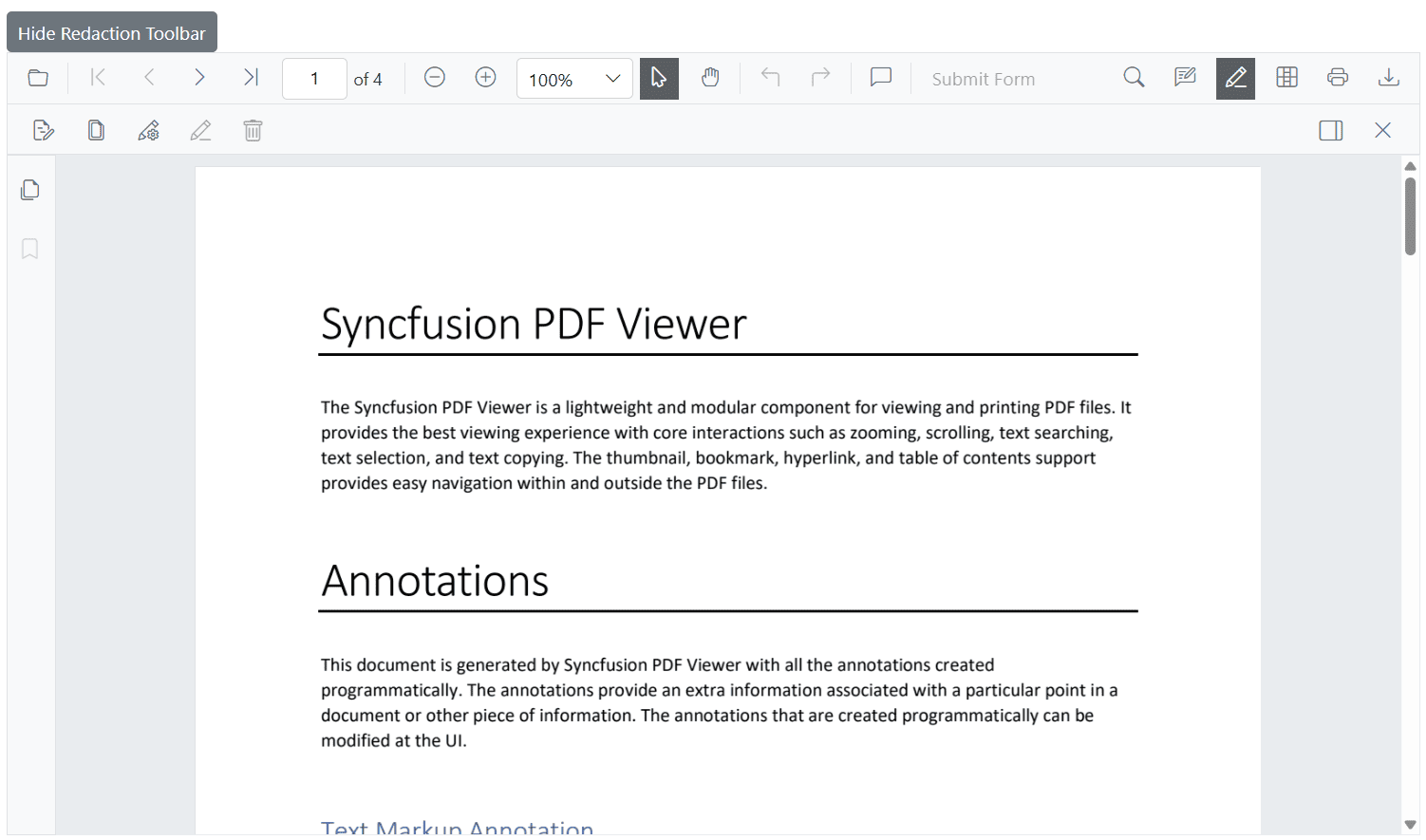

}Refer to the following image for details.
