Group form fields in Blazor SfPdfViewer

17 Jul 20266 minutes to read

The Blazor SfPdfViewer allows grouping multiple form fields into a single logical field by assigning the same Name to them. Grouped form fields share their values and states automatically based on the field type. Use the Form Designer UI for manual grouping or the Form Designer APIs for programmatic grouping to keep related fields synchronized across the document.

Field behavior by type

  • Textbox and Password: Text entered in one widget appears in all widgets with the same name.
  • CheckBox: Checking one widget sets the checked state for all checkboxes with the same name.
  • RadioButton: Widgets with the same name form a radio group; only one option can be selected.
  • ListBox and DropDown: The selected value is shared across widgets with the same name.
  • Signature field: Applied signature/initial is mirrored across grouped widgets.

NOTE

Form field grouping is controlled by the Name property. The position of each widget is determined by its Bounds; grouping is independent of location.

Group using the Form Designer UI

Steps

  1. Enable the Form Designer toolbar.
  2. Add the form fields you want to group.
  3. Right-click a form field and open Properties, then set the Name value.
  4. Repeat for each field in the group, assigning the same Name to all PDF form fields that belong to the group.
  5. Apply the changes and verify that updates in one widget reflect in the others.
  6. To ungroup, rename one of the widgets to a unique Name.

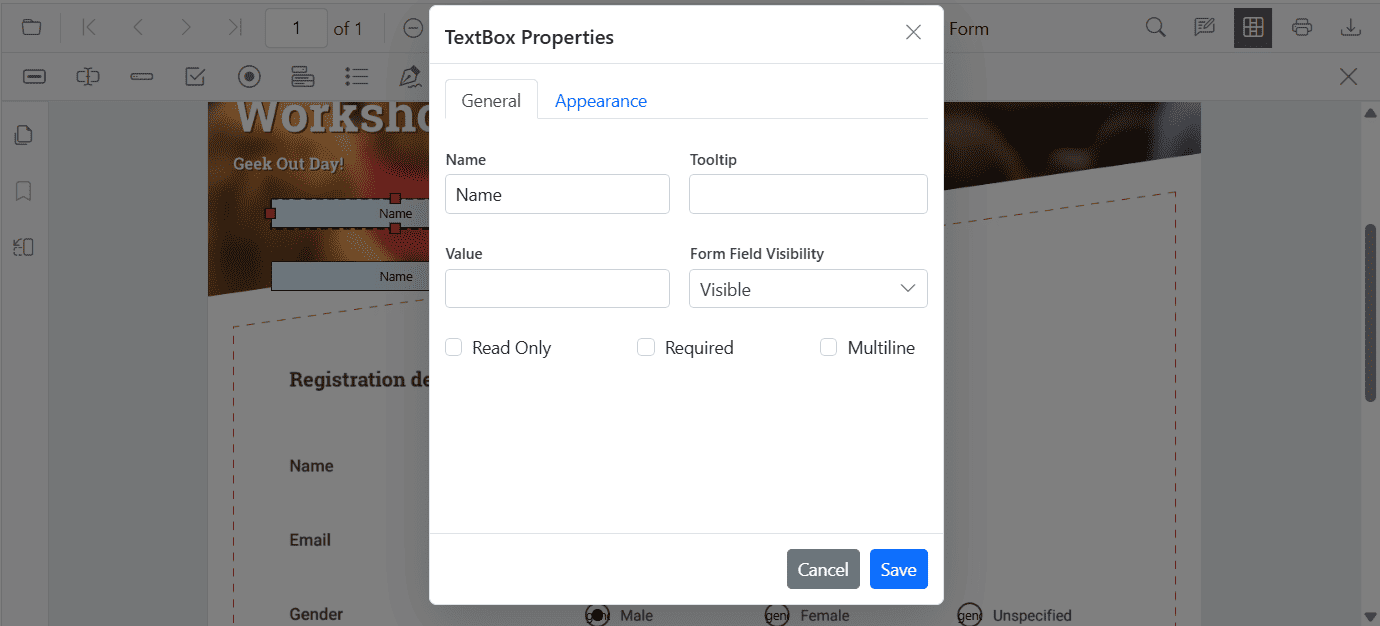

Grouping textboxes with the same name

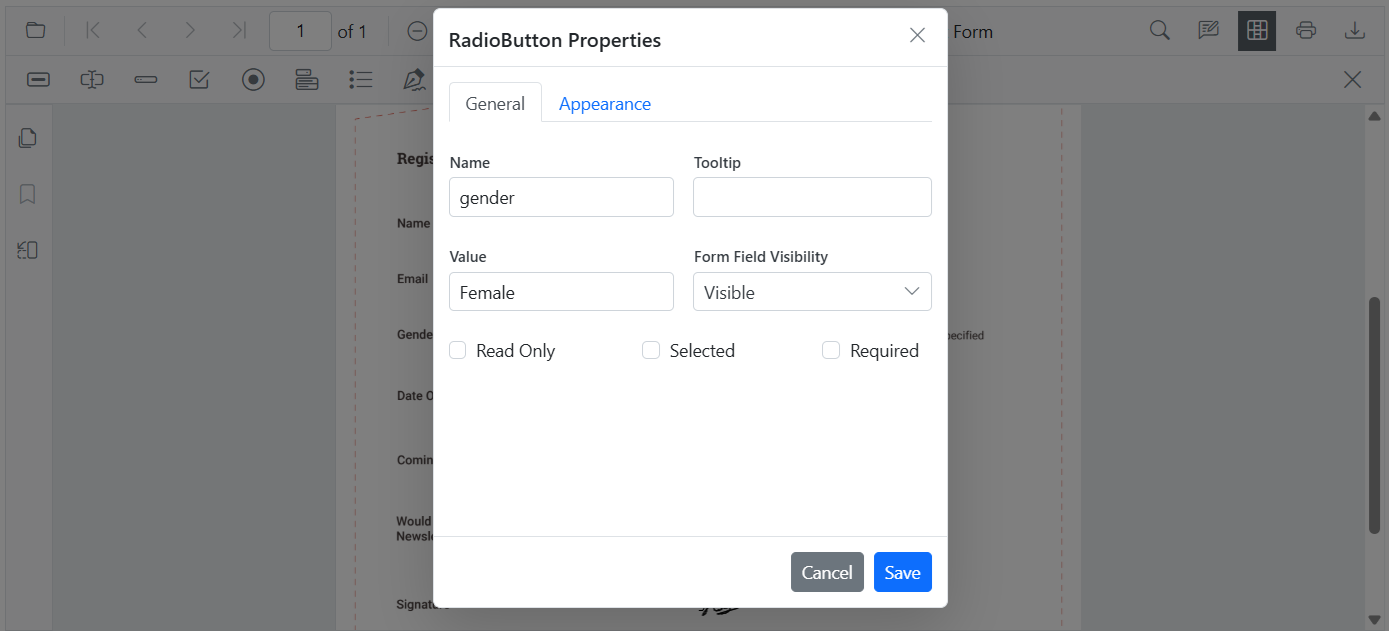

Grouping radio buttons with the same name

Group PDF Form Fields Programmatically

You can group form fields by assigning the same Name through code using AddFormFieldsAsync().

Example Scenarios

  • Two textboxes named EmployeeId share the same value.
  • A radio button group named Gender allows single selection.
  • Two checkboxes named Subscribe share the checked state.
@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer" Height="100%" Width="100%" DocumentPath="@DocumentPath">
    <PdfViewerEvents DocumentLoaded="@OnDocumentLoaded"></PdfViewerEvents>
</SfPdfViewer2>

@code {
    private SfPdfViewer2? viewer;
    private string DocumentPath = "wwwroot/data/form-designer.pdf";

    private async Task OnDocumentLoaded()
    {
        if (viewer == null) return;

        // Create grouped form fields with the same name
        List<FormFieldInfo> formFields = new List<FormFieldInfo>
        {
            // Textbox group: same name => mirrored value
            new TextBoxField
            {
                Name = "EmployeeId",
                Bounds = new Bound { X = 146, Y = 229, Width = 150, Height = 24 }
            },
            new TextBoxField
            {
                Name = "EmployeeId", // same name groups the two widgets
                Bounds = new Bound { X = 338, Y = 229, Width = 150, Height = 24 }
            },

            // Radio button group: same name => exclusive selection across the group
            new RadioButtonField
            {
                Name = "Gender",
                Bounds = new Bound { X = 148, Y = 289, Width = 18, Height = 18 },
                IsSelected = false
            },
            new RadioButtonField
            {
                Name = "Gender", // grouped with the first
                Bounds = new Bound { X = 292, Y = 289, Width = 18, Height = 18 },
                IsSelected = false
            },

            // CheckBox group: same name => mirrored checked state
            new CheckBoxField
            {
                Name = "Subscribe",
                Bounds = new Bound { X = 56, Y = 664, Width = 20, Height = 20 },
                IsChecked = false
            },
            new CheckBoxField
            {
                Name = "Subscribe", // grouped with the first
                Bounds = new Bound { X = 242, Y = 664, Width = 20, Height = 20 },
                IsChecked = false
            }
        };

        // Add the grouped form fields to the PDF document
        await viewer.AddFormFieldsAsync(formFields);
    }
}

NOTE

For a hands-on reference with working code examples, explore the sample projects available on GitHub.
