Polygon Annotation (Shape) in Blazor SfPdfViewer Component

17 Jul 202610 minutes to read

Polygon annotations let users outline irregular regions, draw custom shapes, or highlight non-rectangular areas on PDFs for review and markup. The Blazor SfPdfViewer supports adding and managing polygon annotations both from the UI and programmatically.

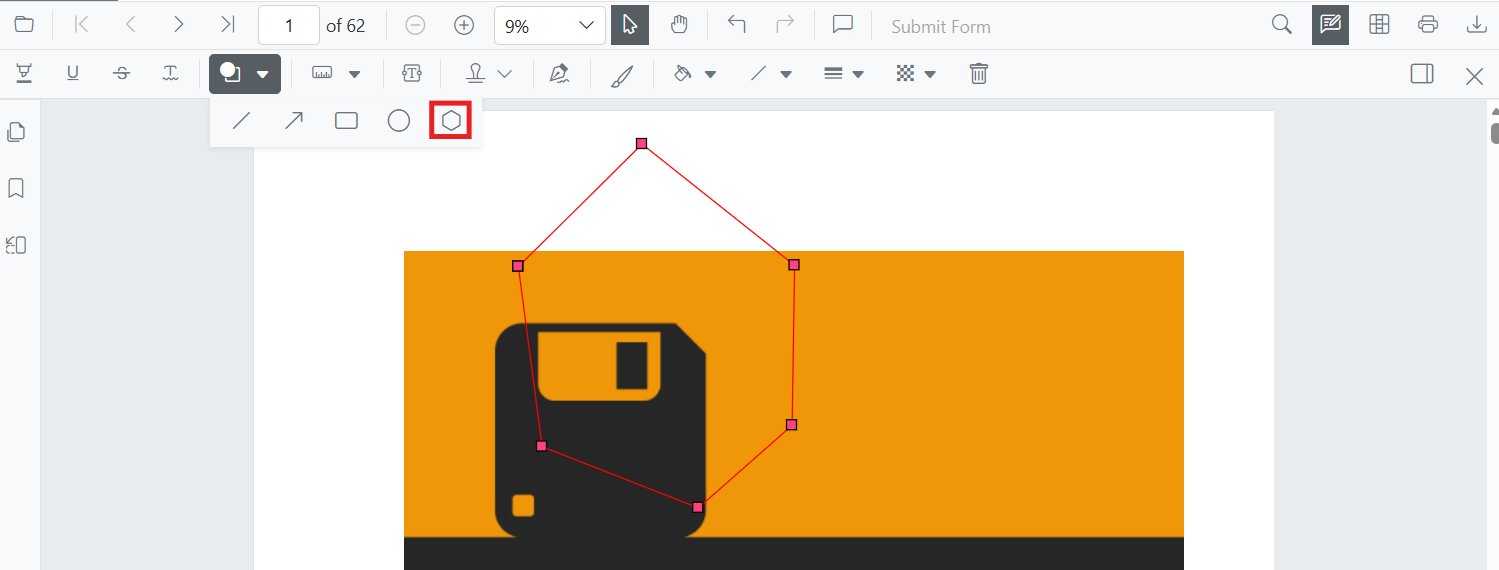

Polygon overview

Enable Polygon Annotation in the Viewer

Polygon annotations are available by default in the Blazor SfPdfViewer component with the annotation toolbar enabled. The following example shows the minimum component setup:

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

NOTE

Ensure the sample PDF is placed in the wwwroot/Data/ folder of your Blazor app, and that SfPdfViewer is registered in Program.cs. Refer to the Blazor getting started guide for setup details.

Add Polygon Annotation

Add Polygon Annotation Using the Toolbar

Polygon annotations can be added from the annotation toolbar:

  1. Select Edit Annotation in the viewer toolbar to open the annotation toolbar.
  2. Select Shape Annotation to open the shape list.
  3. Choose Polygon to enable polygon drawing mode.
  4. Click multiple points on the PDF page to define the polygon vertices.
  5. Double-click or press Enter to finalize the polygon.

Shape toolbar

NOTE

When the viewer is in Pan mode and a shape drawing mode is activated, the viewer switches to Text Select mode.

Enable Polygon Annotation Mode

Switch the viewer into polygon drawing mode using SetAnnotationModeAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="OnClick">Polygon Annotation</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private async void OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Polygon);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Polygon Annotation Programmatically

Use the AddAnnotationAsync method to add a polygon annotation by specifying multiple vertex points. Ensure the document is loaded and the component reference is available before invoking this method.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddPolygonAsync">Add Polygon Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    private async void AddPolygonAsync(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        // Set the Polygon annotation type
        annotation.Type = AnnotationType.Polygon;
        // Page numbers start from 0. So, if set to 0 it represents page 1.
        annotation.PageNumber = 0;

        // Define vertex points for the polygon.
        // The viewer automatically closes the polygon by connecting the last point to the first.
        annotation.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 200, Y = 800 },
            new VertexPoint() { X = 242, Y = 771 },
            new VertexPoint() { X = 289, Y = 799 },
            new VertexPoint() { X = 278, Y = 842 },
            new VertexPoint() { X = 211, Y = 842 }
        };
        // Add polygon annotation
        await Viewer.AddAnnotationAsync(annotation);
    }
}

Customize Polygon Annotation Appearance

Configure default polygon appearance (fill color, stroke color, thickness, opacity) during control initialization using PolygonSettings. These settings apply when polygons are created from the toolbar or programmatically.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              PolygonSettings="@PolygonSettings"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerPolygonSettings PolygonSettings = new PdfViewerPolygonSettings
    {
        FillColor = "#ffa5d8",
        Opacity = 0.9,
        StrokeColor = "#ff6a00",
        Thickness = 2
    };
}

Manage Polygon Annotation (Edit, Move, Resize, Delete)

Edit Polygon Annotation

Edit Polygon Annotation (UI)

  • Select a polygon to view resize handles.
  • Drag any vertex to resize or reposition; drag inside the shape to move it.
  • Edit fill, stroke, thickness, and opacity using the annotation toolbar.

Shape tools

Use the following annotation toolbar tools to modify:

  • Edit Fill Color tool
    Edit fill color

  • Edit Stroke Color tool
    Edit stroke color

  • Edit Opacity slider
    Edit opacity

  • Edit Thickness slider
    Edit thickness

Edit Polygon Annotation Programmatically

Modify an existing polygon annotation programmatically using EditAnnotationAsync. Retrieve the target annotation from GetAnnotationsAsync and update the desired properties before submitting the edit.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditPolygonAsync">Edit Polygon Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    private async void EditPolygonAsync(MouseEventArgs args)
    {
        // Get annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the polygon annotation to edit
        PdfAnnotation annotation = annotationCollection[0];
        // Change the fill color of polygon annotation
        annotation.FillColor = "#FFFF00";
        // Change the stroke color of polygon annotation
        annotation.StrokeColor = "#0000FF";
        // Change the thickness of polygon annotation
        annotation.Thickness = 2;
        // Change the opacity (0 to 1) of polygon annotation
        annotation.Opacity = 0.9;
        // Edit the polygon annotation
        await Viewer.EditAnnotationAsync(annotation);
    }
}

Delete Polygon Annotation

The PDF Viewer supports deleting existing annotations through the UI and API.
See Delete Annotation for full behavior and workflows.

Comments

Use the Comments panel to add, view, and reply to threaded discussions linked to polygon annotations. It provides a dedicated interface for collaboration and review within the PDF Viewer.

Add Multiple Polygon Annotations with Properties

Configure per-annotation appearance while adding polygons using AddAnnotationAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddMultiplePolygonsAsync">Add Multiple Polygons</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    private SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    private async void AddMultiplePolygonsAsync(MouseEventArgs args)
    {
        // Polygon 1
        PdfAnnotation annotation1 = new PdfAnnotation();
        annotation1.Type = AnnotationType.Polygon;
        annotation1.PageNumber = 0;
        annotation1.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 200, Y = 800 },
            new VertexPoint() { X = 242, Y = 771 },
            new VertexPoint() { X = 289, Y = 799 },
            new VertexPoint() { X = 278, Y = 842 },
            new VertexPoint() { X = 211, Y = 842 }
        };
        annotation1.Opacity = 0.9;
        annotation1.StrokeColor = "#ff6a00";
        annotation1.FillColor = "#ffa5d8";
        annotation1.Thickness = 2;
        annotation1.Author = "User 1";

        // Polygon 2
        PdfAnnotation annotation2 = new PdfAnnotation();
        annotation2.Type = AnnotationType.Polygon;
        annotation2.PageNumber = 0;
        annotation2.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 360, Y = 800 },
            new VertexPoint() { X = 410, Y = 770 },
            new VertexPoint() { X = 450, Y = 810 },
            new VertexPoint() { X = 430, Y = 850 },
            new VertexPoint() { X = 380, Y = 850 }
        };
        annotation2.Opacity = 0.85;
        annotation2.StrokeColor = "#ff1010";
        annotation2.FillColor = "#ffe600";
        annotation2.Thickness = 3;
        annotation2.Author = "User 2";

        // Add both polygons
        await Viewer.AddAnnotationAsync(annotation1);
        await Viewer.AddAnnotationAsync(annotation2);
    }
}

Disable Polygon Annotation

Disable polygon annotations (along with all other shape annotations, such as Line, Arrow, Rectangle, and Circle) using the EnableShapeAnnotation property.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              EnableShapeAnnotation="false"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Handle Polygon Annotation Events

The PDF viewer provides annotation life-cycle events that notify when Polygon annotations are added, modified, selected, or removed.
For the full list of available events and their descriptions, see Annotation Events

Export and Import

The PDF Viewer supports exporting and importing annotations. For details on supported formats and workflows, see Export and Import annotations.
