Line Annotation (Shape) in Blazor SfPdfViewer Component

12 May 20268 minutes to read

Line annotations allow users to draw straight connectors or callouts on PDFs for markup, review, diagrams, or measurement guides. They support customization of color, thickness, opacity, and arrowheads, and can be edited, resized, deleted, or exported along with the document.

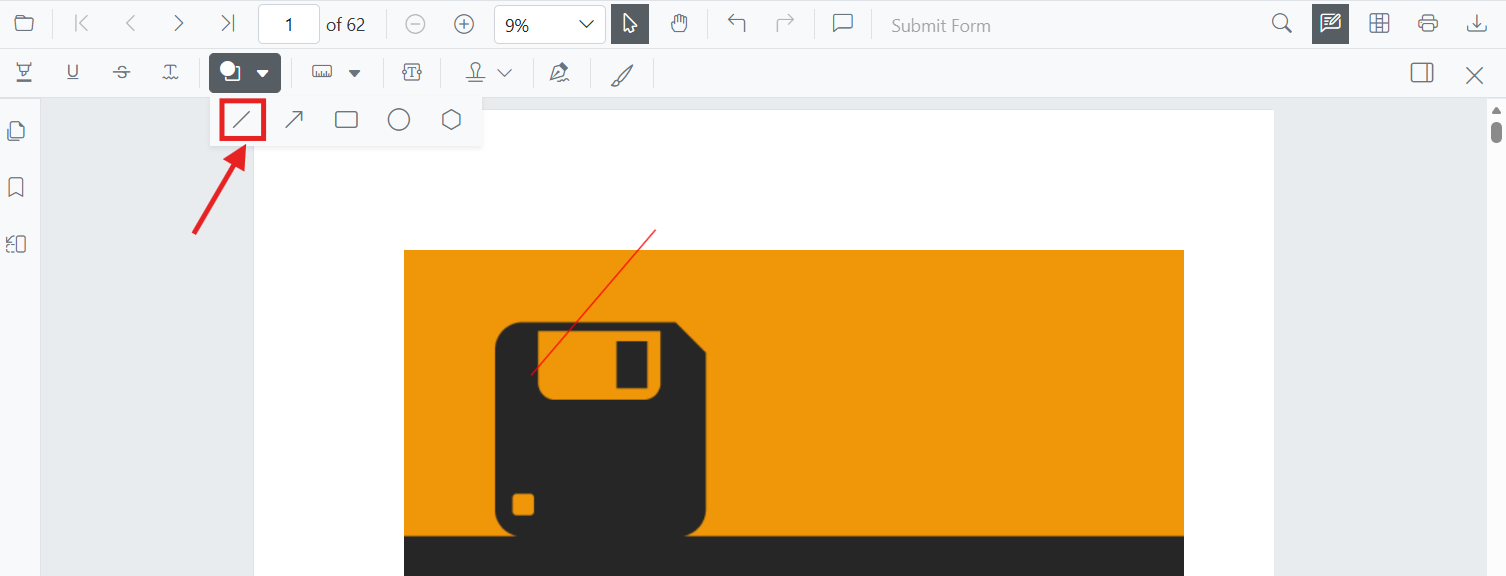

Line overview

Enable Line Annotation in the Viewer

Line annotations are available by default in the Blazor SfPdfViewer component with the annotation toolbar enabled.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Line Annotation

Add Line Annotation Using the Toolbar

Line annotations can be added from the annotation toolbar:

  1. Select Edit Annotation in the viewer toolbar to open the annotation toolbar.
  2. Select Shape Annotation to open the shape list.
  3. Choose Line to enable line drawing mode.
  4. Click and drag on the PDF page to draw the line.

Shape toolbar

NOTE

When the viewer is in Pan mode and a shape drawing mode is activated, the viewer switches to Text Select mode.

Enable Line Mode

Switch the viewer into line drawing mode using SetAnnotationModeAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="OnClick">Line Annotation</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    public async void OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Line);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Line Programmatically

Use the AddAnnotationAsync method to add a line annotation at a specific location. Ensure the document is loaded and the component reference is available before invoking this method.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddLineAnnotationAsync">Add Line Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Line_Annotation.pdf";

    public async void AddLineAnnotationAsync(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        // Set the annotation type as Line
        annotation.Type = AnnotationType.Line;
        // Page numbers start from 0. So, if set to 0 it represents page 1.
        annotation.PageNumber = 0;

        // Vertex points for the line annotation
        annotation.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 200, Y = 230 },
            new VertexPoint() { X = 350, Y = 230 }
        };

        // Add line annotation
        await Viewer.AddAnnotationAsync(annotation);
    }
}

Customize Line Appearance

Configure default line appearance (stroke color, thickness, opacity) during control initialization using LineSettings. These settings apply when lines are created from the toolbar or programmatically.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              LineSettings="@LineSettings"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerLineSettings LineSettings = new PdfViewerLineSettings
    {
        StrokeColor = "blue",
        Opacity = 0.6,
        Thickness = 2
    };
}

Manage Line (Edit, Move, Resize, Delete)

Edit Line

Edit Line (UI)

  • Select a line to view resize handles.
  • Drag endpoints to adjust length/angle.
  • Edit stroke, thickness, and opacity using the annotation toolbar.

Use the annotation toolbar tools to modify:

  • Edit fill Color tool
    Edit fill color

  • Edit stroke Color tool
    Edit stroke color

  • Edit Opacity slider
    Edit opacity

  • Edit Thickness slider
    Edit thickness

  • Line Properties dialog via Right Click → Properties to adjust line-specific properties.
    Line properties dialog

Edit Line Programmatically

Modify an existing line annotation programmatically using EditAnnotationAsync. Retrieve the target annotation from GetAnnotationsAsync and update the desired properties before submitting the edit.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditLineAnnotationAsync">Edit Line Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Line_Annotation.pdf";

    public async void EditLineAnnotationAsync(MouseEventArgs args)
    {
        // Get annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the line annotation to edit
        PdfAnnotation annotation = annotationCollection[0];
        // Change the stroke color of line annotation
        annotation.StrokeColor = "#FF0000";
        // Change the thickness of line annotation
        annotation.Thickness = 3;
        // Change the opacity (0 to 1) of line annotation
        annotation.Opacity = 0.5;
        // Edit the line annotation
        await Viewer.EditAnnotationAsync(annotation);
    }
}

Delete Line

The PDF Viewer supports deleting existing annotations through the UI and API.
See Delete Annotation for full behavior and workflows.

Comments

Use the Comments panel to add, view, and reply to threaded discussions linked to line annotations. It provides a dedicated interface for collaboration and review within the PDF Viewer.

Set Properties While Adding Individual Annotations

Set properties for individual line annotations by passing values directly during AddAnnotationAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddMultipleLinesAsync">Add Multiple Lines</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Line_Annotation.pdf";

    public async void AddMultipleLinesAsync(MouseEventArgs args)
    {
        // Line 1
        PdfAnnotation annotation1 = new PdfAnnotation();
        annotation1.Type = AnnotationType.Line;
        annotation1.PageNumber = 0;
        annotation1.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 200, Y = 230 },
            new VertexPoint() { X = 350, Y = 230 }
        };
        annotation1.StrokeColor = "#0066FF";
        annotation1.Thickness = 2;
        annotation1.Opacity = 0.9;
        annotation1.Author = "User 1";

        // Line 2
        PdfAnnotation annotation2 = new PdfAnnotation();
        annotation2.Type = AnnotationType.Line;
        annotation2.PageNumber = 0;
        annotation2.VertexPoints = new List<VertexPoint>()
        {
            new VertexPoint() { X = 220, Y = 300 },
            new VertexPoint() { X = 400, Y = 300 }
        };
        annotation2.StrokeColor = "#FF1010";
        annotation2.Thickness = 3;
        annotation2.Opacity = 0.9;
        annotation2.Author = "User 2";

        // Add both lines
        await Viewer.AddAnnotationAsync(annotation1);
        await Viewer.AddAnnotationAsync(annotation2);
    }
}

Disable Line Annotation

Disable line annotations programmatically or through component settings as needed by your application requirements.

Handle Line Events

The PDF viewer provides annotation life-cycle events that notify when Line annotations are added, modified, selected, or removed.
For the full list of available events and their descriptions, see Annotation Events

Export and Import

The PDF Viewer supports exporting and importing annotations. For details on supported formats and workflows, see Export and Import annotations.
