Circle Annotation (Shape) in Blazor SfPdfViewer Component

12 May 20268 minutes to read

Circle annotations let users highlight circular regions or draw emphasis bubbles on PDFs for reviews and markups. The Blazor SfPdfViewer allows you to add circles from the toolbar, customize appearance, edit/delete them in the UI, and export them with the document.

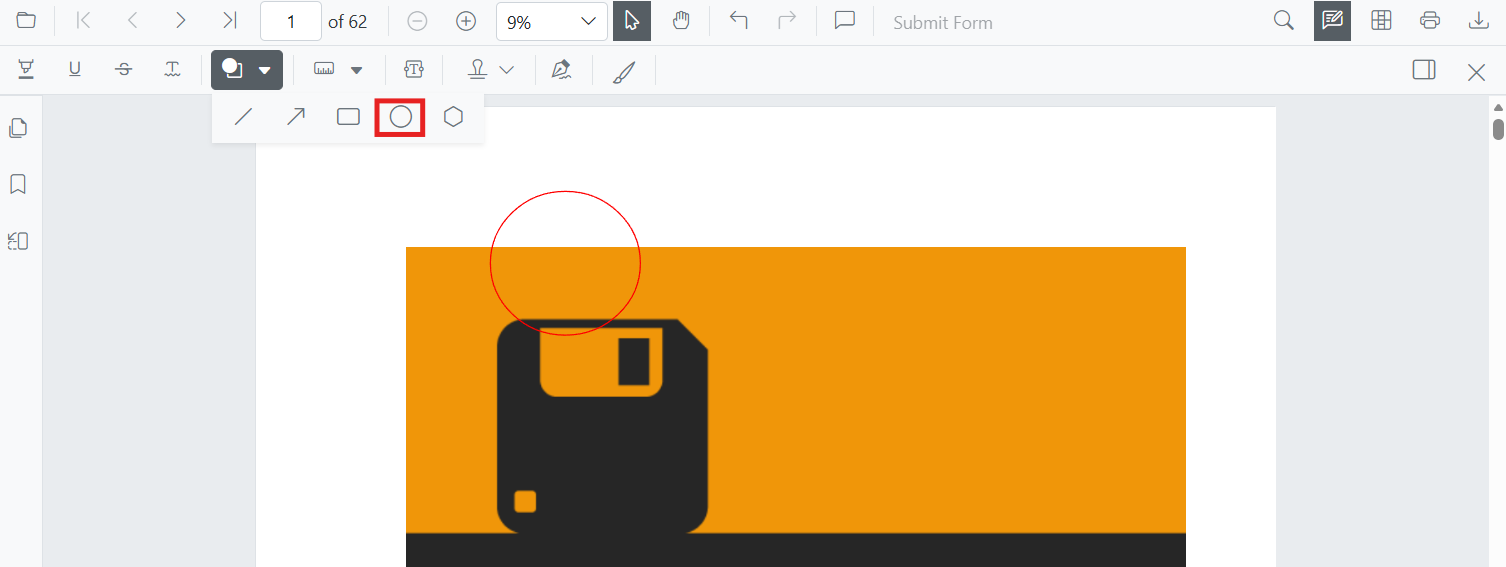

Circle overview

Enable Circle Annotation in the Viewer

Circle annotations are available by default in the Blazor SfPdfViewer component with the annotation toolbar enabled.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 DocumentPath="@DocumentPath"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Circle Annotation

Apply Circle Annotation Using the Toolbar

Circle annotations can be added from the annotation toolbar:

  1. Select Edit Annotation in the viewer toolbar to open the annotation toolbar.
  2. Select Shape Annotation to open the shape list.
  3. Choose Circle to enable circle drawing mode.
  4. Click and drag on the PDF page to draw the circle (ellipse).

Shape toolbar

NOTE

When the viewer is in Pan mode and a shape drawing mode is activated, the viewer switches to Text Select mode.

Enable Circle Mode

Switch the viewer into circle drawing mode using SetAnnotationModeAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="OnClick">Circle Annotation</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    public async void OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Circle);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Add Circle Programmatically

Use the AddAnnotationAsync method to add a circle annotation at a specific location. Ensure the document is loaded and the component reference is available before invoking this method.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddCircleAsync">Add Circle Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    public async void AddCircleAsync(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        // Set the Circle annotation type
        annotation.Type = AnnotationType.Circle;
        // Page numbers start from 0. So, if set to 0 it represents page 1.
        annotation.PageNumber = 0;

        // Bound of the circle annotation
        annotation.Bound = new Bound();
        annotation.Bound.X = 200;
        annotation.Bound.Y = 620;
        annotation.Bound.Width = 90;
        annotation.Bound.Height = 90;
        // Add circle annotation
        await Viewer.AddAnnotationAsync(annotation);
    }
}

Customize Circle Appearance

Configure default circle appearance (fill color, stroke color, thickness, opacity) during control initialization using CircleSettings. These settings apply when circles are created from the toolbar or programmatically.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              CircleSettings="@CircleSettings"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerCircleSettings CircleSettings = new PdfViewerCircleSettings
    {
        FillColor = "orange",
        Opacity = 0.9,
        StrokeColor = "#ff6a00",
        Thickness = 2
    };
}

Manage Circle (Edit, Move, Resize, Delete)

Edit Circle

Edit Circle (UI)

  • Select a circle to view resize handles.
  • Drag any side/corner to resize; drag inside the shape to move it.
  • Edit fill, stroke, thickness, and opacity using the annotation toolbar.

Use the annotation toolbar tools to modify:

  • Edit fill Color tool
    Edit fill color

  • Edit stroke Color tool
    Edit stroke color

  • Edit Opacity slider
    Edit opacity

  • Edit Thickness slider
    Edit thickness

Edit Circle Programmatically

Modify an existing circle annotation programmatically using EditAnnotationAsync. Retrieve the target annotation from GetAnnotationsAsync and update the desired properties before submitting the edit.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditCircleAsync">Edit Circle Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    public async void EditCircleAsync(MouseEventArgs args)
    {
        // Get annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the circle annotation to edit
        PdfAnnotation annotation = annotationCollection[0];
        // Change the fill color of circle annotation
        annotation.FillColor = "#FFFF00";
        // Change the stroke color of circle annotation
        annotation.StrokeColor = "#0000FF";
        // Change the thickness of circle annotation
        annotation.Thickness = 2;
        // Change the opacity (0 to 1) of circle annotation
        annotation.Opacity = 0.9;
        // Edit the circle annotation
        await Viewer.EditAnnotationAsync(annotation);
    }
}

Delete Circle

The PDF Viewer supports deleting existing annotations through the UI and API.
See Delete Annotation for full behavior and workflows.

Comments

Use the Comments panel to add, view, and reply to threaded discussions linked to circle annotations. It provides a dedicated interface for collaboration and review within the PDF Viewer.

Set Properties While Adding Individual Annotations

Set properties for individual circle annotations by passing values directly during AddAnnotationAsync.

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddMultipleCirclesAsync">Add Multiple Circles</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    public async void AddMultipleCirclesAsync(MouseEventArgs args)
    {
        // Circle 1
        PdfAnnotation annotation1 = new PdfAnnotation();
        annotation1.Type = AnnotationType.Circle;
        annotation1.PageNumber = 0;
        annotation1.Bound = new Bound()
        {
            X = 200,
            Y = 620,
            Width = 100,
            Height = 100
        };
        annotation1.Opacity = 0.9;
        annotation1.StrokeColor = "#ff6a00";
        annotation1.FillColor = "#ffa500";
        annotation1.Author = "User 1";

        // Circle 2
        PdfAnnotation annotation2 = new PdfAnnotation();
        annotation2.Type = AnnotationType.Circle;
        annotation2.PageNumber = 0;
        annotation2.Bound = new Bound()
        {
            X = 340,
            Y = 620,
            Width = 80,
            Height = 80
        };
        annotation2.Opacity = 0.85;
        annotation2.StrokeColor = "#ff1010";
        annotation2.FillColor = "#ffe600";
        annotation2.Author = "User 2";

        // Add both circles
        await Viewer.AddAnnotationAsync(annotation1);
        await Viewer.AddAnnotationAsync(annotation2);
    }
}

Disable Circle Annotation

Disable circle annotations programmatically or through component settings as needed by your application requirements.

Handle Circle Events

The PDF viewer provides annotation life-cycle events that notify when Circle annotations are added, modified, selected, or removed.
For the full list of available events and their descriptions, see Annotation Events

Export and Import

The PDF Viewer supports exporting and importing annotations. For details on supported formats and workflows, see Export and Import annotations.
