Shape annotations in Blazor SfPdfViewer Component

The Blazor SfPdfViewer supports adding, editing, and deleting shape annotations. The available shape types are:

  • Line
  • Arrow
  • Rectangle
  • Circle
  • Polygon

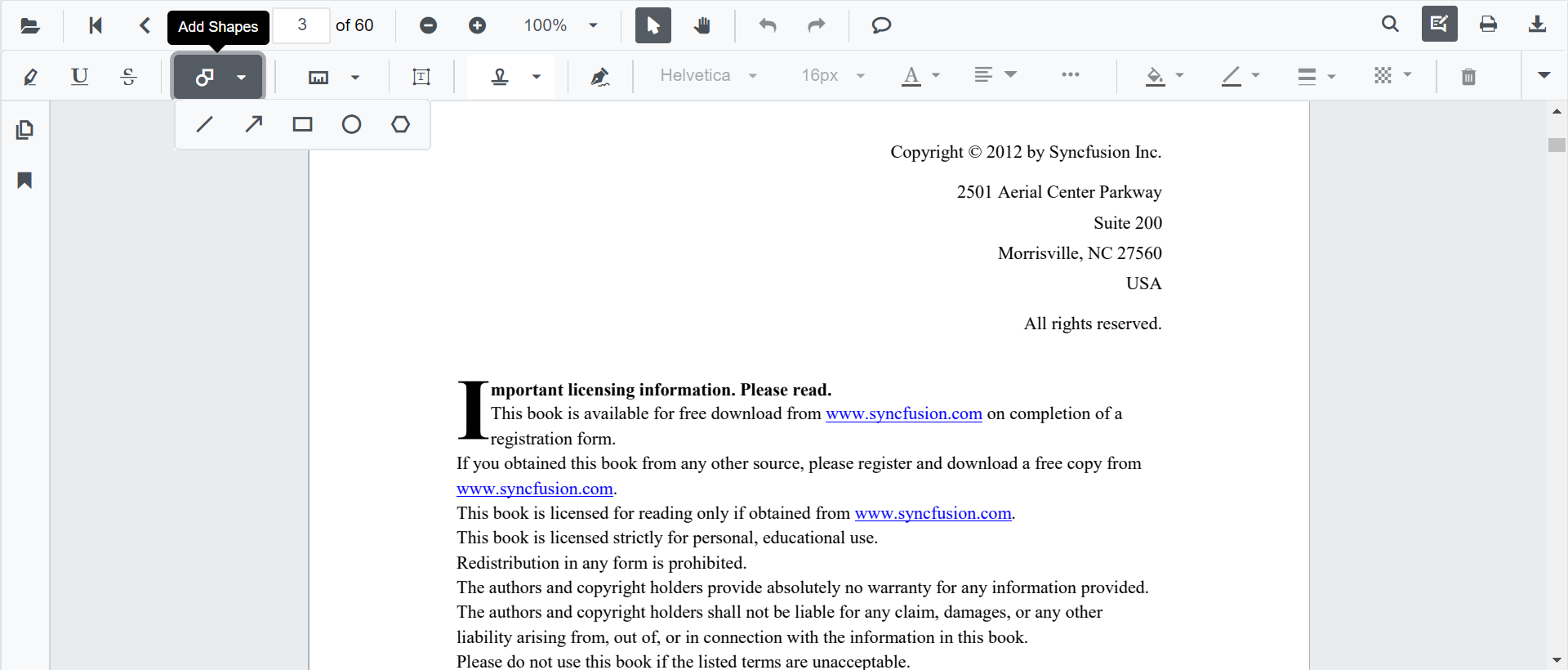

Shape annotations in the Blazor SfPdfViewer

Adding a shape annotation to the PDF document

Shape annotations can be added from the annotation toolbar.

  • Select Edit Annotation in the viewer toolbar to open the annotation toolbar.
  • Select Shape Annotation to open the shape list.
  • Choose a shape type to enable the corresponding drawing mode.
  • Draw the selected shape on the PDF page.

When the viewer is in pan mode and a shape drawing mode is activated, the control switches to text selection mode to enable drawing.

Adding shape annotations in Blazor SfPdfViewer

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="OnClick">Circle Annotation</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    public async void OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Circle);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Editing the properties of the shape annotation

The annotation toolbar provides tools to modify fill color, stroke color, thickness, and opacity for shape annotations.

Editing fill color

Use the Edit Color tool to change the annotation’s fill color via the color palette.

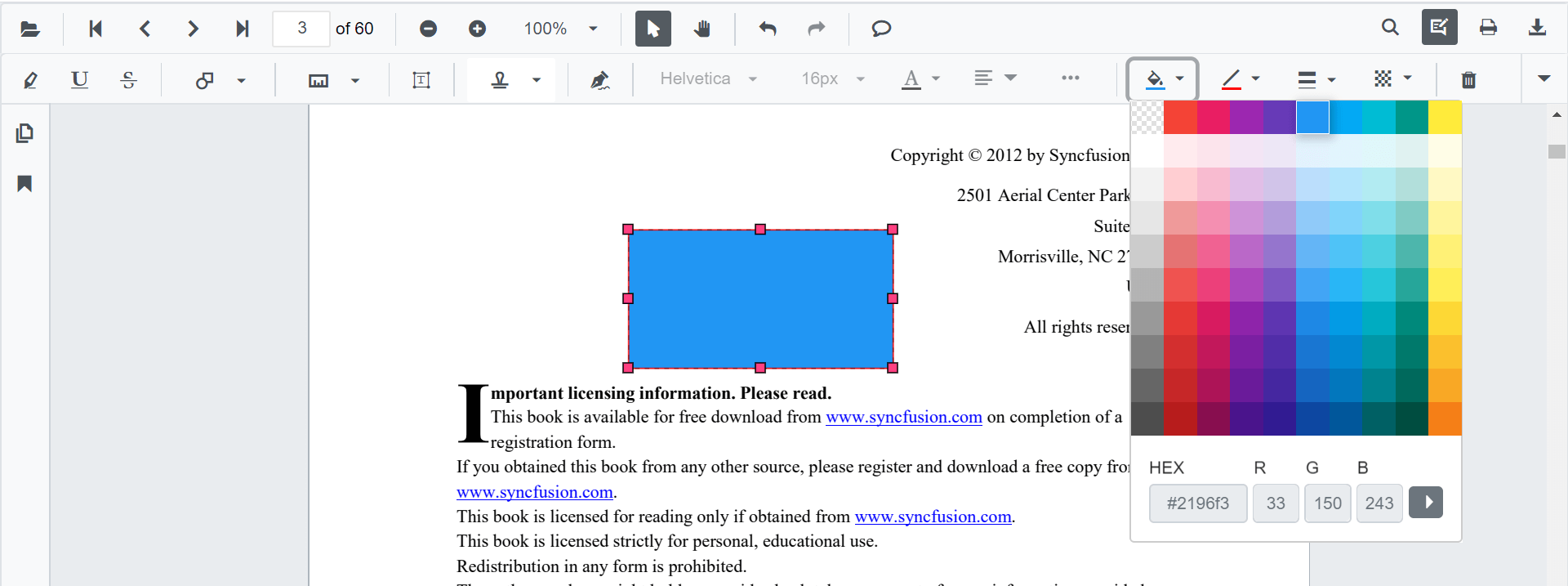

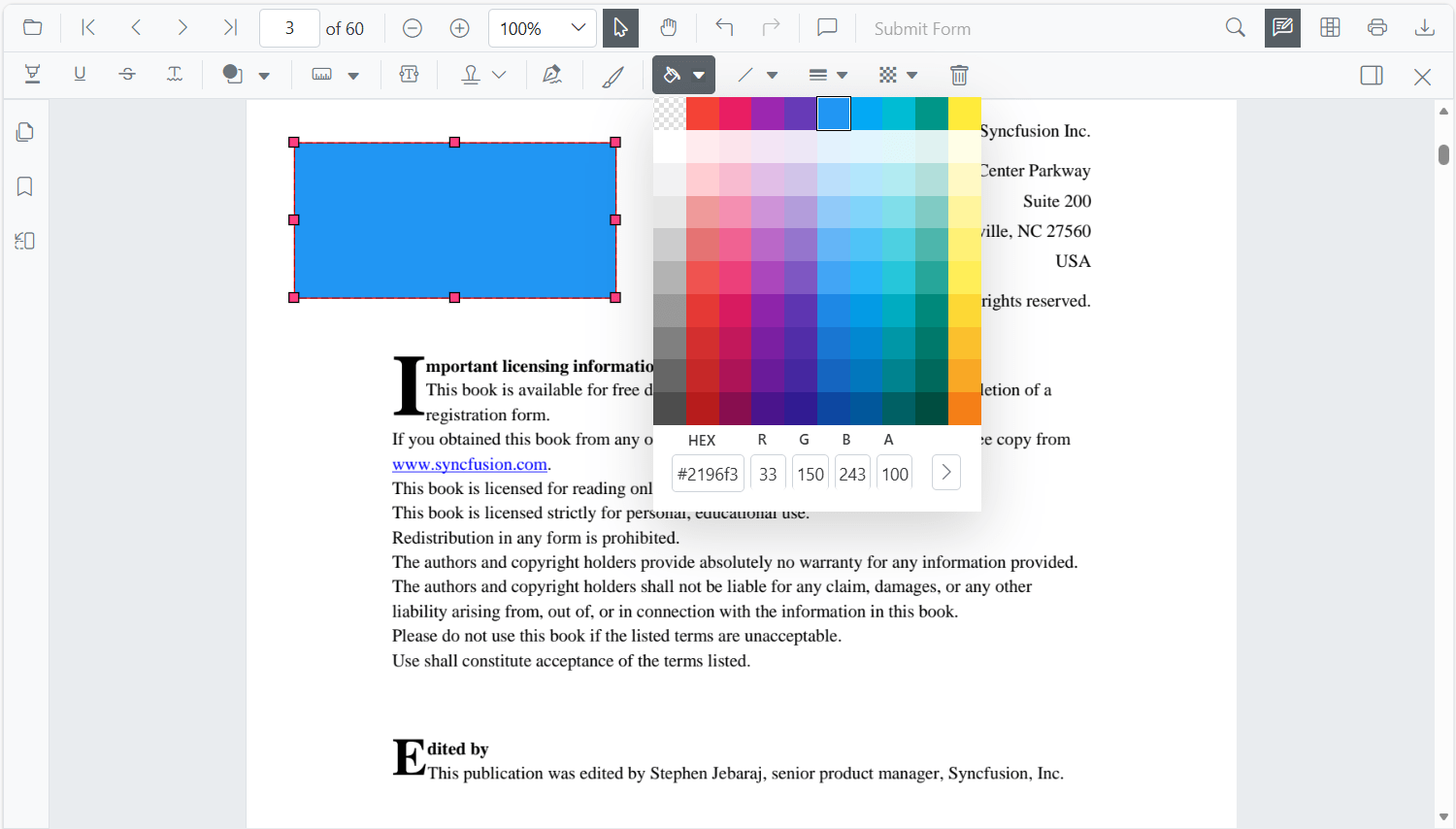

Editing fill color in Blazor SfPdfViewer

Editing stroke color

Use the Edit Stroke Color tool to change the border color via the color palette.

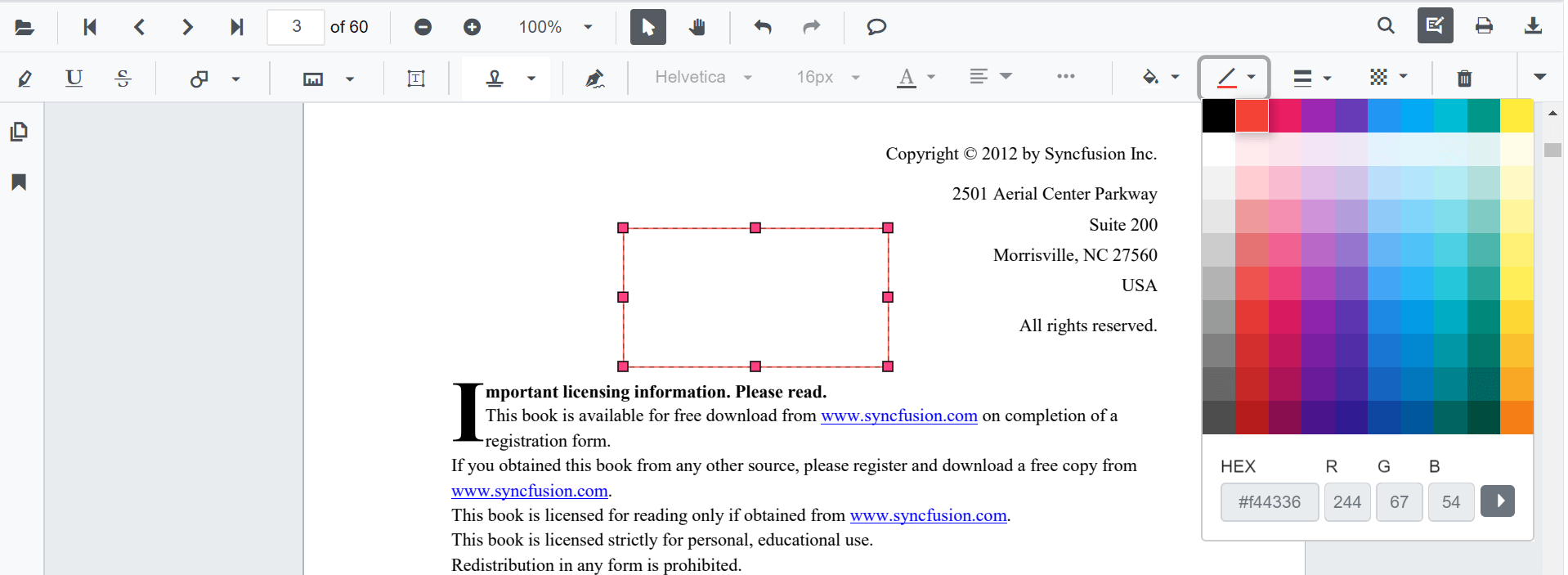

Editing stroke color in Blazor SfPdfViewer

Editing thickness

Use the Edit Thickness tool to adjust the border thickness with the range slider.

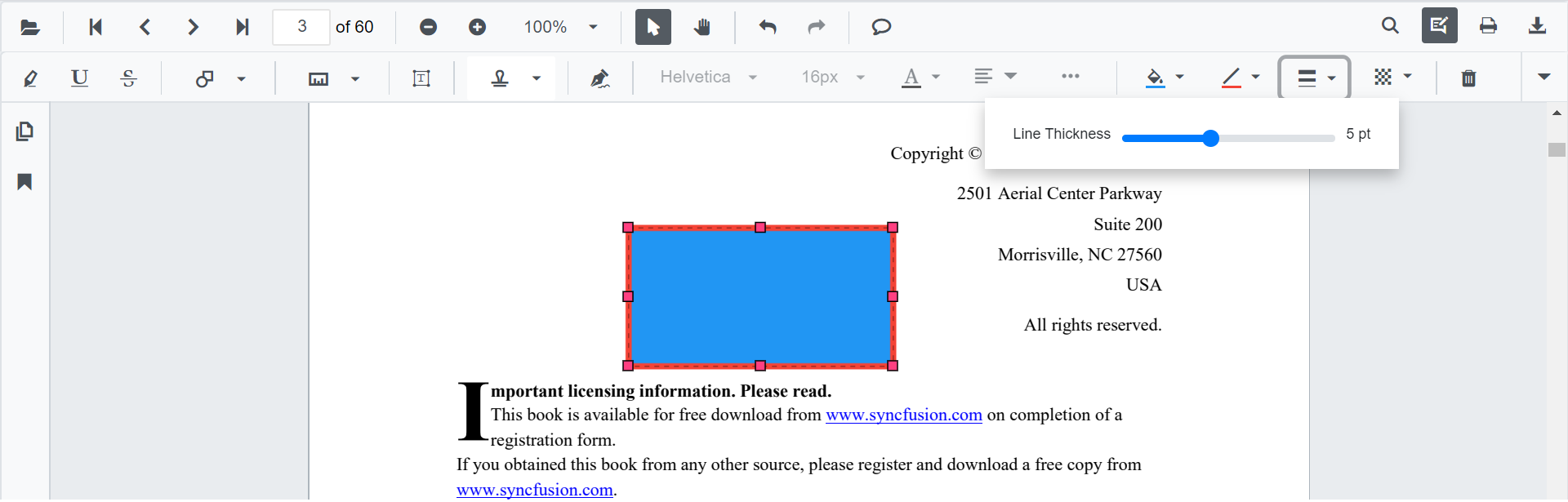

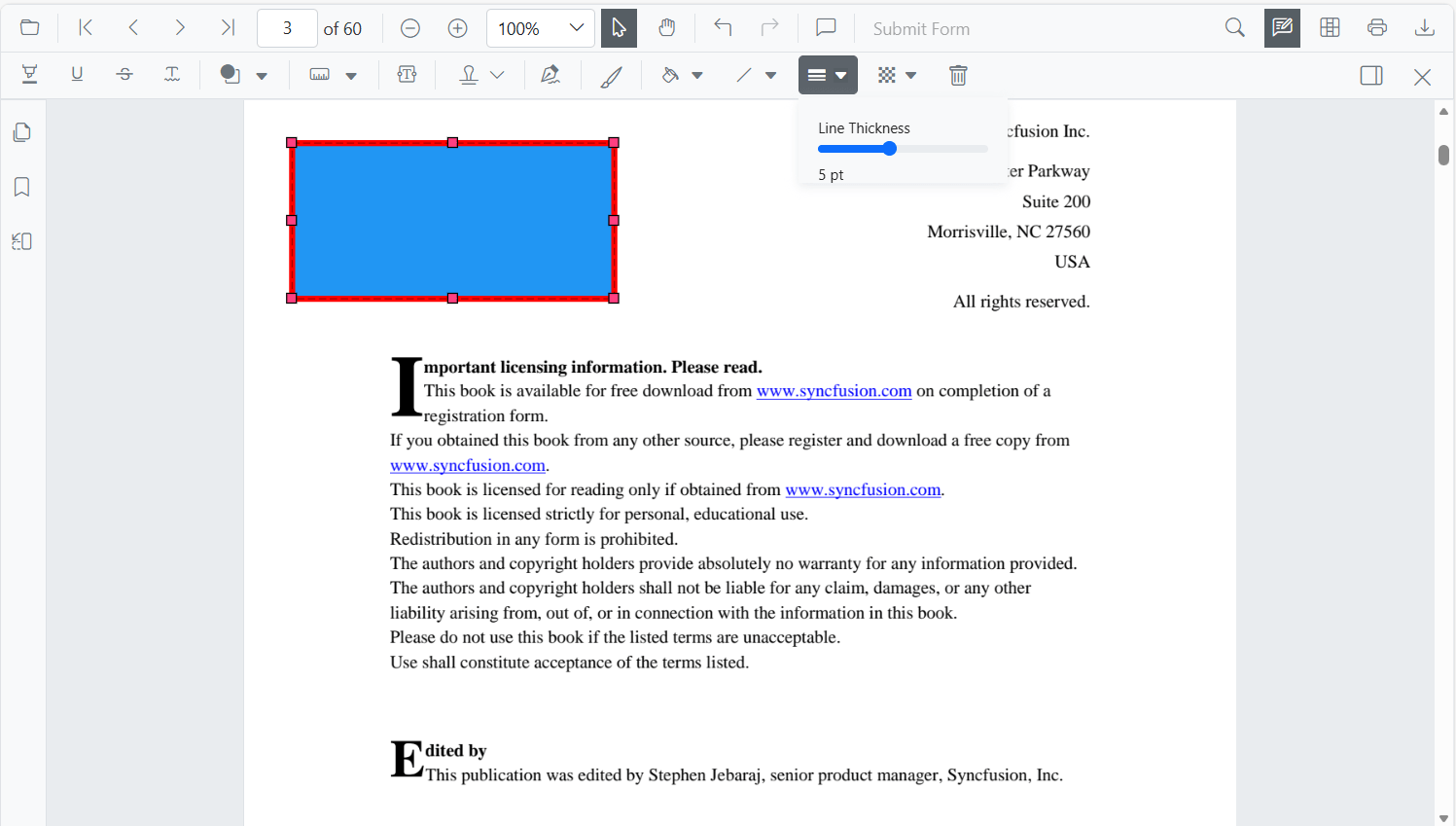

Editing shape border thickness in Blazor SfPdfViewer

Editing opacity

Use the Edit Opacity tool to modify transparency with the range slider.

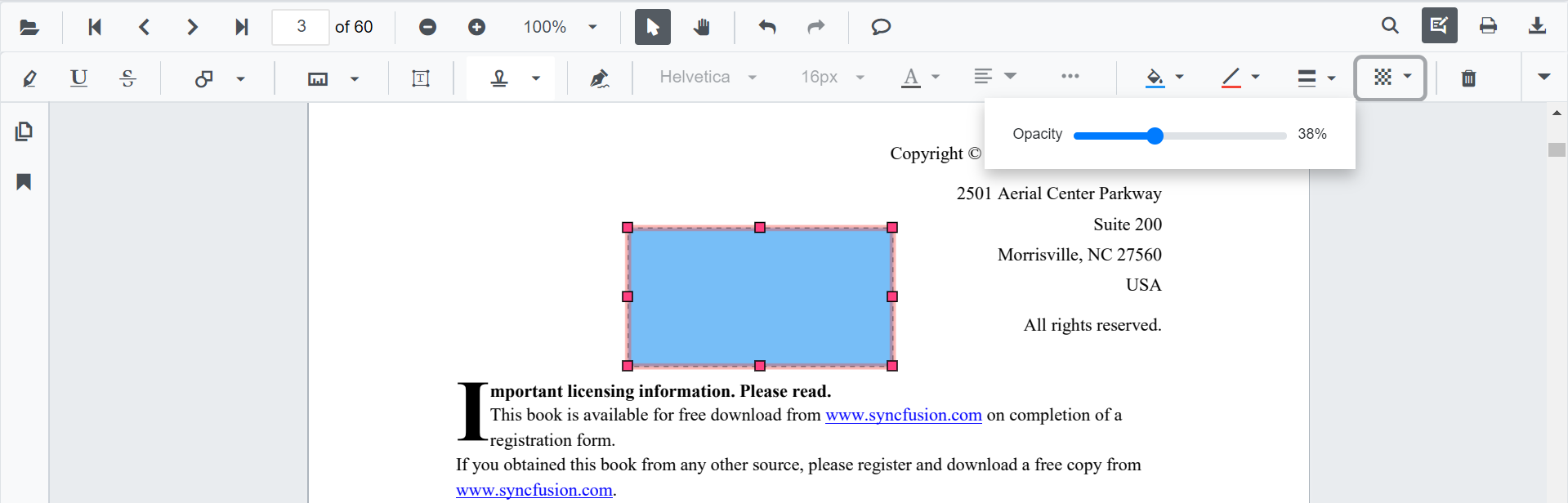

Editing shape opacity in Blazor SfPdfViewer

Editing the line properties

Properties for line-based shapes (Line and Arrow) can be adjusted in the Line Properties dialog. Open it by choosing Properties from the context menu after right-clicking a line or arrow annotation.

Editing line and arrow properties in Blazor SfPdfViewer

Setting default properties during control initialization

Default properties for shape annotations can be configured during initialization using LineSettings, ArrowSettings, RectangleSettings, CircleSettings, and PolygonSettings. These apply when the corresponding shape is created from the toolbar or programmatically.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              LineSettings="@LineSettings"
              ArrowSettings="@ArrowSettings"
              RectangleSettings="@RectangleSettings"
              CircleSettings="@CircleSettings"
              PolygonSettings="@PolygonSettings"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerLineSettings LineSettings = new PdfViewerLineSettings
        {
            FillColor = "blue",
            Opacity = 0.6,
            StrokeColor = "green"
        };

     PdfViewerArrowSettings ArrowSettings = new PdfViewerArrowSettings
        {
            FillColor = "green",
            Opacity = 0.6,
            StrokeColor = "blue"
        };

    PdfViewerRectangleSettings RectangleSettings = new PdfViewerRectangleSettings
        {
            FillColor = "yellow",
            Opacity = 0.6,
            StrokeColor = "orange"
        };

    PdfViewerCircleSettings CircleSettings = new PdfViewerCircleSettings
        {
            FillColor = "orange",
            Opacity = 0.6,
            StrokeColor = "pink"
        };

    PdfViewerPolygonSettings PolygonSettings = new PdfViewerPolygonSettings
        {
            FillColor = "pink",
            Opacity = 0.6,
            StrokeColor = "yellow"
        };
}

Customize annotation selector

The appearance of an annotation’s selector can be customized using AnnotationSelectorSettings on the PdfViewerRectangleSettings class. The following example changes the resizer shape for rectangle annotations. Similar selector customization is available per-annotation settings class for the supported shapes.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="viewer"
              DocumentPath="@DocumentPath"
              Height="100" Width="100%"
              RectangleSettings=@rectangleSettings>
</SfPdfViewer2>

@code {
    //Sets the PDF document path for initial loading.
    private string DocumentPath { get; set; } = "wwwroot/data/PDF_Succinctly.pdf";
    SfPdfViewer2 viewer;

    //Defines the settings of rectangle annotation.
    PdfViewerRectangleSettings rectangleSettings = new PdfViewerRectangleSettings
    {
        //Defines the annotation selector settings for the annotation.
        AnnotationSelectorSettings = new PdfViewerAnnotationSelectorSettings()
        {
            //Defines the shape of the resizer. By default it is square.
            ResizerShape = AnnotationResizerShape.Circle
        }
    };
}

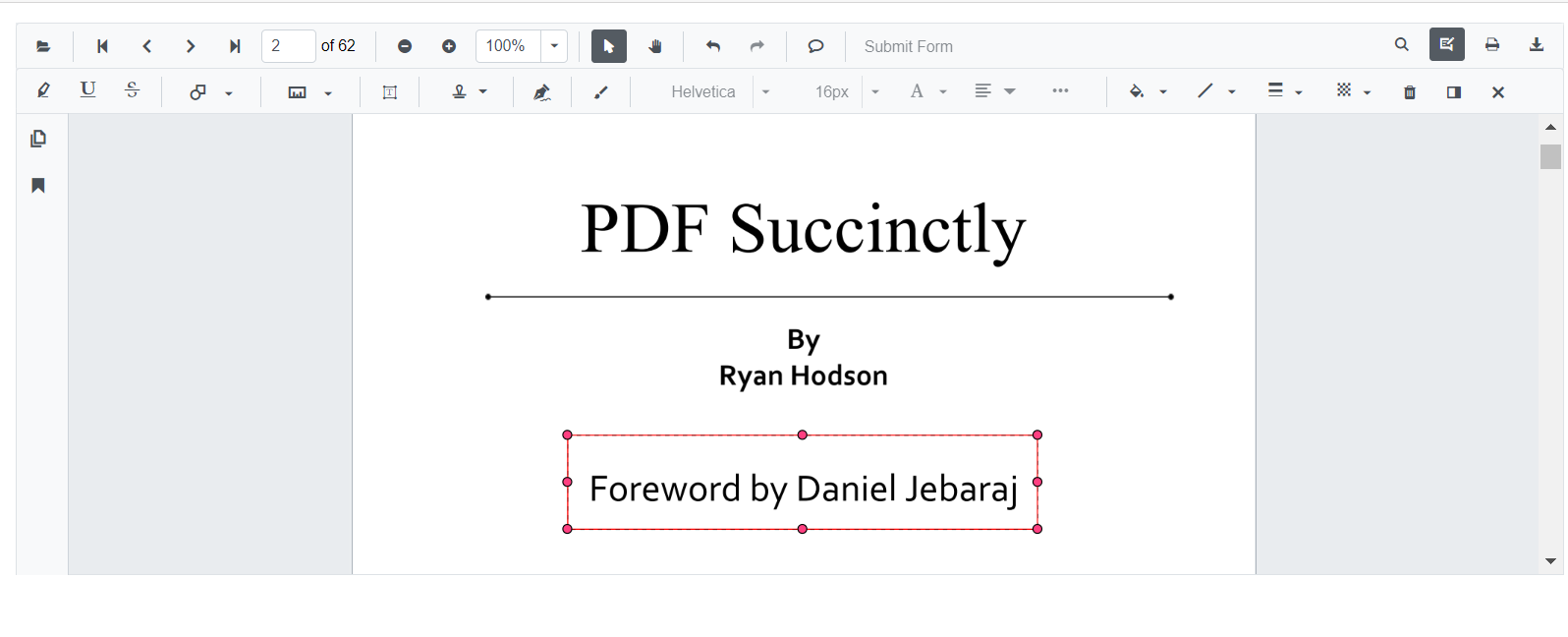

Customized selector in Blazor SfPdfViewer

View sample in GitHub.

Add shape annotation Programmatically

The Blazor SfPdfViewer supports programmatic creation of shape annotations Rectangle, Line, Arrow, Circle, and Polygon using AddAnnotationAsync. Ensure the document is loaded and the component reference is available before invoking API calls.

Below is an example demonstrating how to use this method to add a shape annotation to a PDF document:

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddShapeAnnotationAsync">Add Shape Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    public async void AddShapeAnnotationAsync(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        // Set the Shape annotation type like Rectangle, Line, Arrow, Circle, Polygon.
        annotation.Type = AnnotationType.Rectangle;
        // Set the page number starts from 0. So, if set 0 it represents the page 1.
        annotation.PageNumber = 0;

        // Bound of the rectangle annotation
        annotation.Bound = new Bound();
        annotation.Bound.X = 200;
        annotation.Bound.Y = 150;
        annotation.Bound.Width = 300;
        annotation.Bound.Height = 100;
        // Add rectangle annotation
        await Viewer.AddAnnotationAsync(annotation);
    }
}

This example adds a shape annotation to the first page (page index 0) of the PDF document.

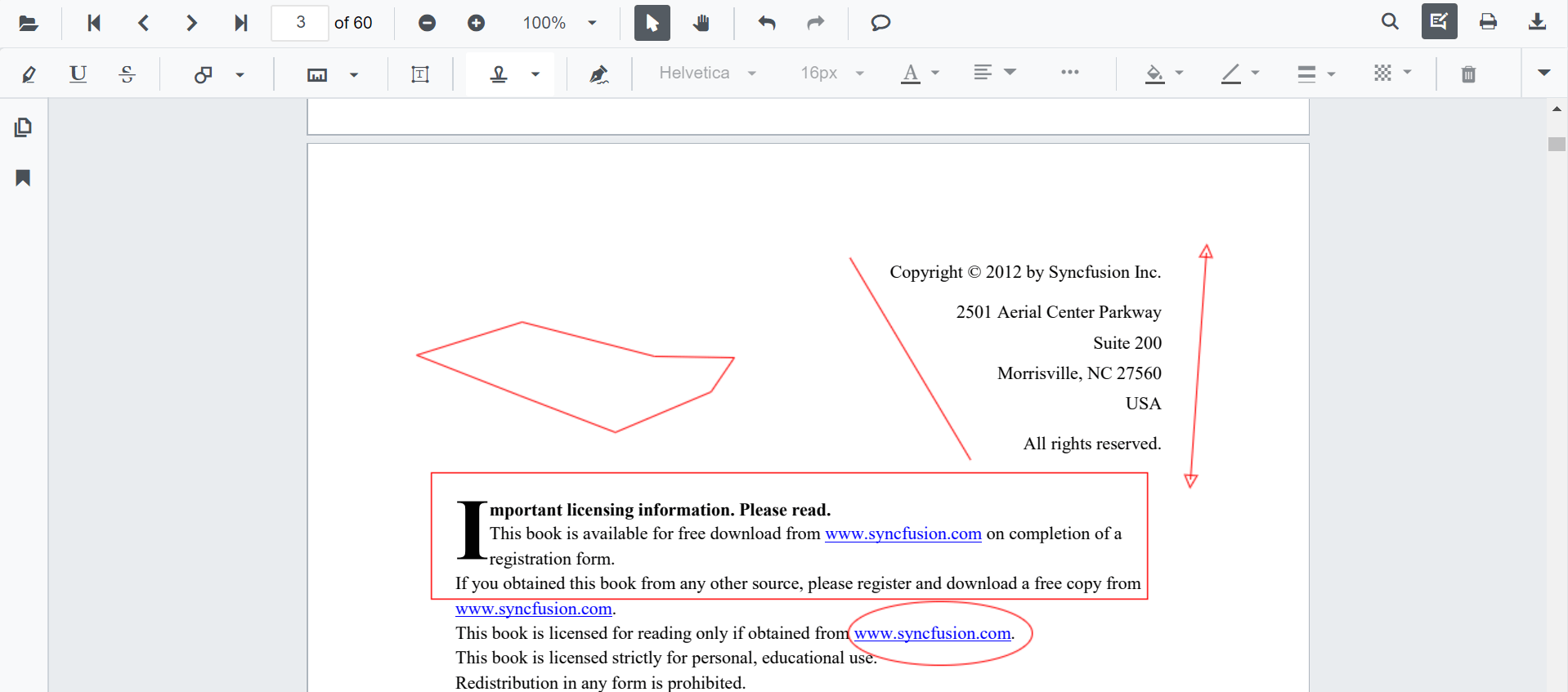

Programmatically added shape annotation in Blazor SfPdfViewer

View sample in GitHub.

Add and Delete multiple annotations at once in a PDF Viewer

The PDF Viewer supports adding and deleting multiple annotations in a single operation. Create a collection of annotations and apply them with AddAnnotationsAsync. Retrieve and remove all annotations efficiently using DeleteAnnotationsAsync. For large collections, ensure UI responsiveness by performing operations asynchronously.

The following code demonstrates how to add multiple annotations at once to PDF Viewer.

<SfButton OnClick="AddAnnotations">AddAnnotations</SfButton>
<SfPdfViewer2 @ref="Viewer"
              DocumentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
              Height="100%"
              Width="100%">
</SfPdfViewer2>


@code {
    SfPdfViewer2 Viewer;

    public async void AddAnnotations()
    {
        List < PdfAnnotation > annotations = new List < PdfAnnotation > ();

        PdfAnnotation annotation1 = new PdfAnnotation();
        annotation1.Type = AnnotationType.Line;
        annotation1.VertexPoints = new List <VertexPoint>()
        {
            new VertexPoint()
            {
                X = 200,
                Y = 230
            },
            new VertexPoint()
            {
                X = 350,
                Y = 230
            }
        };
        annotation1.PageNumber = 0;
        annotations.Add(annotation1);

        PdfAnnotation annotation2 = new PdfAnnotation();
        annotation2.Type = AnnotationType.Circle;
        annotation2.Bound = new Bound()
        {
            X = 200,
            Y = 300,
            Width = 90,
            Height = 90
        };
        annotation2.PageNumber = 0;
        annotations.Add(annotation2);

        // Add multiple annotations at once
        await Viewer.AddAnnotationsAsync(annotations);
    }
}

The following code demonstrates how to delete multiple annotations at once in PDF Viewer.

<SfButton OnClick="DeleteAnnotations">DeleteAnnotations</SfButton>
<SfPdfViewer2 @ref="Viewer"
              DocumentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 Viewer;

    public async void DeleteAnnotations()
    {
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Delete multiple annotations at once
        await Viewer.DeleteAnnotationsAsync(annotationCollection);
    }
}

View sample in GitHub.

Edit shape annotation Programmatically

Shape annotations Rectangle, Line, Arrow, Circle, and Polygon can be edited programmatically using EditAnnotationAsync. Retrieve the target annotation from GetAnnotationsAsync and update the desired properties before submitting the edit.

Below is an example demonstrating how to edit a shape annotation programmatically:

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditShapeAnnotationAsync">Edit Shape Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Shape_Annotation.pdf";

    public async void EditShapeAnnotationAsync(MouseEventArgs args)
    {
        // Get annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the annotation want to edit
        PdfAnnotation annotation = annotationCollection[0];
        // Change the fill color of rectangle annotation
        annotation.FillColor = "#FFFF00";
        // Change the stroke color of rectangle annotation
        annotation.StrokeColor = "#0000FF";
        // Change the thickness of rectangle annotation
        annotation.Thickness = 3;
        // Change the Opacity (0 to 1) of rectangle annotation
        annotation.Opacity = 0.5;
        // Edit the rectangle shape annotation
        await Viewer.EditAnnotationAsync(annotation);
    }
}

This example updates an existing shape annotation in the viewer.

Programmatically edit a shape annotation in Blazor SfPdfViewer

View sample in GitHub.
