Text markup annotations in Blazor SfPdfViewer Component

The SfPdfViewer control supports adding, editing, and deleting text markup annotations, including highlight, underline, strikethrough, and squiggly, in a PDF document.

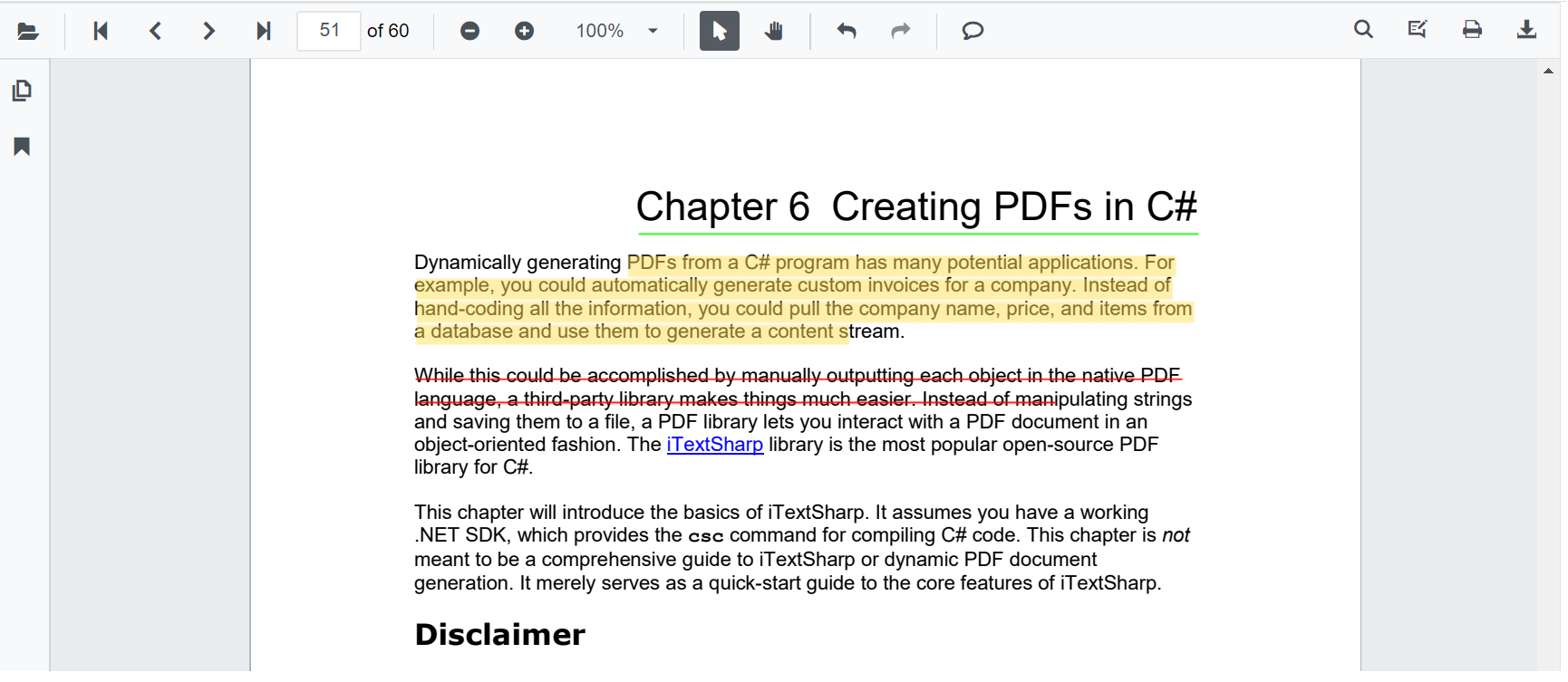

Blazor SfPdfViewer showing text markup annotations

Adding text markup annotation to the PDF Document

Text markup annotations can be added using either the annotation toolbar or the context menu.

Highlight a text

There are two ways to highlight text in a PDF document.

Using the context menu.

  • Select text in the PDF document and right-click it.
  • Select the Highlight option in the context menu.

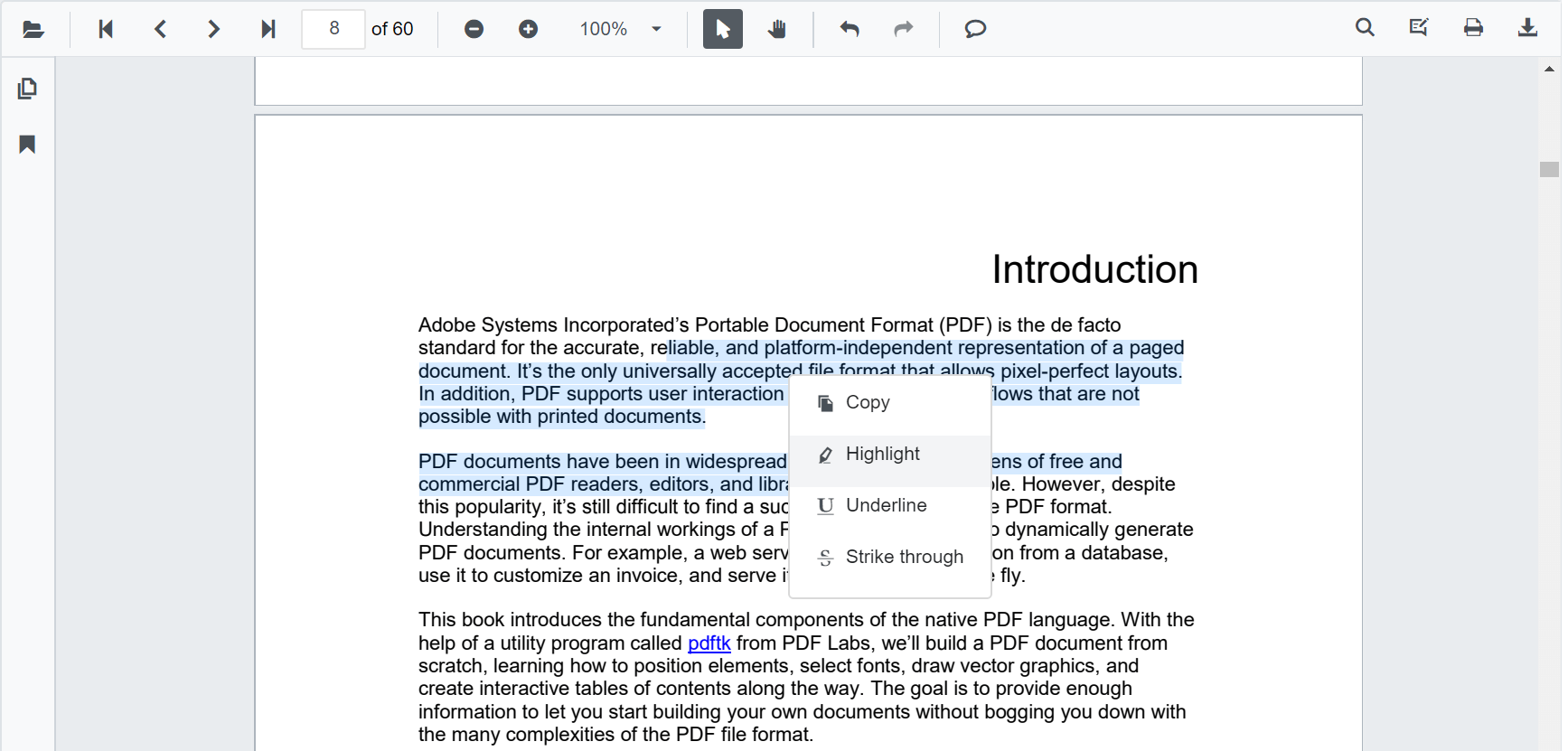

Context menu with Highlight option in Blazor SfPdfViewer

Using the annotation toolbar.

  • Click the Edit Annotation button in the SfPdfViewer toolbar. A toolbar appears below it.
  • Select the Highlight button in the annotation toolbar to enable highlight mode.
  • Select the text to add the highlight annotation.
  • Alternatively, select the text first and then click Highlight to apply it.

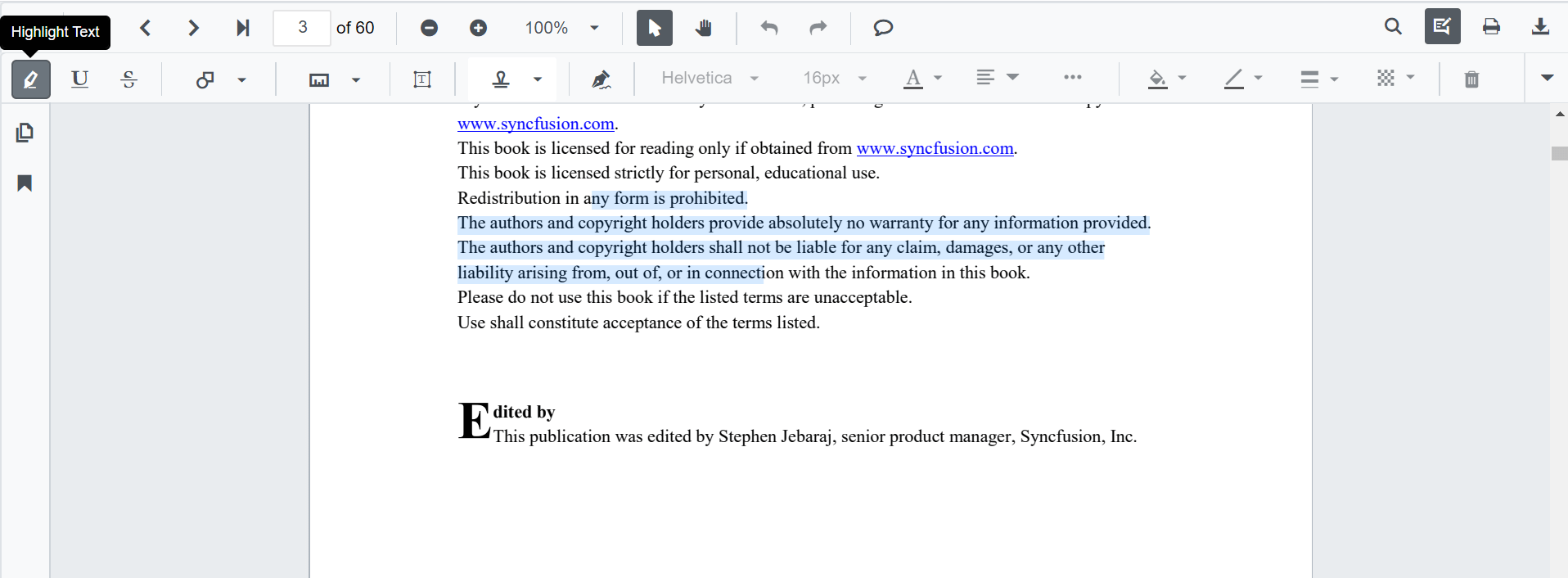

Highlighted text in Blazor SfPdfViewer

In pan mode, entering highlight mode switches the viewer to text select mode to enable text selection for highlighting.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnClick">Highlight</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;

    public async void OnClick(MouseEventArgs args)
    {
        await viewer.SetAnnotationModeAsync(AnnotationType.Highlight);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Underline a text

There are two ways to underline text in a PDF document.

Using the context menu.

  • Select text in the PDF document and right-click it.
  • Select the Underline option in the context menu.

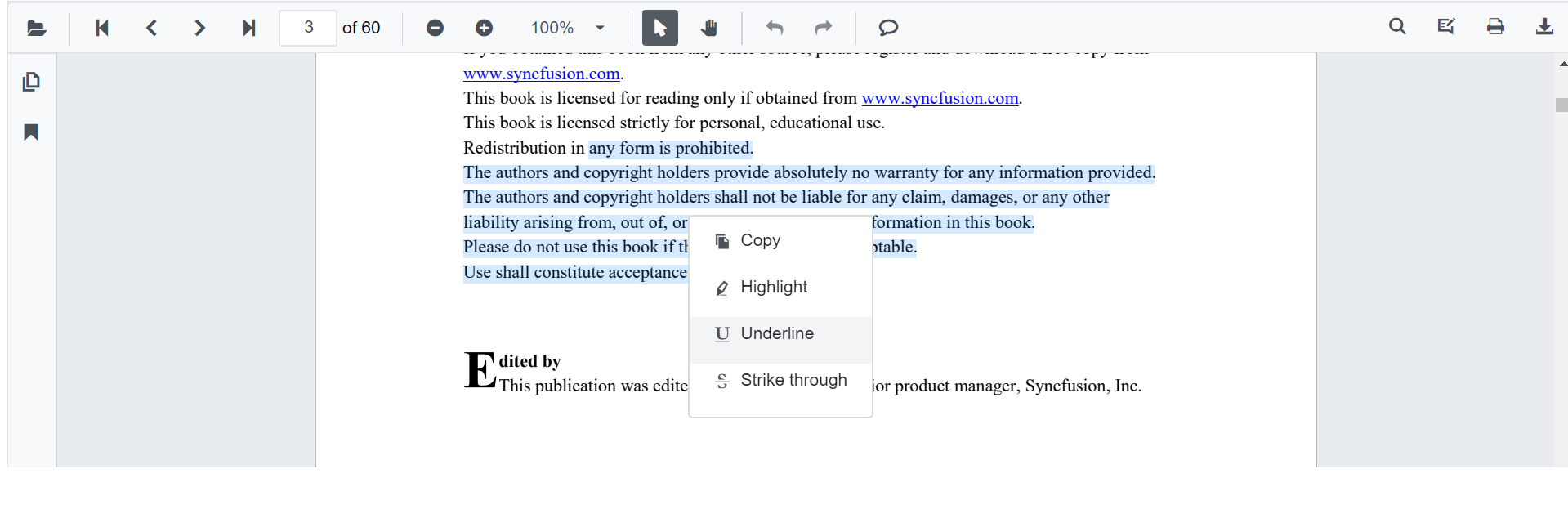

Context menu with Underline option in Blazor SfPdfViewer

Using the annotation toolbar.

  • Click the Edit Annotation button in the SfPdfViewer toolbar. A toolbar appears below it.
  • Select the Underline button in the annotation toolbar to enable underline mode.
  • Select the text to add the underline annotation.
  • Alternatively, select the text first and then click Underline to apply it.

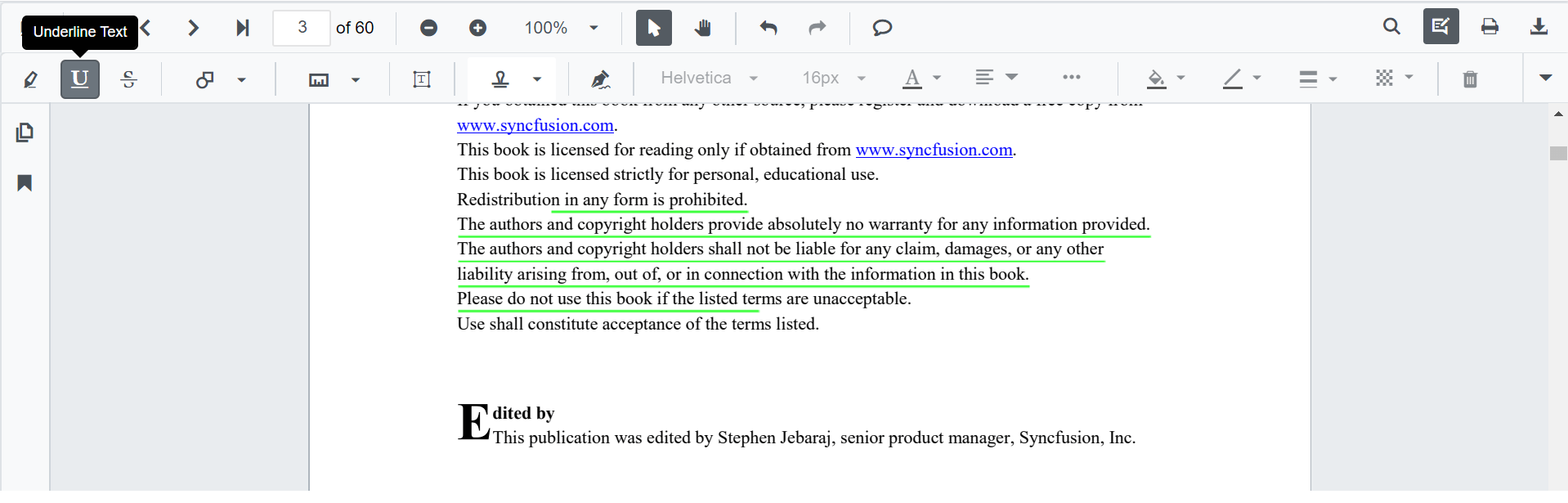

Underlined text in Blazor SfPdfViewer

In pan mode, entering underline mode switches the viewer to text select mode to enable text selection for underlining.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnClick">Underline</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;

    public void OnClick(MouseEventArgs args)
    {
        viewer.SetAnnotationModeAsync(AnnotationType.Underline);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Strikethrough a text

There are two ways to apply strikethrough to text in a PDF document:

Using the context menu.

  • Select text in the PDF document and right-click it.
  • Select the Strikethrough option in the context menu.

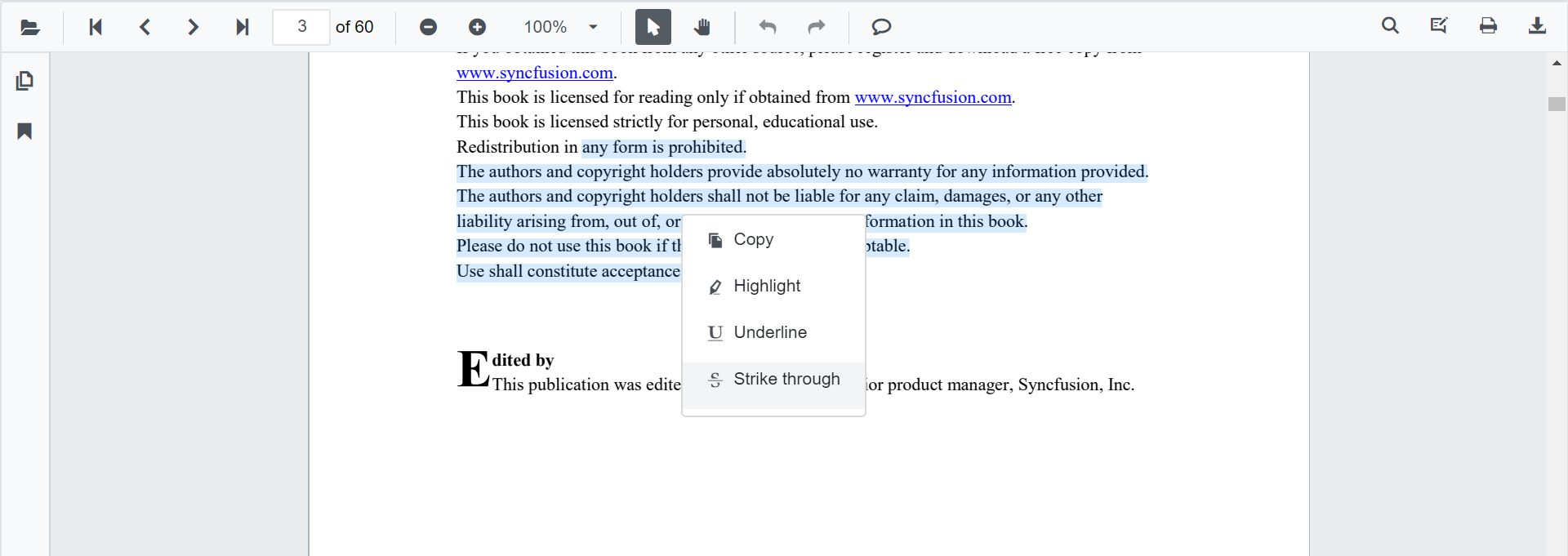

Context menu with Strikethrough option in Blazor SfPdfViewer

Using the annotation toolbar.

  • Click the Edit Annotation button in the SfPdfViewer toolbar. A toolbar appears below it.
  • Select the Strikethrough button in the annotation toolbar to enable strikethrough mode.
  • Select the text to add the strikethrough annotation.
  • Alternatively, select the text first and then click Strikethrough to apply it.

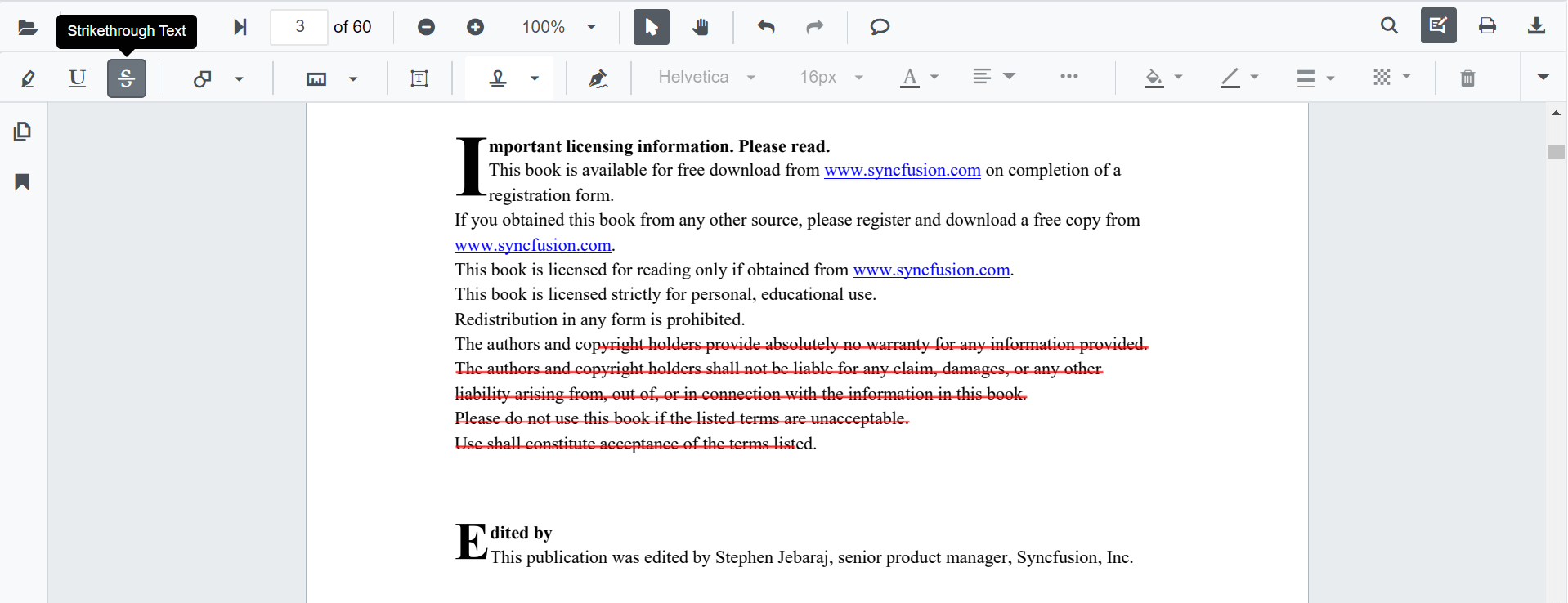

Strikethrough text in Blazor SfPdfViewer

In pan mode, entering strikethrough mode switches the viewer to text select mode to enable text selection for striking through.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnClick">Strikethrough</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;

    public void OnClick(MouseEventArgs args)
    {
        viewer.SetAnnotationModeAsync(AnnotationType.Strikethrough);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Squiggly a text

There are two ways to apply squiggly to text in a PDF document:

Using the context menu.

  • Select text in the PDF document and right-click it.
  • Select the Squiggly option in the context menu.

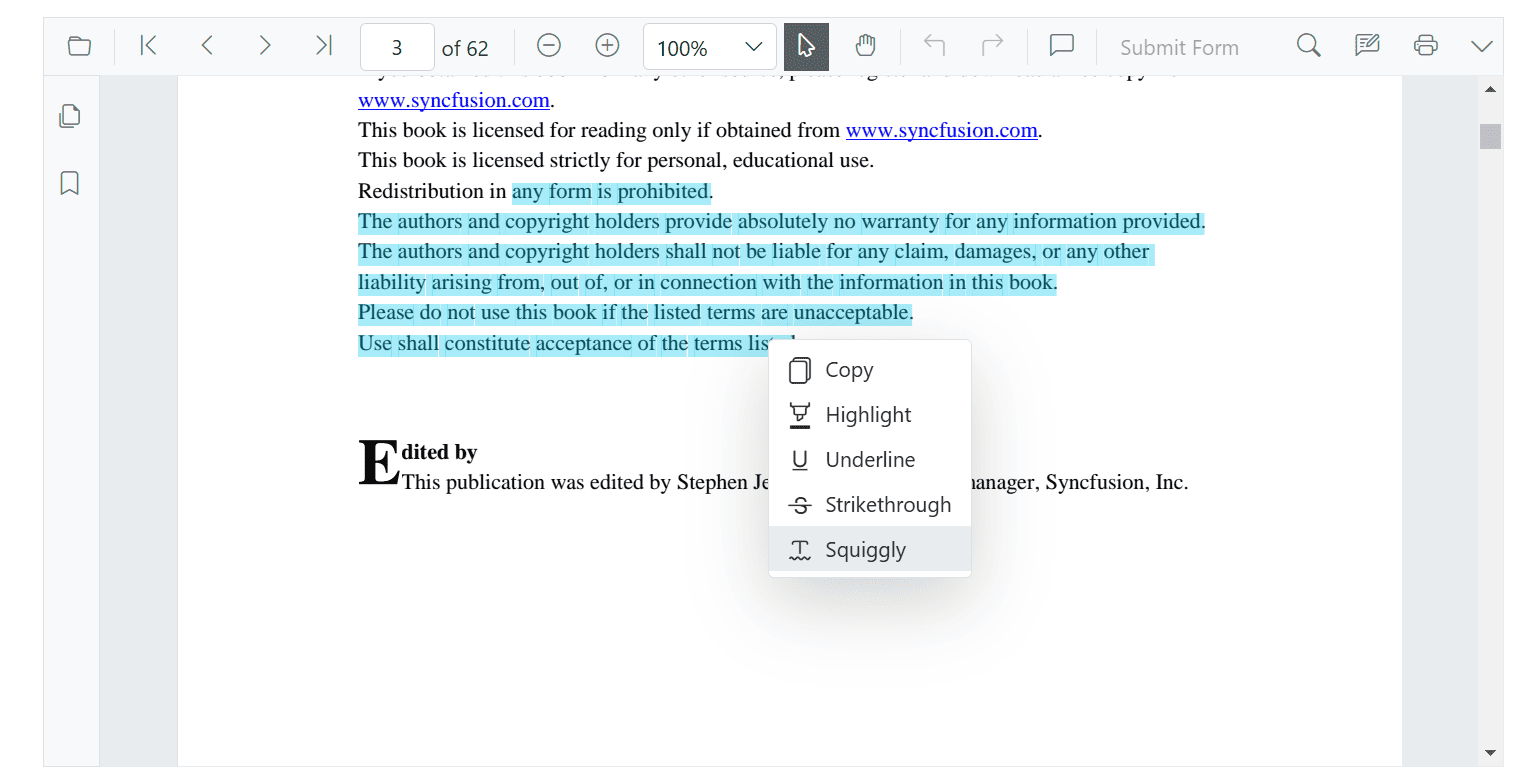

Context menu with Squiggly option in Blazor SfPdfViewer

Using the annotation toolbar.

  • Click the Edit Annotation button in the SfPdfViewer toolbar. A toolbar appears below it.
  • Select the Squiggly button in the annotation toolbar to enable squiggly mode.
  • Select the text to add the squiggly annotation.
  • Alternatively, select the text first and then click Squiggly to apply it.

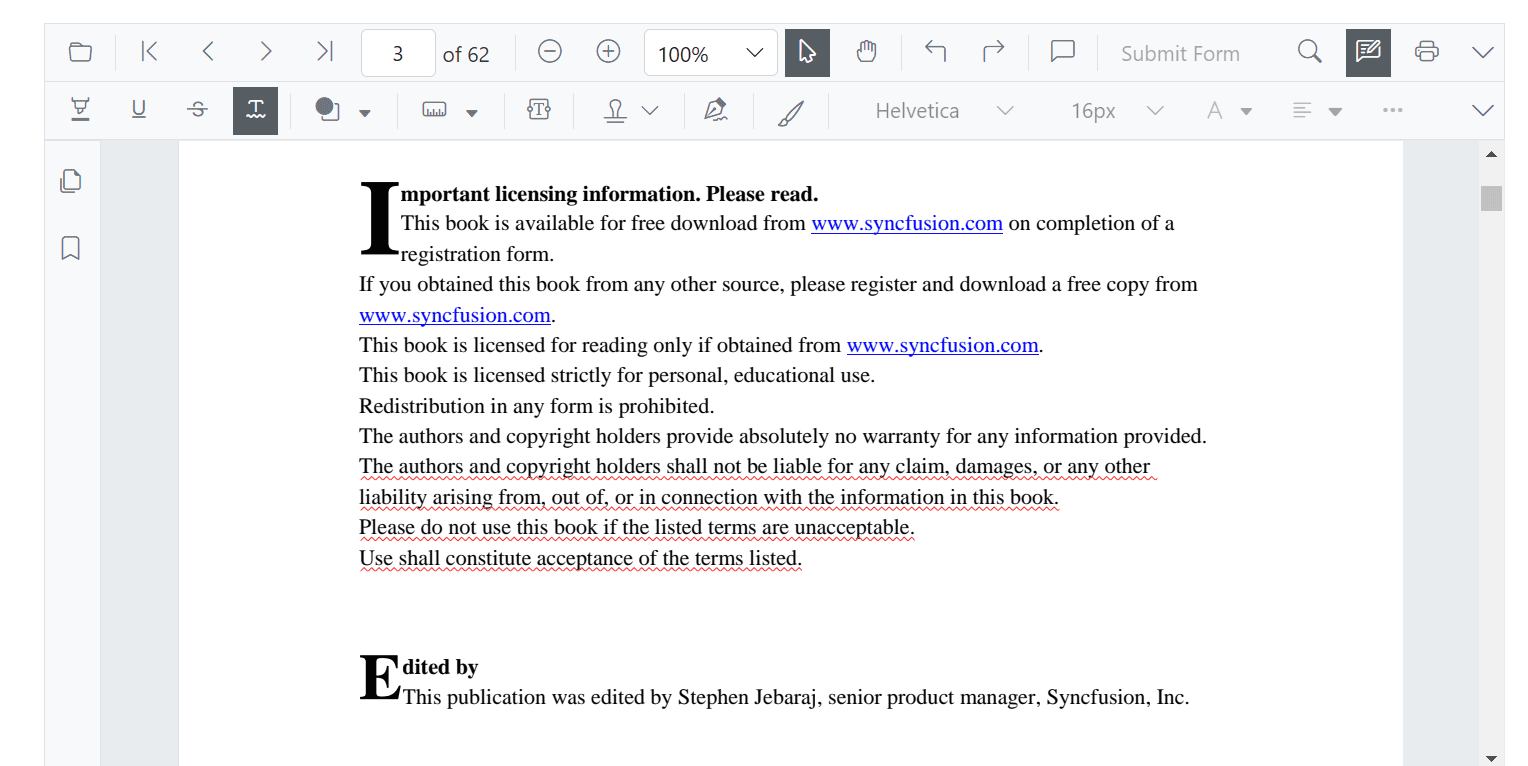

Squiggly annotation in Blazor SfPdfViewer

In pan mode, entering squiggly mode switches the viewer to text select mode to enable text selection for applying the squiggly annotation.

@using Syncfusion.Blazor.SfPdfViewer
@using Syncfusion.Blazor.Buttons

<SfButton OnClick="OnClick">squiggly</SfButton>
<SfPdfViewer2 DocumentPath="@DocumentPath"
              @ref="viewer"
              Width="100%"
              Height="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;

    public void OnClick(MouseEventArgs args)
    {
        viewer.SetAnnotationModeAsync(AnnotationType.Squiggly);
    }
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";
}

Editing the properties of the text markup annotation

The color and opacity of a text markup annotation can be changed using the Edit Color and Edit Opacity tools in the annotation toolbar.

Editing color

Change the annotation color using the color palette in the Edit Color tool.

Editing text markup color in Blazor SfPdfViewer

Editing opacity

Change the annotation opacity using the range slider in the Edit Opacity tool.

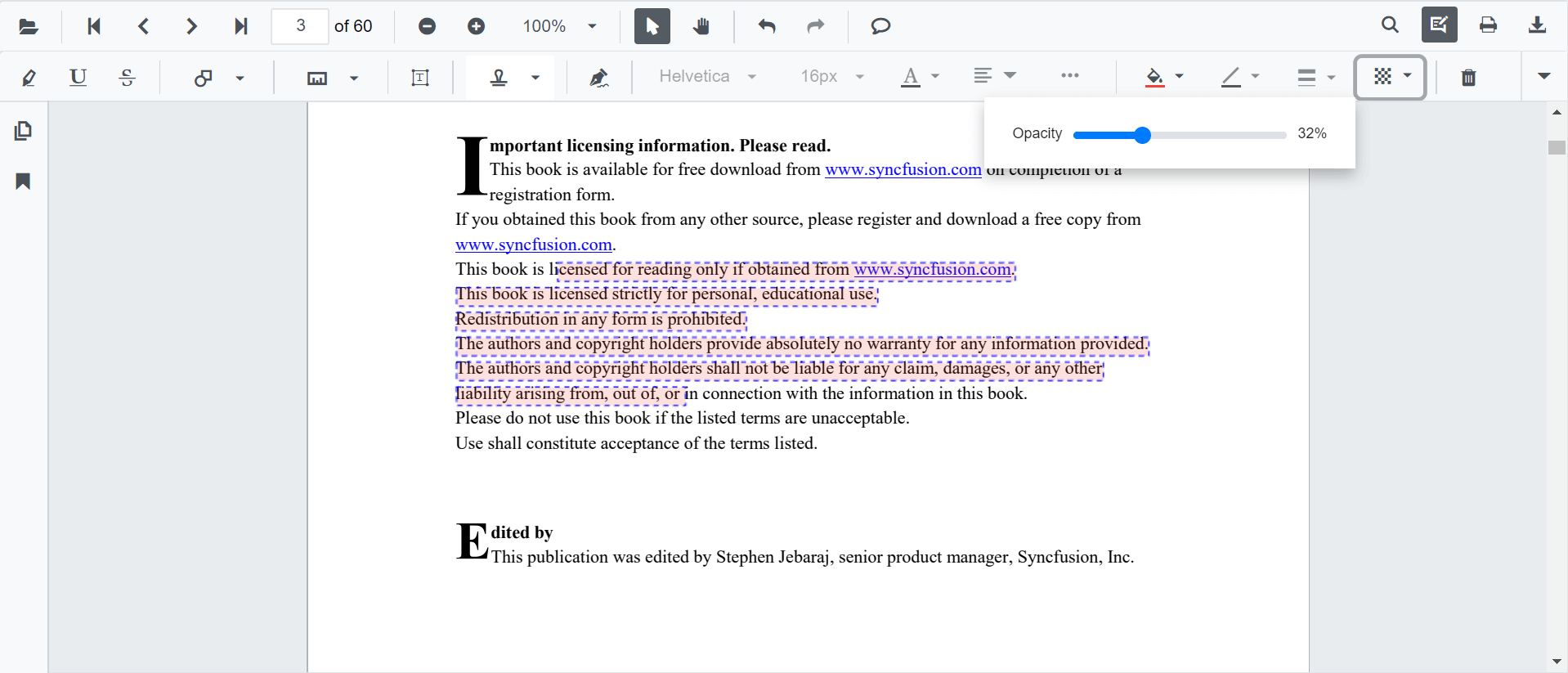

Editing text markup opacity in Blazor SfPdfViewer

Text markup annotation settings

Set default properties for text markup annotations before rendering the component using the HighlightSettings, UnderlineSettings, StrikethroughSettings, and SquigglySettings parameters.

NOTE

After changing the default color and opacity using the Edit Color and Edit Opacity tools, those values become the new defaults for subsequent annotations.

@using Syncfusion.Blazor.SfPdfViewer

<SfPdfViewer2 @ref="@viewer"
              DocumentPath="@DocumentPath"
              HighlightSettings="@HighlightSettings"
              UnderlineSettings="@UnderlineSettings"
              StrikethroughSettings="@StrikethroughSettings"
              SquigglySettings="@SquigglySettings"
              Height="100%"
              Width="100%">
</SfPdfViewer2>

@code {
    SfPdfViewer2 viewer;
    private string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    PdfViewerHighlightSettings HighlightSettings = new PdfViewerHighlightSettings
        {
            Color = "green",
            Opacity = 0.6
        };

    PdfViewerUnderlineSettings UnderlineSettings = new PdfViewerUnderlineSettings
        {
            Color = "blue",
            Opacity = 0.6
        };

    PdfViewerStrikethroughSettings StrikethroughSettings = new PdfViewerStrikethroughSettings
        {
            Color = "orange",
            Opacity = 0.6
        };

    PdfViewerSquigglySettings SquigglySettings = new PdfViewerSquigglySettings
        {
            Color = "red",
            Opacity = 0.6
        };
}

Add text markup annotation programmatically

The Blazor SfPdfViewer supports programmatically adding text markup annotations such as Highlight, Underline, Strikethrough, and Squiggly using the AddAnnotationAsync method.

Below is an example demonstrating how to add a text markup annotation to a PDF document:

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@AddTextMarkupAnnotation">Add TextMarkup Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/PDF_Succinctly.pdf";

    public async void AddTextMarkupAnnotation(MouseEventArgs args)
    {
        PdfAnnotation annotation = new PdfAnnotation();
        // Set the Text markup annotation type like highlight, underline, strikethrough, Squiggly.
        annotation.Type = AnnotationType.Highlight;
        // Set the PageNumber starts from 0. So, if set to 2 it represents the page 3.
        annotation.PageNumber = 2;
        List<Bound> bounds = new List<Bound>();
        Bound bound = new Bound();
        bound.X = 148;
        bound.Y = 313;
        bound.Width = 520;
        bound.Height = 15;
        bounds.Add(bound);
        bound = new Bound();
        bound.X = 148;
        bound.Y = 332;
        bound.Width = 102;
        bound.Height = 15;
        bounds.Add(bound);
        // Set the Text Markup annotation bounds value
        annotation.Bounds = bounds;
        await Viewer.AddAnnotationAsync(annotation);
    }
}

This example adds a text markup annotation to the third page of the PDF document (page index is zero-based).

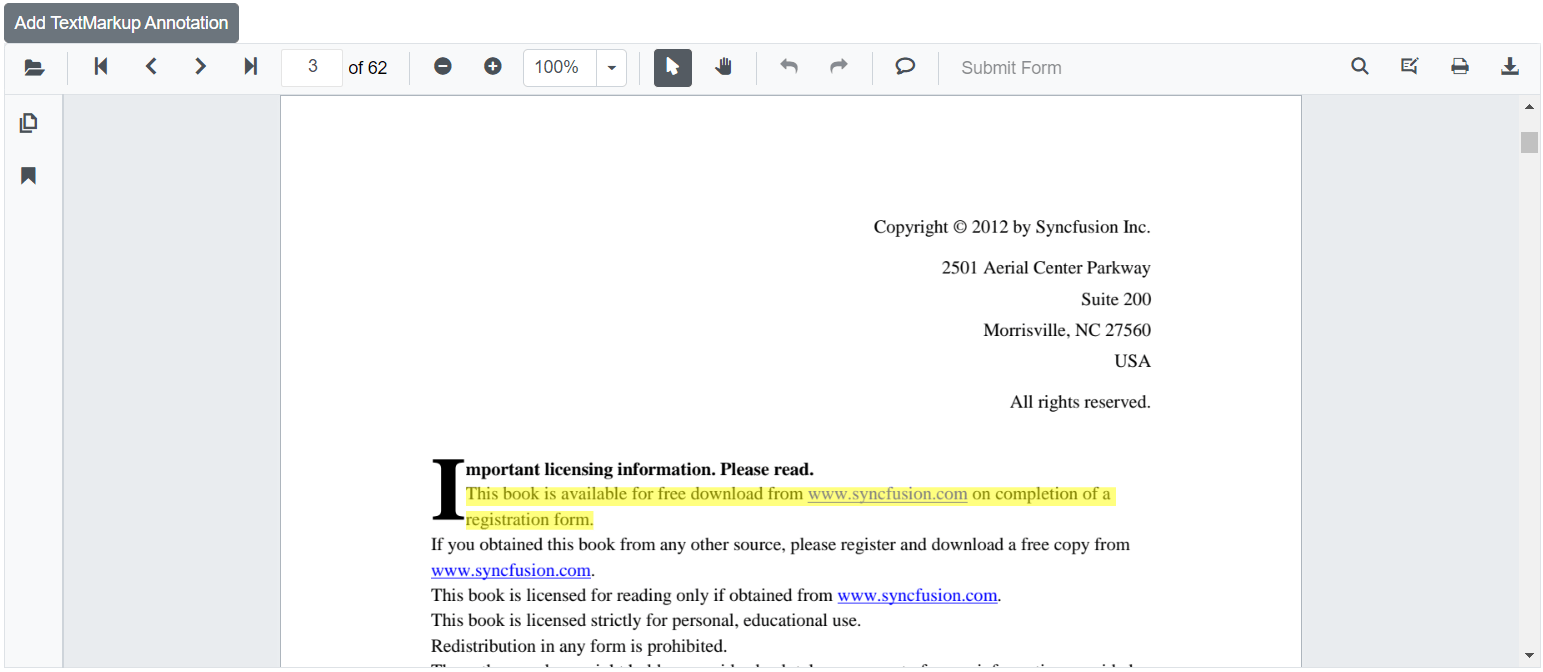

Programmatically added text markup annotation in Blazor SfPdfViewer

View sample in GitHub.

Edit text markup annotation programmatically

The Blazor SfPdfViewer supports programmatically editing text markup annotations using the EditAnnotationAsync method.

Below is an example demonstrating how to edit a text markup annotation programmatically:

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@EditTextMarkupAnnotation">Edit TextMarkup Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/TextMarkupAnnotation.pdf";

    public async void EditTextMarkupAnnotation(MouseEventArgs args)
    {
        // Get annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the annotation want to edit
        PdfAnnotation annotation = annotationCollection[0];
        // Change the color of the text markup annotation to green
        annotation.Color = "#008000";
        // Change the opacity of the text markup annotation to 50% (0.5)
        annotation.Opacity = 0.5;
        await Viewer.EditAnnotationAsync(annotation);
    }
}

This code edits an existing text markup annotation programmatically.

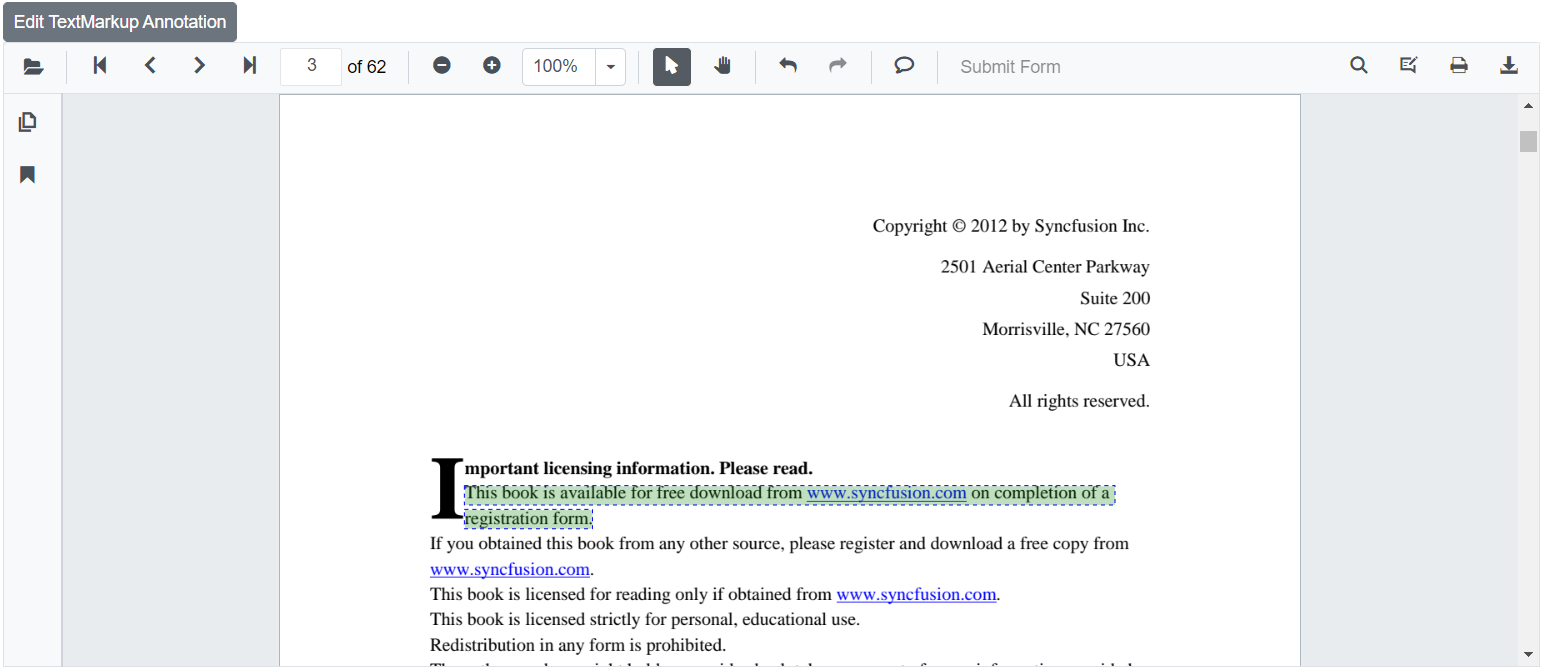

Programmatically edit text markup annotation in Blazor SfPdfViewer

View sample in GitHub.

Delete annotation programmatically

The Blazor SfPdfViewer can also remove annotations programmatically using the DeleteAnnotationAsync method.

Below is an example demonstrating how to delete an annotation programmatically:

@using Syncfusion.Blazor.Buttons
@using Syncfusion.Blazor.SfPdfViewer

<SfButton OnClick="@DeleteAnnotation">Delete Annotation</SfButton>
<SfPdfViewer2 Width="100%" Height="100%" DocumentPath="@DocumentPath" @ref="@Viewer" />

@code {
    SfPdfViewer2 Viewer;
    public string DocumentPath { get; set; } = "wwwroot/Data/Annotation.pdf";

    public async void DeleteAnnotation(MouseEventArgs args)
    {
        // Get the annotation collection
        List<PdfAnnotation> annotationCollection = await Viewer.GetAnnotationsAsync();
        // Select the annotation you want to delete
        PdfAnnotation annotation = annotationCollection[0];
        // Delete the specified PdfAnnotation
        await Viewer.DeleteAnnotationAsync(annotation);
        // Alternatively, you can also delete the specified PdfAnnotation based on AnnotationId
        //await Viewer.DeleteAnnotationAsync(annotation.Id);
    }
}

This example demonstrates how to programmatically delete an annotation within the Syncfusion® Blazor SfPdfViewer using the DeleteAnnotationAsync method.

NOTE

Alternatively, the annotation can be deleted using its annotation ID with the DeleteAnnotationAsync method.

View sample in GitHub.
