Toolbar in ASP.NET MVC PDF Viewer Component

The PDF Viewer includes a built-in, responsive toolbar that surfaces common PDF actions and provides entry points to feature-specific toolbars. It adapts across desktop, tablet, and mobile, and can be customized to show or hide items, reorder commands, add custom items, and handle toolbar events.

There are three toolbars in the PDF Viewer:

  • Primary toolbar

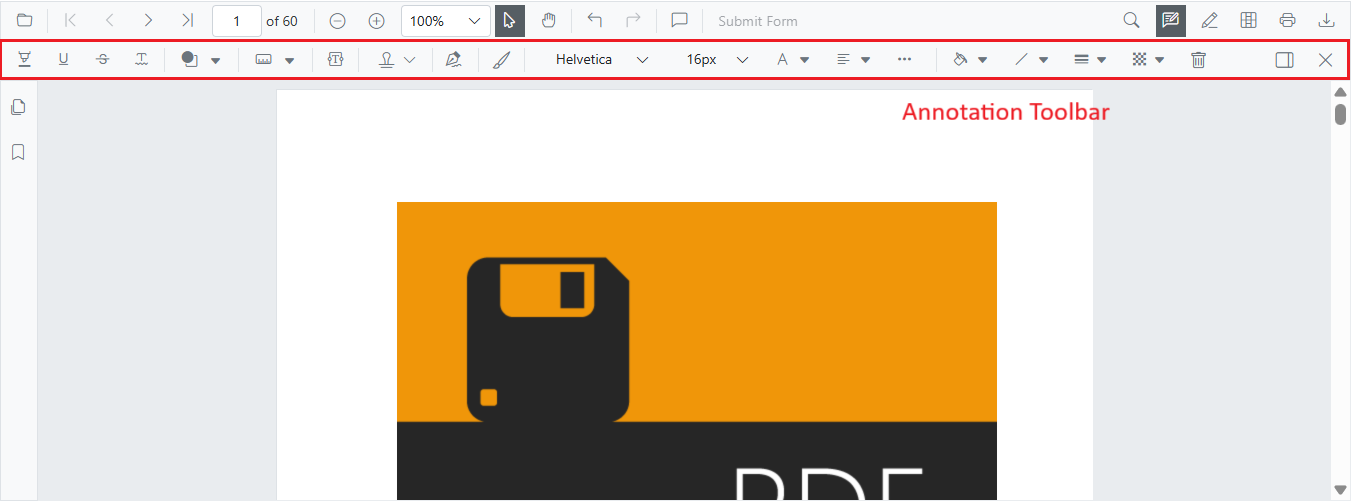

  • Annotation toolbar

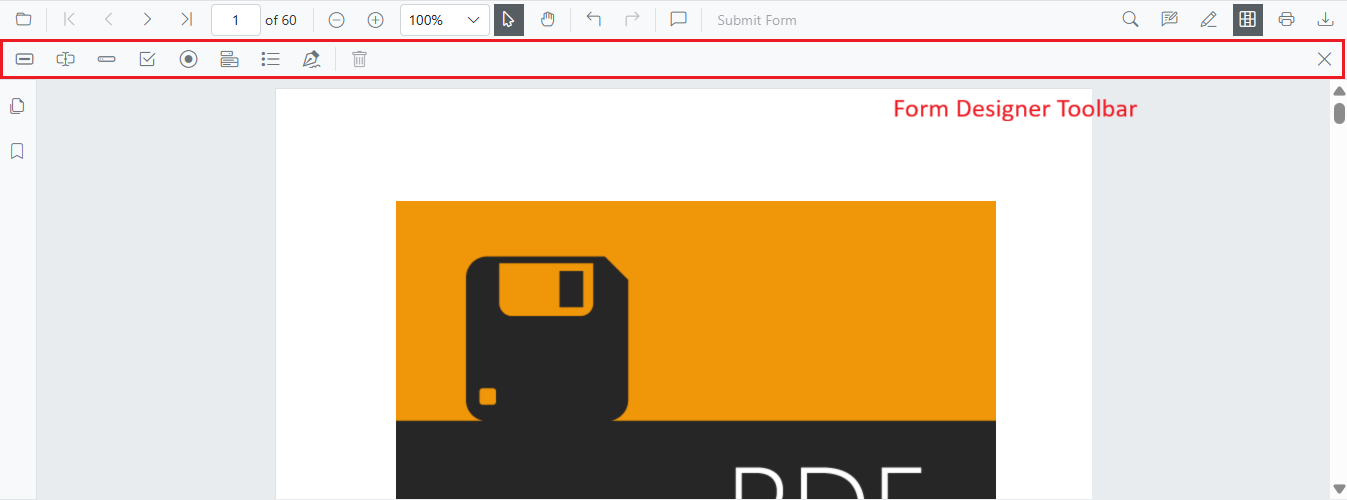

  • Form designer toolbar

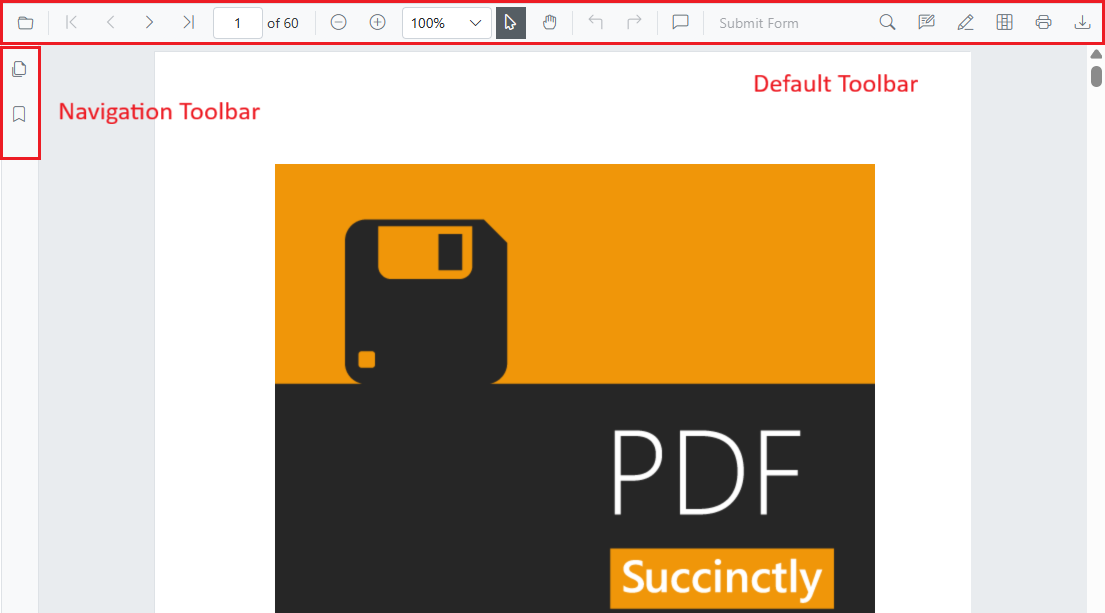

Primary Toolbar in ASP.NET MVC PDF Viewer Component

The PDF Viewer includes a built-in, responsive primary toolbar that provides quick access to common viewer actions and feature-specific toolbars. It adapts to the available width for desktop, tablet, and mobile layouts.

The primary toolbar includes the following options:

Option Description
OpenOption This option provides an action to load the PDF documents to the PDF Viewer.
PageNavigationTool This option provides an action to navigate pages in the PDF Viewer. It contains GoToFirstPage, GoToLastPage, GotoPage, GoToNext, and GoToLast tools.
MagnificationTool This option provides an action to magnify pages with predefined or user-defined zoom factors in the PDF Viewer. Contains ZoomIn, ZoomOut, Zoom, FitPage, and FitWidth tools.
PanTool This option provides an action for panning the pages in the PDF Viewer.
SelectionTool This option provides an action to enable or disable text selection in the PDF Viewer.
SearchOption This option provides an action to search for text in PDF documents.
PrintOption This option provides an action to print the PDF document loaded in the PDF Viewer.
DownloadOption This option provides an action to download the PDF document loaded in the PDF Viewer.
UndoRedoTool This tool provides options to undo and redo the annotation actions performed in the PDF Viewer.
AnnotationEditTool This tool provides options to enable or disable the edit mode of annotation in the PDF Viewer.

Show/Hide the built-in toolbar

The PDF Viewer has an option to show or hide the complete built-in toolbar. You can achieve this by using the following two ways.,

  • Show/Hide toolbar using enableToolbar API as in the following code snippet.
```html
<div style="width:100%;height:600px">
     @Html.EJS().PdfViewer("pdfviewer").EnableToolbar(false).DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
</div>
```
```html
    <div style="width:100%;height:600px">
         @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/api/PdfViewer/")).EnableToolbar(false).DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
    </div>
```
  • Show/Hide toolbar using showToolbar as in the following code snippet.
<button id="viewer" onclick="enableToolbar()">EnableToolbar</button>
<script>
    function enableToolbar() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.toolbar.showToolbar(true);
    }
</script>

Show/Hide the built-in toolbaritem

The PDF Viewer has an option to show or hide these grouped items in the built-in toolbar.

  • Show/Hide toolbaritem using toolbarSettings as in the following code snippet.
```html
<button id="viewer" onclick="enableToolbarItem()">EnableToolbarItem</button>
<div style="width:100%;height:600px">
    @Html.EJS().PdfViewer("pdfviewer").EnableToolbar(true).ToolbarSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerToolbarSettings { ShowTooltip = true, ToolbarItems = "OpenOption" }).DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
</div>

<script>
    function enableToolbarItem() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.toolbar.showToolbarItem(new Array("DownloadOption"), true);
    }
</script>
```
```html
<button id="viewer" onclick="enableToolbarItem()">EnableToolbarItem</button>
<div style="width:100%;height:600px">
     @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/api/PdfViewer/")).EnableToolbar(false).ToolbarSettings(new Syncfusion.EJ2.PdfViewer.PdfViewerToolbarSettings{ ShowTooltip = true, ToolbarItem = "OpenOption" ).DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
</div>
<script>
    function enableToolbarItem() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.toolbar.showToolbarItem(new Array("DownloadOption"), true);
    }
</script>
```

Customize Built-In Toolbar

PDF Viewer allows you to customize(add, show, hide, enable, and disable) existing items in a toolbar.

  • Add - New items can defined by CustomToolbarItemModel and with existing items in ToolbarSettings property. Newly added item click action can be defined in toolbarclick.

  • Show, Hide - Existing items can be shown or hidden using the ToolbarSettings property. Pre-defined toolbar items are available with ToolbarItem .

  • Enable, Disable - Toolbar items can be enabled or disable using enabletoolbaritem.

@using Syncfusion.EJ2
@{
    ViewBag.Title = "Home Page";
}

<div>
    <div style="height:500px;width:1350px;">
        <br /><br />
        @Html.EJS().PdfViewer("pdfviewer").DocumentPath("https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf").ResourceUrl("https://cdn.syncfusion.com/ej2/29.1.33/dist/ej2-pdfviewer-lib").ToolbarClick("toolbarClick").Render()
    </div>
</div>

<script type="text/javascript">
    window.onload = function () {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        var toolItem1 = {
            prefixIcon: 'e-icons e-paste',
            id: 'print',
            tooltipText: 'Custom toolbar item',
            align: 'left'
        };
        var toolItem2 = {
            id: 'download',
            text: 'Save',
            tooltipText: 'Custom toolbar item',
            align: 'right'
        };
        var LanguageList = ['Typescript', 'Javascript', 'Angular', 'C#', 'C', 'Python'];
        var toolItem3 = {
            type: 'Input',
            tooltipText: 'Language List',
            cssClass: 'percentage',
            align: 'Left',
            id: 'dropdown',
            template: new ej.dropdowns.ComboBox({ width: 100, value: 'TypeScript', dataSource: LanguageList, popupWidth: 85, showClearButton: false, readonly: false })
        };
        var toolItem4 = {
            type: 'Input',
            tooltipText: 'Text',
            align: 'Right',
            cssClass: 'find',
            id: 'textbox',
            template: new ej.inputs.TextBox({ width: 125, placeholder: 'Type Here', created: onCreate })
        }; align: 'left'
        function onCreate() {
            this.addIcon('prepend', 'e-icons e-search');
        }
        pdfViewer.toolbarSettings = {
            showTooltip: true,
            toolbarItems: [toolItem1, toolItem2, 'OpenOption', 'PageNavigationTool', 'MagnificationTool', toolItem3, 'PanTool', 'SelectionTool', 'SearchOption', 'PrintOption', 'DownloadOption', 'UndoRedoTool', 'AnnotationEditTool', 'FormDesignerEditTool', toolItem4, 'CommentTool', 'SubmitForm']
        };

    };

    // Define the toolbarClick event handler
    function toolbarClick(args) {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        if (args.item && args.item.id === 'print') {
            pdfViewer.printModule.print();
        } else if (args.item && args.item.id === 'download') {
            pdfViewer.download();
        }
    }
</script>
@{
    ViewBag.Title = "Home Page";
}
@using Syncfusion.EJ2.PdfViewer
@using ToolbarCustomization.Controllers
@{
    var toolItem1 = new { id = "submit_form", text = "Submit Form", tooltipText = "Custom toolbar item", align = "Center", cssClass = "custom_button" };
    CustomToolbarItems customToolbarItems = new CustomToolbarItems();
    customToolbarItems.ToolbarItems = new List<object> { toolItem1, "OpenOption", "PageNavigationTool", "MagnificationTool", "PanTool", "SelectionTool", "SearchOption", "PrintOption", "DownloadOption", "UndoRedoTool", "AnnotationEditTool", "FormDesignerEditTool", "CommentTool" };
    PdfViewerToolbarSettings toolbarSettings = new PdfViewerToolbarSettings()
    {
        ShowTooltip = true,
        ToolbarItems = customToolbarItems.ToolbarItems
    };
}
<div>
    <div style="height:500px;width:1350px;">
        <br /><br />
        @Html.EJS().PdfViewer("pdfviewer").ServiceUrl(VirtualPathUtility.ToAbsolute("~/Home/")).DocumentPath("https://cdn.syncfusion.com/content/pdf/form-designer.pdf").ToolbarClick("toolbarClick").Created("onLoadedPage").DocumentLoad("documentLoaded").FormFieldAdd("formFieldAdd").ToolbarSettings(toolbarSettings).Render()
    </div>
</div>

<script type="text/javascript">
    function onLoadedPage(args) {
        console.log(args);
    }
    function documentLoaded(args) {
        console.log(args);
    }
    function formFieldAdd(args) {
        console.log(args);
    }
    function toolbarClick(args) {
        var viewer = document.getElementById('pdfviewer').ej2_instances[0];
        if (args.item && args.item.id === 'submit_form') {
            alert('Custom button clicked!');
        }
    }
</script>

<style>
    .custom_button {
        height: 100% !important;
    }
</style>

NOTE

Default value of toolbar items is [‘OpenOption’, ‘PageNavigationTool’,’MagnificationTool’, ‘PanTool’, ‘SelectionTool’, ‘SearchOption’, ‘PrintOption’, ‘DownloadOption’,’UndoRedoTool’, ‘AnnotationEditTool’, ‘FormDesignerEditTool’, ‘CommentTool’, ‘SubmitForm’]

Align Property

The align property is used to specify the alignment of a toolbar item within the toolbar.

Left: Aligns the item to the left side of the toolbar.
Right: Aligns the item to the right side of the toolbar.

Tooltip Property

The tooltip property is used to set the tooltip text for a toolbar item. Tooltip provides additional information when a user hovers over the item.

CssClass Property

The cssClass property is used to apply custom CSS classes to a toolbar item. It allows custom styling of the toolbar item.

Prefix Property

The prefix property is used to set the CSS class or icon that should be added as a prefix to the existing content of the toolbar item.

ID Property

The id property within a CustomToolbarItemModel is a compulsory attribute that plays a vital role in toolbar customization. It serves as a unique identifier for each toolbar item, facilitating distinct references and interactions.

When defining or customizing toolbar items, it is mandatory to assign a specific and descriptive id to each item.
These properties are commonly used when defining custom toolbar items with the CustomToolbarItemModel in the context of Syncfusion<sup style="font-size:70%">&reg;</sup> PDF Viewer. When configuring the toolbar using the ToolbarSettings`` property, you can include these properties to customize the appearance and behavior of each toolbar item.

NOTE

When customizing toolbar items, you have the flexibility to include either icons or text based on your design preference.

View sample in GitHub

Custom Toolbar

The PDF Viewer provides API for user interactions options provided in it’s built-in toolbar. Using this we can create our own User Interface for toolbar actions in application level by hiding the built-in toolbar. The following steps are used to create the custom toolbar for PDF Viewer,

Step 1: Follow the steps provided in the link to create simple PDF Viewer sample.

Step 2: Add EJ2 Toolbar for perform primary actions like Open, Previous page, Next page, Go to page,Print and Download using the following code snippet,

@using Syncfusion.EJ2.Navigations;

@Html.EJS().Toolbar("topToolbar").Height("56px").Items(new List<ToolbarItem> {
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-open-document-icon",TooltipText = "Open",Align=ItemAlign.Left,Click="openFile"},
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-previous-page-navigation-icon",TooltipText = "Previous Page",Align=ItemAlign.Center,Click="previousClicked",Id="previousPage"},
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-next-page-navigation-icon", TooltipText = "Next Page",Align=ItemAlign.Center,Click="nextClicked",Id="nextPage"},
new ToolbarItem {Template="<div class=''><input type='text' class='e-input-group e-pv-current-page-number' id='currentPage'/></div>" ,PrefixIcon = "e-pv-next-page-navigation-icon", TooltipText = "Page Number",Align=ItemAlign.Center},
new ToolbarItem { Type = ItemType.Input, Template="<div class=''><span class='e-pv-total-page-number' id='totalPage'>of 0</span></div>" , PrefixIcon = "e-pv-next-page-navigation-icon", TooltipText = "Page Number",Click="currentPageClicked",Align=ItemAlign.Center},
new ToolbarItem { Type = ItemType.Button,  PrefixIcon = "e-pv-print-document-icon" ,TooltipText = "Print",Align=ItemAlign.Right,Click="printClicked"},
new ToolbarItem { Type = ItemType.Button,  PrefixIcon = "e-pv-download-document-icon" ,TooltipText = "Download",Align=ItemAlign.Right,Click="downloadClicked"},
}).Render()
<input type ="file" id="fileUpload" accept=".pdf" style="display:block;visibility:hidden;width:0;height:0;">

Step 3: Hide the built-in toolbar of PDF Viewer using below code snippet,

```html
@Html.EJS().PdfViewer("pdfviewer")
.EnableToolbar(false).EnableThumbnail(false)
.DocumentLoad("documentLoaded").PageChange("pageChanged")
.DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
```
```html
@Html.EJS().PdfViewer("pdfviewer")
.ServiceUrl(VirtualPathUtility.ToAbsolute("~/api/PdfViewer/"))
.EnableToolbar(false).EnableThumbnail(false)
.DocumentLoad("documentLoaded").PageChange("pageChanged")
.DocumentPath("https://cdn.syncfusion.com/content/pdf/hive-succinctly.pdf").Render()
```

Step 4: Add EJ2 Toolbar for perform magnification actions in PDF Viewer using following code snippet,

@Html.EJS().Toolbar("magnificationToolbar").Items(new List<ToolbarItem> {
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-fit-page", TooltipText = "Fit to page",Click="pageFitClicked"},
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-zoom-in-icon",TooltipText = "Zoom in",Click="zoomInClicked" },
new ToolbarItem { Type = ItemType.Button, PrefixIcon = "e-pv-zoom-out-icon", TooltipText = "Zoom out",Click="zoomOutClicked"},
}).Render()

Step 5: Add the following style to achieve the custom toolbar styling,

<style>
    #pdfviewer {
        display: block;
        height: 641px;
    }
    #magnificationToolbar {
        background: transparent;
        height: auto;
        width: 200px;
        position: absolute;
        z-index: 1001;
        top: calc(100% - 110px);
        left: calc(100% - 120px);
        transform: rotate(90deg);
        border-width: 0px;
    }
    .e-pv-zoom-out-icon {
        transform: rotate(-90deg);
    }
    .material .e-pv-current-page-number {
        border-width: 1px;
    }
    div#magnificationToolbar.e-toolbar .e-toolbar-items {
        background: transparent;
    }
    #magnificationToolbar.e-toolbar .e-tbar-btn {
        border-radius: 50%;
        min-height: 30px;
        min-width: 30px;
    }
    #topToolbar {
        top: 0px;
        z-index: 1001;
    }
    .e-pv-current-page-number {
        width: 46px;
        height: 28px;
        text-align: center;
    }
    .e-icons {
        font-family: "e-icons";
        font-style: normal;
        font-variant: normal;
        font-weight: normal;
        line-height: 1;
        text-transform: none;
    }
    .e-pv-icon::before {
        font-family: 'e-icons';
    }
    .e-pv-icon-search::before {
        font-family: 'e-icons';
        font-size: 12px;
    }
    .e-pv-download-document-icon::before {
        content: '\e914';
    }
    .e-pv-print-document-icon::before {
        content: '\e917';
    }
    .e-pv-previous-page-navigation-icon::before {
        content: '\e910';
    }
    .e-pv-next-page-navigation-icon::before {
        content: '\e911';
    }
    .e-pv-zoom-out-icon::before {
        content: '\e912';
    }
    .e-pv-zoom-in-icon::before {
        content: '\e91d';
    }
    .e-pv-fit-page::before {
        content: '\e91b';
    }
    .e-pv-open-document-icon::before {
        content: '\e91c';
    }
    @@font-face {
        font-family: "e-icons";
        font-style: normal;
        font-weight: normal;
        src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj8wS0QAAAEoAAAAVmNtYXDSeNLMAAABuAAAAFZnbHlmok0NtwAAAjAAAAPkaGVhZBN3pEcAAADQAAAANmhoZWEHrwNhAAAArAAAACRobXR4NsgAAAAAAYAAAAA4bG9jYQdkBmQAAAIQAAAAHm1heHABHAAwAAABCAAAACBuYW1lD0oZXgAABhQAAALBcG9zdFG4mE4AAAjYAAAAyAABAAADUv9qAFoEAAAA/+gEAAABAAAAAAAAAAAAAAAAAAAADgABAAAAAQAAxsly1F8PPPUACwPoAAAAANgsr7EAAAAA2CyvsQAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAOACQABAAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQPqAZAABQAAAnoCvAAAAIwCegK8AAAB4AAxAQIAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA6RDpHQNS/2oAWgQAAJYAAAABAAAAAAAABAAAAAPoAAAD6AAAA+gAAAPoAAAD6AAAA+gAAAPoAAAD6AAAA+gAAAPoAAAD6AAAA+gAAAPoAAAAAAACAAAAAwAAABQAAwABAAAAFAAEAEIAAAAGAAQAAQAC6RLpHf//AADpEOkU//8AAAAAAAEABgAKAAAAAQACAAMABQAGAAcACAAJAAoACwAMAA0ABAAAAAAAAAAUACoAZACkAL4A7gEuAVwBcAGEAZ4ByAHyAAAAAQAAAAAD6gMuAAUAAAkBBwkBJwIAAet0/on+iXQDL/4VcwF3/olzAAEAAAAAA+oDLgAFAAATCQEXCQGJAXcBd3T+Ff4VAy/+iQF3c/4VAesAAAAAAwAAAAAEAAQAAAMADwAbAAABITUhBQ4BBy4BJz4BNx4BBRYAFzYANyYAJwYAAQACAP4AAoAE2aOj2QQE2aOj2fyEBgEh2dkBIQYG/t/Z2f7fAcCAQKPZBATZo6PZBATZo9n+3wYGASHZ2QEhBgb+3wAAAAADAAAAAAQABAAACwAXACMAAAEjFTMVMzUzNSM1IwEOAQcuASc+ATceAQUWABc2ADcmACcGAAHAwMCAwMCAAcAE2aOj2QQE2aOj2fyEBgEh2dkBIQYG/t/Z2f7fAkCAwMCAwP8Ao9kEBNmjo9kEBNmj2f7fBgYBIdnZASEGBv7fAAIAAAAAAwAEAAADAAoAADEhNSEBIQkBIREhAwD9AAEA/wABgAGA/wD/AIACAP6AAYABgAACAAAAAANABAAADgAaAAABMh4CFRElBRE0Nz4BMycGFRElBRE0JiMhIgKdCwwHBf7g/uAJBAwKdC8BoAGgX0T+BkQDgAYGCwr9YHZ2AqAOCQQGUS9D/KGrqwNfRlsAAAACAAAAAAP/BAAACwAjAAABDgEHLgEnPgE3HgEFHgEXMjY/ARcVATcBIyc3PgE1LgEnDgECgAOQbW2QAwOQbW2Q/YME2aNGfDIDJAEEYf78MyMCKi4E2aOj2QKAbZADA5BtbZADA5Bto9kELioDJDP+/GEBBCQDMnxGo9kEBNkAAAQAAAAABAAEAAADAAcAFQAZAAABFSE1JRUjNSERMxUhNTMRLgEnIQ4BNyE1IQLA/oACQID9AMACgMABSDf9ADdIvwKA/YABwMDAwICA/sDAwAFAN0gBAUmKwAAAAQAAAAACQAQAAAUAABEBNwkBJwHsU/6HAXpSAmD+YGIBPgE+YgAAAAEAAAAAAkAEAAAFAAARCQEXCQEBev6HUwHs/hMDnv7C/sJiAaABoAABAAAAAAKABAAACwAAERcHFzcXNyc3Jwcn9fVM9PVL9PRL9fQDtfX0TPX1TPT0TPT0AAAABAAAAAAD8APwAAUACwARABcAACEzNTM1IQUzFTMRISUhNSM1IwUjFSERIwJ2fvz+hv2K/H7+hgJ2AXr8fv6G/AF6fvx+fvwBevx+/Px+AXoAAAAAAgAAAAAEAAQAAAMAFgAAAREhEScGFREUFhchPgE1ETQmIyEnIQYDgP0AYh48LQMuLTw8Lf5pa/7ULQMA/gACAN8eLf1YLTwDAzwtAigvPYACAAAAAAASAN4AAQAAAAAAAAABAAAAAQAAAAAAAQAUAAEAAQAAAAAAAgAHABUAAQAAAAAAAwAUABwAAQAAAAAABAAUADAAAQAAAAAABQALAEQAAQAAAAAABgAUAE8AAQAAAAAACgAsAGMAAQAAAAAACwASAI8AAwABBAkAAAACAKEAAwABBAkAAQAoAKMAAwABBAkAAgAOAMsAAwABBAkAAwAoANkAAwABBAkABAAoAQEAAwABBAkABQAWASkAAwABBAkABgAoAT8AAwABBAkACgBYAWcAAwABBAkACwAkAb8gY3VzdG9tLXRvb2xiYXJbMTkwOF1SZWd1bGFyY3VzdG9tLXRvb2xiYXJbMTkwOF1jdXN0b20tdG9vbGJhclsxOTA4XVZlcnNpb24gMS4wY3VzdG9tLXRvb2xiYXJbMTkwOF1Gb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAGMAdQBzAHQAbwBtAC0AdABvAG8AbABiAGEAcgBbADEAOQAwADgAXQBSAGUAZwB1AGwAYQByAGMAdQBzAHQAbwBtAC0AdABvAG8AbABiAGEAcgBbADEAOQAwADgAXQBjAHUAcwB0AG8AbQAtAHQAbwBvAGwAYgBhAHIAWwAxADkAMAA4AF0AVgBlAHIAcwBpAG8AbgAgADEALgAwAGMAdQBzAHQAbwBtAC0AdABvAG8AbABiAGEAcgBbADEAOQAwADgAXQBGAG8AbgB0ACAAZwBlAG4AZQByAGEAdABlAGQAIAB1AHMAaQBuAGcAIABTAHkAbgBjAGYAdQBzAGkAbwBuACAATQBlAHQAcgBvACAAUwB0AHUAZABpAG8AdwB3AHcALgBzAHkAbgBjAGYAdQBzAGkAbwBuAC4AYwBvAG0AAAAAAgAAAAAAAAAKAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAAOAQIBAwEEAQUBBgEHAQgBCQEKAQsBDAENAQ4BDwAIVG9wLWljb24LZG93bi1hcnJvdzIKUFZfWm9vbW91dAlQVl9ab29taW4LUFZfRG93bmxvYWQLUFZfQm9va21hcmsJUFZfU2VhcmNoCFBWX1ByaW50C1BWX1ByZXZpb3VzB1BWX05leHQIUFZfQ2xvc2UMUFZfRml0VG9QYWdlB1BWX09wZW4AAA==) format('truetype');
    }
</style>

NOTE

The icons are embedded in the font file used in above code snippet.

Step 6: Add the following scripts for performing user interaction in PDF Viewer in code behind

<script type="text/javascript">
    var currentPageBox;
    var matchCase = false;
    var filename;
    window.onload = function () {
        currentPageBox = document.getElementById('currentPage');
        currentPageBox.value = '1';
        document.getElementById('fileUpload').addEventListener('change', readFile, false);
        currentPageBox.addEventListener('keypress', () => {
            var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
            var currentPage = document.getElementById('currentPage');
            if ((event.which < 48 || event.which > 57) && event.which !== 8 && event.which !== 13) {
                event.preventDefault();
                return false;
            }
            else {
                var currentPageNumber = parseInt((currentPage).value);
                if (event.which === 13) {
                    if (currentPageNumber > 0 && currentPageNumber <= pdfViewer.pageCount) {
                        pdfViewer.navigation.goToPage(currentPageNumber);
                    } else {
                        (currentPage).value = pdfViewer.currentPageNumber.toString();
                    }
                }
                return true;
            }
        });
    }
    function openFile() {
        document.getElementById('fileUpload').click();
    }
    function readFile(evt) {
        var upoadedFiles = evt.target.files;
        var uploadedFile = upoadedFiles[0];
        filename = upoadedFiles[0].name;
        var reader = new FileReader();
        reader.readAsDataURL(uploadedFile);
        reader.onload = function () {
            var obj = document.getElementById('pdfviewer').ej2_instances[0];
            var uploadedFileUrl = this.result;
            obj.load(uploadedFileUrl, null);
            obj.fileName = filename;
            var currentPageBox = document.getElementById('currentPage');
            currentPageBox.value = '1';
            var pageCount = document.getElementById('totalPage');
            pageCount.textContent = 'of ' + obj.pageCount;
        }
    }
    function previousClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.navigation.goToPreviousPage();
    }
    function nextClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.navigation.goToNextPage();
    }
    function printClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.print.print();
    }
    function downloadClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.download();
    }
    function pageFitClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.magnification.fitToPage();
    }
    function zoomInClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.magnification.zoomIn();
    }
    function zoomOutClicked() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        pdfViewer.magnification.zoomOut();
    }
    function pageChanged() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        var currentPage = document.getElementById('currentPage');
        (currentPage).value = pdfViewer.currentPageNumber;
        updatePageNavigation();
    }
    function onCurrentPageBoxKeypress(event) {
        var viewer = document.getElementById('pdfviewer').ej2_instances[0];
        var currentPageBox = document.getElementById('currentPage');
        if ((event.which < 48 || event.which > 57) && event.which !== 8 && event.which !== 13) {
            event.preventDefault();
            return false;
        }
        else {
            var currentPageNumber = parseInt(currentPageBox.value);
            if (event.which === 13) {
                if (currentPageNumber > 0 && currentPageNumber <= viewer.pageCount) {
                    viewer.navigation.goToPage(currentPageNumber);
                }
                else {
                    currentPageBox.value = viewer.currentPageNumber.toString();
                }
            }
            return true;
        }
    }
    function currentPageClicked() {
        var currentPage = document.getElementById('currentPage');
        (currentPage).select();
    }
    function documentLoaded() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        var pageCount = document.getElementById('totalPage');
        pageCount.textContent = 'of ' + pdfViewer.pageCount;
        updatePageNavigation();
    }
    function updatePageNavigation() {
        var toolbarObj = document.getElementById('topToolbar').ej2_instances[0];
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        if (pdfViewer.currentPageNumber === 1) {
            toolbarObj.enableItems(document.getElementById('previousPage'), false);
            toolbarObj.enableItems(document.getElementById('nextPage'), true);
        } else if (pdfViewer.currentPageNumber === pdfViewer.pageCount) {
            toolbarObj.enableItems(document.getElementById('previousPage'), true);
            toolbarObj.enableItems(document.getElementById('nextPage'), false);
        } else {
            toolbarObj.enableItems(document.getElementById('previousPage'), true);
            toolbarObj.enableItems(document.getElementById('nextPage'), true);
        }
    }
    function updateZoomButtons() {
        var pdfViewer = document.getElementById('pdfviewer').ej2_instances[0];
        var toolbarObj = document.getElementById('topToolbar').ej2_instances[0];
        if (pdfViewer.zoomPercentage <= 50) {
            toolbarObj.enableItems(document.getElementById('zoomIn'), true);
            toolbarObj.enableItems(document.getElementById('zoomOut'), false);
            toolbarObj.enableItems(document.getElementById('fitPage'), true);
        } else if (viewer.zoomPercentage >= 400) {
            toolbarObj.enableItems(document.getElementById('zoomIn'), false);
            toolbarObj.enableItems(document.getElementById('zoomOut'), true);
            toolbarObj.enableItems(document.getElementById('fitPage'), true);
        } else {
            toolbarObj.enableItems(document.getElementById('zoomIn'), true);
            toolbarObj.enableItems(document.getElementById('zoomOut'), true);
            toolbarObj.enableItems(document.getElementById('fitPage'), true);
        }
    }
</script>

View sample in GitHub

ASP.NET MVC PDF Viewer primary toolbar with customized items

Annotation toolbar in ASP.NET MVC PDF Viewer Component

The Annotation toolbar appears below the primary toolbar when annotation features are enabled. It provides tools to create and edit annotations.

  • Text markup: Highlight, Underline, Strikethrough, Squiggly
  • Shapes: Line, Arrow, Rectangle, Circle, Polygon
  • Measurement: Distance, Perimeter, Area, Radius, Volume
  • Freehand: Ink, Signature
  • Text: Free text
  • Stamp: Predefined and custom stamps
  • Properties: Color, opacity, thickness, font
  • Edit helpers: Comments panel, Delete
  • Close

ASP.NET MVC PDF Viewer annotation toolbar

Form Designer toolbar in ASP.NET MVC PDF Viewer Component

Use the Form Designer toolbar to add and configure interactive form fields in the PDF. It appears below the primary toolbar when form designer is enabled.

  • Field types: Button, Text box, Password, Checkbox, Radio button, Drop-down, List box, Signature, Initial
  • Edit helpers: Delete
  • Close

PDF Viewer form designer toolbar

See also
