Redaction toolbar customization in ASP.NET Core
28 Feb 20265 minutes to read
Customize the redaction toolbar by rearranging existing items, hiding default items, or adding custom items. Custom items can be inserted at specific index positions among existing toolbar items.
Enable the redaction toolbar
To enable the redaction toolbar, configure the toolbarSettings.toolbarItems property of the PdfViewer instance to include the RedactionEditTool.
The following example shows how to enable the redaction toolbar:
<div class="text-center">
<ejs-pdfviewer
id="pdfViewer"
style="height:640px; display:block"
resourceUrl="https://cdn.syncfusion.com/ej2/31.2.12/dist/ej2-pdfviewer-lib"
documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
</ejs-pdfviewer>
</div>
<script type="text/javascript">
window.onload = function () {
var viewer = document.getElementById('pdfViewer').ej2_instances[0];
// Include RedactionEditTool in the primary toolbar
viewer.toolbarSettings = {
toolbarItems: [
'OpenOption',
'UndoRedoTool',
'PageNavigationTool',
'MagnificationTool',
'PanTool',
'SelectionTool',
'CommentTool',
'SubmitForm',
'AnnotationEditTool',
'RedactionEditTool',
'FormDesignerEditTool',
'SearchOption',
'PrintOption',
'DownloadOption'
]
};
}
</script>Refer to the following image for the toolbar view:
Show or hide the redaction toolbar
Toggle the redaction toolbar using the built‑in toolbar icon or programmatically with the showRedactionToolbar method.
Display the redaction toolbar using the toolbar icon
When RedactionEditTool is included in the toolbar settings, clicking the redaction icon in the primary toolbar shows or hides the redaction toolbar.
Display the redaction toolbar programmatically
Control visibility in code by calling viewer.toolbar.showRedactionToolbar(true) or viewer.toolbar.showRedactionToolbar(false).
The following example demonstrates toggling the redaction toolbar programmatically:
<div class="content-wrapper">
<!-- Separate buttons: Show and Hide Redaction toolbar -->
<div style="margin-bottom:8px; display:flex; gap:8px;">
<button type="button" onclick="showRedactionToolbar()">Show Redaction Toolbar</button>
<button type="button" onclick="hideRedactionToolbar()">Hide Redaction Toolbar</button>
</div>
<ejs-pdfviewer
id="pdfViewer"
style="height:640px; display:block"
resourceUrl="https://cdn.syncfusion.com/ej2/31.2.12/dist/ej2-pdfviewer-lib"
documentPath="https://cdn.syncfusion.com/content/pdf/pdf-succinctly.pdf">
</ejs-pdfviewer>
</div>
<script type="text/javascript">
window.onload = function () {
window.viewer = document.getElementById('pdfViewer').ej2_instances[0];
// Includes RedactionEditTool in the primary toolbar
viewer.toolbarSettings = {
toolbarItems: [
'OpenOption', 'UndoRedoTool', 'PageNavigationTool', 'MagnificationTool', 'PanTool',
'SelectionTool', 'CommentTool', 'SubmitForm', 'AnnotationEditTool', 'RedactionEditTool',
'FormDesignerEditTool', 'SearchOption', 'PrintOption', 'DownloadOption'
]
};
};
// Separate handlers for show/hide (no toggle)
function showRedactionToolbar() {
if (!window.viewer) return;
viewer.toolbar.showRedactionToolbar(true);
}
function hideRedactionToolbar() {
if (!window.viewer) return;
viewer.toolbar.showRedactionToolbar(false);
}

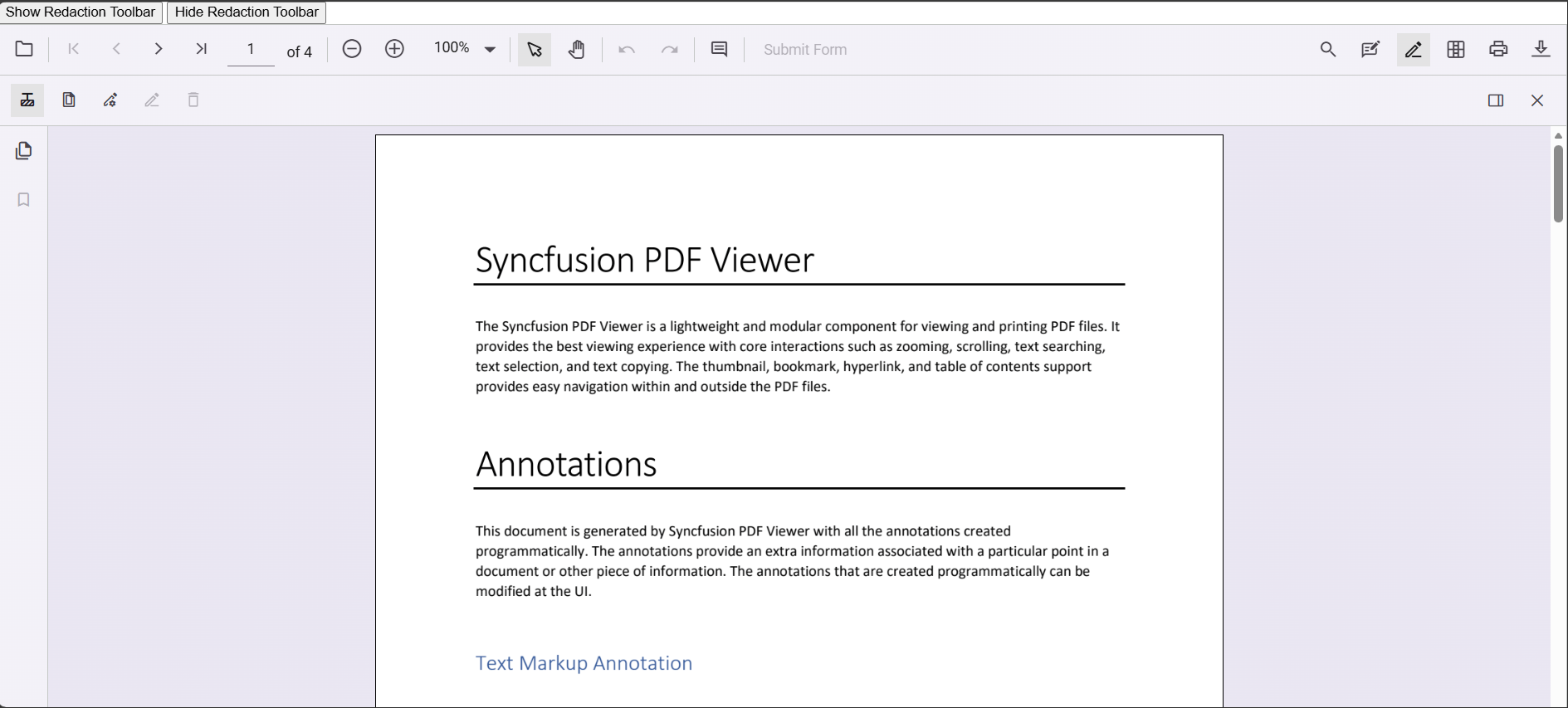

</script>Refer to the following image for details:
