Adding a Pie Chart to an Excel Worksheet

13 Jul 20267 minutes to read

A pie chart is a circular statistical graphic divided into slices that illustrate numerical proportions. It is most effective with a single series of positive values and a small number of categories (typically fewer than seven).

For prerequisites and installation steps, see the Flutter XlsIO Overview. For background on charts and the chart package, see Working with Excel Charts.

NOTE

The code samples in this document use await workbook.save(). Always call workbook.dispose() after saving to release the XlsIO DOM memory, ideally inside a try/finally block.

Create a pie chart

A pie chart is created in three steps: build the data, add a Chart to the worksheet’s ChartCollection, and set the chartType and dataRange. The first column of the data range supplies the slice labels, and the second column supplies the values.

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

Future<void> createPieChart() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  // Sample data: a list of cost categories and their amounts.
  sheet.getRangeByName('A11').setText('Venue');
  sheet.getRangeByName('A12').setText('Seating & Decor');
  sheet.getRangeByName('A13').setText('Technical Team');
  sheet.getRangeByName('A14').setText('Performers');
  sheet.getRangeByName('A15').setText("Performer's Transport");

  sheet.getRangeByName('B11:B15').numberFormat = r'$#,##0_)';
  sheet.getRangeByName('B11').setNumber(17500);
  sheet.getRangeByName('B12').setNumber(1828);
  sheet.getRangeByName('B13').setNumber(800);
  sheet.getRangeByName('B14').setNumber(14000);
  sheet.getRangeByName('B15').setNumber(2600);

  // Create a chart collection and add a pie chart.
  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.pie;
  chart.dataRange = sheet.getRangeByName('A11:B15');
  chart.isSeriesInRows = false;

  // Bind the chart collection to the worksheet.
  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Customize a pie chart

    The Chart class exposes properties for the most common chart elements: chart title, data labels, and line patterns. The samples below build on the same data setup.

    Sample data setup

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

void populatePieChartData(Worksheet sheet) {
  sheet.getRangeByName('A1').setText('Task');
  sheet.getRangeByName('A2').setText('Planning');
  sheet.getRangeByName('A3').setText('Development');
  sheet.getRangeByName('A4').setText('Testing');
  sheet.getRangeByName('A5').setText('Documentation');
  sheet.getRangeByName('A6').setText('Meetings');

  sheet.getRangeByName('B1').setText('Hours');
  sheet.getRangeByName('B2').setNumber(20);
  sheet.getRangeByName('B3').setNumber(50);
  sheet.getRangeByName('B4').setNumber(15);
  sheet.getRangeByName('B5').setNumber(10);
  sheet.getRangeByName('B6').setNumber(5);

  sheet.getRangeByName('B2:B6').numberFormat = r'$#,##0_)';
}

    Chart title

  • DART
    • Future<void> configurePieChartTitle() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populatePieChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.pie;
  chart.dataRange = sheet.getRangeByName('A1:B6');
  chart.isSeriesInRows = false;

  // Set the chart title with formatting.
  chart.chartTitle = 'Project Time Allocation';
  chart.chartTitleArea.bold = true;
  chart.chartTitleArea.size = 10;
  chart.chartTitleArea.color = '#050505';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Data labels

  • DART
    • Future<void> configurePieChartDataLabels() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populatePieChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.pie;
  chart.dataRange = sheet.getRangeByName('A1:B6');
  chart.isSeriesInRows = false;

  // Configure data labels on the first series.
  final ChartSerie serie = chart.series[0];
  serie.dataLabels.isValue = true;
  serie.dataLabels.textArea.bold = true;
  serie.dataLabels.textArea.size = 10;
  serie.dataLabels.textArea.color = '#000000';
  serie.dataLabels.textArea.fontName = 'Arial';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    The dataLabels flags control which parts of a data point are displayed:

    Flag Description
    isValue Display the numeric value of the slice.
    isPercentage Display the slice as a percentage of the total.
    isCategoryName Display the category name (for example, the task name).
    isSeriesName Display the name of the series.

    Data label border

  • DART
    • Future<void> configurePieChartLabelBorder() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populatePieChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.pie;
  chart.dataRange = sheet.getRangeByName('A1:B6');
  chart.isSeriesInRows = false;

  // Add a border to the data labels of the first series.
  final ChartSerie serie = chart.series[0];
  serie.linePattern = ExcelChartLinePattern.solid;
  serie.linePatternColor = '#000000';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

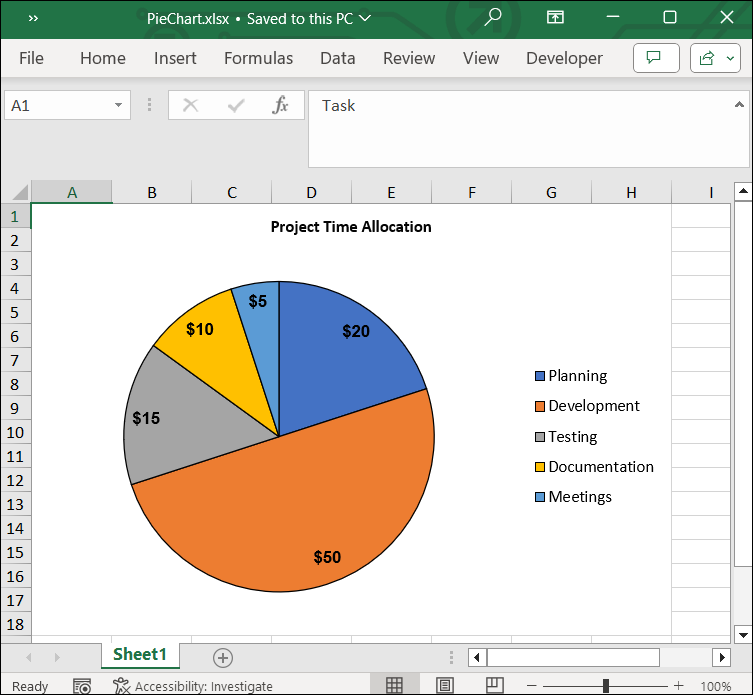

    The following Excel document is generated by combining the samples above:

    Customizing a pie chart
