Adding a Bar Chart to an Excel Worksheet

13 Jul 20268 minutes to read

A bar chart displays categorical data with horizontal rectangular bars whose lengths are proportional to the data values. It is most effective when you want to compare values across categories and the category labels are long. If the categories are short and you want vertical bars, use a column chart instead.

For prerequisites and installation steps, see the Flutter XlsIO Overview. For background on charts and the chart package, see Working with Excel Charts.

NOTE

The code samples in this document use await workbook.save(). Always call workbook.dispose() after saving to release the XlsIO DOM memory, ideally inside a try/finally block.

Create a bar chart

A bar chart is created in three steps: build the data, add a Chart to the worksheet’s ChartCollection, and set the chartType and dataRange. The first column of the data range supplies the category labels, and each remaining column supplies a series of values.

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

Future<void> createBarChart() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  // Sample data: a list of grocery categories and two value series.
  sheet.getRangeByName('A1').setText('Items');
  sheet.getRangeByName('B1').setText(r'Amount (in $)');
  sheet.getRangeByName('C1').setText('Count');
  sheet.getRangeByName('A2').setText('Beverages');
  sheet.getRangeByName('A3').setText('Condiments');
  sheet.getRangeByName('A4').setText('Confections');
  sheet.getRangeByName('A5').setText('Dairy Products');
  sheet.getRangeByName('A6').setText('Grains / Cereals');
  sheet.getRangeByName('B2').setNumber(2776);
  sheet.getRangeByName('B3').setNumber(1077);
  sheet.getRangeByName('B4').setNumber(2287);
  sheet.getRangeByName('B5').setNumber(1368);
  sheet.getRangeByName('B6').setNumber(3325);
  sheet.getRangeByName('C2').setNumber(925);
  sheet.getRangeByName('C3').setNumber(378);
  sheet.getRangeByName('C4').setNumber(880);
  sheet.getRangeByName('C5').setNumber(581);
  sheet.getRangeByName('C6').setNumber(189);

  // Create a chart collection and add a bar chart.
  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.bar;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Bind the chart collection to the worksheet.
  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Customize a bar chart

    The Chart class exposes properties for the most common chart elements: chart title, data labels, legend, and line patterns. The samples below build on the same data setup.

    Sample data setup

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

void populateBarChartData(Worksheet sheet) {
  sheet.getRangeByName('A1').setText('Items');
  sheet.getRangeByName('B1').setText(r'Amount (in $)');
  sheet.getRangeByName('C1').setText('Count');
  sheet.getRangeByName('A2').setText('Snacks');
  sheet.getRangeByName('A3').setText('Frozen Foods');
  sheet.getRangeByName('A4').setText('Meat Products');
  sheet.getRangeByName('A5').setText('Vegetables');
  sheet.getRangeByName('A6').setText('Bakery Items');
  sheet.getRangeByName('B2').setNumber(2450);
  sheet.getRangeByName('B3').setNumber(1890);
  sheet.getRangeByName('B4').setNumber(4200);
  sheet.getRangeByName('B5').setNumber(1500);
  sheet.getRangeByName('B6').setNumber(3100);
  sheet.getRangeByName('C2').setNumber(630);
  sheet.getRangeByName('C3').setNumber(400);
  sheet.getRangeByName('C4').setNumber(270);
  sheet.getRangeByName('C5').setNumber(760);
  sheet.getRangeByName('C6').setNumber(540);
}

    Chart title

  • DART
    • Future<void> configureBarChartTitle() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateBarChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.bar;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Set the chart title with formatting.
  chart.chartTitle = 'Grocery Expense Analysis';
  chart.chartTitleArea.bold = true;
  chart.chartTitleArea.size = 10;
  chart.chartTitleArea.color = '#0000FF';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Data labels

  • DART
    • Future<void> configureBarChartDataLabels() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateBarChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.bar;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Configure data labels on every series.
  for (final ChartSerie serie in chart.series) {
    serie.dataLabels.isValue = true;
    serie.dataLabels.textArea.bold = false;
    serie.dataLabels.textArea.size = 10;
    serie.dataLabels.textArea.fontName = 'Arial';
  }

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    The dataLabels flags control which parts of a data point are displayed:

    Flag Description
    isValue Display the numeric value of the bar.
    isCategoryName Display the category name.
    isSeriesName Display the name of the series.

    Legend and line patterns

  • DART
    • Future<void> configureBarChartLegendAndBorders() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateBarChartData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.bar;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Set the legend position. The `legend` property is nullable; it is null
  // until a legend is first accessed, after which it is created automatically.
  chart.legend!.position = ExcelLegendPosition.bottom;

  // Set the chart border (the line around the entire chart).
  chart.linePattern = ExcelChartLinePattern.dashDot;
  chart.linePatternColor = '#2F4F4F';

  // Set the plot area border (the line around the plot area only).
  chart.plotArea.linePattern = ExcelChartLinePattern.dashDot;
  chart.plotArea.linePatternColor = '#0000FF';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

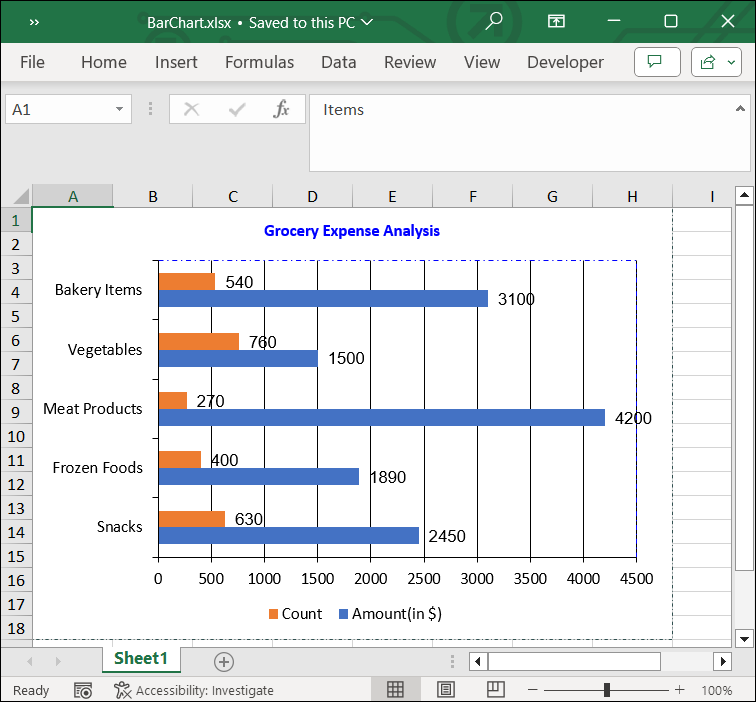

    The following Excel document is generated by combining the samples above:

    Customizing a bar chart
