Adding a Line with Markers Chart to an Excel Worksheet

13 Jul 202610 minutes to read

A line with markers chart is a line chart in which a small symbol (a marker) is placed on each data point to make individual values easier to read. It is most effective for showing trends over a continuous range when the exact data-point values matter. If you do not need markers on every data point, use a regular line chart instead.

For prerequisites and installation steps, see the Flutter XlsIO Overview. For background on charts and the chart package, see Working with Excel Charts.

NOTE

The code samples in this document use await workbook.save(). Always call workbook.dispose() after saving to release the XlsIO DOM memory, ideally inside a try/finally block.

Create a line with markers chart

A line with markers chart is created in three steps: build the data, add a Chart to the worksheet’s ChartCollection, and set the chartType and dataRange. The first column of the data range supplies the category labels, and each remaining column supplies a series of values.

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

Future<void> createLineWithMarkersChart() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  // Sample data: a list of cities and two temperature series.
  sheet.getRangeByName('A1').setText('City Name');
  sheet.getRangeByName('A2').setText('Chennai');
  sheet.getRangeByName('A3').setText('Mumbai');
  sheet.getRangeByName('A4').setText('Delhi');
  sheet.getRangeByName('A5').setText('Hyderabad');
  sheet.getRangeByName('A6').setText('Kolkata');
  sheet.getRangeByName('B1').setText('Temp in C');
  sheet.getRangeByName('B2').setNumber(34);
  sheet.getRangeByName('B3').setNumber(40);
  sheet.getRangeByName('B4').setNumber(47);
  sheet.getRangeByName('B5').setNumber(20);
  sheet.getRangeByName('B6').setNumber(66);
  sheet.getRangeByName('C1').setText('Temp in F');
  sheet.getRangeByName('C2').setNumber(93);
  sheet.getRangeByName('C3').setNumber(104);
  sheet.getRangeByName('C4').setNumber(120);
  sheet.getRangeByName('C5').setNumber(80);
  sheet.getRangeByName('C6').setNumber(140);

  // Create a chart collection and add a line with markers chart.
  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.lineMarkers;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Bind the chart collection to the worksheet.
  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Customize a line with markers chart

    The Chart class exposes properties for the most common chart elements: chart title, data labels, legend, and line patterns. The samples below build on the same data setup.

    Sample data setup

  • DART
    • import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';

void populateLineWithMarkersData(Worksheet sheet) {
  // Headers in row 1.
  sheet.getRangeByName('A1').setText('Month');
  sheet.getRangeByName('B1').setText('Average Temp (C)');
  sheet.getRangeByName('C1').setText('Average Humidity (%)');

  // Month labels in column A.
  sheet.getRangeByName('A2').setText('January');
  sheet.getRangeByName('A3').setText('February');
  sheet.getRangeByName('A4').setText('March');
  sheet.getRangeByName('A5').setText('April');
  sheet.getRangeByName('A6').setText('May');

  // Average temperatures in column B.
  sheet.getRangeByName('B2').setNumber(5);
  sheet.getRangeByName('B3').setNumber(10);
  sheet.getRangeByName('B4').setNumber(15);
  sheet.getRangeByName('B5').setNumber(18);
  sheet.getRangeByName('B6').setNumber(7);

  // Average humidity in column C.
  sheet.getRangeByName('C2').setNumber(80);
  sheet.getRangeByName('C3').setNumber(75);
  sheet.getRangeByName('C4').setNumber(70);
  sheet.getRangeByName('C5').setNumber(60);
  sheet.getRangeByName('C6').setNumber(65);
}

    Chart title

  • DART
    • Future<void> configureLineWithMarkersTitle() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateLineWithMarkersData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.lineMarkers;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Set the chart title with formatting.
  chart.chartTitle = 'Monthly Average Weather';
  chart.chartTitleArea.bold = true;
  chart.chartTitleArea.size = 10;
  chart.chartTitleArea.color = '#050505';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Data labels

  • DART
    • Future<void> configureLineWithMarkersDataLabels() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateLineWithMarkersData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.lineMarkers;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Configure data labels on every series.
  for (final ChartSerie serie in chart.series) {
    serie.dataLabels.isValue = true;
    serie.dataLabels.textArea.bold = true;
    serie.dataLabels.textArea.size = 10;
    serie.dataLabels.textArea.color = '#920467';
    serie.dataLabels.textArea.fontName = 'Arial';
  }

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    The dataLabels flags control which parts of a data point are displayed:

    Flag Description
    isValue Display the numeric value of the data point.
    isCategoryName Display the category name (for example, the month).
    isSeriesName Display the name of the series.

    Per-series line patterns

  • DART
    • Future<void> configureLineWithMarkersSeriesPatterns() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateLineWithMarkersData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.lineMarkers;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Apply a different line pattern to each series.
  final List<String> colors = <String>['#F40829', '#08A2F4'];
  for (int i = 0; i < chart.series.length; i++) {
    chart.series[i].linePattern = ExcelChartLinePattern.longDash;
    chart.series[i].linePatternColor = colors[i];
  }

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

    Legend and chart borders

  • DART
    • Future<void> configureLineWithMarkersLegendAndBorders() async {
  final Workbook workbook = Workbook();
  final Worksheet sheet = workbook.worksheets[0];

  populateLineWithMarkersData(sheet);

  final ChartCollection charts = ChartCollection(sheet);
  final Chart chart = charts.add();
  chart.chartType = ExcelChartType.lineMarkers;
  chart.dataRange = sheet.getRangeByName('A1:C6');
  chart.isSeriesInRows = false;

  // Set the legend position. The `legend` property is nullable; it is null
  // until a legend is first accessed, after which it is created automatically.
  chart.legend!.position = ExcelLegendPosition.right;

  // Set the chart border (the line around the entire chart).
  chart.linePattern = ExcelChartLinePattern.solid;
  chart.linePatternColor = '#2F4F4F';

  // Set the plot area border (the line around the plot area only).
  chart.plotArea.linePattern = ExcelChartLinePattern.solid;
  chart.plotArea.linePatternColor = '#2F4F4F';

  sheet.charts = charts;

  final List<int> bytes = await workbook.save();
  workbook.dispose();
}

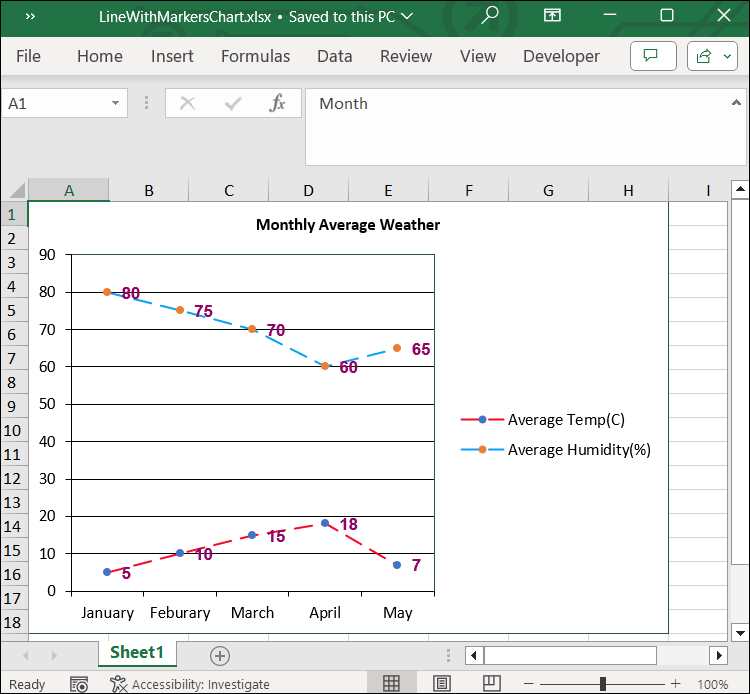

    The following Excel document is generated by combining the samples above:

    Customizing a line with markers chart
