Adding a Stacked Line Chart to an Excel Worksheet
13 Jul 202610 minutes to read
A stacked line chart is a line chart in which each series is drawn above the previous one, so the values appear stacked along the y-axis. It is most effective for showing how the contribution of each series to a total changes over a continuous range, such as time. If you want to compare the values of multiple series without stacking, use a regular line chart instead.
For prerequisites and installation steps, see the Flutter XlsIO Overview. For background on charts and the chart package, see Working with Excel Charts.
NOTE
The code samples in this document use
await workbook.save(). Always callworkbook.dispose()after saving to release the XlsIO DOM memory, ideally inside atry/finallyblock.
Create a stacked line chart
A stacked line chart is created in three steps: build the data, add a Chart to the worksheet’s ChartCollection, and set the chartType and dataRange. The first column of the data range supplies the category labels, and each remaining column supplies a series of values.
import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';
Future<void> createStackedLineChart() async {
final Workbook workbook = Workbook();
final Worksheet sheet = workbook.worksheets[0];
// Sample data: a list of cities and two temperature series.
sheet.getRangeByName('A1').setText('City Name');
sheet.getRangeByName('A2').setText('Chennai');
sheet.getRangeByName('A3').setText('Mumbai');
sheet.getRangeByName('A4').setText('Delhi');
sheet.getRangeByName('A5').setText('Hyderabad');
sheet.getRangeByName('A6').setText('Kolkata');
sheet.getRangeByName('B1').setText('Temp in C');
sheet.getRangeByName('B2').setNumber(34);
sheet.getRangeByName('B3').setNumber(40);
sheet.getRangeByName('B4').setNumber(47);
sheet.getRangeByName('B5').setNumber(20);
sheet.getRangeByName('B6').setNumber(66);
sheet.getRangeByName('C1').setText('Temp in F');
sheet.getRangeByName('C2').setNumber(93);
sheet.getRangeByName('C3').setNumber(104);
sheet.getRangeByName('C4').setNumber(120);
sheet.getRangeByName('C5').setNumber(80);
sheet.getRangeByName('C6').setNumber(140);
// Create a chart collection and add a stacked line chart.
final ChartCollection charts = ChartCollection(sheet);
final Chart chart = charts.add();
chart.chartType = ExcelChartType.lineStacked;
chart.dataRange = sheet.getRangeByName('A1:C6');
chart.isSeriesInRows = false;
// Bind the chart collection to the worksheet.
sheet.charts = charts;
final List<int> bytes = await workbook.save();
workbook.dispose();
}Customize a stacked line chart
The Chart class exposes properties for the most common chart elements: chart title, data labels, legend, and line patterns. The samples below build on the same data setup.
Sample data setup
import 'package:syncfusion_flutter_xlsio/xlsio.dart';
import 'package:syncfusion_officechart/officechart.dart';
void populateStackedLineChartData(Worksheet sheet) {
// Headers in row 1.
sheet.getRangeByName('A1').setText('Day');
sheet.getRangeByName('B1').setText('High Temp');
sheet.getRangeByName('C1').setText('Low Temp');
// Day labels in column A.
sheet.getRangeByName('A2').setText('Monday');
sheet.getRangeByName('A3').setText('Tuesday');
sheet.getRangeByName('A4').setText('Wednesday');
sheet.getRangeByName('A5').setText('Thursday');
sheet.getRangeByName('A6').setText('Friday');
// High temperatures in column B.
sheet.getRangeByName('B2').setNumber(34);
sheet.getRangeByName('B3').setNumber(29);
sheet.getRangeByName('B4').setNumber(30);
sheet.getRangeByName('B5').setNumber(32);
sheet.getRangeByName('B6').setNumber(35);
// Low temperatures in column C.
sheet.getRangeByName('C2').setNumber(20);
sheet.getRangeByName('C3').setNumber(22);
sheet.getRangeByName('C4').setNumber(19);
sheet.getRangeByName('C5').setNumber(18);
sheet.getRangeByName('C6').setNumber(21);
}Chart title
Future<void> configureStackedLineChartTitle() async {
final Workbook workbook = Workbook();
final Worksheet sheet = workbook.worksheets[0];
populateStackedLineChartData(sheet);
final ChartCollection charts = ChartCollection(sheet);
final Chart chart = charts.add();
chart.chartType = ExcelChartType.lineStacked;
chart.dataRange = sheet.getRangeByName('A1:C6');
chart.isSeriesInRows = false;
// Set the chart title with formatting.
chart.chartTitle = 'Weekly Weather Summary';
chart.chartTitleArea.bold = true;
chart.chartTitleArea.size = 10;
chart.chartTitleArea.color = '#050505';
sheet.charts = charts;
final List<int> bytes = await workbook.save();
workbook.dispose();
}Data labels
Future<void> configureStackedLineChartDataLabels() async {
final Workbook workbook = Workbook();
final Worksheet sheet = workbook.worksheets[0];
populateStackedLineChartData(sheet);
final ChartCollection charts = ChartCollection(sheet);
final Chart chart = charts.add();
chart.chartType = ExcelChartType.lineStacked;
chart.dataRange = sheet.getRangeByName('A1:C6');
chart.isSeriesInRows = false;
// Configure data labels on every series.
for (final ChartSerie serie in chart.series) {
serie.dataLabels.isValue = true;
serie.dataLabels.textArea.bold = true;
serie.dataLabels.textArea.size = 10;
serie.dataLabels.textArea.color = '#920467';
serie.dataLabels.textArea.fontName = 'Arial';
}
sheet.charts = charts;
final List<int> bytes = await workbook.save();
workbook.dispose();
}The dataLabels flags control which parts of a data point are displayed:
| Flag | Description |
|---|---|
isValue |
Display the numeric value of the data point. |
isCategoryName |
Display the category name (for example, the day). |
isSeriesName |
Display the name of the series. |
Per-series line patterns
Future<void> configureStackedLineChartSeriesPatterns() async {
final Workbook workbook = Workbook();
final Worksheet sheet = workbook.worksheets[0];
populateStackedLineChartData(sheet);
final ChartCollection charts = ChartCollection(sheet);
final Chart chart = charts.add();
chart.chartType = ExcelChartType.lineStacked;
chart.dataRange = sheet.getRangeByName('A1:C6');
chart.isSeriesInRows = false;
// Apply a different line pattern to each series.
final List<String> colors = <String>['#F40829', '#08A2F4'];
for (int i = 0; i < chart.series.length; i++) {
chart.series[i].linePattern = ExcelChartLinePattern.longDash;
chart.series[i].linePatternColor = colors[i];
}
sheet.charts = charts;
final List<int> bytes = await workbook.save();
workbook.dispose();
}Legend and chart borders
Future<void> configureStackedLineChartLegendAndBorders() async {
final Workbook workbook = Workbook();
final Worksheet sheet = workbook.worksheets[0];
populateStackedLineChartData(sheet);
final ChartCollection charts = ChartCollection(sheet);
final Chart chart = charts.add();
chart.chartType = ExcelChartType.lineStacked;
chart.dataRange = sheet.getRangeByName('A1:C6');
chart.isSeriesInRows = false;
// Set the legend position. The `legend` property is nullable; it is null
// until a legend is first accessed, after which it is created automatically.
chart.legend!.position = ExcelLegendPosition.right;
// Set the chart border (the line around the entire chart).
chart.linePattern = ExcelChartLinePattern.solid;
chart.linePatternColor = '#2F4F4F';
// Set the plot area border (the line around the plot area only).
chart.plotArea.linePattern = ExcelChartLinePattern.dashDot;
chart.plotArea.linePatternColor = '#0000FF';
sheet.charts = charts;
final List<int> bytes = await workbook.save();
workbook.dispose();

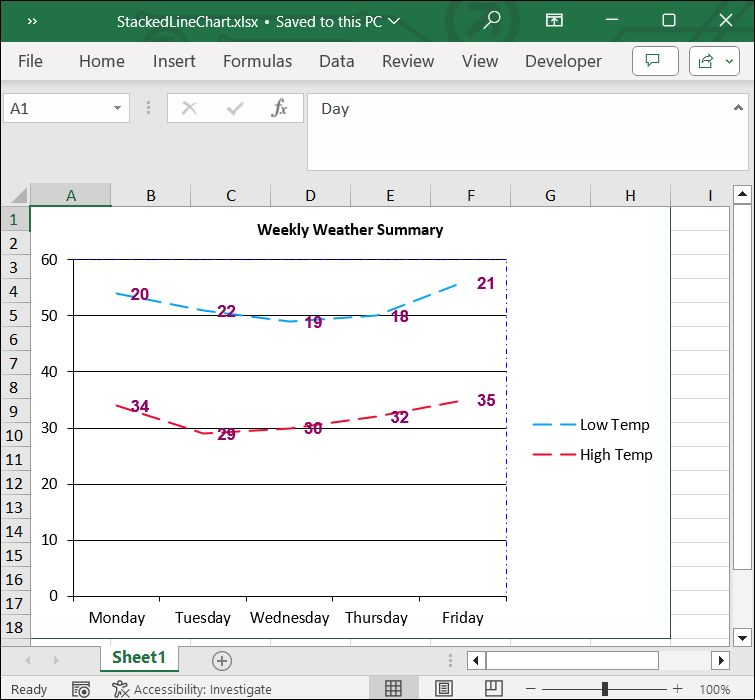

}The following Excel document is generated by combining the samples above:
