Lane in Vue Diagram component

Lanes

Lane is a functional unit or a responsible department of a business process that helps to map a process within the functional unit or in between other functional units..

The number of lanes can be added to swimlane. The lanes are automatically stacked inside swimlane based on the order they are added.

Create an empty lane

The lane id is used to define the name of the lane and its further used to find the lane at runtime and do any customization.

The following code example illustrates how to define a swimlane with lane.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        // initialize the lane of swimlane
        lanes: [
            {
                id: 'stackCanvas1',
                // set the lane height
                height: 100,
                // set the lane info
                addInfo: { name: 'lane1' }
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        // initialize the lane of swimlane
        lanes: [
            {
                id: 'stackCanvas1',
                // set the lane height
                height: 100,
                // set the lane info
                addInfo: { name: 'lane1' }
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Create lane header

The header property of lane allows you to textually describe the lane and to customize the appearance of the description.

The following code example illustrates how to define a lane header.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        // Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        // Intialize lane to swimlane
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // Intialize header to lane
                header: {
                    annotation: { content: 'CUSTOMER' }, width: 50,
                    style: { fontSize: 11 }
                },
            },

        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];
const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        // Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        // Intialize lane to swimlane
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // Intialize header to lane
                header: {
                    annotation: { content: 'CUSTOMER' }, width: 50,
                    style: { fontSize: 11 }
                },
            },

        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Customizing lane and lane header

The size of lane can be controlled by using width and height properties of the lane.
The appearance of lane can be set by using the style properties.
The appearance of header annotation can be customized by using the style property of header annotation.

The following code example illustrates how to customize the lane header.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>

import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                    annotation: { content: 'Online Consumer', style: { fill: 'white', color: 'red' }, }, width: 30,
                    style: { fontSize: 11 }, style: { fill: 'red' }
                },
                style: { fill: 'violet' },
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                    annotation: { content: 'Online Consumer', style: { fill: 'white', color: 'red' }, }, width: 30,
                    style: { fontSize: 11 }, style: { fill: 'red' }
                },
                style: { fill: 'violet' },
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Dynamic customization of lane header

You can customize the lane header style and text properties dynamically. The following code illustrates how to dynamically customize the lane header.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <button @click="updateLane">updateLane</button>
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { onMounted, ref } from "vue";
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const diagram = ref(null);
const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 }, style: { fill: 'red' }
                },
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];
const width = "100%";
const height = "350px";

const updateLane = () => {
    const diagramInstance = diagram.value.ej2Instances;
    const swimlane = diagramInstance.nodes[0];
    swimlane.shape.lanes[0].header.style.fill = 'blue';
    swimlane.shape.lanes[0].header.annotation.style.color = 'white';
    diagramInstance.dataBind();
};

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <button @click="updateLane">updateLane</button>
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                    annotation: { content: 'Online Consumer' }, width: 30,
                    style: { fontSize: 11 }, style: { fill: 'red' }
                },
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    },
    methods: {
        updateLane() {
            const diagramInstance = this.$refs.diagram.ej2Instances;
            const swimlane = diagramInstance.nodes[0];
            swimlane.shape.lanes[0].header.style.fill = 'blue';
            swimlane.shape.lanes[0].header.annotation.style.color = 'white';
            diagramInstance.dataBind();
        }
    },
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Add/remove lane at runtime

You can add lanes at runtime by using the addLanes method and remove lanes at runtime using the removeLane method. The following code illustrates how to dynamically add and remove lane in swimlane.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <button @click="addLane">addLane</button>
        <button @click="removeLane">removeLane</button>
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { onMounted, ref } from "vue";
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const diagram = ref(null);
const nodes = [{
    id: 'swim1',
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
        annotation: {
            content: 'ONLINE PURCHASE STATUS'
        },
        height: 50,
        style: { fontSize: 11 },
        },
        lanes: [
        {
            id: 'stackCanvas1',
            height: 100,
            // customization of lane header
            header: {
            annotation: { content: 'Online Consumer' },
            style: { fontSize: 11, fill: 'red' },
            },
        },
        ],
        phases: [
        {
            id: 'phase1',
            offset: 170,
            header: { annotation: { content: 'Phase' } },
        },
        ],
        phaseSize: 20,
    },
    offsetX: 300,
    offsetY: 200,
    height: 200,
    width: 350,
}];

const width = "100%";
const height = "350px";

const addLane = () => {
  const diagramInstance = diagram.value.ej2Instances;
  const swimlane = diagramInstance.getObject('swim1');
  const lane = [
    {
      height: 100,
      style: { fill: 'lightgrey' },
      header: {
        annotation: {
          content: 'New Lane',
          style: { fill: 'brown', color: 'white', fontSize: 15 },
        },
        style: { fill: 'pink' },
      },
    },
  ];
   /**
   * To add lanes
   * parameter 1 - The swimlane to which lanes will be added.
   * parameter 2 - An array of LaneModel objects representing the lanes to be added.
   * paramter 3 - The index at which the lanes should be inserted (optional).
   */
  diagramInstance.addLanes(swimlane, lane, 1);
};

const removeLane = () => {
  const diagramInstance = diagram.value.ej2Instances;
  const swimlane = diagramInstance.getObject('swim1');
  //To get last lane in lane collection
  const lane = swimlane.shape.lanes[swimlane.shape.lanes.length - 1];
  /**
   * To remove lane
   * parameter 1 - The swimlane to remove the lane from.
   * parameter 2 - The lane to be removed
   */
  diagramInstance.removeLane(swimlane, lane);
};

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <button @click="addLane">addLane</button>
        <button @click="removeLane">removeLane</button>
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    id: 'swim1',
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
        annotation: {
            content: 'ONLINE PURCHASE STATUS'
        },
        height: 50,
        style: { fontSize: 11 },
        },
        lanes: [
        {
            id: 'stackCanvas1',
            height: 100,
            // customization of lane header
            header: {
            annotation: { content: 'Online Consumer' },
            style: { fontSize: 11, fill: 'red' },
            },
        },
        ],
        phases: [
        {
            id: 'phase1',
            offset: 170,
            header: { annotation: { content: 'Phase' } },
        },
        ],
        phaseSize: 20,
    },
    offsetX: 300,
    offsetY: 200,
    height: 200,
    width: 350,
}];

export default {
name: "App",
components: {
    "ejs-diagram": DiagramComponent
},
data() {
    return {
        width: "100%",
        height: "350px",
        nodes: nodes,
    }
},

methods: {
  addLane() {
    const diagramInstance = this.$refs.diagram.ej2Instances;
    const swimlane = diagramInstance.getObject('swim1');
    const lane = [
      {
        height: 100,
        style: { fill: 'lightgrey' },
        header: {
          annotation: {
            content: 'New Lane',
            style: { fill: 'brown', color: 'white', fontSize: 15 },
          },
          style: { fill: 'pink' },
        },
      },
    ];
    /**
   * To add lanes
   * parameter 1 - The swimlane to which lanes will be added.
   * parameter 2 - An array of LaneModel objects representing the lanes to be added.
   * paramter 3 - The index at which the lanes should be inserted (optional).
   */
    diagramInstance.addLanes(swimlane, lane, 1);
  },
  removeLane() {
    const diagramInstance = this.$refs.diagram.ej2Instances;
    const swimlane = diagramInstance.getObject('swim1');
    //To get last lane in lane collection
    const lane = swimlane.shape.lanes[swimlane.shape.lanes.length - 1];
    /**
   * To remove lane
   * parameter 1 - The swimlane to remove the lane from.
   * parameter 2 - The lane to be removed
   */
    diagramInstance.removeLane(swimlane, lane);
  },
},

}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Add children to lane

To add nodes to lane, you should add children collection of the lane.

The following code example illustrates how to add nodes to lane.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        // Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                header: {
                    annotation: { content: 'CUSTOMER' }, width: 50,
                    style: { fontSize: 11 }
                },
                // Set the childern of lane
                children: [
                    {
                        id: 'node1',
                        annotations: [
                            {
                                content: 'Consumer learns \n of product',
                                style: { fontSize: 11 }
                            }
                        ],
                        margin: { left: 60, top: 30 },
                        height: 40, width: 100,
                    }, {
                        id: 'node2',
                        shape: { type: 'Flow', shape: 'Decision' },
                        annotations: [
                            {
                                content: 'Does \n Consumer want \nthe product',
                                style: { fontSize: 11 }
                            }
                        ],
                        margin: { left: 200, top: 20 },
                        height: 60, width: 120,
                    },
                ],
            },

        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}]

const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        // Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                header: {
                    annotation: { content: 'CUSTOMER' }, width: 50,
                    style: { fontSize: 11 }
                },
                // Set the childern of lane
                children: [
                    {
                        id: 'node1',
                        annotations: [
                            {
                                content: 'Consumer learns \n of product',
                                style: { fontSize: 11 }
                            }
                        ],
                        margin: { left: 60, top: 30 },
                        height: 40, width: 100,
                    }, {
                        id: 'node2',
                        shape: { type: 'Flow', shape: 'Decision' },
                        annotations: [
                            {
                                content: 'Does \n Consumer want \nthe product',
                                style: { fontSize: 11 }
                            }
                        ],
                        margin: { left: 200, top: 20 },
                        height: 60, width: 120,
                    },
                ],
            },

        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

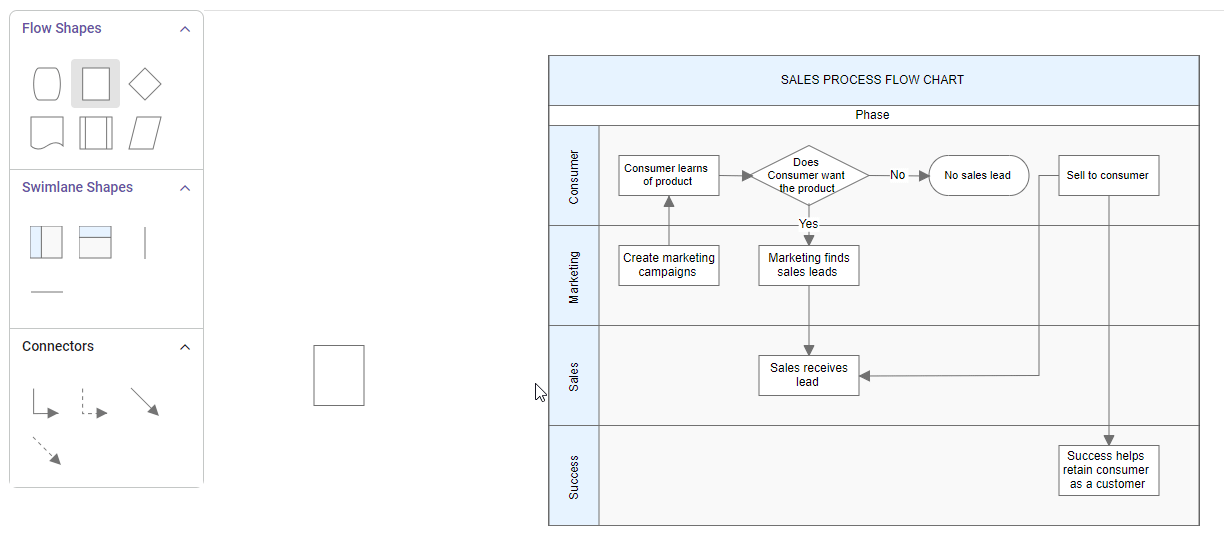

Add child dynamically into the lane

The child node can be inserted into the lane at runtime by using the addNodetoLane method.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <button @click="addChildToLane">addChildToLane</button>
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const diagram = ref(null);
const nodes = [{
    id: 'swimlane',
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
        annotation: {
            content: 'ONLINE PURCHASE STATUS',
        },
        height: 50,
        style: { fontSize: 11 },
        },
        lanes: [
        {
            id: 'stackCanvas1',
            height: 100,
            header: {
            annotation: { content: 'CUSTOMER' },
            width: 50,
            style: { fontSize: 11 },
            },
        },
        ],
        phases: [
        {
            id: 'phase1',
            offset: 150,
            addInfo: { name: 'phase1' },
            header: { annotation: { content: 'Phase' } },
        },
        ],
        phaseSize: 20,
    },
    offsetX: 300,
    offsetY: 200,
    height: 200,
    width: 350,
}]

const width = "100%";
const height = "350px";

const addChildToLane = () => {
    const diagramInstance = diagram.value.ej2Instances;
    const node = [
      {
        id: 'newNode',
        width: 100,
        height: 50,
      },
    ];
    diagramInstance.addNodeToLane(node, 'swimlane', 'stackCanvas1');
};

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
<div id="app">
    <button @click="addChildToLane">addChildToLane</button>
    <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
</div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
  id: 'swimlane',
  shape: {
    type: 'SwimLane',
    orientation: 'Horizontal',
    //Intialize header to swimlane
    header: {
      annotation: {
        content: 'ONLINE PURCHASE STATUS',
      },
      height: 50,
      style: { fontSize: 11 },
    },
    lanes: [
      {
        id: 'stackCanvas1',
        height: 100,
        header: {
          annotation: { content: 'CUSTOMER' },
          width: 50,
          style: { fontSize: 11 },
        },
      },
    ],
    phases: [
      {
        id: 'phase1',
        offset: 150,
        addInfo: { name: 'phase1' },
        header: { annotation: { content: 'Phase' } },
      },
    ],
    phaseSize: 20,
  },
  offsetX: 300,
  offsetY: 200,
  height: 200,
  width: 350,
}];

export default {
name: "App",
components: {
    "ejs-diagram": DiagramComponent
},
data() {
    return {
        width: "100%",
        height: "350px",
        nodes: nodes,
    }
},
methods: {
  addChildToLane() {
      const diagramInstance = this.$refs.diagram.ej2Instances;
      const node = [
      {
        id: 'newNode',
        width: 100,
        height: 50,
      },
    ];
    diagramInstance.addNodeToLane(node, 'swimlane', 'stackCanvas1');
  }
},
}
</script>

<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

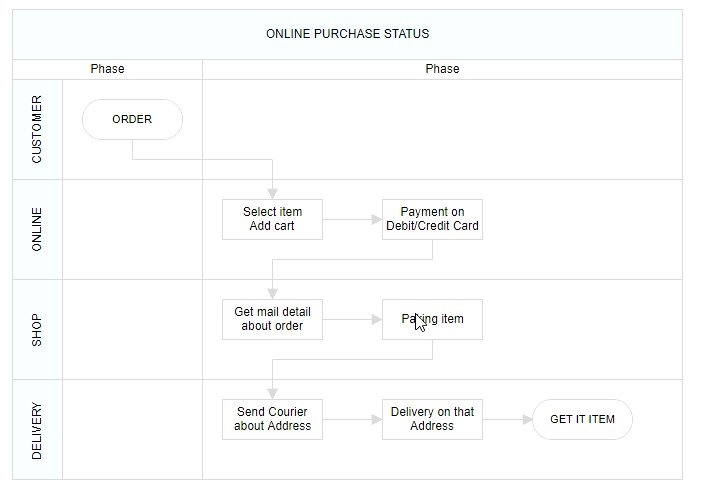

We can also drag nodes from palette or diagram and drop it inside the lane.

Add child into lane

Prevent child movement outside lane

To prevent child nodes from moving outside their designated lanes, you can use specific constraints. By default, nodes are allowed to move freely. To restrict their movement, you need to set the constraints accordingly.

Here is an example of how to apply these constraints:

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram, NodeConstraints } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
    type: 'SwimLane',
    orientation: 'Horizontal',
    //Intialize header to swimlane
    header: {
      annotation: { content: 'ONLINE PURCHASE STATUS' },
      height: 50,
      style: { fontSize: 11 },
    },
    lanes: [
      {
        id: 'stackCanvas1',
        height: 100,
        header: {
          annotation: { content: 'CUSTOMER' },
          width: 50,
          style: { fontSize: 11 },
        },
        // Set the children of lane
        children: [
          {
            id: 'node1',
            //Preventing node movement outside the lanes
            constraints:
              NodeConstraints.Default | NodeConstraints.AllowMovingOutsideLane,
            annotations: [
              {
                content: 'Node dragding disabled outside lane',
                style: { fontSize: 11 },
              },
            ],
            margin: { left: 200, top: 20 },
            height: 60,
            width: 120,
          },
        ],
      },
    ],
    phases: [
      {
        id: 'phase1',
        offset: 170,
        header: { annotation: { content: 'Phase' } },
      },
    ],
    phaseSize: 20,
    },
    offsetX: 300,
    offsetY: 200,
    height: 200,
    width: 350,
}]

const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
<div id="app">
    <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
</div>
</template>
<script>
import { DiagramComponent, NodeConstraints } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
  shape: {
    type: 'SwimLane',
    orientation: 'Horizontal',
    //Intialize header to swimlane
    header: {
      annotation: { content: 'ONLINE PURCHASE STATUS' },
      height: 50,
      style: { fontSize: 11 },
    },
    lanes: [
      {
        id: 'stackCanvas1',
        height: 100,
        header: {
          annotation: { content: 'CUSTOMER' },
          width: 50,
          style: { fontSize: 11 },
        },
        // Set the children of lane
        children: [
          {
            id: 'node1',
            //Preventing node movement outside the lanes
            constraints:
              NodeConstraints.Default | NodeConstraints.AllowMovingOutsideLane,
            annotations: [
              {
                content: 'Node dragding disabled outside lane',
                style: { fontSize: 11 },
              },
            ],
            margin: { left: 200, top: 20 },
            height: 60,
            width: 120,
          },
        ],
      },
    ],
    phases: [
      {
        id: 'phase1',
        offset: 170,
        header: { annotation: { content: 'Phase' } },
      },
    ],
    phaseSize: 20,
  },
  offsetX: 300,
  offsetY: 200,
  height: 200,
  width: 350,
}];

export default {
name: "App",
components: {
    "ejs-diagram": DiagramComponent
},
data() {
    return {
        width: "100%",
        height: "350px",
        nodes: nodes,
    }
}
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

AddInfo

AddInfo for lanes similar to the nodes. we can store additional informations about the specific lane by using the addInfo.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS' },
                height: 50, style: { fontSize: 11 },
            },
            // initialize the lane of swimlane
            lanes: [
                {
                    id: 'stackCanvas1',
                    // set the lane height
                    height: 100,
                    // set the lane info
                    addInfo:{name:'lane1'}
                },
            ],
            phases: [
                {
                    id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
                },
                ],
            phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}]

const width = "100%";
const height = "350px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
     shape: {
            type: 'SwimLane',
            orientation: 'Horizontal',
            //Intialize header to swimlane
            header: {
                annotation: { content: 'ONLINE PURCHASE STATUS' },
                height: 50, style: { fontSize: 11 },
            },
            // initialize the lane of swimlane
            lanes: [
                {
                    id: 'stackCanvas1',
                    // set the lane height
                    height: 100,
                    // set the lane info
                    addInfo:{name:'lane1'}
                },
            ],
            phases: [
                {
                    id: 'phase1', offset: 170,
                    header: { annotation: { content: 'Phase' } }
                },
                ],
            phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Lane interaction

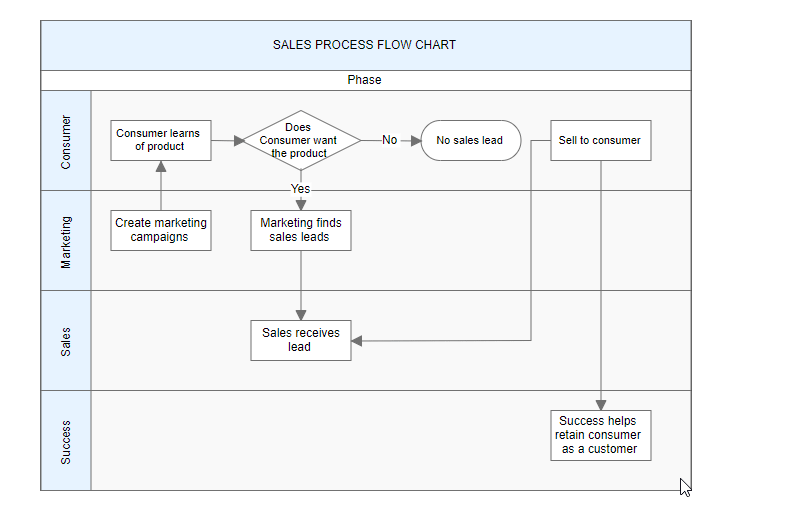

Resizing lane

Lane can be resized in the bottom and left direction.
Lane can be resized by using resize selector of the lane.
Once you can resize the lane,the swimlane will be resized automatically.
The lane can be resized either resizing the selector or the tight bounds of the child object. If the child node move to edge of the lane it can be automatically resized. The following image illustrates how to resize the lane.

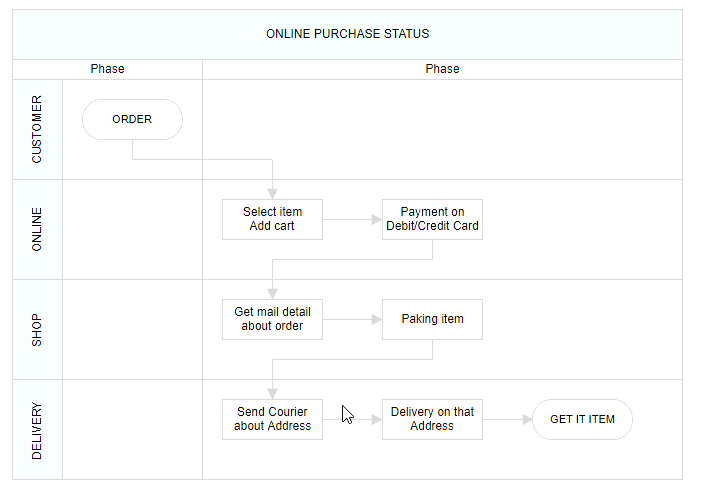

Lane swapping

Lanes can be swapped using drag the lanes over another lane.
Helper should intimate the insertion point while lane swapping. The following image illustrates how swapping the lane.

Disable Swimlane Lane swapping

You can disable swimlane lane swapping by using the property called canMove.

The following code illustrates how to disable swimlane lane swapping.

Composition API (~/src/App.vue)
Options API (~/src/App.vue)
<template>
    <div id="app">
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { onMounted, ref } from "vue";
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const diagram = ref(null);
const nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                annotation: { content: 'CUSTOMER' },
                width: 50,
                style: { fontSize: 11 },
                },
                canMove: false,
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

const width = "100%";
const height = "350px";

onMounted(function () {
    const diagramInstance = diagram.value.ej2Instances;
    let lane = [{ id: "lane1", height: 100, canMove: false }];
    diagramInstance.addLanes(diagramInstance.nodes[0], lane, 1);
});
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" ref="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    shape: {
        type: 'SwimLane',
        orientation: 'Horizontal',
        //Intialize header to swimlane
        header: {
            annotation: { content: 'ONLINE PURCHASE STATUS' },
            height: 50, style: { fontSize: 11 },
        },
        lanes: [
            {
                id: 'stackCanvas1',
                height: 100,
                // customization of lane header
                header: {
                annotation: { content: 'CUSTOMER' },
                width: 50,
                style: { fontSize: 11 },
                },
                canMove: false,
            },
        ],
        phases: [
            {
                id: 'phase1', offset: 170,
                header: { annotation: { content: 'Phase' } }
            },
        ],
        phaseSize: 20,
    },
    offsetX: 300, offsetY: 200,
    height: 200,
    width: 350
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "350px",
            nodes: nodes,
        }
    },
    mounted: function () {
        const diagramInstance = this.$refs.diagram.ej2Instances;
        let lane = [{ id: "lane1", height: 100, canMove: false }];
        diagramInstance.addLanes(diagramInstance.nodes[0], lane, 1);
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Resize helper

The special resize helper will be used to resize the lanes.
The resize cursor will be available on the left and bottom direction alone.
Once the lane is resized, the swimlane will be resized automatically.

Children interaction in lanes

You can resize the child node within swimlanes.
You can drag the child nodes within lane.
Interchange the child nodes from one lane to another lane.
Drag and drop the child nodes from lane to diagram.
Drag and drop the child nodes from diagram to lane.
Based on the child node interactions,the lane size should be updated.
The following image illustrates children interaction in lane.

Lane header editing

Diagram provides the support to edit Lane headers at runtime. We achieve the header editing by double click event. Double clicking the header label will enables the editing of that.

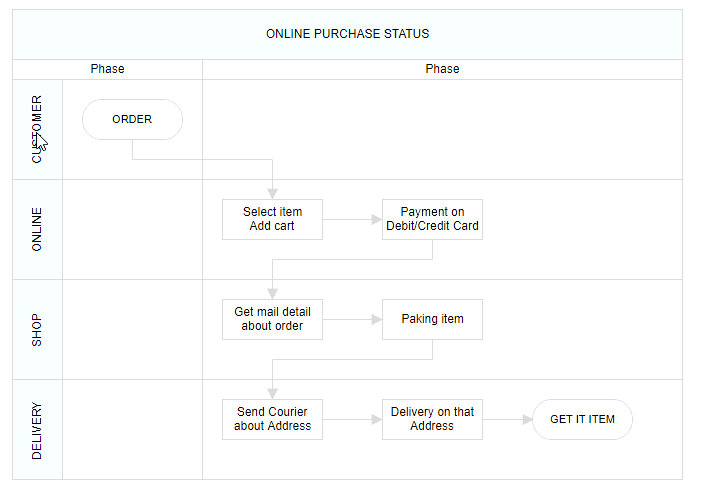

The following image illustrates how to edit the lane header.
Lane Header Editing

Search docs

Ask Syncfusion AI Assistant
