Annotation Interactions in Vue Diagram component

Vue Diagram allows annotation to be interacted by selecting, dragging, rotating, and resizing. Annotation interaction is disabled, by default. You can enable annotation interaction with the constraints property of annotation. You can also curtail the services of interaction by enabling either selecting, dragging, rotating, or resizing individually with the respective constraints property of annotation. The following code illustrates how to enable interactive mode.

<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation Text',
        //Sets the constraints as Interaction
        constraints: AnnotationConstraints.Interaction
    }]
}];

const width = "750px";
const height = "600px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation Text',
        //Sets the constraints as Interaction
        constraints: AnnotationConstraints.Interaction
    }]
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "600px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Constraints

The constraints property of annotation allows you to enable/disable certain annotation behaviors.

Annotation rotation

The rotationReference property of an annotation allows you to control whether the text should rotate relative to its parent node or the Page. The following code examples illustrate how to configure rotationReference for an annotation.

<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the Annotation for the Node
    annotations: [{
        // Sets the text to be displayed
        content: 'Annotation',
        // Provide Select and Rotate Constraiants to Annotation
        constraints: AnnotationConstraints.Select | AnnotationConstraints.Rotate,
        //To disable rotation of Annotation
        rotationReference: 'Page'
    }]
}];

const width = "750px";
const height = "600px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>

import { DiagramComponent, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the Annotation for the Node
    annotations: [{
        // Sets the text to be displayed
        content: 'Annotation',
        // Provide Select and Rotate Constraiants to Annotation
        constraints: AnnotationConstraints.Select | AnnotationConstraints.Rotate,
        //to disable rotation of Annotation
        rotationReference: 'Page'

    }]
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "600px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Value Description Image

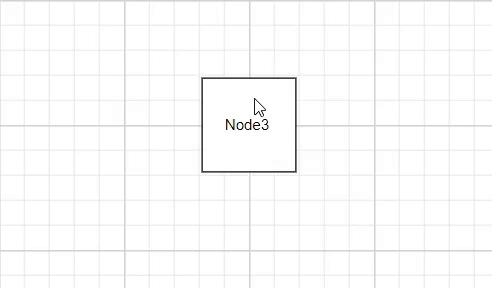

Page When this option is set, the annotation remains fixed in its original orientation even if its parent node is rotated. No_Rotation

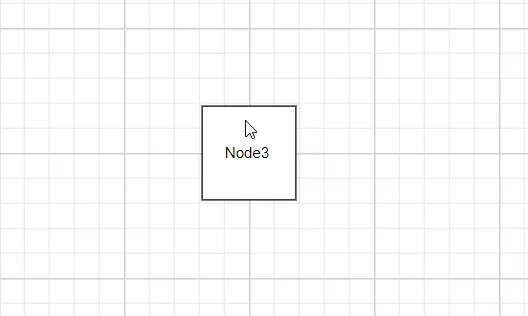

Parent In this case, the annotation rotates along with its parent node. Rotation

Read-only annotations

Diagram allows to create read-only annotations. You have to set the read-only constraints to the annotation’s constraints property. The following code illustrates how to enable read-only mode.

<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation Text',
        //Sets the constraints as Read only
        constraints: AnnotationConstraints.ReadOnly
    }]
}];

const width = "750px";
const height = "600px";
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation Text',
        //Sets the constraints as Read only
        constraints: AnnotationConstraints.ReadOnly
    }]
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "600px",
            nodes: nodes,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Edit

Diagram provides support to edit an annotation at runtime, either programmatically or interactively. By default, annotation is in view mode. But it can be brought to edit mode in two ways;

Programmatically

By using startTextEdit method, edit the text through programmatically.

<template>
  <div id="app">
      <ejs-button ref="startTextEdit" id="startTextEdit" >Start Text Edit</ejs-button>
      <ejs-diagram ref="diagram" id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
  </div>
</template>
<script setup>
import { onMounted, ref } from "vue";
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';
import { ButtonComponent as EjsButton } from '@syncfusion/ej2-vue-buttons';

const nodes = [{
  // Position of the node
  offsetX: 250,
  offsetY: 250,
  // Size of the node
  width: 100,
  height: 100,
  // Sets the annotation for the node
  annotations: [{
      content: 'Annotation',
  }]
}];

const diagram = ref(null);
const startTextEdit = ref(null);
const width = "750px";
const height = "500px";

onMounted(function () {
  const diagramInstance = diagram.value.ej2Instances;
  const startTextEditInstance = startTextEdit.value.ej2Instances;
  startTextEditInstance.element.onclick = () => {
      diagramInstance.startTextEdit(diagramInstance.nodes[0]);
      diagramInstance.dataBind();
  }
})

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-button ref="startTextEdit" id="startTextEdit" >Start Text Edit</ejs-button>
        <ejs-diagram ref="diagram" id="diagram" :width='width' :height='height' :nodes='nodes'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';
import { ButtonComponent } from '@syncfusion/ej2-vue-buttons';

let nodes = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation',
    }]
}];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent,
        'ejs-button': ButtonComponent,
    },
    data() {
        return {
            width: "100%",
            height: "500px",
            nodes: nodes
        }
    },
    mounted: function () {
      const diagramInstance = this.$refs.diagram.ej2Instances;
      const startTextEdit = this.$refs.startTextEdit.ej2Instances;
      startTextEdit.element.onclick = () => {
        diagramInstance.startTextEdit(diagramInstance.nodes[0]);
        diagramInstance.dataBind();
      }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Interactively

1. By double-clicking the annotation.
2. By selecting the item and pressing the F2 key.

Double-clicking any annotation will enables editing mode. When the focus of editor is lost, the annotation for the node is updated. When you double-click on the node/connector/diagram model, the doubleClick event gets triggered.

Drag Limit

  • The diagram control now supports defining the dragLimit to the label while dragging from the connector and also update the position to the nearest segment offset.

  • You can set the value to dragLimit left, right, top, and bottom properties which allow the dragging of connector labels to a certain limit based on the user defined values.

  • By default, drag limit will be disabled for the connector. It can be enabled by setting connector constraints as drag.

  • The following code illustrates how to set a dragLimit for connector annotations.

<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :connectors='connectors'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

let connectors = [
    {
        id: 'connector2',
        type: 'Orthogonal',
        sourcePoint: { x: 200, y: 200 },
        targetPoint: { x: 300, y: 300 },
        annotations: [
            {
                content: 'connector1', offset: 0.5,
                //Enables drag constraints for a connector.
                constraints: AnnotationConstraints.Interaction | AnnotationConstraints.Drag,
                //Set drag limit for a connector annotation.
                dragLimit: { left: 20, right: 20, top: 20, bottom: 20 }
            }
        ],
    }
];

const width = "750px";
const height = "600px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :connectors='connectors'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent, AnnotationConstraints } from '@syncfusion/ej2-vue-diagrams';

let connectors = [
    {
        id: 'connector2',
        type: 'Orthogonal',
        sourcePoint: { x: 200, y: 200 },
        targetPoint: { x: 300, y: 300 },
        annotations: [
            {
                content: 'connector1', offset: 0.5,
                //Enables drag constraints for a connector.
                constraints: AnnotationConstraints.Interaction | AnnotationConstraints.Drag,
                //Set drag limit for a connector annotation.
                dragLimit: { left: 20, right: 20, top: 20, bottom: 20 }
            }
        ],
    }
];

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
    data() {
        return {
            width: "100%",
            height: "600px",
            connectors: connectors,
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>

Multiple annotations

You can add any number of annotations to a node or connector. The following code illustrates how to add multiple annotations to a node and connector.

<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes' :connectors='connectors'></ejs-diagram>
    </div>
</template>
<script setup>
import { DiagramComponent as EjsDiagram } from '@syncfusion/ej2-vue-diagrams';

const nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 450,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the multiple annotation for the node
    annotations: [{
        content: 'Left',
        offset: {
            x: 0.12,
            y: 0.1
        }
    },
    {
        content: 'Center',
        offset: {
            x: 0.5,
            y: 0.5
        }
    },
    {
        content: 'Right',
        offset: {
            x: 0.82,
            y: 0.9
        }
    }
    ]
}];

const connectors = [{
  id: 'connector',
  type: 'Orthogonal',
  sourcePoint: { x: 200, y: 200 },
  targetPoint: { x: 300, y: 300 },
  // Sets the multiple annotation for the node
  annotations: [
    {
      content: 'Top',
      offset: 0.2,
    },
    {
      content: 'Center',
      offset: 0.6,
    },
    {
      content: 'Bottom',
      offset: 0.8,
    },
  ],
}]

const width = "750px";
const height = "600px";

</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
    <div id="app">
        <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes' :connectors='connectors'></ejs-diagram>
    </div>
</template>
<script>
import { DiagramComponent } from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    id: 'node1',
    // Position of the node
    offsetX: 450,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the multiple annotation for the node
    annotations: [{
        content: 'Left',
        offset: {
            x: 0.12,
            y: 0.1
        }
    },
    {
        content: 'Center',
        offset: {
            x: 0.5,
            y: 0.5
        }
    },
    {
        content: 'Right',
        offset: {
            x: 0.82,
            y: 0.9
        }
    }
    ]
}];

let connectors = [{
  id: 'connector',
  type: 'Orthogonal',
  sourcePoint: { x: 200, y: 200 },
  targetPoint: { x: 300, y: 300 },
  // Sets the multiple annotation for the node
  annotations: [
    {
      content: 'Top',
      offset: 0.2,
    },
    {
      content: 'Center',
      offset: 0.6,
    },
    {
      content: 'Bottom',
      offset: 0.8,
    },
  ],
}]

export default {
    name: "App",
    components: {
        "ejs-diagram": DiagramComponent
    },
        data() {
        return {
            width: "100%",
            height: "600px",
            nodes: nodes,
            connectors: connectors
        }
    }
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
