Bezier Connector Settings

How to edit bezier segments based on bezier connector settings

The intermediate point of two adjacent bezier segments can be edited interactively based on the segmentEditOrientation property of bezierSettings.

SegmentEditOrientation value Description Output

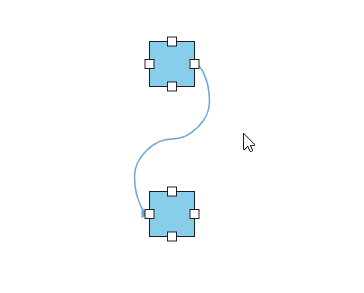

Bidirectional It allows the intermediate points to be dragged in either vertical or horizontal directions. Bidirectional

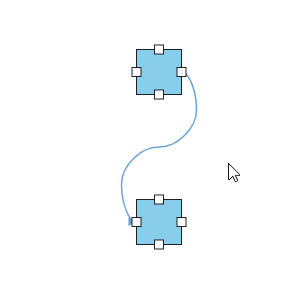

Freeform It allows the intermediate points to be dragged in any direction. Freeform

The following code illustrates how to interact with Bezier efficiently by using the smoothness and segmentEditOrientation properties of the bezierSettings.

<template>
  <div id="app">
    <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes' :connectors='connectors'
      :getNodeDefaults='getNodeDefaults'>
    </ejs-diagram>
  </div>
</template>
<script setup>
import { provide } from "vue";
import { DiagramComponent as EjsDiagram, ConnectorEditing, ConnectorConstraints ,BezierSmoothness,PortVisibility} from '@syncfusion/ej2-vue-diagrams';

let nodes = [{
    id: 'Start',
    offsetX: 250,
    offsetY: 150,
    annotations: [{ content: 'Start' }],
    ports: [{
    id: 'StartPort',
    visibility: PortVisibility.Visible,
    shape: 'Circle',
    offset: { x: 1, y: 0.5 },
    style: { strokeColor: '#366F8C', fill: '#366F8C' }
    }]},
    {
    id: 'End',
    offsetX: 250,
    offsetY: 350,
    annotations: [{ content: 'End' }],
    ports: [{
    id: 'EndPort',
    visibility: PortVisibility.Visible,
    shape: 'Circle',
    offset: { x: 0, y: 0.5 },
    style: { strokeColor: '#366F8C', fill: '#366F8C' }
    }]
}];

let connectors = [{
    id: "connector1",
    targetDecorator: { shape: 'None' },
    // ID of the source and target nodes
    sourceID: 'Start',
    sourcePortID: 'StartPort',
    targetID: 'End',
    targetPortID: 'EndPort',
    type: 'Bezier',
    // Configuring settings for bezier interactions
    bezierSettings: {
    smoothness: BezierSmoothness.SymmetricAngle,
    segmentEditOrientation: 'FreeForm',
    },constraints :
    ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb
}];

const width = "100%";
const height = "600px";
const getNodeDefaults = (node) => {
  node.height = 100;
  node.width = 100;
  node.shape = { type: 'Basic', shape: 'Rectangle' }
  node.style.fill = '#6BA5D7';
  node.style.strokeColor = 'white';
  return node;
}
provide('diagram', [ConnectorEditing]);
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
<template>
<div id="app">
  <ejs-diagram id="diagram" :width='width' :height='height' :nodes='nodes' :connectors='connectors'
    :getNodeDefaults='getNodeDefaults'></ejs-diagram>
</div>
</template>
<script>

import { DiagramComponent, Diagram, ConnectorEditing, ConnectorConstraints,PortVisibility ,BezierSmoothness } from '@syncfusion/ej2-vue-diagrams';
Diagram.Inject(ConnectorEditing);

let nodes = [{
id: 'Start',
offsetX: 250,
offsetY: 150,
annotations: [{ content: 'Start' }],
ports: [{
  id: 'StartPort',
  visibility: PortVisibility.Visible,
  shape: 'Circle',
  offset: { x: 1, y: 0.5 },
  style: { strokeColor: '#366F8C', fill: '#366F8C' }
}]},
{
id: 'End',
offsetX: 250,
offsetY: 350,
annotations: [{ content: 'End' }],
ports: [{
  id: 'EndPort',
  visibility: PortVisibility.Visible,
  shape: 'Circle',
  offset: { x: 0, y: 0.5 },
  style: { strokeColor: '#366F8C', fill: '#366F8C' }
}]
}];
let connectors = [{
id: "connector1",
targetDecorator: { shape: 'None' },
// ID of the source and target nodes
sourceID: 'Start',
sourcePortID: 'StartPort',
targetID: 'End',
targetPortID: 'EndPort',
type: 'Bezier',
// Configuring settings for bezier interactions
bezierSettings: {
  smoothness: BezierSmoothness.SymmetricAngle,
  segmentEditOrientation: 'FreeForm',
},
constraints : ConnectorConstraints.Default | ConnectorConstraints.DragSegmentThumb
}];

export default {
name: 'App',
components: {
  'ejs-diagram': DiagramComponent
},
data() {
  return {
    width: "100%",
    height: "600px",
    nodes: nodes,
    connectors: connectors,
    getNodeDefaults: (node) => {
      node.height = 100;
      node.width = 100;
      node.shape = { type: 'Basic', shape: 'Rectangle' }
      node.style.fill = '#6BA5D7';
      node.style.strokeColor = 'white';
      return node;
    },
  }
}
}
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>
