Symmetric layout in Vue Diagram control
The symmetric layout has been formed using nodes position by closer together or pushing them further apart. This is repeated iteratively until the system comes to an equilibrium state.
Symmetric layout
The layout’s springLength defined as how long edges should be, ideally. This will be the resting length for the springs. Edge attraction and vertex repulsion forces to be defined by using layout’s springFactor, the more sibling nodes repel each other. The relative positions do not change any more from one iteration to the next. The number of iterations can be specified by using layout’s maxIteration.

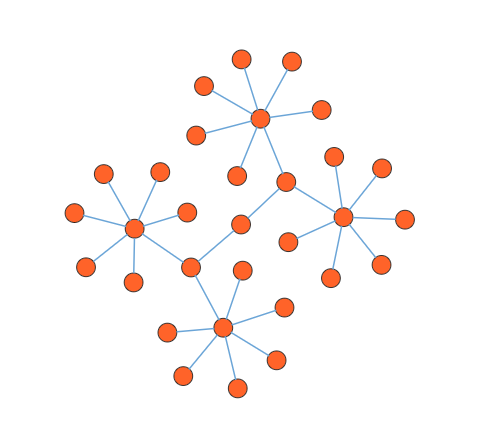

The following code illustrates how to arrange the nodes in a radial tree structure.
<template>
<div id="app">
<ejs-diagram id="diagram" :width='width' :height='height' :dataSourceSettings='dataSourceSettings'
:snapSettings="snapSettings" :getNodeDefaults='getNodeDefaults' :getConnectorDefaults='getConnectorDefaults'
:layout='layout'></ejs-diagram>
</div>
</template>
<script setup>
import { provide } from "vue";
import { DiagramComponent as EjsDiagram, SymmetricLayout, DataBinding, SnapConstraints } from '@syncfusion/ej2-vue-diagrams';
import { DataManager, Query } from "@syncfusion/ej2-data";
//Initialize data
let data = [
{ Id: 'parent1' },
{ Id: 'parent2', Source: 'parent1' },
{ Id: 'parent3', Source: 'parent1' },
{ Id: 1, Source: 'parent2' },
{ Id: 2, Source: 'parent2' },
{ Id: 3, Source: 'parent3' },
{ Id: 4, Source: 'parent3' },
{ Id: 5, Source: 1 },
{ Id: 6, Source: 1 },
{ Id: 7, Source: 1 },
{ Id: 8, Source: 1 },
{ Id: 9, Source: 1 },
{ Id: 10, Source: 1 },
{ Id: 11, Source: 2 },
{ Id: 12, Source: 2 },
{ Id: 13, Source: 2 },
{ Id: 14, Source: 2 },
{ Id: 15, Source: 2 },
{ Id: 16, Source: 2 },
{ Id: 17, Source: 3 },
{ Id: 18, Source: 3 },
{ Id: 19, Source: 3 },
{ Id: 20, Source: 3 },
{ Id: 21, Source: 3 },
{ Id: 22, Source: 3 },
{ Id: 23, Source: 4 },
{ Id: 24, Source: 4 },
{ Id: 25, Source: 4 },
{ Id: 26, Source: 4 },
{ Id: 27, Source: 4 },
{ Id: 28, Source: 4 },
];
let items = new DataManager(data, new Query().take(7));
const width = "1000px";
const height = "590px";
const snapSettings = { constraints: SnapConstraints.None };
//Configures data source for Diagram
const dataSourceSettings = {
id: 'Id',
parentId: 'Source',
dataSource: items,
}
//Uses layout to auto-arrange nodes on the Diagram page
const layout = {
//Sets layout type
type: 'SymmetricalLayout',
springLength: 100,
springFactor: 0.8,
maxIteration: 500,
margin: { left: 20, top: 20 },
}
//Sets the default properties for nodes and connectors
const getNodeDefaults = (node) => {
node.height = 25; node.width = 25;
node.style = { fill: 'transparent', strokeWidth: 2 };
node.shape = { type: 'Basic', shape: 'Ellipse' };
node.style = { fill: '#ff6329' };
return node;
}
const getConnectorDefaults = (connector) => {
connector.type = 'Straight';
connector.targetDecorator.shape = 'None';
return connector;
}
provide('diagram', [SymmetricLayout, DataBinding]);
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style><!-- Template for Symmetrical Layout -->
<template>
<div id="app">
<!-- Diagram component with properties -->
<ejs-diagram id="diagram" :width="width" :height="height" :snapSettings="snapSettings" :layout="layout"
:getNodeDefaults="getNodeDefaults" :getConnectorDefaults="getConnectorDefaults"
:dataSourceSettings="dataSourceSettings"></ejs-diagram>
</div>
</template>
<script>
// Import necessary components and modules
import { DiagramComponent, SnapConstraints, DataBinding, SymmetricLayout, } from '@syncfusion/ej2-vue-diagrams';
import { DataManager, Query } from '@syncfusion/ej2-data';
let data = [
{ Id: 'parent1' },
{ Id: 'parent2', Source: 'parent1' },
{ Id: 'parent3', Source: 'parent1' },
{ Id: 1, Source: 'parent2' },
{ Id: 2, Source: 'parent2' },
{ Id: 3, Source: 'parent3' },
{ Id: 4, Source: 'parent3' },
{ Id: 5, Source: 1 },
{ Id: 6, Source: 1 },
{ Id: 7, Source: 1 },
{ Id: 8, Source: 1 },
{ Id: 9, Source: 1 },
{ Id: 10, Source: 1 },
{ Id: 11, Source: 2 },
{ Id: 12, Source: 2 },
{ Id: 13, Source: 2 },
{ Id: 14, Source: 2 },
{ Id: 15, Source: 2 },
{ Id: 16, Source: 2 },
{ Id: 17, Source: 3 },
{ Id: 18, Source: 3 },
{ Id: 19, Source: 3 },
{ Id: 20, Source: 3 },
{ Id: 21, Source: 3 },
{ Id: 22, Source: 3 },
{ Id: 23, Source: 4 },
{ Id: 24, Source: 4 },
{ Id: 25, Source: 4 },
{ Id: 26, Source: 4 },
{ Id: 27, Source: 4 },
{ Id: 28, Source: 4 },
];
let items = new DataManager(data, new Query().take(7));
// Export the default object for Vue component
export default {
name: "App",
components: {
"ejs-diagram": DiagramComponent
},
data() {
return {
// Diagram properties and settings
width: "1000px",
height: '550px',
layout: {
//Sets layout type
type: 'SymmetricalLayout',
springLength: 100,
springFactor: 0.8,
maxIteration: 500,
margin: { left: 20, top: 20 },
},
//Sets the parent and child relationship of DataSource.
dataSourceSettings: {
id: 'Id',
parentId: 'Source',
dataSource: items,
},
//Sets the constraints of the SnapSettings
snapSettings: { constraints: SnapConstraints.None },
//Sets the default values of Node
getNodeDefaults: (node) => {
node.height = 25; node.width = 25;
node.style = { fill: 'transparent', strokeWidth: 2 };
node.shape = { type: 'Basic', shape: 'Ellipse' };
node.style = { fill: '#ff6329' };
return node;
},
//Sets the default values of connector
getConnectorDefaults: (connector) => {
connector.type = 'Straight';
connector.targetDecorator.shape = 'None';
return connector;
},
};
},
provide: {
diagram: [DataBinding, SymmetricLayout],
}
};
</script>
<style>
@import "../node_modules/@syncfusion/ej2-vue-diagrams/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-base/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-popups/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-splitbuttons/styles/tailwind3.css";
@import "../node_modules/@syncfusion/ej2-navigations/styles/tailwind3.css";
</style>NOTE
If you want to use symmetric layout in diagram, you need to inject SymmetricLayout in the diagram.
