UML Sequence Diagram Model in TypeScript Diagram Control
18 Nov 20189 minutes to read
A UML sequence diagram is an interaction diagram that demonstrates how objects interact with each other and the order of these interactions. The Syncfusion® diagram control provides comprehensive support for creating and visualizing UML sequence diagrams through the UmlSequenceDiagramModel. To enable this functionality, assign the UmlSequenceDiagramModel to the model property of the diagram control.
UML Sequence Diagram Elements
A sequence diagram includes several key elements, such as participants, messages, activation boxes, and fragments. The sections below demonstrate how to define and configure these components using the Diagram control.
Participants
UmlSequenceParticipantModel represents an entity that interacts with other entities in a sequence diagram. Participants appear at the top of the diagram, with lifelines extending vertically downward.
UmlSequenceParticipantModel Properties
| Property | Type | Description |
|---|---|---|
| id | string | number | A unique identifier for the participant. |
| content | string | The display text of the participant. |
| showDestructionMarker | boolean | Indicates whether a destruction marker (X) is shown at the end of the participant lifeline. |
| activationBoxes | UmlSequenceActivationBoxModel[] | A collection of activation boxes associated with the participant. |
| stereotype | UmlSequenceParticipantStereotype | The visual stereotype used to render the participant header, such as Actor, Boundary, Control, Entity, or Database. |
Participant Stereotypes
The UmlSequenceParticipantStereotype enum defines the visual style of a participant. A stereotype helps show the role of a participant in the interaction.
| Stereotype | Description | Shape |
|---|---|---|
| Default | Standard object participant displayed as a labeled rectangle. |  |
| Actor | External person or system that interacts with the process. |  |

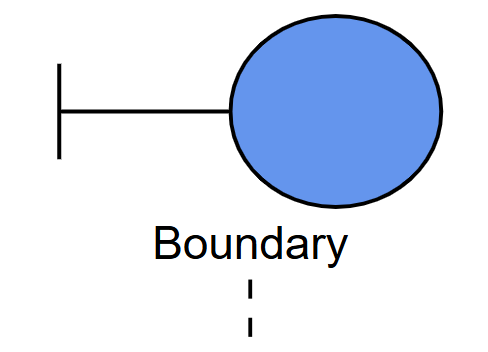

| Boundary | Interface or entry point, such as a UI, API gateway, or external system. |  |

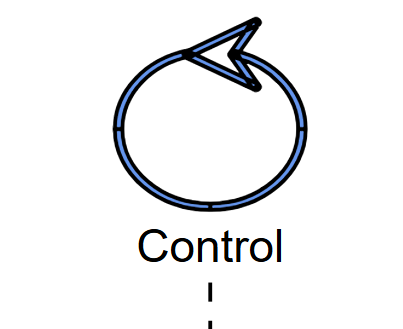

| Control | Object that manages the flow, such as a controller or coordinator. |  |

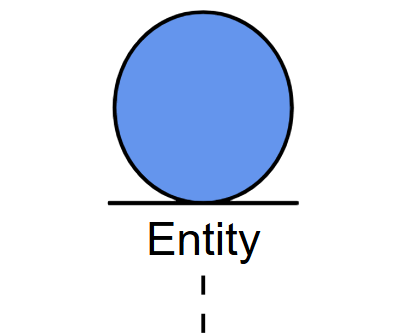

| Entity | Object that represents data, domain objects, or stored information. |  |

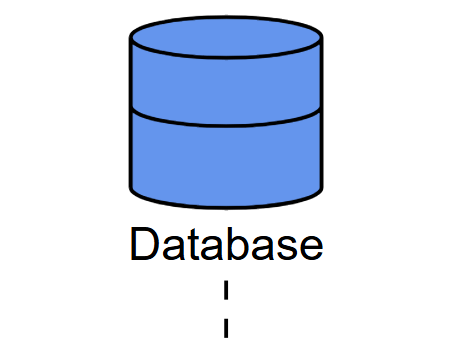

| Database | Database or persistent storage system, displayed using a cylindrical shape. |  |
Messages
UmlSequenceMessageModel represents communication between participants and are displayed as arrows connecting lifelines.
Types of Messages
| Message Type | Description | Example |
|---|---|---|
| Synchronous | The sender waits for a response |  |
| Asynchronous | The sender continues without waiting |  |
| Reply | A response to a previous message |  |
| Create | Creates a new participant |  |

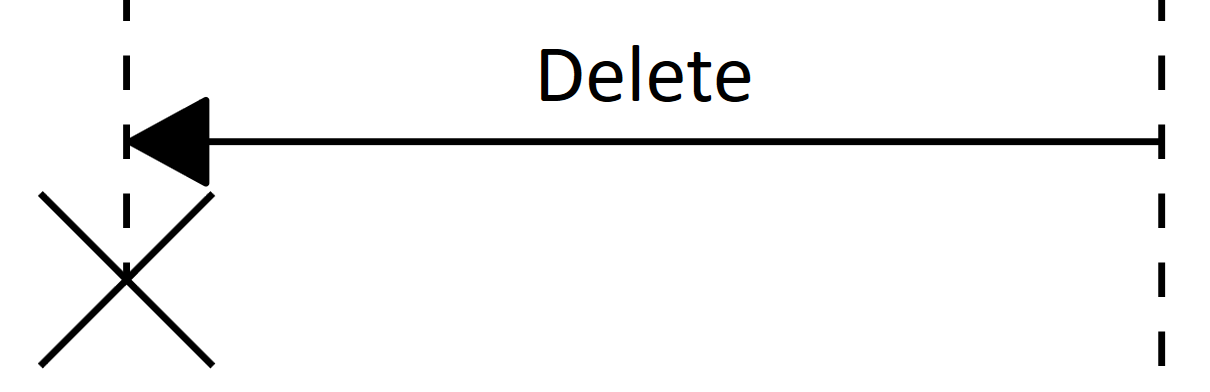

| Delete | Terminates a participant |  |
| Self | A message from a participant to itself |  |
UmlSequenceMessageModel Properties
| Property | Type | Description |
|---|---|---|
| id | string | number | A unique identifier for the message |
| content | string | The display text for the message |
| fromParticipantID | string | number | ID of the participant sending the message |
| toParticipantID | string | number | ID of the participant receiving the message |
| type | UmlSequenceMessageType | Type of the message (Synchronous, Asynchronous, Reply, Create, Delete, Self) |
The following code example illustrates how to create messages:
Activation Boxes
UmlSequenceActivationBoxModel represents periods when a participant is active and processing a message. They appear as thin rectangles on participant lifelines.
UmlSequenceActivationBoxModel Properties
| Property | Type | Description |
|---|---|---|
| id | string | number | A unique identifier for the activation box |
| startMessageID | string | number | ID of the message that initiates the activation |
| endMessageID | string | number | ID of the message that terminates the activation |
The following code example illustrates how to create activation boxes:
Fragments
UmlSequenceFragmentModel groups a set of messages based on specific conditions in a sequence diagram. They are displayed as rectangular enclosures that visually separate conditional or looping interactions.
Types of Fragments
The UmlSequenceFragmentType enum defines the following fragment types:
| Fragment Type | Description | Example |
|---|---|---|
| Optional | Represents a sequence that is executed only if a specified condition is met; otherwise, it is skipped. |  |
| Alternative | Represents multiple conditional paths (if-else structure), where only one path executes based on the condition. |  |
| Loop | Represents a repeating sequence of interactions that continues based on a loop condition. |  |
UmlSequenceFragmentModel Properties
| Property | Type | Description |
|---|---|---|
| id | string | number | A unique identifier for the fragment |
| type | UmlSequenceFragmentType | Type of the fragment (Optional, Loop, Alternative) |
| conditions | UmlSequenceFragmentConditionModel[] | Collection of conditions for the fragment |
UmlSequenceFragmentConditionModel Properties
| Property | Type | Description |
|---|---|---|
| content | string | Text describing the condition or parameter |
| messageIds | (string | number)[] | Collection of message IDs included in this condition section |
| fragmentIds | string[] | Collection of nested fragments ids (for complex structures) |
The following code example illustrates how to create fragments:
Customizing Participant Spacing in Sequence Diagram
The spaceBetweenParticipants property in UmlSequenceDiagramModel controls the horizontal spacing between participants. The default value is 100, and it can be adjusted based on your layout requirements.
// Define the UML Sequence Diagram model
const model = {
// Define the space between participants
spaceBetweenParticipants: 300,
participants: participants, // collection of participants in the sequence diagram
messages: messages, // collection of messages exchanged between participants
fragments: fragments // collection of sequence diagram fragments (opt, alt, loop)
}
