Node Annotations in React Diagram Component

The React Diagram component allows precise customization of node annotations (also called labels) for positioning and appearance. Node annotations can be aligned relative to node boundaries using four key positioning properties that work together to provide comprehensive control over annotation placement.

Annotation positioning properties

Node annotations support the following positioning properties through the ShapeAnnotation class:

  • Offset - Controls fractional positioning within the node bounds.
  • HorizontalAlignment - Sets horizontal alignment at the calculated position.
  • VerticalAlignment - Sets vertical alignment at the calculated position.
  • Margin - Adds spacing around the annotation.

These properties can be combined to achieve precise annotation positioning for various design requirements.

Set annotation offset and size

The offset property positions annotations using fractional values between 0 and 1. The offset represents the relative position within the node boundaries, where (0,0) is the top-left corner and (1,1) is the bottom-right corner. The default offset is (0.5, 0.5), which centers the annotation.

The annotation size is automatically calculated based on its content. To specify custom dimensions, use the width and height properties.

The following example demonstrates how to configure offset, width, and height for node annotations:

import * as React from "react";
import * as ReactDOM from "react-dom";
import { DiagramComponent } from "@syncfusion/ej2-react-diagrams";
// A node is created and stored in nodes array.
let node = [{
        // Position of the node
        offsetX: 250,
        offsetY: 250,
        // Size of the node
        width: 100,
        height: 100,
        // Sets the annotation for the node
        annotations: [{
                // Sets the content for the annotation
                content: 'Annotation long annotation content',
                //Sets the offset for the content
                offset: {
                    x: 0,
                    y: 1
                },
                height: 100,
                width: 100
            }]
    }];
// initialize Diagram component
function App() {
    return (<DiagramComponent id="container" width={'100%'} height={'600px'} nodes={node}/>);
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);
import * as React from "react";
import * as ReactDOM from "react-dom";
import {
    DiagramComponent,
    NodeModel
} from "@syncfusion/ej2-react-diagrams";
// A node is created and stored in nodes array.
let node: NodeModel[] = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        // Sets the content for the annotation
        content: 'Annotation long annotation content',
        //Sets the offset for the content
        offset: {
            x: 0,
            y: 1
        },
        height: 100,
        width: 100
    }]
}];
// initialize Diagram component
function App() {
  return (
    <DiagramComponent
      id="container"
      width={'100%'}
      height={'600px'}
      nodes={node}
    />
  );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);

Update annotation offset at runtime

Annotation offset values can be modified dynamically during application execution. To update the offset, access the target annotation and modify its offset properties, then call the dataBind() method to apply changes immediately.

import * as React from "react";
import * as ReactDOM from "react-dom";
import { DiagramComponent } from "@syncfusion/ej2-react-diagrams";
// A node is created and stored in nodes array.
let diagramInstance;
let node = [{
        // Position of the node
        offsetX: 250,
        offsetY: 250,
        // Size of the node
        width: 100,
        height: 100,
        // Sets the annotation for the node
        annotations: [{
            // Sets the content for the annotation
            content: 'Annotation',
        }]
    }];
// initialize Diagram component
function App() {
    const updateOffset = () => {
        //Method to update the annotation at run time
        diagramInstance.nodes[0].annotations[0].offset = {x:0, y:0.5};
        diagramInstance.dataBind();
    };
    return (
    <div>
        <button id="updateOffset" onClick={updateOffset}>Update Offset</button>
        <DiagramComponent id="container" ref={(diagram) => (diagramInstance = diagram)} width={'100%'} height={'600px'} nodes={node}/>
    </div>
    );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);
import * as React from "react";
import * as ReactDOM from "react-dom";
import {
    DiagramComponent,
    NodeModel
} from "@syncfusion/ej2-react-diagrams";
let diagramInstance: DiagramComponent;
// A node is created and stored in nodes array.
let node: NodeModel[] = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
      // Sets the content for the annotation
      content: 'Annotation',
    }]
}];
// initialize Diagram component
function App() {
  const updateOffset = () => {
    //Method to update the annotation at run time
    diagramInstance.nodes[0].annotations[0].offset = {x:0, y:0.5};
    diagramInstance.dataBind();
  };
  return (
  <div>
    <button id="updateOffset" onClick={updateOffset}>Update Offset</button>
    <DiagramComponent id="container" ref={(diagram) => (diagramInstance = diagram)} width={'100%'} height={'600px'} nodes={node}/>
  </div>
  );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);

NOTE

Call dataBind() after property changes to reflect updates instantly.

Annotation offset positions

The following table demonstrates annotation positioning with different offset values:

offset image
  Top Left {x:0,y:0} TopLeft
  Middle left {x:0,y:0.5} MiddelLeft
  Bootom left {x:0,y:1} BottomLeft
  Middle Top {x:0.5,y:0} MiddleTop
  Center {x:0.5,y:0.5} Center
  Middle Bottom {x:0.5,y:1} MiddleBottom
  Top right {x:1,y:0} TopRight
  Middle right {x:1,y:0.5} MiddleRight
  Bottom right {x:1,y:1} BottomRight

Annotation alignment

After determining the annotation position using offset values, the horizontalAlignment property of annotation is used to set how the annotation is horizontally aligned at the annotation position determined from the fraction values. The verticalAlignment properties control how the annotation aligns at that calculated position.

The horizontal alignment determines the annotation’s horizontal positioning relative to the calculated point, while vertical alignment controls the vertical positioning. This two-step positioning system (offset calculation followed by alignment) provides precise control over annotation placement.

The following example shows how to configure annotation alignment properties:

import * as React from "react";
import * as ReactDOM from "react-dom";
import { DiagramComponent } from "@syncfusion/ej2-react-diagrams";
// A node is created and stored in nodes array.
let node = [{
        // Position of the node
        offsetX: 250,
        offsetY: 250,
        // Size of the node
        width: 100,
        height: 100,
        // Sets the annotation for the node
        annotations: [{
                content: 'Annotation',
                // Sets the horizontal alignment as left
                horizontalAlignment: 'Left',
                // Sets the vertical alignment as Center
                verticalAlignment: 'Center'
            }]
    }];
// initialize Diagram component
function App() {
    return (<DiagramComponent id="container" width={'100%'} height={'600px'} nodes={node}/>);
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);
import * as React from "react";
import * as ReactDOM from "react-dom";
import {
    DiagramComponent,
    NodeModel
} from "@syncfusion/ej2-react-diagrams";
// A node is created and stored in nodes array.
let node: NodeModel[] = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation',
        // Sets the horizontal alignment as left
        horizontalAlignment: 'Left',
        // Sets the vertical alignment as Center
        verticalAlignment: 'Center'
    }]
}];
// initialize Diagram component
function App() {
  return (
    <DiagramComponent
      id="container"
      width={'100%'}
      height={'600px'}
      nodes={node}
    />
  );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);

Alignment combinations

The following table shows all possible alignment combinations with offset (0,0) to demonstrate the alignment behavior:

Horizontal Alignment Vertical Alignment Output with Offset(0,0)

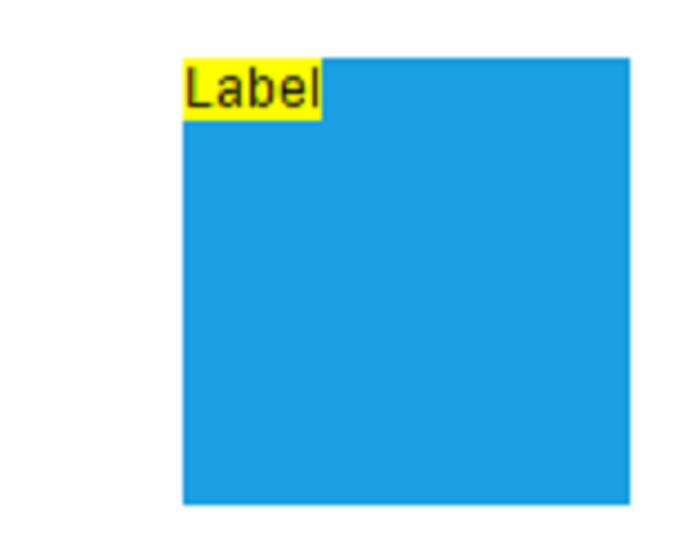

Left Top Left Top Label Alignment

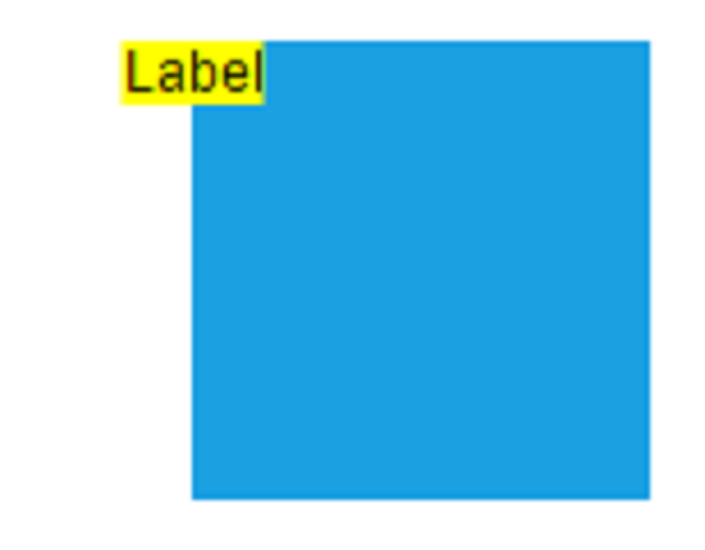

Center Top Center Top Label Alignment

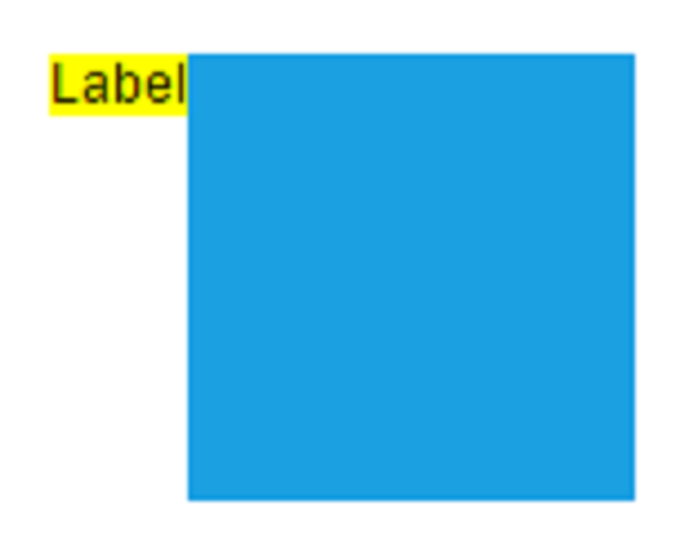

Right Top Right Top Label Alignment
Left Center Left Center Label Alignment

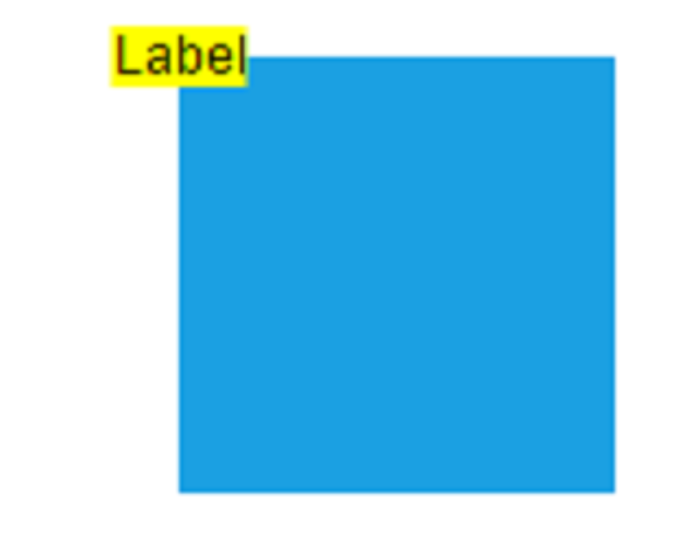

Center Center Center Center Label Alignment

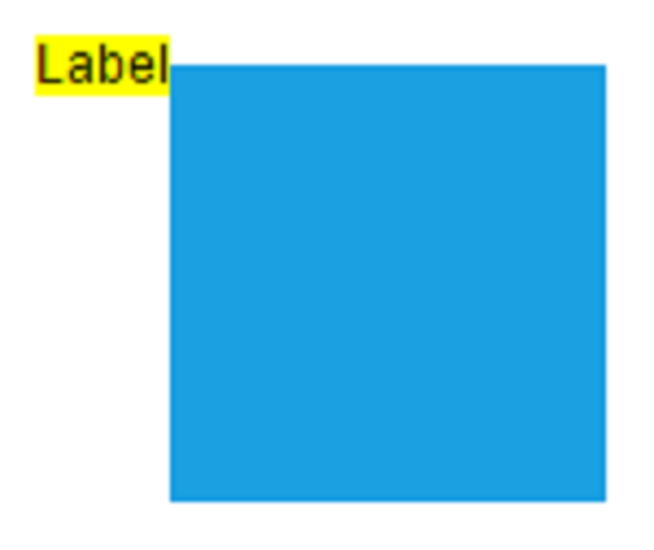

Right Center Right Center Label Alignment
Left Bottom Left Bottom Label Alignment

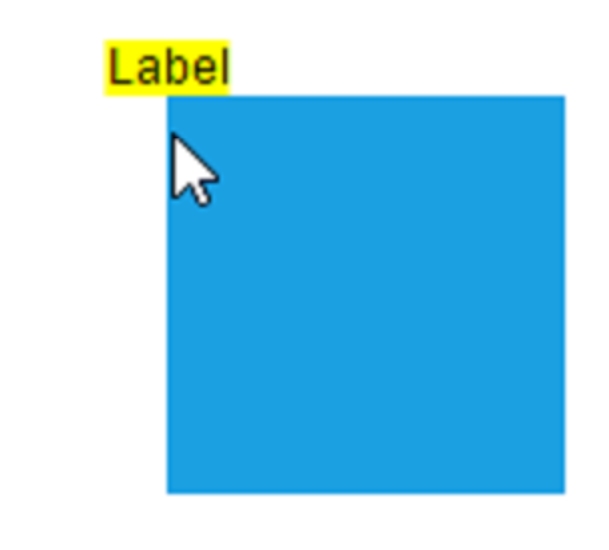

Center Bottom Center Bottom Label Alignment

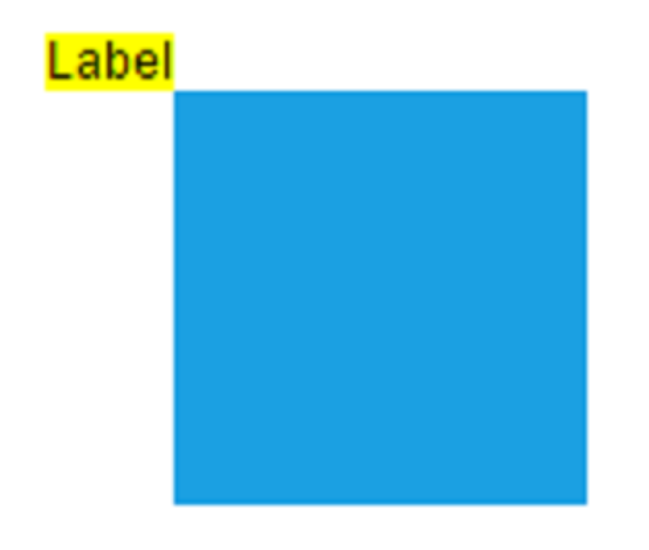

Right Bottom Right Bottom Label Alignment

Update annotation alignment at runtime

Annotation alignment properties can be modified dynamically during application execution. The following example demonstrates updating alignment properties at runtime:

import * as React from "react";
import * as ReactDOM from "react-dom";
import { DiagramComponent } from "@syncfusion/ej2-react-diagrams";
let diagramInstance;
// A node is created and stored in nodes array.
let node = [{
        // Position of the node
        offsetX: 250,
        offsetY: 250,
        // Size of the node
        width: 100,
        height: 100,
        // Sets the annotation for the node
        annotations: [{
                content: 'Annotation',
            }]
    }];
// initialize Diagram component
function App() {
    const updateAlignment = () => {
        //Method to update alignment at run time
        diagramInstance.nodes[0].annotations[0].horizontalAlignment = 'Right';
        diagramInstance.nodes[0].annotations[0].verticalAlignment = 'Bottom';
      };
      return (
      <div>
        <button id="updateAlignment" onClick={updateAlignment}>Update Alignment</button>
        <DiagramComponent id="container" ref={(diagram) => (diagramInstance = diagram)} width={'100%'} height={'600px'} nodes={node}/>
      </div>
      );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);
import * as React from "react";
import * as ReactDOM from "react-dom";
import {
    DiagramComponent,
    NodeModel
} from "@syncfusion/ej2-react-diagrams";
let diagramInstance: DiagramComponent;
// A node is created and stored in nodes array.
let node: NodeModel[] = [{
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    // Sets the annotation for the node
    annotations: [{
        content: 'Annotation',
    }]
}];
// initialize Diagram component
function App() {
  const updateAlignment = () => {
    //Method to update alignment at run time
    diagramInstance.nodes[0].annotations[0].horizontalAlignment = 'Right';
    diagramInstance.nodes[0].annotations[0].verticalAlignment = 'Bottom';
  };
  return (
    <div>
      <button id="updateAlignment" onClick={updateAlignment}>Update Alignment</button>
      <DiagramComponent id="container" ref={(diagram) => (diagramInstance = diagram)} width={'100%'} height={'600px'} nodes={node}/>
    </div>
  );
}
const root = ReactDOM.createRoot(document.getElementById('diagram'));
root.render(<App />);
