Symbol Palette customization in JavaScript Diagram control
Customize the palette properties
Palettes can be annotated with its header texts.
The title property is displayed as the header text of the palette.
The expanded property allows the palette items to be expanded or collapsed.
The height property sets the height of the symbol group / palette.
The iconCss property sets the icon to be rendered with the title.
The following example demonstrates how to customize the palette properties.
/**
* Default symbol palette sample
*/
//Initialize the basicshapes for the symbol palatte
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
height: 50,
width: 60,
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'Ellipse',
height: 50,
width: 60,
shape: {
type: 'Basic',
shape: 'Ellipse',
},
},
{
id: 'Hexagon',
height: 50,
width: 60,
shape: {
type: 'Basic',
shape: 'Hexagon',
},
},
];
return basicShapes;
}
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'basic',
// Defines the height of the palette
height: 150,
// Defines whether the palette is expanded or not
expanded: true,
symbols: getBasicShapes(),
// Defines the title of the palette
title: 'Basic Shapes',
// Defines the icon for the palette title
iconCss: 'e-ddb-icons e-basic',
},
],
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<style>
@font-face {
font-family: 'e-ddb-icons';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tShgAAAEoAAAAVmNtYXDon+lDAAACIAAAAIJnbHlmw/gRIAAAAvgAACw0aGVhZBGJTLcAAADQAAAANmhoZWEIXQQpAAAArAAAACRobXR4oAAAAAAAAYAAAACgbG9jYdYyye4AAAKkAAAAUm1heHABOAD4AAABCAAAACBuYW1ldAwInAAALywAAAMVcG9zdNAiwIsAADJEAAABuQABAAAEAAAAAFwEAAAAAAAEAAABAAAAAAAAAAAAAAAAAAAAKAABAAAAAQAAJo24vV8PPPUACwQAAAAAANc1g90AAAAA1zWD3QAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAoAOwABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnJgQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAAAAAIAAAADAAAAFAADAAEAAAAUAAQAbgAAAAQABAABAADnJv//AADnAP//AAAAAQAEAAAAAQACAAMABAAFAAYABwAIAAkACgALAAwADQAOAA8AEAARABIAEwAUABUAFgAXABgAGQAaABsAHAAdAB4AHwAgACEAIgAjACQAJQAmACcAAAAAAAABBAICAn4CxgLeAyYDeAQUBHAEoAWEBZwGkgd8B+YH/ghMCMIJaAnaClYLMAuqC7gMpg2ODmQOwg8aD9IQoBF6ElYTRhRGFIQUwBVMFhoAAAADAAAAAAPOA84ACwBnAOsAAAEjFTMVMzUzNSM1IwUVDxQrAS8VPxYfFQUVHx07AT8LFxUXNycjJz8ONS8fDx4Ban19P319PwEZAQICAwMECQwNEBESFBYWDAsMDQwNDQwNDQwMDAsXFRQTEQ8NDAkEBAMCAQEBAQEBAgMEBAkMDQ8RExQVFwsMDAwNDQwNDQwNDAsMFhYUEhEQDQwJBAMDAgIB/a8BAwMEBAYGBwgICQoKCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XfoyEgkICQcIBgYGBQQEAwMCAQEBAgMEBQUGBwgICQoKCwwMDA0ODg4PDxAPERARERESERESEBEQEBAPDw4ODQ0NDAsLCgoJCAgHBgYEBAMDAQKWP319P32cDQ0MDA0LDBYWFBIRDw4LCgQDAwICAQECAgMDBAoLDg8REhQWFgwLDQwMDQ0NDA0MDAwLFxUUExEPDQwKAwQDAgEBAQEBAQIDBAMKDA0PERMUFRcLDAwMDQwNEhERERAREA8PDw4ODg0MDAwLCgoJCAgHBgUFBAMCAgECAwMDBQUFBw0QEhMy+l76EwsLDAwNDQ4ODg8ODw8PEA8REhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAQEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIAAwAAAAADzgPOAAMAXwDjAAATITUhBRUPFCsBLxU/Fh8VBR8eOwE/CxcVFzcnIyc/Dj0BLx4PHu0BOP7IAZYBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDQ0NDAwNCwwWFhQSEQ8OCwoEAwMCAgH9rgEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XvoyEwkJCAgHBwYFBQUDAwMCAQICAwQFBQYHCAgJCgoLDAwMDQ4ODg8PDxAREBERERIREhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAlc/Hw0NDAwNCwwWFhQSEQ8OCwoEAwMCAgEBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDRIREREQERAPDw8ODg4NDAwMCwoKCQgIBwYFBQQDAgIBAgMDAwUFBQcNEBITMvpe+hMLCwwMDQ0ODg4PDg8PDxAPERIREBEQEBAPDw4ODQ0NDAsLCwkJCQcHBgYFAwQCAQEBAQIEAwUGBgcHCQkJCwsLDA0NDQ4ODw8QEBAREBESAAAAAAIAAAAAA3cD1AADAGkAADchNSETFR8dOwE/HTURIxEPDy8PAyOJAu79Ej8BAgMDBQQGBgcICAkJCgoLCwwMDQ0ODQ8ODw8PEBAQEBAQDw8PDg8NDg0NDAwLCwoKCQkICAcGBgQFAwMCAXwCAwUHCAoLDQ4OEBARERESEhERERAQDg4NCwUJCAYEAgF8K30BdxAQDxAPDw4ODg4NDA0LDAsKCgkJCAgGBwUFBAQDAgEBAgMEBAUFBwYICAkJCgoLDAsNDA0ODg4ODw8QDxAQAbb+ShQTExERDw4OCwsJBwYFAgEBAgUGBwkLCw0PBxAREhMUAcAAAAAABAAAAAAD9AO1AAMABwAvADMAAAEVITUlFSM1IREzFSE1MxEvDyEPDjchNSECvP6IAjN9/RK8AnC8AQIDBAUGBwgJCgoLDAsNDf0SDQwMDAsKCggJBwYFBAMCuwJw/ZABg7u7u3x8/si8vAE4DQ0MCwsKCgkIBwYGBAMCAQECAwQGBgcICQoKCwwMDK+8AAAAAQAAAAADdwN3AAsAAAEhFSERMxEhNSERIwHC/scBOXwBOf7HfAI+fP7HATl8ATkABAAAAAADdwN3AAMABwALADIAACUzNSMBFSM1IxUhNSMRFzMRIRE7AT8HNRE1LwcjISMPBwGDfX0BtT4+/kp9fT4BeHwFBAoLCgkHBQICBQcJCgsKBAX9kAUECgsKCQcFAsi7AbU+Pvr6/c59ATn+xwIFBwkKCwoEBQJwBQQKCwoJBwUCAgUHCQoLCgQAAAAAAgAAAAADtQP0ADcAPgAAExEfCTMhMz8JES8JKwEVMxEhETM1KwEPCDczETMRMydKAQEBBQcICgsGBwYC7gYHBgsKCAcFAQEBAQEBBQcICgsGBwZ9Pv2QPn0GBwYLCggHBQEB+X58frwCvP2OBgYGCwoJBgUCAQECBQYJCgsGBgYCcgYGBgsKCQYFAgF9/gwB9H0BAgUGCQoLBgZ2/ooBdrwAAAADAAAAAAMoA3cAIgBFAIUAAAEfDw8OKwE1EzMfDR0BDw4jNQMhPw8vDz8MLw8hAi8KCQkJCAcIBgYGBAQEAgEBAQECBAQEBgYGCAcJCAkJCpx9CQoJCAgIBwcGBQUEAwMBAQMDBAUFBgcHCAgICQoJfbwBhxQVExMRERAODQwKCQcFAwEBAQMEBAYGCAgJCQsLCwwNExAPBgYFBQQDAwIBAQECBAcICgwNDxASEhQVFRb+nQHCAQEDAwQEBgYHBwgICAkKCQoJCQkICAcHBgUFBAMCArwBOAICAwQFBQYHBwgICQkJCgkKCQgJBwgGBgYEBAMDAQG8/Y8BAwUHCQoLDg4QEBITExQVDw8ODg4NDQwLCwsJCQgIBg8PEggKCQoKCQsKCgoLFhYUFBMREA8NDAoJBgQDAAACAAAAAAP0A5YAAwBJAAABESERJxEfDjMhMz8OES8OIyEnKwEPDQN3/RJ9AQIDBAUGCAgJCQoLDAwMDQLuDQwMDAsKCQkICAYFBAMCAQECAwQFBggICQkKCwwMDA3+iX36DQwMDAsKCQkICAYFBAMCApz+SwG1ff3ODQwMDAsKCgkIBwYFBQMCAgMFBQYHCAkKCgsMDAwNAbUNDAwMCwoKCQgHBgUFAwJ9AgMFBQYHCAkKCgsMDAwAAgAAAAADdwO1ABkAIQAANxUfCSE/CTURITcjFSE1IzUjyAEBBQcICgsGBwYB9AYHBgsKCAcFAQH9kLv6Au76+okGBwYLCggHBQEBAQEBAQUHCAoLBgcGAjO7fX0/AAAAAQAAAAADdwN3ANEAABMhJz8LOwEfHR0BDx0jLw8jHx47AT8dPQEvHSMPDyeJATmKCxYXGQwNDQ0NDg0ODg8ODg4ODQ0NDA0LDAsKCwkKCAkIBwcGBQUFBAMCAgEBAgIDBAUFBQYHBwgJCAoJCwoLDAsNDA0NDQ4ODg4PGBgXFxYUFBMSEA8NDAsIB14EBAQFBgcHCAgJCQoLCwsMDA0ODQ4PDw8PEBAREBESERMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgICAgQEBQYHBwgKCQsLDAwNDg4PDxAQEBESEhISExMTExISExESEREREA8QDg8NDXECPooJEQ8NBQUFAwQCAgEBAgIEAwUFBQcGCAcJCQkKCgoLDAwMDA0NDQ4ODg8ODw4ODg4NDQ0MDQsMCwoLCQoICQgHBwYFBQUEAwICAQEDBQcJCwwODxESExUVFhcQEBAPDw8PDg4ODQwNCwwKCwkKCAgIBwYFBQQEAgICAgIEBAUGBwcICgkLCwwMDQ4ODw8QEBAREhISEhMTExMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgIBAQIEBAUHBggJCQoLCwwNcQAAAQAAAAADdwN3AAsAAAEzAyMVITUjEzM1IQGDoeS3AfSh5Lf+DAL6/gx9fQH0fQAAAwAAAAADvAO8AAsAbADWAAABIxUzFTM1MzUjNSM3Hw8dAQ8VKwEvFDUnNzU/FDsBHwUnDxIdAR8WPwcBHwI7AT8FPQEvAgE/By8WKwEPAQFZb284b284fQwKFRMSEA4NCgUEAwMCAgEBAgIDAwQFCg0OEBITFRYLDAwMDAwNDQ0MDQwMDAwLFhUTEREODAsFBAMDAgIBAQICAwMEBQsMDhERExUWCwwMDAwNDA0NDQwMDAwMpxMTEhERDxAODQ0LCwkICAYEBAICBAQGBwkJCwsNDQ4PEBEREhMTFBQUFRsaGhkYGBYVAVUEBQUGBQUFBAQCAgICBP6sEA4MCggGAwIBAgMFBgcJCQoMDA4ODxARERISFBMVFBUVFBQCpzhvbzhvWwUGDA4QEhMVFgsMDAwMDQwNDQwNDAwMDAsWFRMSEA4MCwUEAwMCAgEBAgIDAwQFCwwOEBITFRYLDAwMDA0MDQ0MDQwMDAwLFhUTEhAODAsFBAMDAgIBAQICAwMEPAYICAkLCw0NDhAPERESExMUFBQVFRQVExQSEhEREA8ODgwMCgkJBwYFAwIBAgMGCAoMDhD+rAQCAgICBAQFBQUGBQUEAVUVFhgYGRoaGxUUFBQTExIREQ8QDg0NCwsJCAgGBAQCAgQAAAAAAwAAAAADuQO8AAMAYQDLAAATITUhNx8OHQEPFSsBLxU9AT8UHwYnDxMVHxY/BwEfAjsBPwU9AS8CAT8HLxYrAQ8B7AEW/urtDBUTExAPDgsKBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDQwNDQwMDAwMCxYUExIQDgwLBAQEAgICAQECAgMEBAoLDg8REhQVFwwMDAwMDRkNDA0MCwymExMREhAQDw4ODQsLCQgIBgUDAgECBAQGBwgKCgsNDQ4PEBAREhMTExQVFRoaGhkZFxYWAVEEBQUFBgUEBQMDAgICBP6vEA4NCggGAwIBAgMFBgcICQoMDA0PDw8RERISExQUFBUVFBQCbzfLBgsODxESFBYWDAwMDAwNDQwNDA0MCwwLFhUTERAODQoFBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDA0NDQwMDAwMFhUUEhEPDQwJBAMDAgIBAQEBAgMEBD0GBwgJCwsMDg4PEBAREhIUExQVFBUVFBMTExIREQ8QDg0NDAoKCAcGBQQCAQEEBQgKDA4Q/qsEAgICAgQEBQUFBQYEBQFVFRYYGBkZGhsVFBQUExMSEREPDw8NDQsLCQkHBgUDAwIEAAAABQAAAAADvAO8AAMAIwArAC8ASgAAARUhNScPAh0BHwU7AT8FPQEvBSsBDwElESM1IRUjEQERIREDKwEPBhEzFSE1MxEvBiMRIQKn/rKeBAICAgIEBAUFBQYFBQQEAgICAgQEBQUGBQUFAsan/kSnAiz+sjenBgoKCQgGBALeAbzeAgQGCAkKC6z+RAFZ3t6fBAUFBQYFBQQEAgICAgQEBQUGBQUFBAQCAgICPP6yp6cBTgFN/uoBFv7qAgUGBwkKC/52b28BigsKCQgFBQIBTQAAAAABAAAAAAO8A7wACwAAASEVIREzESE1IREjAeT+YAGgOAGg/mA4Ahw4/mABoDgBoAAEAAAAAAO8A7wABwALABgAMwAAARUjNSMVIzUBESERIxEhETMRIxEhESMnESMRFyE/BhEvBiEPBgJvpzc4Ab391DcCmjje/ntSVTdvAtgKCgkIBgQCAgQGCAkKCvzwCwoKCAcFAwFZ3qen3gIs/rMBTf57AYX89gEW/upVArX9Lm8CBAYICQoKAxYKCgkIBgQCAQMFBwgKCgAAAAADAAAAAAO8A5EABwAyAGAAADchNQcVIREjBQc1Iw8OPxUzNQcrAQ8WFT8PFQkBRAKwOv3DOQMnsU8XFhYWFhUWFRUVFBQUExMFBgcJCgoMDA4OEBAREhITGRgWFxcXNDoODRsbGhkYGBcWFBQTEREPDgwLCQgEBQMCFBUWFhgYGRkaGhsbGxwcHQE7/sVvrDo5AgRWsVsCAgIEBAYGBggICQoLCwwUFBMTExEREQ8PDg0MCwkJCgcEAwIBWyIDBQYICQsNDQ8RERMUFRUXGBgZDRobG0cTExIQEA4NDAoJCAYFBAIBrAE7ATsAAAMAAAAAAvoDhAAiAEUAkAAAATMfDR0BDw4jNRMfDw8OKwE1AzsBPxU1Lw41Pw81Lw4jAckSERAPDgwLCgkIBgYEAwICAwQFBgcICgoLDA0ODxBjXhAPDg4MCwkJCAcGBAQDAQEBAgMEBQcHCQsKDA0ODhAQVG/tDhsaGRgWFRQTCAgHBwYGBQQEAwMCAQECBAUGCAoKDA0ODw8REhIPDg4NDAsKCQkHBgUEAwEBAgQGCAoLDhAREhQVFxga9wHIAQIDBAUFBwcICQoLCw0NDQwLCwoJCQgHBgUEBAIBAd4BTgEBAgMDBAUGBwcJCQkLCwwPDQwMCwoJCQcHBQQEAgLe/WUCBAYICQwNEAgICQkKCQoLCgsLCwwZExMSEBAPDg0MCgoIBwUEAwMFBwcICQoLDAwNDg4PDxAQChMSERAPDg0NCgoHBgUDAgAAAwAAAAAD9AN3AAMAHwBUAAABAyETJzMfDCEVIQ8HAxEnDwYRIRM/Aj0BLwgjNS8IJS8MIw8BA7a8/WS8JAgHBgYLCgoVBQ0OEAkKAXL+IAkJCAcHBwUFlhkFCgkGBQIBAxXMAwICAQIFBgkKCwYGhAEBBQcICgsGB/6LBwYGCwoKFQUNDhAJCr0GBgI+/okBd/oBAQIFBwcQAwcGBAIBfQEBAwQFBgcI/tMCCzoCBwkKCwYG/UoBmgcHBwcGBgYLCgkGBQIBgwcGCwoIBwUBAQEBAQIFBwcQAwcGBAIBAQIAAAAABgAAAAADaQO8AAMABwALAB8AIwBeAAAlMxEjAzMRIwMzESMlEQ8HIS8GNRElFSM1Jw8FFSMVMxEfDjMhMz8OETM1IzUvBiMHAlM4OG84OG84OAGFAQEDAwUEBQb+RAYFBAUDAwIBTaYWBQkHBgQD3jcBAQIDAwUEBgYGBwcICAgJAbwJCAgIBwcGBgYEBQMDAgEBN94DBAYHCQoLrAzqAb3+QwG9/kMBvW/9gQYFBAUDAwEBAQEDAwUEBQYCf284ODMCBggJCgo+N/2BCQgICAcHBgYGBAQEAwIBAQIDBAQFBQYGBwcICAgJAn83PgsKCAgGBAIBAAABAAAAAAO8A7wAxgAAAQ8MNSMVMzUjPw8fFw8XLx4HHx4zPxcvFyMPAQGKDg4cGhoZFxcVFBMQEDfegQ0OEBITFBUWGBgZGhsbGxwaGhoZGRcXFhUUFBIREA4ODAoJCAYFAgEBAgUGCAkKDA4OEBESFBQVFhcXGQwaGRsdEBAQEA8PDw8PDg4ODQ0MDAwLCwsKChIIBwcHBgUENgUGBwcICQkKCwsLDA0NDQ4PDg8QEBAREREREhISEhITHh4dHRwbGhkZFxYUFBIRDw4MCgkHBAMBAQMFBgkLDA0PERIUFBYXGRkaGxwdHR4eHh4dA60FBAsMDhARExQWGBgad984GRcXFRQSEQ8ODAoJBgUDAQECBQYHCQsMDQ8QERITFRUWFxcZGRkaGxobGRkYGBcWFRQTExEQDg4MCgkIAwUEAgEBAQIDBAQFBgYGBwgICQkKCgoMCwwMGg4ODg8PDw8OEhIREBEQDw8PDg4NDQwLCwsKCQkIBwcHBQUEAwMCAQEDBAcJCwwNDxESExUWFxkZGhscHR0eHh4eHR0cGxoZGRcWFBQSEQ8ODAoJBwQDAQMFAAAAAgAAAAADFQO8AAMAaAAANyE1IREfHjsBPx4RIxEPDiMvDgMj6gIs/dQBAQEDAwMFBQYGBggHCAkJCgoKCwsMDA0MDQ4NDg0PDg4ODg4NDQ0NDQwLDAoLCgkKCAkHBwcGBgUEBAMDAQEBOAIFBgkLDA0PEBITFBUWFhcWFhQVExERDw0MCgkHBAIBN0Q3AU0ODg4ODQ0NDQwMDAsLCwoJCQkICAcHBgYFBAQDAgIBAQICAwQEBQYGBwcICAkJCQoLCwsMDAwNDQ0NDg4ODgH0/gEWFhUUExERDw0MCwgHBAMDBAcICwwNDxERExQVFhYB/wAAAAEAAAAAArEDvAADAAAlMwEjAU86ASg6RAN4AAADAAAAAAOQA5AACwBMANMAAAEjFTMVMzUzNSM1IzcfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBnGRkZGRkZL8HBw0LCQcFAwEBAwUHCQsNDhERERMUFBUWFRUVExMSERAPDAsJBwUDAQEDBQcJCwwPEBESExMVFRUWFRUTExER/vUPDw8NDgwMDAsLCgkJCAcHBwUFAwMCAgICAwMFBQcHBwgJCQoLCwsNDA4NDw4QEBAQEBEQEREbGRkYGBcWFqoEBQYFBgYNDAUFCgkHAwEDAwEDB6kODAsIBwQDAQEBAgMEBAYGBwcICQoJCwsMDAwODQ8PDxAQEBARERASERARERAQEAJkZGRkZGQOCAkRERMTFRUWFRUVExMREREODQsJBwUDAQEDBQcJCw0OERERExMVFRUWFRUTExEREQ4NCwkHBQMBAQMFBwkLDZEHBwgJCQoLCwsNDA4NDw8PEBAQEBEQERESEBEREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAQMEBwgLDA6pBAMCAgIBAgIDBwkKBQUMDQwFBQqqFhYXGBgZGRsRERAREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAgIDAwUFAAMAAAAAA5ADkAADAEQAywAAASE1ISUfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBOAEs/tQBIwcHDQsJBwUDAQEDBQcJCw0OERERExQUFRYVFRUTExIREA8MCwkHBQMBAQMFBwkLDA8QERITExUVFRYVFRMTERH+9Q8PDw0ODAwMCwsKCQkIBwcHBQUDAwICAgIDAwUFBwcHCAkJCgsLCw0MDg0PDhAQEBAQERARERsZGRgYFxYWqgQFBgUGBg0MBQUKCQcDAQMDAQMHqQ4MCwgHBAMBAQECAwQEBgYHBwgJCgkLCwwMDA4NDw8PEBAQEBEREBIREBEREBAQAgBkcggJERETExUVFhUVFRMTERERDg0LCQcFAwEBAwUHCQsNDhERERMTFRUVFhUVExMREREODQsJBwUDAQEDBQcJCw2RBwcICQkKCwsLDQwODQ8PDxAQEBAREBEREhARERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgEDBAcICwwOqQQDAgICAQICAwcJCgUFDA0MBQUKqhYWFxgYGRkbEREQERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgICAwMFBQAAAgAAAAADkAOQABsAtgAANw8CFR8FIT8FNS8FIQ8BARc7AR8KDxArAS8WPwgnNw8BJyMfCRUfGj8WLwM1PwUzPwMvAQcjJyN1AgIBAQICAgMDAwYDAwICAgEBAgICAwP8+gMDAg8HOgUFBgkJAwQDAgULAQEDBAIFBwcLCw8SDA0OGBgZGwsMDAsMCwwLCA4HBgUKBgUEAwMDAgEHAQMDAwQECg0pHwEBpCyCJAImGg4MBQUCAwMCAgMFBAQFBgYHCAgKCgsMDQ4PEBASEhMTFRUlIhEPDw8bGAwLCwoSEA0LBgYHBQIDAQEIAwEBAgQBBiIKCwsMAgMKOCN1LM4CAwNJAwMCAgIBAQICAgMDSQMDAgICAQECApMBAgIFCAMJCw89fVYjHhgLDw8OEwwNDAgGBQYFAwECAwMEBQYECwYGBg8KDAwNDQ4PEJKxIAgFAgIEAQIDJgcEAQYuAwMEBAQFBBEl4jgfGhoODg0MDAsKCgkICQcIBgcFBQQEAgIBAQEEAgMEBAkKBgcHBw8QEBENDxoYESUqMLYYFRAFBQUBAQcCAgIQGwEFBQAEAAAAAAOQA5AAAwAjACcARQAAARUhNScfAh0BDwYvBj0BPwU7AR8BJRUhNQcrAQ8IETMVITUzES8HIzUhApb+1GsDAgICAgMEBAUFBQQFAwQCAgICBAMFBAUFBQQBm/7UZDIyCQ0HBgUEAwIBlgH0lgEBBQUGCAkKaf4MAZzIyKgEBAUFBQQEBAMDAQEBAQMDBAQEBQUFBAQDAgIBA+WWlpYBBQQFBgYHCAj+opaWAV4HCAsGBwUEAvoAAAEAAAAAA48DkABEAAABDwMVIw8GFR8GMxUfBjM/BjUzPwY1LwYjNS8GIw8CAawDBwQC+QsKCQgHBAICBAcICQoL+QIEBwgJCgtjCgoJCAcEAvkLCgkIBwQCAgQHCAkKC/kCBAcICQoKXgsKCgOABQkKCvoCBAcICQoLYwoKCQgHBAL5CwoJCAcEAgIEBwgJCgv5AgQHCAkKC2MKCgkIBwQC+goKCQgHBAIBAwUAAAAABQAAAAADwgPCAAMABwAJAFUAmwAAARUhNQEVIzUHNSMVHw8hPw81FxEjNS8PIQ8PFSMRNQ8PER8PIT8PETUvDzECyP5wASyWlmQBAQIEBAUGBgcICAkJCgoKASwKCgoJCQgIBwYGBQQDAwEBljIBAQMDBAUGBgcICAkJCgoK/nAKCgoJCQgIBwYGBQQDAwEBMgoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKArwKCgoJCQgIBwYGBQQEAgEBAgIDBAQGBp8HBwcICAgJCgFqyMgB9MjIyMjICgoKCQkICAcGBgUEAwMBAQEBAwMEBQYGBwgICQkKCgq+oP3uyAoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKyAK8ZAEBAgQEBQYGBwgICQkKCgr9RAoKCgkJCAgHBgYFBAQCAQEBAQIEBAUGBgcICAkJCgoKAhIKCQkJCQgHCKkHBQUFAwMCAgAAAAACAAAAAAOQA5AAbQCxAAABHwQPCC8IPQEPFhUfAQ8ELw4/Fz0BPwgfAiUPBxEfDyE/DxEvDyEPBgJ7uAQDAgEBAgMEuAUFBgcGAwgFAwMCAgEjHxsYCwoJCQgIBgcGBgYFBAMDAgIBAQIFAQIEBgQDBAMDChMRDQsIAwMBAQECAwIHBQUGBwgKCgwNDw8REhQWGBocHB8BAgIDAwUFBwcGBQX+JgoJCAYFAwIBAQIDBQYICQoLDAwNDg4PDwH0Dw8ODgwNDAsKCQgGBQMCAQECAwUGCAkKCwwNDA4ODw/+DA8PDg4NDAwDM7gFBQYHBwYFBbgEAwIBAQEDAwMEBAUEBlMBAgQFBAMEBQUGBgcICQoLDA0ODxAREhIpLwUFAwIBAQECAg8cHBsaGgwNDAwbHRsOHw8PDQ0NDA0MDAsJCQgHBgYEAwIBUwUFBQQDBAMCAgEBAgMtCwwNDQ0ODw/+DA8PDg0NDQwLCgkIBgUDAgEBAgMFBggJCgsMDQ0NDg8PAfQPDw4NDQ0MCwoJCAYFAwIBAQIDBQYICQAAAwAAAAADbgOPADEAVgC4AAABMx8TFQ8PLwYTPwITHwsPDy8BAz8BMx8BJyMHHwkTDwg3Fz8VLw8/Di8TAhEKFhcLCgkJCQkJCAkHCAUEBAMCAgEBAgQFBwgKDA0OEBITFRYYERITEwEDBAEEERdUDw4ODQ0LCQgHBQMBAQMEBgcJCgwODg4QEBIUFCAZBBQiHhEQ2Q+iAioZEwkGAQECBQQCBQMDAwUaRQHxyRcXFhUWFRUUExEQBw4MCwkDBAICAgEBAwQGBwkLDQ0PEBAREhMTDScTFQkIBgYFBQQEAwEBAQMEBggJCwsNDQ8PERARERIREkECBwMFAwMEBQYGBwkJCgsJCgoLDQ0NDxUUEhEQDg0MCgkHBgUDAgEBAwUIAhAyAQQBAwEBSwQFBggICgsNDhAQEhUTEhAODQsJBwcFBAMCAQEBAwEUAwQBAzUGKwQEBAMEAgILVv4rIR4ICAcBCA0xCwICAgMEBgcICgoMDQcPERMUCwsMDAwZExMREBAPDg4MCwsJCAcGBQYUCw8IBwcICQoLDAwMDhMSEhAQDg0MCgoJCAcGBQQDAgEBAAAAAAMAAAAAA/QDcAAqAFYAuQAAAR8GFQ8MJS8FPQE/CwMzHwYVHwYhHwYVIQ8IET8GJw8HER8PJT8OPQEvCiM1Lw8hPQEvDiMPBgOVBwUFBAMCAgEBAwSaCAgKDAsMCwv9wAYFAwMDAQIDBJoICAoMCwwLCjIFCgkIBwYDAgIEBQgICQkBOAoJCAcGAwL+bhISEhMSEA4NhgIEBQcJCQlNCAgFBQQDAQEBAQMEBQUICAgKCQsKCwsMAkMSEhMTEQ8NoQYEBQMDAQICAgQDBwkKDAwNDmsBAgIEBQYHCAkJCgoKCwwM/uMCAgQFBgcICQkKCgsLCwyoCwwLCgsJCgHfAQEBAgMDAwUEBQYFvggHBwYFBAIBAQEBAgMDAwUEBQYGvggHBwUFBAIBAU8CBAUICAkJLAoJCAcGAwICBAUICAkJWQEEBgcKCwwNpQHECQkJBwUEAiAJCQoKCgsMDP4KDAwLCgoKCQkIBwYFBAMBAQECBAcJCgwMxQgIBwgICAgICQkJCQYKCQgHBAQBVAwMCwoKCgkJCAcGBQQDAQEQDAwLCgoKCQkIBwYFBAMBAQEBAwQFBgcAAAAABQAAAAADXgOQACEAQwBlAGkAxQAAAREPBy8HET8HHwYHEQ8HLwcRPwcfBgcRDwcvBxE/Bx8GNxcjNycHIw8HFR8HMxEVHw0zITM/DTURMz8HNS8HIy8IIw8GApYBAQIDBAQFBQUFBAQDAgEBAQECAwQEBQUFBQQEAwIBfAEBAgMEBAUFBQUEBAMCAQEBAQIDBAQFBQUFBAQDAgF8AQECAwQEBQUFBQQEAwIBAQEBAgMEBAUFBQUEBAMCAbAU1xRCIn0FBQQEAwIBAQEBAgMEBAUFGQIBAwMEBAUFBgYHBwcHCAHCCAcHBwcGBgUFBAQDAwECGQUFBAQDAgEBAQECAwQEBQWWIgQFBwcICAkKvwkKCAgHBwUCcP68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEzzIyJFYBAQIDBAQFBRkFBQQEAwIBAf3zCAcHBwcGBgUFBAQDAwECAgEDAwQEBQUGBgcHBwcIAg0BAQIDBAQFBRkFBQQEAwIBAVYICAcFBQMCAQECAwUFBwgAAAAAAQAAAAADjwOPAOgAAAEPBy8DKwEPBx0BHwY7Aj8ILwQ/Bx8dDx4vESsBDwUVHxAzPx4vHisBDwUBbBIRERAPEA4OSAQFBAUEBQoEBAMCAgEBAgMEBQYGBuoFBQQEBAMDBAEBAQECA0sTFBUXGBgZGQ0ODQ0NDA0MGAsLCwoJCQkJBwgHBgYKBQMDAwEBAQEBAQMDAwUKBgYHCAcJCQkJCgsLCwwMDA0MDQ0NDg0PEA8ODw4ODg4NDAwMCgsMAgQDBAQDAkgDAQMPDxARERMTFBQUFRUWFhYWFBQUExQTEhMSEhEQEA8ODg0MDAsKCgkICAYGBAMDAQEBAQMDBAYGCAgJCgoLDAwNDg4PEBAREhITEhMUExQUFBMTExITEhIDcwcJCQoKCw0MRgMCAgEEAwMEBAQFBukGBwUFBQMCAQICAwQECgQFBQQEBUsRDgwKCAYEAQEBAQIDBAQFDAYHBwgJCAkKCgsKDAsZDA0NDQ0NDg0ODQ0NDA0YDAsLCwoJCggJBwgHBgYGBAUDAwMBAQEBAQIDBAUFBggHCQkKCwsOAgIBAQJIBQYGBhAQDw4NCwsKCQgGBgQDAQECAgQEBgYICAkKCgsMDA0ODg8QEBESEhITExQTFBQUFBQUExQTExISEhEQEA8ODg0MDAsKCgkICAYGBAQCAgICAwQFBgABAAAAAAMKA48AKAAAATMfBBUHCwEPBjcfAj8CLwE3Ez8GBysBLwEBkAYiGg8HBwM1QwUGBg8QRgl7giwiJgYCYAEIWRkIBAtjBgSNGR8gjANaAwQDAwMNF/7x/soPDAoHBRItCgEGBAIbGBAPLwGZiiEKBB0YFggBBwAABAAAAAAEAAQAAAMABwALACMAAAEVITUhFSE1ARUhNQMzFSERIxEhESM1IRUjESERIxEhNTMRIQPA/wD+gP8AAkD+wEDA/sCAAYDAAoDAAYCA/oDA/kABAMDAwMACwMDA/wCA/wD+wAFAwMD+wAFAAQCAAUAAAAAAAQAAAAAEAAQAAHYAAAEHIREhLwcPDx8PPw8hETMfDz8PLw8PBgMSAf7v/u8LCwwNDw8REQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NDQ0MDAsLCQoIBwcFBAMCAQFAwAECAwQFBwcICgkLCwwMDQ0NDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDRERDw8NDAsDwgL9ABAMCgkHBgMBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NAwANDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAwYHCQoMAAAAAAQAAAAAA/8EAAAWAFcAbQCrAAABDwEVHxAFAQUVDw8vDz8PHw4DEQ8PJwMjEQMzAyEnHwEzPx09AS8TESEBwgEBAQIDBQYHCAoKDAwNDw8PEjP92QEcAkABBAUICQsNDxAREhQUFhYXFxYVFRQSERAPDQsJCAUEAQEEBQgJCw0PEBESFBUVFhcXFhYUFBIREA8NCwkIBQT/FxESEBEPEA4ODQ0LCwsJC1uMtEDS0gMARxUSDw4PDg4NDg0NDAwMCwsKCwkJCQgHBwcFBQUEAwMBAgECAgMDBAkMDQ8RExQVFxgZDA0S/QABwgcNDhQUFBMSEhIQEA8PDQ0MCwphAQIAoAwLFhYUFBIREA8NCwkIBQQBAQQFCAkLDQ8QERIUFBYWFxcWFhQUEhEQDw0LCQgFBAEBBAUICQsNDxAREhQUFhYCCf7+AwQFBgcICQoLDAwNDg4PFqf/AAIA/cD+gIMCAQECAwMEBQUFBwcHCAkJCQoLCwsMDAwNDQ0ODg4PDg8ODQ0ODA0NGBcWFBMSEA4MCggDAwIBQgAAAAAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABABsAAQABAAAAAAACAAcAHAABAAAAAAADABsAIwABAAAAAAAEABsAPgABAAAAAAAFAAsAWQABAAAAAAAGABsAZAABAAAAAAAKACwAfwABAAAAAAALABIAqwADAAEECQAAAAIAvQADAAEECQABADYAvwADAAEECQACAA4A9QADAAEECQADADYBAwADAAEECQAEADYBOQADAAEECQAFABYBbwADAAEECQAGADYBhQADAAEECQAKAFgBuwADAAEECQALACQCEyBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJSZWd1bGFyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyVmVyc2lvbiAxLjBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJGb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAFIAZQBnAHUAbABhAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIAVgBlAHIAcwBpAG8AbgAgADEALgAwAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACgBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0BDgEPARABEQESARMBFAEVARYBFwEYARkBGgEbARwBHQEeAR8BIAEhASIBIwEkASUBJgEnASgBKQAHWm9vbUluTQhab29tT3V0TQpVbmRlcmxpbmVNBlByaW50TQROZXdNBVNhdmVNB0V4cG9ydE0FQm9sZE0LT3BlbkZvbGRlck0HRGVsZXRlTQhSZWZyZXNoTQdJdGFsaWNNB1pvb21JbkYIWm9vbU91dEYGUHJpbnRGBE5ld0YFU2F2ZUYHRXhwb3J0RgVCb2xkRgtPcGVuRm9sZGVyRgdEZWxldGVGCFJlZnJlc2hGClVuZGVybGluZUYHSXRhbGljRgdab29tSW5CCFpvb21PdXRCClVuZGVybGluZUIGUHJpbnRCBE5ld0IFU2F2ZUIHRXhwb3J0QgVCb2xkQgtPcGVuRm9sZGVyQgdEZWxldGVCCFJlZnJlc2hCB0l0YWxpY0IKRmxvd1NoYXBlcwlDb25uZWN0b3ILQmFzaWNTaGFwZXMAAAAAAA==) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-ddb-icons {
font-family: 'e-ddb-icons';
speak: none;
font-size: 16px;
font-style: normal;
font-weight: normal;
font-variant: normal;
text-transform: none;
line-height: 1;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
}
.e-basic::before {
content: "\e726";
}
</style>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Animation
The expand and collapse operation of symbol palette can be animated by utilizing the enableAnimation property of symbol palette. The following example demonstrates, how to enable and disable animation for symbol palette.
/**
* Symbol palette Animation
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
//Enables/Disables animation
enableAnimation: true,
});
palette.appendTo('#element');
document.getElementById('enableAnimation').onclick = (args) => {
if (args.target.checked) {
palette.enableAnimation = true;
} else {
palette.enableAnimation = false;
}
palette.refresh();
};<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<label>Enable animation</label>
<input style="margin-left: 5px" id="enableAnimation" type="checkbox" checked />
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Description for symbols
The description property defines the descriptive text that appears beneath each symbol in the palette. This text provides additional information about the symbol’s purpose or usage within the diagramming context. The description can be dynamically retrieved and defined using the getSymbolInfo property, allowing information to assist users in understanding the function or meaning of each symbol.
/**
* Symbol description
*/
//Initialize the basicshapes for the symbol palatte
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'Ellipse',
shape: {
type: 'Basic',
shape: 'Ellipse',
},
},
{
id: 'Hexagon',
shape: {
type: 'Basic',
shape: 'Hexagon',
},
},
];
return basicShapes;
}
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
//Sets the description of a symbol
getSymbolInfo: (symbol) => {
return {
width: 50,
height: 50,
description: {
//Defines the description text for the symbol
text: symbol.id,
},
};
},
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Text wrapping and text overflow
The descriptive text that appears beneath each symbol can vary in length. In cases where the text might overlap neighboring symbols in the palette, text wrapping is employed. Text wrapping is controlled using the wrap property of symbolInfo, which supports three modes: Wrap, NoWrap, WrapWithOverflow. By default, text wrapping is set to ‘Wrap’.
Additionally, to handle overflowing text, the overflow property can be used. By default, textOverflow is set to ‘Ellipsis’, which truncates overflowing text with an ellipsis (…).
The following example demonstrates how text wrapping and text overflow are applied based on the symbol ID:
/**
* Symbol description wrapping
*/
//Initialize the basicshapes for the symbol palatte
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle-symbol',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'Ellipse-symbol',
shape: {
type: 'Basic',
shape: 'Ellipse',
},
},
{
id: 'Hexagon-symbol',
shape: {
type: 'Basic',
shape: 'Hexagon',
},
},
];
return basicShapes;
}
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
//Sets the description of a symbol
getSymbolInfo: (symbol) => {
return {
width: 50,
height: 50,
description: {
//Defines the description text for the symbol
text: symbol.id,
//Defines the text wrapping based on symbol id
wrap:
symbol.id === 'Rectangle-symbol' || symbol.id === 'Ellipse-symbol'
? 'NoWrap'
: 'WrapWithOverflow',
//Defines the text overflow based on symbol id
overflow:
symbol.id === 'Rectangle-symbol'
? 'Ellipsis'
: symbol.id === 'Ellipse-symbol'
? 'Clip'
: 'Clip',
},
};
},
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Appearance of symbol description
«««< HEAD
The appearance of a symbol description in the palette can be customized by changing its color, fill, fontSize, fontFamily, bold, italic, textDecoration and margin
=======
The appearance of a symbol description in the palette can be customized by changing its color , fill, fontSize , fontFamily, bold italic, textDecoration and margin
6d423ae3a72932cc7a70f3b683cc6314d695c6cf
The following code example shows how to customize the symbol description.
//Initialize the basicshapes for the symbol palette
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
shape: { type: 'Basic', shape: 'Rectangle' },
style: { strokeWidth: 2 },
},
{
id: 'Ellipse',
shape: { type: 'Basic', shape: 'Ellipse' },
style: { strokeWidth: 2 },
},
{
id: 'Hexagon',
shape: { type: 'Basic', shape: 'Hexagon' },
style: { strokeWidth: 2 },
},
];
return basicShapes;
}
//Initialize the flowshapes for the symbol palette
function getFlowShapes() {
var flowShapes = [
{
id: 'Process',
shape: { type: 'Flow', shape: 'Process' },
style: { strokeWidth: 2 },
},
{
id: 'Document',
shape: { type: 'Flow', shape: 'Document' },
style: { strokeWidth: 2 },
},
];
return flowShapes;
}
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'flow',
expanded: true,
symbols: getFlowShapes(),
title: 'Flow Shapes',
},
{
id: 'basic',
expanded: true,
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
width: '100%',
height: '100%',
//Defines the symbol description for the symbols in the palette
getSymbolInfo: function (symbol) {
return {
width: 100,
height: 50,
description: {
// Defines the description text for the symbol
text: symbol.id,
// Defines the margin between the symbol and text
margin: { top: 20, bottom: 10 },
// Defines the background color of the text
fill: 'green',
// Defines the font family of the text
fontFamily: 'Calibri',
// Defines the font size of the text
fontSize: 15,
// Defines if the text is bold
bold: true,
// Defines if the text is italic
italic: true,
// Defines the text decoration
textDecoration: 'Underline',
// Defines the color of the text
color: 'white',
},
};
},
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<style>
@font-face {
font-family: 'e-ddb-icons';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tShgAAAEoAAAAVmNtYXDon+lDAAACIAAAAIJnbHlmw/gRIAAAAvgAACw0aGVhZBGJTLcAAADQAAAANmhoZWEIXQQpAAAArAAAACRobXR4oAAAAAAAAYAAAACgbG9jYdYyye4AAAKkAAAAUm1heHABOAD4AAABCAAAACBuYW1ldAwInAAALywAAAMVcG9zdNAiwIsAADJEAAABuQABAAAEAAAAAFwEAAAAAAAEAAABAAAAAAAAAAAAAAAAAAAAKAABAAAAAQAAJo24vV8PPPUACwQAAAAAANc1g90AAAAA1zWD3QAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAoAOwABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnJgQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAAAAAIAAAADAAAAFAADAAEAAAAUAAQAbgAAAAQABAABAADnJv//AADnAP//AAAAAQAEAAAAAQACAAMABAAFAAYABwAIAAkACgALAAwADQAOAA8AEAARABIAEwAUABUAFgAXABgAGQAaABsAHAAdAB4AHwAgACEAIgAjACQAJQAmACcAAAAAAAABBAICAn4CxgLeAyYDeAQUBHAEoAWEBZwGkgd8B+YH/ghMCMIJaAnaClYLMAuqC7gMpg2ODmQOwg8aD9IQoBF6ElYTRhRGFIQUwBVMFhoAAAADAAAAAAPOA84ACwBnAOsAAAEjFTMVMzUzNSM1IwUVDxQrAS8VPxYfFQUVHx07AT8LFxUXNycjJz8ONS8fDx4Ban19P319PwEZAQICAwMECQwNEBESFBYWDAsMDQwNDQwNDQwMDAsXFRQTEQ8NDAkEBAMCAQEBAQEBAgMEBAkMDQ8RExQVFwsMDAwNDQwNDQwNDAsMFhYUEhEQDQwJBAMDAgIB/a8BAwMEBAYGBwgICQoKCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XfoyEgkICQcIBgYGBQQEAwMCAQEBAgMEBQUGBwgICQoKCwwMDA0ODg4PDxAPERARERESERESEBEQEBAPDw4ODQ0NDAsLCgoJCAgHBgYEBAMDAQKWP319P32cDQ0MDA0LDBYWFBIRDw4LCgQDAwICAQECAgMDBAoLDg8REhQWFgwLDQwMDQ0NDA0MDAwLFxUUExEPDQwKAwQDAgEBAQEBAQIDBAMKDA0PERMUFRcLDAwMDQwNEhERERAREA8PDw4ODg0MDAwLCgoJCAgHBgUFBAMCAgECAwMDBQUFBw0QEhMy+l76EwsLDAwNDQ4ODg8ODw8PEA8REhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAQEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIAAwAAAAADzgPOAAMAXwDjAAATITUhBRUPFCsBLxU/Fh8VBR8eOwE/CxcVFzcnIyc/Dj0BLx4PHu0BOP7IAZYBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDQ0NDAwNCwwWFhQSEQ8OCwoEAwMCAgH9rgEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XvoyEwkJCAgHBwYFBQUDAwMCAQICAwQFBQYHCAgJCgoLDAwMDQ4ODg8PDxAREBERERIREhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAlc/Hw0NDAwNCwwWFhQSEQ8OCwoEAwMCAgEBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDRIREREQERAPDw8ODg4NDAwMCwoKCQgIBwYFBQQDAgIBAgMDAwUFBQcNEBITMvpe+hMLCwwMDQ0ODg4PDg8PDxAPERIREBEQEBAPDw4ODQ0NDAsLCwkJCQcHBgYFAwQCAQEBAQIEAwUGBgcHCQkJCwsLDA0NDQ4ODw8QEBAREBESAAAAAAIAAAAAA3cD1AADAGkAADchNSETFR8dOwE/HTURIxEPDy8PAyOJAu79Ej8BAgMDBQQGBgcICAkJCgoLCwwMDQ0ODQ8ODw8PEBAQEBAQDw8PDg8NDg0NDAwLCwoKCQkICAcGBgQFAwMCAXwCAwUHCAoLDQ4OEBARERESEhERERAQDg4NCwUJCAYEAgF8K30BdxAQDxAPDw4ODg4NDA0LDAsKCgkJCAgGBwUFBAQDAgEBAgMEBAUFBwYICAkJCgoLDAsNDA0ODg4ODw8QDxAQAbb+ShQTExERDw4OCwsJBwYFAgEBAgUGBwkLCw0PBxAREhMUAcAAAAAABAAAAAAD9AO1AAMABwAvADMAAAEVITUlFSM1IREzFSE1MxEvDyEPDjchNSECvP6IAjN9/RK8AnC8AQIDBAUGBwgJCgoLDAsNDf0SDQwMDAsKCggJBwYFBAMCuwJw/ZABg7u7u3x8/si8vAE4DQ0MCwsKCgkIBwYGBAMCAQECAwQGBgcICQoKCwwMDK+8AAAAAQAAAAADdwN3AAsAAAEhFSERMxEhNSERIwHC/scBOXwBOf7HfAI+fP7HATl8ATkABAAAAAADdwN3AAMABwALADIAACUzNSMBFSM1IxUhNSMRFzMRIRE7AT8HNRE1LwcjISMPBwGDfX0BtT4+/kp9fT4BeHwFBAoLCgkHBQICBQcJCgsKBAX9kAUECgsKCQcFAsi7AbU+Pvr6/c59ATn+xwIFBwkKCwoEBQJwBQQKCwoJBwUCAgUHCQoLCgQAAAAAAgAAAAADtQP0ADcAPgAAExEfCTMhMz8JES8JKwEVMxEhETM1KwEPCDczETMRMydKAQEBBQcICgsGBwYC7gYHBgsKCAcFAQEBAQEBBQcICgsGBwZ9Pv2QPn0GBwYLCggHBQEB+X58frwCvP2OBgYGCwoJBgUCAQECBQYJCgsGBgYCcgYGBgsKCQYFAgF9/gwB9H0BAgUGCQoLBgZ2/ooBdrwAAAADAAAAAAMoA3cAIgBFAIUAAAEfDw8OKwE1EzMfDR0BDw4jNQMhPw8vDz8MLw8hAi8KCQkJCAcIBgYGBAQEAgEBAQECBAQEBgYGCAcJCAkJCpx9CQoJCAgIBwcGBQUEAwMBAQMDBAUFBgcHCAgICQoJfbwBhxQVExMRERAODQwKCQcFAwEBAQMEBAYGCAgJCQsLCwwNExAPBgYFBQQDAwIBAQECBAcICgwNDxASEhQVFRb+nQHCAQEDAwQEBgYHBwgICAkKCQoJCQkICAcHBgUFBAMCArwBOAICAwQFBQYHBwgICQkJCgkKCQgJBwgGBgYEBAMDAQG8/Y8BAwUHCQoLDg4QEBITExQVDw8ODg4NDQwLCwsJCQgIBg8PEggKCQoKCQsKCgoLFhYUFBMREA8NDAoJBgQDAAACAAAAAAP0A5YAAwBJAAABESERJxEfDjMhMz8OES8OIyEnKwEPDQN3/RJ9AQIDBAUGCAgJCQoLDAwMDQLuDQwMDAsKCQkICAYFBAMCAQECAwQFBggICQkKCwwMDA3+iX36DQwMDAsKCQkICAYFBAMCApz+SwG1ff3ODQwMDAsKCgkIBwYFBQMCAgMFBQYHCAkKCgsMDAwNAbUNDAwMCwoKCQgHBgUFAwJ9AgMFBQYHCAkKCgsMDAwAAgAAAAADdwO1ABkAIQAANxUfCSE/CTURITcjFSE1IzUjyAEBBQcICgsGBwYB9AYHBgsKCAcFAQH9kLv6Au76+okGBwYLCggHBQEBAQEBAQUHCAoLBgcGAjO7fX0/AAAAAQAAAAADdwN3ANEAABMhJz8LOwEfHR0BDx0jLw8jHx47AT8dPQEvHSMPDyeJATmKCxYXGQwNDQ0NDg0ODg8ODg4ODQ0NDA0LDAsKCwkKCAkIBwcGBQUFBAMCAgEBAgIDBAUFBQYHBwgJCAoJCwoLDAsNDA0NDQ4ODg4PGBgXFxYUFBMSEA8NDAsIB14EBAQFBgcHCAgJCQoLCwsMDA0ODQ4PDw8PEBAREBESERMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgICAgQEBQYHBwgKCQsLDAwNDg4PDxAQEBESEhISExMTExISExESEREREA8QDg8NDXECPooJEQ8NBQUFAwQCAgEBAgIEAwUFBQcGCAcJCQkKCgoLDAwMDA0NDQ4ODg8ODw4ODg4NDQ0MDQsMCwoLCQoICQgHBwYFBQUEAwICAQEDBQcJCwwODxESExUVFhcQEBAPDw8PDg4ODQwNCwwKCwkKCAgIBwYFBQQEAgICAgIEBAUGBwcICgkLCwwMDQ4ODw8QEBAREhISEhMTExMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgIBAQIEBAUHBggJCQoLCwwNcQAAAQAAAAADdwN3AAsAAAEzAyMVITUjEzM1IQGDoeS3AfSh5Lf+DAL6/gx9fQH0fQAAAwAAAAADvAO8AAsAbADWAAABIxUzFTM1MzUjNSM3Hw8dAQ8VKwEvFDUnNzU/FDsBHwUnDxIdAR8WPwcBHwI7AT8FPQEvAgE/By8WKwEPAQFZb284b284fQwKFRMSEA4NCgUEAwMCAgEBAgIDAwQFCg0OEBITFRYLDAwMDAwNDQ0MDQwMDAwLFhUTEREODAsFBAMDAgIBAQICAwMEBQsMDhERExUWCwwMDAwNDA0NDQwMDAwMpxMTEhERDxAODQ0LCwkICAYEBAICBAQGBwkJCwsNDQ4PEBEREhMTFBQUFRsaGhkYGBYVAVUEBQUGBQUFBAQCAgICBP6sEA4MCggGAwIBAgMFBgcJCQoMDA4ODxARERISFBMVFBUVFBQCpzhvbzhvWwUGDA4QEhMVFgsMDAwMDQwNDQwNDAwMDAsWFRMSEA4MCwUEAwMCAgEBAgIDAwQFCwwOEBITFRYLDAwMDA0MDQ0MDQwMDAwLFhUTEhAODAsFBAMDAgIBAQICAwMEPAYICAkLCw0NDhAPERESExMUFBQVFRQVExQSEhEREA8ODgwMCgkJBwYFAwIBAgMGCAoMDhD+rAQCAgICBAQFBQUGBQUEAVUVFhgYGRoaGxUUFBQTExIREQ8QDg0NCwsJCAgGBAQCAgQAAAAAAwAAAAADuQO8AAMAYQDLAAATITUhNx8OHQEPFSsBLxU9AT8UHwYnDxMVHxY/BwEfAjsBPwU9AS8CAT8HLxYrAQ8B7AEW/urtDBUTExAPDgsKBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDQwNDQwMDAwMCxYUExIQDgwLBAQEAgICAQECAgMEBAoLDg8REhQVFwwMDAwMDRkNDA0MCwymExMREhAQDw4ODQsLCQgIBgUDAgECBAQGBwgKCgsNDQ4PEBAREhMTExQVFRoaGhkZFxYWAVEEBQUFBgUEBQMDAgICBP6vEA4NCggGAwIBAgMFBgcICQoMDA0PDw8RERISExQUFBUVFBQCbzfLBgsODxESFBYWDAwMDAwNDQwNDA0MCwwLFhUTERAODQoFBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDA0NDQwMDAwMFhUUEhEPDQwJBAMDAgIBAQEBAgMEBD0GBwgJCwsMDg4PEBAREhIUExQVFBUVFBMTExIREQ8QDg0NDAoKCAcGBQQCAQEEBQgKDA4Q/qsEAgICAgQEBQUFBQYEBQFVFRYYGBkZGhsVFBQUExMSEREPDw8NDQsLCQkHBgUDAwIEAAAABQAAAAADvAO8AAMAIwArAC8ASgAAARUhNScPAh0BHwU7AT8FPQEvBSsBDwElESM1IRUjEQERIREDKwEPBhEzFSE1MxEvBiMRIQKn/rKeBAICAgIEBAUFBQYFBQQEAgICAgQEBQUGBQUFAsan/kSnAiz+sjenBgoKCQgGBALeAbzeAgQGCAkKC6z+RAFZ3t6fBAUFBQYFBQQEAgICAgQEBQUGBQUFBAQCAgICPP6yp6cBTgFN/uoBFv7qAgUGBwkKC/52b28BigsKCQgFBQIBTQAAAAABAAAAAAO8A7wACwAAASEVIREzESE1IREjAeT+YAGgOAGg/mA4Ahw4/mABoDgBoAAEAAAAAAO8A7wABwALABgAMwAAARUjNSMVIzUBESERIxEhETMRIxEhESMnESMRFyE/BhEvBiEPBgJvpzc4Ab391DcCmjje/ntSVTdvAtgKCgkIBgQCAgQGCAkKCvzwCwoKCAcFAwFZ3qen3gIs/rMBTf57AYX89gEW/upVArX9Lm8CBAYICQoKAxYKCgkIBgQCAQMFBwgKCgAAAAADAAAAAAO8A5EABwAyAGAAADchNQcVIREjBQc1Iw8OPxUzNQcrAQ8WFT8PFQkBRAKwOv3DOQMnsU8XFhYWFhUWFRUVFBQUExMFBgcJCgoMDA4OEBAREhITGRgWFxcXNDoODRsbGhkYGBcWFBQTEREPDgwLCQgEBQMCFBUWFhgYGRkaGhsbGxwcHQE7/sVvrDo5AgRWsVsCAgIEBAYGBggICQoLCwwUFBMTExEREQ8PDg0MCwkJCgcEAwIBWyIDBQYICQsNDQ8RERMUFRUXGBgZDRobG0cTExIQEA4NDAoJCAYFBAIBrAE7ATsAAAMAAAAAAvoDhAAiAEUAkAAAATMfDR0BDw4jNRMfDw8OKwE1AzsBPxU1Lw41Pw81Lw4jAckSERAPDgwLCgkIBgYEAwICAwQFBgcICgoLDA0ODxBjXhAPDg4MCwkJCAcGBAQDAQEBAgMEBQcHCQsKDA0ODhAQVG/tDhsaGRgWFRQTCAgHBwYGBQQEAwMCAQECBAUGCAoKDA0ODw8REhIPDg4NDAsKCQkHBgUEAwEBAgQGCAoLDhAREhQVFxga9wHIAQIDBAUFBwcICQoLCw0NDQwLCwoJCQgHBgUEBAIBAd4BTgEBAgMDBAUGBwcJCQkLCwwPDQwMCwoJCQcHBQQEAgLe/WUCBAYICQwNEAgICQkKCQoLCgsLCwwZExMSEBAPDg0MCgoIBwUEAwMFBwcICQoLDAwNDg4PDxAQChMSERAPDg0NCgoHBgUDAgAAAwAAAAAD9AN3AAMAHwBUAAABAyETJzMfDCEVIQ8HAxEnDwYRIRM/Aj0BLwgjNS8IJS8MIw8BA7a8/WS8JAgHBgYLCgoVBQ0OEAkKAXL+IAkJCAcHBwUFlhkFCgkGBQIBAxXMAwICAQIFBgkKCwYGhAEBBQcICgsGB/6LBwYGCwoKFQUNDhAJCr0GBgI+/okBd/oBAQIFBwcQAwcGBAIBfQEBAwQFBgcI/tMCCzoCBwkKCwYG/UoBmgcHBwcGBgYLCgkGBQIBgwcGCwoIBwUBAQEBAQIFBwcQAwcGBAIBAQIAAAAABgAAAAADaQO8AAMABwALAB8AIwBeAAAlMxEjAzMRIwMzESMlEQ8HIS8GNRElFSM1Jw8FFSMVMxEfDjMhMz8OETM1IzUvBiMHAlM4OG84OG84OAGFAQEDAwUEBQb+RAYFBAUDAwIBTaYWBQkHBgQD3jcBAQIDAwUEBgYGBwcICAgJAbwJCAgIBwcGBgYEBQMDAgEBN94DBAYHCQoLrAzqAb3+QwG9/kMBvW/9gQYFBAUDAwEBAQEDAwUEBQYCf284ODMCBggJCgo+N/2BCQgICAcHBgYGBAQEAwIBAQIDBAQFBQYGBwcICAgJAn83PgsKCAgGBAIBAAABAAAAAAO8A7wAxgAAAQ8MNSMVMzUjPw8fFw8XLx4HHx4zPxcvFyMPAQGKDg4cGhoZFxcVFBMQEDfegQ0OEBITFBUWGBgZGhsbGxwaGhoZGRcXFhUUFBIREA4ODAoJCAYFAgEBAgUGCAkKDA4OEBESFBQVFhcXGQwaGRsdEBAQEA8PDw8PDg4ODQ0MDAwLCwsKChIIBwcHBgUENgUGBwcICQkKCwsLDA0NDQ4PDg8QEBAREREREhISEhITHh4dHRwbGhkZFxYUFBIRDw4MCgkHBAMBAQMFBgkLDA0PERIUFBYXGRkaGxwdHR4eHh4dA60FBAsMDhARExQWGBgad984GRcXFRQSEQ8ODAoJBgUDAQECBQYHCQsMDQ8QERITFRUWFxcZGRkaGxobGRkYGBcWFRQTExEQDg4MCgkIAwUEAgEBAQIDBAQFBgYGBwgICQkKCgoMCwwMGg4ODg8PDw8OEhIREBEQDw8PDg4NDQwLCwsKCQkIBwcHBQUEAwMCAQEDBAcJCwwNDxESExUWFxkZGhscHR0eHh4eHR0cGxoZGRcWFBQSEQ8ODAoJBwQDAQMFAAAAAgAAAAADFQO8AAMAaAAANyE1IREfHjsBPx4RIxEPDiMvDgMj6gIs/dQBAQEDAwMFBQYGBggHCAkJCgoKCwsMDA0MDQ4NDg0PDg4ODg4NDQ0NDQwLDAoLCgkKCAkHBwcGBgUEBAMDAQEBOAIFBgkLDA0PEBITFBUWFhcWFhQVExERDw0MCgkHBAIBN0Q3AU0ODg4ODQ0NDQwMDAsLCwoJCQkICAcHBgYFBAQDAgIBAQICAwQEBQYGBwcICAkJCQoLCwsMDAwNDQ0NDg4ODgH0/gEWFhUUExERDw0MCwgHBAMDBAcICwwNDxERExQVFhYB/wAAAAEAAAAAArEDvAADAAAlMwEjAU86ASg6RAN4AAADAAAAAAOQA5AACwBMANMAAAEjFTMVMzUzNSM1IzcfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBnGRkZGRkZL8HBw0LCQcFAwEBAwUHCQsNDhERERMUFBUWFRUVExMSERAPDAsJBwUDAQEDBQcJCwwPEBESExMVFRUWFRUTExER/vUPDw8NDgwMDAsLCgkJCAcHBwUFAwMCAgICAwMFBQcHBwgJCQoLCwsNDA4NDw4QEBAQEBEQEREbGRkYGBcWFqoEBQYFBgYNDAUFCgkHAwEDAwEDB6kODAsIBwQDAQEBAgMEBAYGBwcICQoJCwsMDAwODQ8PDxAQEBARERASERARERAQEAJkZGRkZGQOCAkRERMTFRUWFRUVExMREREODQsJBwUDAQEDBQcJCw0OERERExMVFRUWFRUTExEREQ4NCwkHBQMBAQMFBwkLDZEHBwgJCQoLCwsNDA4NDw8PEBAQEBEQERESEBEREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAQMEBwgLDA6pBAMCAgIBAgIDBwkKBQUMDQwFBQqqFhYXGBgZGRsRERAREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAgIDAwUFAAMAAAAAA5ADkAADAEQAywAAASE1ISUfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBOAEs/tQBIwcHDQsJBwUDAQEDBQcJCw0OERERExQUFRYVFRUTExIREA8MCwkHBQMBAQMFBwkLDA8QERITExUVFRYVFRMTERH+9Q8PDw0ODAwMCwsKCQkIBwcHBQUDAwICAgIDAwUFBwcHCAkJCgsLCw0MDg0PDhAQEBAQERARERsZGRgYFxYWqgQFBgUGBg0MBQUKCQcDAQMDAQMHqQ4MCwgHBAMBAQECAwQEBgYHBwgJCgkLCwwMDA4NDw8PEBAQEBEREBIREBEREBAQAgBkcggJERETExUVFhUVFRMTERERDg0LCQcFAwEBAwUHCQsNDhERERMTFRUVFhUVExMREREODQsJBwUDAQEDBQcJCw2RBwcICQkKCwsLDQwODQ8PDxAQEBAREBEREhARERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgEDBAcICwwOqQQDAgICAQICAwcJCgUFDA0MBQUKqhYWFxgYGRkbEREQERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgICAwMFBQAAAgAAAAADkAOQABsAtgAANw8CFR8FIT8FNS8FIQ8BARc7AR8KDxArAS8WPwgnNw8BJyMfCRUfGj8WLwM1PwUzPwMvAQcjJyN1AgIBAQICAgMDAwYDAwICAgEBAgICAwP8+gMDAg8HOgUFBgkJAwQDAgULAQEDBAIFBwcLCw8SDA0OGBgZGwsMDAsMCwwLCA4HBgUKBgUEAwMDAgEHAQMDAwQECg0pHwEBpCyCJAImGg4MBQUCAwMCAgMFBAQFBgYHCAgKCgsMDQ4PEBASEhMTFRUlIhEPDw8bGAwLCwoSEA0LBgYHBQIDAQEIAwEBAgQBBiIKCwsMAgMKOCN1LM4CAwNJAwMCAgIBAQICAgMDSQMDAgICAQECApMBAgIFCAMJCw89fVYjHhgLDw8OEwwNDAgGBQYFAwECAwMEBQYECwYGBg8KDAwNDQ4PEJKxIAgFAgIEAQIDJgcEAQYuAwMEBAQFBBEl4jgfGhoODg0MDAsKCgkICQcIBgcFBQQEAgIBAQEEAgMEBAkKBgcHBw8QEBENDxoYESUqMLYYFRAFBQUBAQcCAgIQGwEFBQAEAAAAAAOQA5AAAwAjACcARQAAARUhNScfAh0BDwYvBj0BPwU7AR8BJRUhNQcrAQ8IETMVITUzES8HIzUhApb+1GsDAgICAgMEBAUFBQQFAwQCAgICBAMFBAUFBQQBm/7UZDIyCQ0HBgUEAwIBlgH0lgEBBQUGCAkKaf4MAZzIyKgEBAUFBQQEBAMDAQEBAQMDBAQEBQUFBAQDAgIBA+WWlpYBBQQFBgYHCAj+opaWAV4HCAsGBwUEAvoAAAEAAAAAA48DkABEAAABDwMVIw8GFR8GMxUfBjM/BjUzPwY1LwYjNS8GIw8CAawDBwQC+QsKCQgHBAICBAcICQoL+QIEBwgJCgtjCgoJCAcEAvkLCgkIBwQCAgQHCAkKC/kCBAcICQoKXgsKCgOABQkKCvoCBAcICQoLYwoKCQgHBAL5CwoJCAcEAgIEBwgJCgv5AgQHCAkKC2MKCgkIBwQC+goKCQgHBAIBAwUAAAAABQAAAAADwgPCAAMABwAJAFUAmwAAARUhNQEVIzUHNSMVHw8hPw81FxEjNS8PIQ8PFSMRNQ8PER8PIT8PETUvDzECyP5wASyWlmQBAQIEBAUGBgcICAkJCgoKASwKCgoJCQgIBwYGBQQDAwEBljIBAQMDBAUGBgcICAkJCgoK/nAKCgoJCQgIBwYGBQQDAwEBMgoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKArwKCgoJCQgIBwYGBQQEAgEBAgIDBAQGBp8HBwcICAgJCgFqyMgB9MjIyMjICgoKCQkICAcGBgUEAwMBAQEBAwMEBQYGBwgICQkKCgq+oP3uyAoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKyAK8ZAEBAgQEBQYGBwgICQkKCgr9RAoKCgkJCAgHBgYFBAQCAQEBAQIEBAUGBgcICAkJCgoKAhIKCQkJCQgHCKkHBQUFAwMCAgAAAAACAAAAAAOQA5AAbQCxAAABHwQPCC8IPQEPFhUfAQ8ELw4/Fz0BPwgfAiUPBxEfDyE/DxEvDyEPBgJ7uAQDAgEBAgMEuAUFBgcGAwgFAwMCAgEjHxsYCwoJCQgIBgcGBgYFBAMDAgIBAQIFAQIEBgQDBAMDChMRDQsIAwMBAQECAwIHBQUGBwgKCgwNDw8REhQWGBocHB8BAgIDAwUFBwcGBQX+JgoJCAYFAwIBAQIDBQYICQoLDAwNDg4PDwH0Dw8ODgwNDAsKCQgGBQMCAQECAwUGCAkKCwwNDA4ODw/+DA8PDg4NDAwDM7gFBQYHBwYFBbgEAwIBAQEDAwMEBAUEBlMBAgQFBAMEBQUGBgcICQoLDA0ODxAREhIpLwUFAwIBAQECAg8cHBsaGgwNDAwbHRsOHw8PDQ0NDA0MDAsJCQgHBgYEAwIBUwUFBQQDBAMCAgEBAgMtCwwNDQ0ODw/+DA8PDg0NDQwLCgkIBgUDAgEBAgMFBggJCgsMDQ0NDg8PAfQPDw4NDQ0MCwoJCAYFAwIBAQIDBQYICQAAAwAAAAADbgOPADEAVgC4AAABMx8TFQ8PLwYTPwITHwsPDy8BAz8BMx8BJyMHHwkTDwg3Fz8VLw8/Di8TAhEKFhcLCgkJCQkJCAkHCAUEBAMCAgEBAgQFBwgKDA0OEBITFRYYERITEwEDBAEEERdUDw4ODQ0LCQgHBQMBAQMEBgcJCgwODg4QEBIUFCAZBBQiHhEQ2Q+iAioZEwkGAQECBQQCBQMDAwUaRQHxyRcXFhUWFRUUExEQBw4MCwkDBAICAgEBAwQGBwkLDQ0PEBAREhMTDScTFQkIBgYFBQQEAwEBAQMEBggJCwsNDQ8PERARERIREkECBwMFAwMEBQYGBwkJCgsJCgoLDQ0NDxUUEhEQDg0MCgkHBgUDAgEBAwUIAhAyAQQBAwEBSwQFBggICgsNDhAQEhUTEhAODQsJBwcFBAMCAQEBAwEUAwQBAzUGKwQEBAMEAgILVv4rIR4ICAcBCA0xCwICAgMEBgcICgoMDQcPERMUCwsMDAwZExMREBAPDg4MCwsJCAcGBQYUCw8IBwcICQoLDAwMDhMSEhAQDg0MCgoJCAcGBQQDAgEBAAAAAAMAAAAAA/QDcAAqAFYAuQAAAR8GFQ8MJS8FPQE/CwMzHwYVHwYhHwYVIQ8IET8GJw8HER8PJT8OPQEvCiM1Lw8hPQEvDiMPBgOVBwUFBAMCAgEBAwSaCAgKDAsMCwv9wAYFAwMDAQIDBJoICAoMCwwLCjIFCgkIBwYDAgIEBQgICQkBOAoJCAcGAwL+bhISEhMSEA4NhgIEBQcJCQlNCAgFBQQDAQEBAQMEBQUICAgKCQsKCwsMAkMSEhMTEQ8NoQYEBQMDAQICAgQDBwkKDAwNDmsBAgIEBQYHCAkJCgoKCwwM/uMCAgQFBgcICQkKCgsLCwyoCwwLCgsJCgHfAQEBAgMDAwUEBQYFvggHBwYFBAIBAQEBAgMDAwUEBQYGvggHBwUFBAIBAU8CBAUICAkJLAoJCAcGAwICBAUICAkJWQEEBgcKCwwNpQHECQkJBwUEAiAJCQoKCgsMDP4KDAwLCgoKCQkIBwYFBAMBAQECBAcJCgwMxQgIBwgICAgICQkJCQYKCQgHBAQBVAwMCwoKCgkJCAcGBQQDAQEQDAwLCgoKCQkIBwYFBAMBAQEBAwQFBgcAAAAABQAAAAADXgOQACEAQwBlAGkAxQAAAREPBy8HET8HHwYHEQ8HLwcRPwcfBgcRDwcvBxE/Bx8GNxcjNycHIw8HFR8HMxEVHw0zITM/DTURMz8HNS8HIy8IIw8GApYBAQIDBAQFBQUFBAQDAgEBAQECAwQEBQUFBQQEAwIBfAEBAgMEBAUFBQUEBAMCAQEBAQIDBAQFBQUFBAQDAgF8AQECAwQEBQUFBQQEAwIBAQEBAgMEBAUFBQUEBAMCAbAU1xRCIn0FBQQEAwIBAQEBAgMEBAUFGQIBAwMEBAUFBgYHBwcHCAHCCAcHBwcGBgUFBAQDAwECGQUFBAQDAgEBAQECAwQEBQWWIgQFBwcICAkKvwkKCAgHBwUCcP68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEzzIyJFYBAQIDBAQFBRkFBQQEAwIBAf3zCAcHBwcGBgUFBAQDAwECAgEDAwQEBQUGBgcHBwcIAg0BAQIDBAQFBRkFBQQEAwIBAVYICAcFBQMCAQECAwUFBwgAAAAAAQAAAAADjwOPAOgAAAEPBy8DKwEPBx0BHwY7Aj8ILwQ/Bx8dDx4vESsBDwUVHxAzPx4vHisBDwUBbBIRERAPEA4OSAQFBAUEBQoEBAMCAgEBAgMEBQYGBuoFBQQEBAMDBAEBAQECA0sTFBUXGBgZGQ0ODQ0NDA0MGAsLCwoJCQkJBwgHBgYKBQMDAwEBAQEBAQMDAwUKBgYHCAcJCQkJCgsLCwwMDA0MDQ0NDg0PEA8ODw4ODg4NDAwMCgsMAgQDBAQDAkgDAQMPDxARERMTFBQUFRUWFhYWFBQUExQTEhMSEhEQEA8ODg0MDAsKCgkICAYGBAMDAQEBAQMDBAYGCAgJCgoLDAwNDg4PEBAREhITEhMUExQUFBMTExITEhIDcwcJCQoKCw0MRgMCAgEEAwMEBAQFBukGBwUFBQMCAQICAwQECgQFBQQEBUsRDgwKCAYEAQEBAQIDBAQFDAYHBwgJCAkKCgsKDAsZDA0NDQ0NDg0ODQ0NDA0YDAsLCwoJCggJBwgHBgYGBAUDAwMBAQEBAQIDBAUFBggHCQkKCwsOAgIBAQJIBQYGBhAQDw4NCwsKCQgGBgQDAQECAgQEBgYICAkKCgsMDA0ODg8QEBESEhITExQTFBQUFBQUExQTExISEhEQEA8ODg0MDAsKCgkICAYGBAQCAgICAwQFBgABAAAAAAMKA48AKAAAATMfBBUHCwEPBjcfAj8CLwE3Ez8GBysBLwEBkAYiGg8HBwM1QwUGBg8QRgl7giwiJgYCYAEIWRkIBAtjBgSNGR8gjANaAwQDAwMNF/7x/soPDAoHBRItCgEGBAIbGBAPLwGZiiEKBB0YFggBBwAABAAAAAAEAAQAAAMABwALACMAAAEVITUhFSE1ARUhNQMzFSERIxEhESM1IRUjESERIxEhNTMRIQPA/wD+gP8AAkD+wEDA/sCAAYDAAoDAAYCA/oDA/kABAMDAwMACwMDA/wCA/wD+wAFAwMD+wAFAAQCAAUAAAAAAAQAAAAAEAAQAAHYAAAEHIREhLwcPDx8PPw8hETMfDz8PLw8PBgMSAf7v/u8LCwwNDw8REQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NDQ0MDAsLCQoIBwcFBAMCAQFAwAECAwQFBwcICgkLCwwMDQ0NDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDRERDw8NDAsDwgL9ABAMCgkHBgMBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NAwANDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAwYHCQoMAAAAAAQAAAAAA/8EAAAWAFcAbQCrAAABDwEVHxAFAQUVDw8vDz8PHw4DEQ8PJwMjEQMzAyEnHwEzPx09AS8TESEBwgEBAQIDBQYHCAoKDAwNDw8PEjP92QEcAkABBAUICQsNDxAREhQUFhYXFxYVFRQSERAPDQsJCAUEAQEEBQgJCw0PEBESFBUVFhcXFhYUFBIREA8NCwkIBQT/FxESEBEPEA4ODQ0LCwsJC1uMtEDS0gMARxUSDw4PDg4NDg0NDAwMCwsKCwkJCQgHBwcFBQUEAwMBAgECAgMDBAkMDQ8RExQVFxgZDA0S/QABwgcNDhQUFBMSEhIQEA8PDQ0MCwphAQIAoAwLFhYUFBIREA8NCwkIBQQBAQQFCAkLDQ8QERIUFBYWFxcWFhQUEhEQDw0LCQgFBAEBBAUICQsNDxAREhQUFhYCCf7+AwQFBgcICQoLDAwNDg4PFqf/AAIA/cD+gIMCAQECAwMEBQUFBwcHCAkJCQoLCwsMDAwNDQ0ODg4PDg8ODQ0ODA0NGBcWFBMSEA4MCggDAwIBQgAAAAAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABABsAAQABAAAAAAACAAcAHAABAAAAAAADABsAIwABAAAAAAAEABsAPgABAAAAAAAFAAsAWQABAAAAAAAGABsAZAABAAAAAAAKACwAfwABAAAAAAALABIAqwADAAEECQAAAAIAvQADAAEECQABADYAvwADAAEECQACAA4A9QADAAEECQADADYBAwADAAEECQAEADYBOQADAAEECQAFABYBbwADAAEECQAGADYBhQADAAEECQAKAFgBuwADAAEECQALACQCEyBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJSZWd1bGFyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyVmVyc2lvbiAxLjBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJGb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAFIAZQBnAHUAbABhAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIAVgBlAHIAcwBpAG8AbgAgADEALgAwAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACgBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0BDgEPARABEQESARMBFAEVARYBFwEYARkBGgEbARwBHQEeAR8BIAEhASIBIwEkASUBJgEnASgBKQAHWm9vbUluTQhab29tT3V0TQpVbmRlcmxpbmVNBlByaW50TQROZXdNBVNhdmVNB0V4cG9ydE0FQm9sZE0LT3BlbkZvbGRlck0HRGVsZXRlTQhSZWZyZXNoTQdJdGFsaWNNB1pvb21JbkYIWm9vbU91dEYGUHJpbnRGBE5ld0YFU2F2ZUYHRXhwb3J0RgVCb2xkRgtPcGVuRm9sZGVyRgdEZWxldGVGCFJlZnJlc2hGClVuZGVybGluZUYHSXRhbGljRgdab29tSW5CCFpvb21PdXRCClVuZGVybGluZUIGUHJpbnRCBE5ld0IFU2F2ZUIHRXhwb3J0QgVCb2xkQgtPcGVuRm9sZGVyQgdEZWxldGVCCFJlZnJlc2hCB0l0YWxpY0IKRmxvd1NoYXBlcwlDb25uZWN0b3ILQmFzaWNTaGFwZXMAAAAAAA==) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-ddb-icons {
font-family: 'e-ddb-icons';
speak: none;
font-size: 16px;
font-style: normal;
font-weight: normal;
font-variant: normal;
text-transform: none;
line-height: 1;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
}
.e-basic::before {
content: "\e726";
}
.e-flow::before {
content: "\e724";
}
.e-connector::before {
content: "\e725";
}
</style>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Symbol size and symbol margin
The size of the individual symbol can be customized. The symbolWidth and symbolHeight properties of node enables you to define the size of the symbols.
The symbolMargin defines the space between the shape and its outer boundary. By setting the symbol margin with specific values for left, right, top, and bottom, you can create consistent spacing on all sides around the shape. This ensures there is adequate padding between the shape and its outer boundary.
The following code example illustrates how to set symbol size and symbol margin for the symbol palette.
/**
* Default symbol palette sample
*/
//Initialize the basicshapes for the symbol palatte
var basicShapes = [
{
id: 'Rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'Ellipse',
shape: {
type: 'Basic',
shape: 'Ellipse',
},
},
{
id: 'Hexagon',
shape: {
type: 'Basic',
shape: 'Hexagon',
},
},
];
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'basic',
symbols: basicShapes,
title: 'Basic Shapes',
},
],
symbolHeight: 80,
symbolWidth: 80,
symbolMargin: {
left: 15,
right: 15,
top: 15,
bottom: 15,
},
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<style>
@font-face {
font-family: 'e-ddb-icons';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tShgAAAEoAAAAVmNtYXDon+lDAAACIAAAAIJnbHlmw/gRIAAAAvgAACw0aGVhZBGJTLcAAADQAAAANmhoZWEIXQQpAAAArAAAACRobXR4oAAAAAAAAYAAAACgbG9jYdYyye4AAAKkAAAAUm1heHABOAD4AAABCAAAACBuYW1ldAwInAAALywAAAMVcG9zdNAiwIsAADJEAAABuQABAAAEAAAAAFwEAAAAAAAEAAABAAAAAAAAAAAAAAAAAAAAKAABAAAAAQAAJo24vV8PPPUACwQAAAAAANc1g90AAAAA1zWD3QAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAoAOwABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnJgQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAAAAAIAAAADAAAAFAADAAEAAAAUAAQAbgAAAAQABAABAADnJv//AADnAP//AAAAAQAEAAAAAQACAAMABAAFAAYABwAIAAkACgALAAwADQAOAA8AEAARABIAEwAUABUAFgAXABgAGQAaABsAHAAdAB4AHwAgACEAIgAjACQAJQAmACcAAAAAAAABBAICAn4CxgLeAyYDeAQUBHAEoAWEBZwGkgd8B+YH/ghMCMIJaAnaClYLMAuqC7gMpg2ODmQOwg8aD9IQoBF6ElYTRhRGFIQUwBVMFhoAAAADAAAAAAPOA84ACwBnAOsAAAEjFTMVMzUzNSM1IwUVDxQrAS8VPxYfFQUVHx07AT8LFxUXNycjJz8ONS8fDx4Ban19P319PwEZAQICAwMECQwNEBESFBYWDAsMDQwNDQwNDQwMDAsXFRQTEQ8NDAkEBAMCAQEBAQEBAgMEBAkMDQ8RExQVFwsMDAwNDQwNDQwNDAsMFhYUEhEQDQwJBAMDAgIB/a8BAwMEBAYGBwgICQoKCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XfoyEgkICQcIBgYGBQQEAwMCAQEBAgMEBQUGBwgICQoKCwwMDA0ODg4PDxAPERARERESERESEBEQEBAPDw4ODQ0NDAsLCgoJCAgHBgYEBAMDAQKWP319P32cDQ0MDA0LDBYWFBIRDw4LCgQDAwICAQECAgMDBAoLDg8REhQWFgwLDQwMDQ0NDA0MDAwLFxUUExEPDQwKAwQDAgEBAQEBAQIDBAMKDA0PERMUFRcLDAwMDQwNEhERERAREA8PDw4ODg0MDAwLCgoJCAgHBgUFBAMCAgECAwMDBQUFBw0QEhMy+l76EwsLDAwNDQ4ODg8ODw8PEA8REhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAQEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIAAwAAAAADzgPOAAMAXwDjAAATITUhBRUPFCsBLxU/Fh8VBR8eOwE/CxcVFzcnIyc/Dj0BLx4PHu0BOP7IAZYBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDQ0NDAwNCwwWFhQSEQ8OCwoEAwMCAgH9rgEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XvoyEwkJCAgHBwYFBQUDAwMCAQICAwQFBQYHCAgJCgoLDAwMDQ4ODg8PDxAREBERERIREhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAlc/Hw0NDAwNCwwWFhQSEQ8OCwoEAwMCAgEBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDRIREREQERAPDw8ODg4NDAwMCwoKCQgIBwYFBQQDAgIBAgMDAwUFBQcNEBITMvpe+hMLCwwMDQ0ODg4PDg8PDxAPERIREBEQEBAPDw4ODQ0NDAsLCwkJCQcHBgYFAwQCAQEBAQIEAwUGBgcHCQkJCwsLDA0NDQ4ODw8QEBAREBESAAAAAAIAAAAAA3cD1AADAGkAADchNSETFR8dOwE/HTURIxEPDy8PAyOJAu79Ej8BAgMDBQQGBgcICAkJCgoLCwwMDQ0ODQ8ODw8PEBAQEBAQDw8PDg8NDg0NDAwLCwoKCQkICAcGBgQFAwMCAXwCAwUHCAoLDQ4OEBARERESEhERERAQDg4NCwUJCAYEAgF8K30BdxAQDxAPDw4ODg4NDA0LDAsKCgkJCAgGBwUFBAQDAgEBAgMEBAUFBwYICAkJCgoLDAsNDA0ODg4ODw8QDxAQAbb+ShQTExERDw4OCwsJBwYFAgEBAgUGBwkLCw0PBxAREhMUAcAAAAAABAAAAAAD9AO1AAMABwAvADMAAAEVITUlFSM1IREzFSE1MxEvDyEPDjchNSECvP6IAjN9/RK8AnC8AQIDBAUGBwgJCgoLDAsNDf0SDQwMDAsKCggJBwYFBAMCuwJw/ZABg7u7u3x8/si8vAE4DQ0MCwsKCgkIBwYGBAMCAQECAwQGBgcICQoKCwwMDK+8AAAAAQAAAAADdwN3AAsAAAEhFSERMxEhNSERIwHC/scBOXwBOf7HfAI+fP7HATl8ATkABAAAAAADdwN3AAMABwALADIAACUzNSMBFSM1IxUhNSMRFzMRIRE7AT8HNRE1LwcjISMPBwGDfX0BtT4+/kp9fT4BeHwFBAoLCgkHBQICBQcJCgsKBAX9kAUECgsKCQcFAsi7AbU+Pvr6/c59ATn+xwIFBwkKCwoEBQJwBQQKCwoJBwUCAgUHCQoLCgQAAAAAAgAAAAADtQP0ADcAPgAAExEfCTMhMz8JES8JKwEVMxEhETM1KwEPCDczETMRMydKAQEBBQcICgsGBwYC7gYHBgsKCAcFAQEBAQEBBQcICgsGBwZ9Pv2QPn0GBwYLCggHBQEB+X58frwCvP2OBgYGCwoJBgUCAQECBQYJCgsGBgYCcgYGBgsKCQYFAgF9/gwB9H0BAgUGCQoLBgZ2/ooBdrwAAAADAAAAAAMoA3cAIgBFAIUAAAEfDw8OKwE1EzMfDR0BDw4jNQMhPw8vDz8MLw8hAi8KCQkJCAcIBgYGBAQEAgEBAQECBAQEBgYGCAcJCAkJCpx9CQoJCAgIBwcGBQUEAwMBAQMDBAUFBgcHCAgICQoJfbwBhxQVExMRERAODQwKCQcFAwEBAQMEBAYGCAgJCQsLCwwNExAPBgYFBQQDAwIBAQECBAcICgwNDxASEhQVFRb+nQHCAQEDAwQEBgYHBwgICAkKCQoJCQkICAcHBgUFBAMCArwBOAICAwQFBQYHBwgICQkJCgkKCQgJBwgGBgYEBAMDAQG8/Y8BAwUHCQoLDg4QEBITExQVDw8ODg4NDQwLCwsJCQgIBg8PEggKCQoKCQsKCgoLFhYUFBMREA8NDAoJBgQDAAACAAAAAAP0A5YAAwBJAAABESERJxEfDjMhMz8OES8OIyEnKwEPDQN3/RJ9AQIDBAUGCAgJCQoLDAwMDQLuDQwMDAsKCQkICAYFBAMCAQECAwQFBggICQkKCwwMDA3+iX36DQwMDAsKCQkICAYFBAMCApz+SwG1ff3ODQwMDAsKCgkIBwYFBQMCAgMFBQYHCAkKCgsMDAwNAbUNDAwMCwoKCQgHBgUFAwJ9AgMFBQYHCAkKCgsMDAwAAgAAAAADdwO1ABkAIQAANxUfCSE/CTURITcjFSE1IzUjyAEBBQcICgsGBwYB9AYHBgsKCAcFAQH9kLv6Au76+okGBwYLCggHBQEBAQEBAQUHCAoLBgcGAjO7fX0/AAAAAQAAAAADdwN3ANEAABMhJz8LOwEfHR0BDx0jLw8jHx47AT8dPQEvHSMPDyeJATmKCxYXGQwNDQ0NDg0ODg8ODg4ODQ0NDA0LDAsKCwkKCAkIBwcGBQUFBAMCAgEBAgIDBAUFBQYHBwgJCAoJCwoLDAsNDA0NDQ4ODg4PGBgXFxYUFBMSEA8NDAsIB14EBAQFBgcHCAgJCQoLCwsMDA0ODQ4PDw8PEBAREBESERMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgICAgQEBQYHBwgKCQsLDAwNDg4PDxAQEBESEhISExMTExISExESEREREA8QDg8NDXECPooJEQ8NBQUFAwQCAgEBAgIEAwUFBQcGCAcJCQkKCgoLDAwMDA0NDQ4ODg8ODw4ODg4NDQ0MDQsMCwoLCQoICQgHBwYFBQUEAwICAQEDBQcJCwwODxESExUVFhcQEBAPDw8PDg4ODQwNCwwKCwkKCAgIBwYFBQQEAgICAgIEBAUGBwcICgkLCwwMDQ4ODw8QEBAREhISEhMTExMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgIBAQIEBAUHBggJCQoLCwwNcQAAAQAAAAADdwN3AAsAAAEzAyMVITUjEzM1IQGDoeS3AfSh5Lf+DAL6/gx9fQH0fQAAAwAAAAADvAO8AAsAbADWAAABIxUzFTM1MzUjNSM3Hw8dAQ8VKwEvFDUnNzU/FDsBHwUnDxIdAR8WPwcBHwI7AT8FPQEvAgE/By8WKwEPAQFZb284b284fQwKFRMSEA4NCgUEAwMCAgEBAgIDAwQFCg0OEBITFRYLDAwMDAwNDQ0MDQwMDAwLFhUTEREODAsFBAMDAgIBAQICAwMEBQsMDhERExUWCwwMDAwNDA0NDQwMDAwMpxMTEhERDxAODQ0LCwkICAYEBAICBAQGBwkJCwsNDQ4PEBEREhMTFBQUFRsaGhkYGBYVAVUEBQUGBQUFBAQCAgICBP6sEA4MCggGAwIBAgMFBgcJCQoMDA4ODxARERISFBMVFBUVFBQCpzhvbzhvWwUGDA4QEhMVFgsMDAwMDQwNDQwNDAwMDAsWFRMSEA4MCwUEAwMCAgEBAgIDAwQFCwwOEBITFRYLDAwMDA0MDQ0MDQwMDAwLFhUTEhAODAsFBAMDAgIBAQICAwMEPAYICAkLCw0NDhAPERESExMUFBQVFRQVExQSEhEREA8ODgwMCgkJBwYFAwIBAgMGCAoMDhD+rAQCAgICBAQFBQUGBQUEAVUVFhgYGRoaGxUUFBQTExIREQ8QDg0NCwsJCAgGBAQCAgQAAAAAAwAAAAADuQO8AAMAYQDLAAATITUhNx8OHQEPFSsBLxU9AT8UHwYnDxMVHxY/BwEfAjsBPwU9AS8CAT8HLxYrAQ8B7AEW/urtDBUTExAPDgsKBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDQwNDQwMDAwMCxYUExIQDgwLBAQEAgICAQECAgMEBAoLDg8REhQVFwwMDAwMDRkNDA0MCwymExMREhAQDw4ODQsLCQgIBgUDAgECBAQGBwgKCgsNDQ4PEBAREhMTExQVFRoaGhkZFxYWAVEEBQUFBgUEBQMDAgICBP6vEA4NCggGAwIBAgMFBgcICQoMDA0PDw8RERISExQUFBUVFBQCbzfLBgsODxESFBYWDAwMDAwNDQwNDA0MCwwLFhUTERAODQoFBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDA0NDQwMDAwMFhUUEhEPDQwJBAMDAgIBAQEBAgMEBD0GBwgJCwsMDg4PEBAREhIUExQVFBUVFBMTExIREQ8QDg0NDAoKCAcGBQQCAQEEBQgKDA4Q/qsEAgICAgQEBQUFBQYEBQFVFRYYGBkZGhsVFBQUExMSEREPDw8NDQsLCQkHBgUDAwIEAAAABQAAAAADvAO8AAMAIwArAC8ASgAAARUhNScPAh0BHwU7AT8FPQEvBSsBDwElESM1IRUjEQERIREDKwEPBhEzFSE1MxEvBiMRIQKn/rKeBAICAgIEBAUFBQYFBQQEAgICAgQEBQUGBQUFAsan/kSnAiz+sjenBgoKCQgGBALeAbzeAgQGCAkKC6z+RAFZ3t6fBAUFBQYFBQQEAgICAgQEBQUGBQUFBAQCAgICPP6yp6cBTgFN/uoBFv7qAgUGBwkKC/52b28BigsKCQgFBQIBTQAAAAABAAAAAAO8A7wACwAAASEVIREzESE1IREjAeT+YAGgOAGg/mA4Ahw4/mABoDgBoAAEAAAAAAO8A7wABwALABgAMwAAARUjNSMVIzUBESERIxEhETMRIxEhESMnESMRFyE/BhEvBiEPBgJvpzc4Ab391DcCmjje/ntSVTdvAtgKCgkIBgQCAgQGCAkKCvzwCwoKCAcFAwFZ3qen3gIs/rMBTf57AYX89gEW/upVArX9Lm8CBAYICQoKAxYKCgkIBgQCAQMFBwgKCgAAAAADAAAAAAO8A5EABwAyAGAAADchNQcVIREjBQc1Iw8OPxUzNQcrAQ8WFT8PFQkBRAKwOv3DOQMnsU8XFhYWFhUWFRUVFBQUExMFBgcJCgoMDA4OEBAREhITGRgWFxcXNDoODRsbGhkYGBcWFBQTEREPDgwLCQgEBQMCFBUWFhgYGRkaGhsbGxwcHQE7/sVvrDo5AgRWsVsCAgIEBAYGBggICQoLCwwUFBMTExEREQ8PDg0MCwkJCgcEAwIBWyIDBQYICQsNDQ8RERMUFRUXGBgZDRobG0cTExIQEA4NDAoJCAYFBAIBrAE7ATsAAAMAAAAAAvoDhAAiAEUAkAAAATMfDR0BDw4jNRMfDw8OKwE1AzsBPxU1Lw41Pw81Lw4jAckSERAPDgwLCgkIBgYEAwICAwQFBgcICgoLDA0ODxBjXhAPDg4MCwkJCAcGBAQDAQEBAgMEBQcHCQsKDA0ODhAQVG/tDhsaGRgWFRQTCAgHBwYGBQQEAwMCAQECBAUGCAoKDA0ODw8REhIPDg4NDAsKCQkHBgUEAwEBAgQGCAoLDhAREhQVFxga9wHIAQIDBAUFBwcICQoLCw0NDQwLCwoJCQgHBgUEBAIBAd4BTgEBAgMDBAUGBwcJCQkLCwwPDQwMCwoJCQcHBQQEAgLe/WUCBAYICQwNEAgICQkKCQoLCgsLCwwZExMSEBAPDg0MCgoIBwUEAwMFBwcICQoLDAwNDg4PDxAQChMSERAPDg0NCgoHBgUDAgAAAwAAAAAD9AN3AAMAHwBUAAABAyETJzMfDCEVIQ8HAxEnDwYRIRM/Aj0BLwgjNS8IJS8MIw8BA7a8/WS8JAgHBgYLCgoVBQ0OEAkKAXL+IAkJCAcHBwUFlhkFCgkGBQIBAxXMAwICAQIFBgkKCwYGhAEBBQcICgsGB/6LBwYGCwoKFQUNDhAJCr0GBgI+/okBd/oBAQIFBwcQAwcGBAIBfQEBAwQFBgcI/tMCCzoCBwkKCwYG/UoBmgcHBwcGBgYLCgkGBQIBgwcGCwoIBwUBAQEBAQIFBwcQAwcGBAIBAQIAAAAABgAAAAADaQO8AAMABwALAB8AIwBeAAAlMxEjAzMRIwMzESMlEQ8HIS8GNRElFSM1Jw8FFSMVMxEfDjMhMz8OETM1IzUvBiMHAlM4OG84OG84OAGFAQEDAwUEBQb+RAYFBAUDAwIBTaYWBQkHBgQD3jcBAQIDAwUEBgYGBwcICAgJAbwJCAgIBwcGBgYEBQMDAgEBN94DBAYHCQoLrAzqAb3+QwG9/kMBvW/9gQYFBAUDAwEBAQEDAwUEBQYCf284ODMCBggJCgo+N/2BCQgICAcHBgYGBAQEAwIBAQIDBAQFBQYGBwcICAgJAn83PgsKCAgGBAIBAAABAAAAAAO8A7wAxgAAAQ8MNSMVMzUjPw8fFw8XLx4HHx4zPxcvFyMPAQGKDg4cGhoZFxcVFBMQEDfegQ0OEBITFBUWGBgZGhsbGxwaGhoZGRcXFhUUFBIREA4ODAoJCAYFAgEBAgUGCAkKDA4OEBESFBQVFhcXGQwaGRsdEBAQEA8PDw8PDg4ODQ0MDAwLCwsKChIIBwcHBgUENgUGBwcICQkKCwsLDA0NDQ4PDg8QEBAREREREhISEhITHh4dHRwbGhkZFxYUFBIRDw4MCgkHBAMBAQMFBgkLDA0PERIUFBYXGRkaGxwdHR4eHh4dA60FBAsMDhARExQWGBgad984GRcXFRQSEQ8ODAoJBgUDAQECBQYHCQsMDQ8QERITFRUWFxcZGRkaGxobGRkYGBcWFRQTExEQDg4MCgkIAwUEAgEBAQIDBAQFBgYGBwgICQkKCgoMCwwMGg4ODg8PDw8OEhIREBEQDw8PDg4NDQwLCwsKCQkIBwcHBQUEAwMCAQEDBAcJCwwNDxESExUWFxkZGhscHR0eHh4eHR0cGxoZGRcWFBQSEQ8ODAoJBwQDAQMFAAAAAgAAAAADFQO8AAMAaAAANyE1IREfHjsBPx4RIxEPDiMvDgMj6gIs/dQBAQEDAwMFBQYGBggHCAkJCgoKCwsMDA0MDQ4NDg0PDg4ODg4NDQ0NDQwLDAoLCgkKCAkHBwcGBgUEBAMDAQEBOAIFBgkLDA0PEBITFBUWFhcWFhQVExERDw0MCgkHBAIBN0Q3AU0ODg4ODQ0NDQwMDAsLCwoJCQkICAcHBgYFBAQDAgIBAQICAwQEBQYGBwcICAkJCQoLCwsMDAwNDQ0NDg4ODgH0/gEWFhUUExERDw0MCwgHBAMDBAcICwwNDxERExQVFhYB/wAAAAEAAAAAArEDvAADAAAlMwEjAU86ASg6RAN4AAADAAAAAAOQA5AACwBMANMAAAEjFTMVMzUzNSM1IzcfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBnGRkZGRkZL8HBw0LCQcFAwEBAwUHCQsNDhERERMUFBUWFRUVExMSERAPDAsJBwUDAQEDBQcJCwwPEBESExMVFRUWFRUTExER/vUPDw8NDgwMDAsLCgkJCAcHBwUFAwMCAgICAwMFBQcHBwgJCQoLCwsNDA4NDw4QEBAQEBEQEREbGRkYGBcWFqoEBQYFBgYNDAUFCgkHAwEDAwEDB6kODAsIBwQDAQEBAgMEBAYGBwcICQoJCwsMDAwODQ8PDxAQEBARERASERARERAQEAJkZGRkZGQOCAkRERMTFRUWFRUVExMREREODQsJBwUDAQEDBQcJCw0OERERExMVFRUWFRUTExEREQ4NCwkHBQMBAQMFBwkLDZEHBwgJCQoLCwsNDA4NDw8PEBAQEBEQERESEBEREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAQMEBwgLDA6pBAMCAgIBAgIDBwkKBQUMDQwFBQqqFhYXGBgZGRsRERAREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAgIDAwUFAAMAAAAAA5ADkAADAEQAywAAASE1ISUfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBOAEs/tQBIwcHDQsJBwUDAQEDBQcJCw0OERERExQUFRYVFRUTExIREA8MCwkHBQMBAQMFBwkLDA8QERITExUVFRYVFRMTERH+9Q8PDw0ODAwMCwsKCQkIBwcHBQUDAwICAgIDAwUFBwcHCAkJCgsLCw0MDg0PDhAQEBAQERARERsZGRgYFxYWqgQFBgUGBg0MBQUKCQcDAQMDAQMHqQ4MCwgHBAMBAQECAwQEBgYHBwgJCgkLCwwMDA4NDw8PEBAQEBEREBIREBEREBAQAgBkcggJERETExUVFhUVFRMTERERDg0LCQcFAwEBAwUHCQsNDhERERMTFRUVFhUVExMREREODQsJBwUDAQEDBQcJCw2RBwcICQkKCwsLDQwODQ8PDxAQEBAREBEREhARERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgEDBAcICwwOqQQDAgICAQICAwcJCgUFDA0MBQUKqhYWFxgYGRkbEREQERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgICAwMFBQAAAgAAAAADkAOQABsAtgAANw8CFR8FIT8FNS8FIQ8BARc7AR8KDxArAS8WPwgnNw8BJyMfCRUfGj8WLwM1PwUzPwMvAQcjJyN1AgIBAQICAgMDAwYDAwICAgEBAgICAwP8+gMDAg8HOgUFBgkJAwQDAgULAQEDBAIFBwcLCw8SDA0OGBgZGwsMDAsMCwwLCA4HBgUKBgUEAwMDAgEHAQMDAwQECg0pHwEBpCyCJAImGg4MBQUCAwMCAgMFBAQFBgYHCAgKCgsMDQ4PEBASEhMTFRUlIhEPDw8bGAwLCwoSEA0LBgYHBQIDAQEIAwEBAgQBBiIKCwsMAgMKOCN1LM4CAwNJAwMCAgIBAQICAgMDSQMDAgICAQECApMBAgIFCAMJCw89fVYjHhgLDw8OEwwNDAgGBQYFAwECAwMEBQYECwYGBg8KDAwNDQ4PEJKxIAgFAgIEAQIDJgcEAQYuAwMEBAQFBBEl4jgfGhoODg0MDAsKCgkICQcIBgcFBQQEAgIBAQEEAgMEBAkKBgcHBw8QEBENDxoYESUqMLYYFRAFBQUBAQcCAgIQGwEFBQAEAAAAAAOQA5AAAwAjACcARQAAARUhNScfAh0BDwYvBj0BPwU7AR8BJRUhNQcrAQ8IETMVITUzES8HIzUhApb+1GsDAgICAgMEBAUFBQQFAwQCAgICBAMFBAUFBQQBm/7UZDIyCQ0HBgUEAwIBlgH0lgEBBQUGCAkKaf4MAZzIyKgEBAUFBQQEBAMDAQEBAQMDBAQEBQUFBAQDAgIBA+WWlpYBBQQFBgYHCAj+opaWAV4HCAsGBwUEAvoAAAEAAAAAA48DkABEAAABDwMVIw8GFR8GMxUfBjM/BjUzPwY1LwYjNS8GIw8CAawDBwQC+QsKCQgHBAICBAcICQoL+QIEBwgJCgtjCgoJCAcEAvkLCgkIBwQCAgQHCAkKC/kCBAcICQoKXgsKCgOABQkKCvoCBAcICQoLYwoKCQgHBAL5CwoJCAcEAgIEBwgJCgv5AgQHCAkKC2MKCgkIBwQC+goKCQgHBAIBAwUAAAAABQAAAAADwgPCAAMABwAJAFUAmwAAARUhNQEVIzUHNSMVHw8hPw81FxEjNS8PIQ8PFSMRNQ8PER8PIT8PETUvDzECyP5wASyWlmQBAQIEBAUGBgcICAkJCgoKASwKCgoJCQgIBwYGBQQDAwEBljIBAQMDBAUGBgcICAkJCgoK/nAKCgoJCQgIBwYGBQQDAwEBMgoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKArwKCgoJCQgIBwYGBQQEAgEBAgIDBAQGBp8HBwcICAgJCgFqyMgB9MjIyMjICgoKCQkICAcGBgUEAwMBAQEBAwMEBQYGBwgICQkKCgq+oP3uyAoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKyAK8ZAEBAgQEBQYGBwgICQkKCgr9RAoKCgkJCAgHBgYFBAQCAQEBAQIEBAUGBgcICAkJCgoKAhIKCQkJCQgHCKkHBQUFAwMCAgAAAAACAAAAAAOQA5AAbQCxAAABHwQPCC8IPQEPFhUfAQ8ELw4/Fz0BPwgfAiUPBxEfDyE/DxEvDyEPBgJ7uAQDAgEBAgMEuAUFBgcGAwgFAwMCAgEjHxsYCwoJCQgIBgcGBgYFBAMDAgIBAQIFAQIEBgQDBAMDChMRDQsIAwMBAQECAwIHBQUGBwgKCgwNDw8REhQWGBocHB8BAgIDAwUFBwcGBQX+JgoJCAYFAwIBAQIDBQYICQoLDAwNDg4PDwH0Dw8ODgwNDAsKCQgGBQMCAQECAwUGCAkKCwwNDA4ODw/+DA8PDg4NDAwDM7gFBQYHBwYFBbgEAwIBAQEDAwMEBAUEBlMBAgQFBAMEBQUGBgcICQoLDA0ODxAREhIpLwUFAwIBAQECAg8cHBsaGgwNDAwbHRsOHw8PDQ0NDA0MDAsJCQgHBgYEAwIBUwUFBQQDBAMCAgEBAgMtCwwNDQ0ODw/+DA8PDg0NDQwLCgkIBgUDAgEBAgMFBggJCgsMDQ0NDg8PAfQPDw4NDQ0MCwoJCAYFAwIBAQIDBQYICQAAAwAAAAADbgOPADEAVgC4AAABMx8TFQ8PLwYTPwITHwsPDy8BAz8BMx8BJyMHHwkTDwg3Fz8VLw8/Di8TAhEKFhcLCgkJCQkJCAkHCAUEBAMCAgEBAgQFBwgKDA0OEBITFRYYERITEwEDBAEEERdUDw4ODQ0LCQgHBQMBAQMEBgcJCgwODg4QEBIUFCAZBBQiHhEQ2Q+iAioZEwkGAQECBQQCBQMDAwUaRQHxyRcXFhUWFRUUExEQBw4MCwkDBAICAgEBAwQGBwkLDQ0PEBAREhMTDScTFQkIBgYFBQQEAwEBAQMEBggJCwsNDQ8PERARERIREkECBwMFAwMEBQYGBwkJCgsJCgoLDQ0NDxUUEhEQDg0MCgkHBgUDAgEBAwUIAhAyAQQBAwEBSwQFBggICgsNDhAQEhUTEhAODQsJBwcFBAMCAQEBAwEUAwQBAzUGKwQEBAMEAgILVv4rIR4ICAcBCA0xCwICAgMEBgcICgoMDQcPERMUCwsMDAwZExMREBAPDg4MCwsJCAcGBQYUCw8IBwcICQoLDAwMDhMSEhAQDg0MCgoJCAcGBQQDAgEBAAAAAAMAAAAAA/QDcAAqAFYAuQAAAR8GFQ8MJS8FPQE/CwMzHwYVHwYhHwYVIQ8IET8GJw8HER8PJT8OPQEvCiM1Lw8hPQEvDiMPBgOVBwUFBAMCAgEBAwSaCAgKDAsMCwv9wAYFAwMDAQIDBJoICAoMCwwLCjIFCgkIBwYDAgIEBQgICQkBOAoJCAcGAwL+bhISEhMSEA4NhgIEBQcJCQlNCAgFBQQDAQEBAQMEBQUICAgKCQsKCwsMAkMSEhMTEQ8NoQYEBQMDAQICAgQDBwkKDAwNDmsBAgIEBQYHCAkJCgoKCwwM/uMCAgQFBgcICQkKCgsLCwyoCwwLCgsJCgHfAQEBAgMDAwUEBQYFvggHBwYFBAIBAQEBAgMDAwUEBQYGvggHBwUFBAIBAU8CBAUICAkJLAoJCAcGAwICBAUICAkJWQEEBgcKCwwNpQHECQkJBwUEAiAJCQoKCgsMDP4KDAwLCgoKCQkIBwYFBAMBAQECBAcJCgwMxQgIBwgICAgICQkJCQYKCQgHBAQBVAwMCwoKCgkJCAcGBQQDAQEQDAwLCgoKCQkIBwYFBAMBAQEBAwQFBgcAAAAABQAAAAADXgOQACEAQwBlAGkAxQAAAREPBy8HET8HHwYHEQ8HLwcRPwcfBgcRDwcvBxE/Bx8GNxcjNycHIw8HFR8HMxEVHw0zITM/DTURMz8HNS8HIy8IIw8GApYBAQIDBAQFBQUFBAQDAgEBAQECAwQEBQUFBQQEAwIBfAEBAgMEBAUFBQUEBAMCAQEBAQIDBAQFBQUFBAQDAgF8AQECAwQEBQUFBQQEAwIBAQEBAgMEBAUFBQUEBAMCAbAU1xRCIn0FBQQEAwIBAQEBAgMEBAUFGQIBAwMEBAUFBgYHBwcHCAHCCAcHBwcGBgUFBAQDAwECGQUFBAQDAgEBAQECAwQEBQWWIgQFBwcICAkKvwkKCAgHBwUCcP68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEzzIyJFYBAQIDBAQFBRkFBQQEAwIBAf3zCAcHBwcGBgUFBAQDAwECAgEDAwQEBQUGBgcHBwcIAg0BAQIDBAQFBRkFBQQEAwIBAVYICAcFBQMCAQECAwUFBwgAAAAAAQAAAAADjwOPAOgAAAEPBy8DKwEPBx0BHwY7Aj8ILwQ/Bx8dDx4vESsBDwUVHxAzPx4vHisBDwUBbBIRERAPEA4OSAQFBAUEBQoEBAMCAgEBAgMEBQYGBuoFBQQEBAMDBAEBAQECA0sTFBUXGBgZGQ0ODQ0NDA0MGAsLCwoJCQkJBwgHBgYKBQMDAwEBAQEBAQMDAwUKBgYHCAcJCQkJCgsLCwwMDA0MDQ0NDg0PEA8ODw4ODg4NDAwMCgsMAgQDBAQDAkgDAQMPDxARERMTFBQUFRUWFhYWFBQUExQTEhMSEhEQEA8ODg0MDAsKCgkICAYGBAMDAQEBAQMDBAYGCAgJCgoLDAwNDg4PEBAREhITEhMUExQUFBMTExITEhIDcwcJCQoKCw0MRgMCAgEEAwMEBAQFBukGBwUFBQMCAQICAwQECgQFBQQEBUsRDgwKCAYEAQEBAQIDBAQFDAYHBwgJCAkKCgsKDAsZDA0NDQ0NDg0ODQ0NDA0YDAsLCwoJCggJBwgHBgYGBAUDAwMBAQEBAQIDBAUFBggHCQkKCwsOAgIBAQJIBQYGBhAQDw4NCwsKCQgGBgQDAQECAgQEBgYICAkKCgsMDA0ODg8QEBESEhITExQTFBQUFBQUExQTExISEhEQEA8ODg0MDAsKCgkICAYGBAQCAgICAwQFBgABAAAAAAMKA48AKAAAATMfBBUHCwEPBjcfAj8CLwE3Ez8GBysBLwEBkAYiGg8HBwM1QwUGBg8QRgl7giwiJgYCYAEIWRkIBAtjBgSNGR8gjANaAwQDAwMNF/7x/soPDAoHBRItCgEGBAIbGBAPLwGZiiEKBB0YFggBBwAABAAAAAAEAAQAAAMABwALACMAAAEVITUhFSE1ARUhNQMzFSERIxEhESM1IRUjESERIxEhNTMRIQPA/wD+gP8AAkD+wEDA/sCAAYDAAoDAAYCA/oDA/kABAMDAwMACwMDA/wCA/wD+wAFAwMD+wAFAAQCAAUAAAAAAAQAAAAAEAAQAAHYAAAEHIREhLwcPDx8PPw8hETMfDz8PLw8PBgMSAf7v/u8LCwwNDw8REQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NDQ0MDAsLCQoIBwcFBAMCAQFAwAECAwQFBwcICgkLCwwMDQ0NDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDRERDw8NDAsDwgL9ABAMCgkHBgMBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NAwANDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAwYHCQoMAAAAAAQAAAAAA/8EAAAWAFcAbQCrAAABDwEVHxAFAQUVDw8vDz8PHw4DEQ8PJwMjEQMzAyEnHwEzPx09AS8TESEBwgEBAQIDBQYHCAoKDAwNDw8PEjP92QEcAkABBAUICQsNDxAREhQUFhYXFxYVFRQSERAPDQsJCAUEAQEEBQgJCw0PEBESFBUVFhcXFhYUFBIREA8NCwkIBQT/FxESEBEPEA4ODQ0LCwsJC1uMtEDS0gMARxUSDw4PDg4NDg0NDAwMCwsKCwkJCQgHBwcFBQUEAwMBAgECAgMDBAkMDQ8RExQVFxgZDA0S/QABwgcNDhQUFBMSEhIQEA8PDQ0MCwphAQIAoAwLFhYUFBIREA8NCwkIBQQBAQQFCAkLDQ8QERIUFBYWFxcWFhQUEhEQDw0LCQgFBAEBBAUICQsNDxAREhQUFhYCCf7+AwQFBgcICQoLDAwNDg4PFqf/AAIA/cD+gIMCAQECAwMEBQUFBwcHCAkJCQoLCwsMDAwNDQ0ODg4PDg8ODQ0ODA0NGBcWFBMSEA4MCggDAwIBQgAAAAAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABABsAAQABAAAAAAACAAcAHAABAAAAAAADABsAIwABAAAAAAAEABsAPgABAAAAAAAFAAsAWQABAAAAAAAGABsAZAABAAAAAAAKACwAfwABAAAAAAALABIAqwADAAEECQAAAAIAvQADAAEECQABADYAvwADAAEECQACAA4A9QADAAEECQADADYBAwADAAEECQAEADYBOQADAAEECQAFABYBbwADAAEECQAGADYBhQADAAEECQAKAFgBuwADAAEECQALACQCEyBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJSZWd1bGFyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyVmVyc2lvbiAxLjBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJGb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAFIAZQBnAHUAbABhAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIAVgBlAHIAcwBpAG8AbgAgADEALgAwAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACgBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0BDgEPARABEQESARMBFAEVARYBFwEYARkBGgEbARwBHQEeAR8BIAEhASIBIwEkASUBJgEnASgBKQAHWm9vbUluTQhab29tT3V0TQpVbmRlcmxpbmVNBlByaW50TQROZXdNBVNhdmVNB0V4cG9ydE0FQm9sZE0LT3BlbkZvbGRlck0HRGVsZXRlTQhSZWZyZXNoTQdJdGFsaWNNB1pvb21JbkYIWm9vbU91dEYGUHJpbnRGBE5ld0YFU2F2ZUYHRXhwb3J0RgVCb2xkRgtPcGVuRm9sZGVyRgdEZWxldGVGCFJlZnJlc2hGClVuZGVybGluZUYHSXRhbGljRgdab29tSW5CCFpvb21PdXRCClVuZGVybGluZUIGUHJpbnRCBE5ld0IFU2F2ZUIHRXhwb3J0QgVCb2xkQgtPcGVuRm9sZGVyQgdEZWxldGVCCFJlZnJlc2hCB0l0YWxpY0IKRmxvd1NoYXBlcwlDb25uZWN0b3ILQmFzaWNTaGFwZXMAAAAAAA==) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-ddb-icons {
font-family: 'e-ddb-icons';
speak: none;
font-size: 16px;
font-style: normal;
font-weight: normal;
font-variant: normal;
text-transform: none;
line-height: 1;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
}
.e-basic::before {
content: "\e726";
}
.e-flow::before {
content: "\e724";
}
.e-connector::before {
content: "\e725";
}
</style>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Symbol preview
The symbol preview size of the palette items can be customized using symbolPreview property of symbol palette.The width and height properties of symbolPreview allow you to define the preview size for all the symbol palette items. The The offset property specifies the position of the dragging helper relative to the mouse cursor.
The following code example illustrates how to change the preview size of a palette item.
/**
* Default symbol palette sample
*/
//Initialize the basicshapes for the symbol palatte
var basicShapes = [
{
id: 'Rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
tooltip: {
content: 'Rectangle Tooltip',
},
},
{
id: 'Ellipse',
shape: {
type: 'Basic',
shape: 'Ellipse',
},
},
{
id: 'Hexagon',
shape: {
type: 'Basic',
shape: 'Hexagon',
},
},
];
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'basic',
symbols: basicShapes,
title: 'Basic Shapes',
},
],
symbolHeight: 40,
symbolWidth: 40,
symbolPreview: {
height: 100,
width: 100,
offset: {
x: 0.5,
y: 0.5,
},
},
});
palette.appendTo('#element');
var diagram = new ej.diagrams.Diagram(
{
width: 1000,
height: 500,
},
'#diagram'
);<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
<div id="diagram"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>

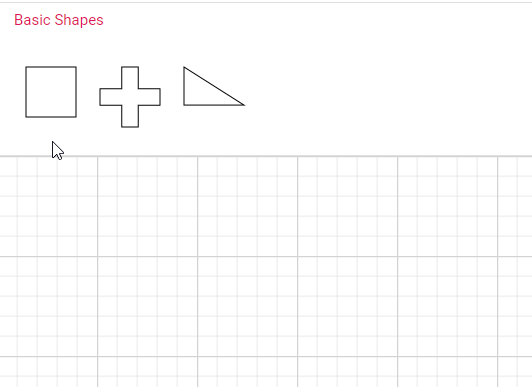

</body></html>Symbol drag size
The symbolDragSize property sets the dimensions (height and width) of a shape while it is being dragged from the palette to the diagram canvas. The following code illustrates how to set symbolDragSize for the symbol palette.
/**
* Default symbol palette sample
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
enableSearch: true,
// Defines the size of the shape while dragging it from the palette to the diagram canvas
symbolDragSize: { height: 30, width: 40 },
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
});
palette.appendTo('#element');
var diagram = new ej.diagrams.Diagram(
{
width: 1000,
height: 500,
},
'#diagram'
);<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
<div id="diagram"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>NOTE
If the size of the symbol is not defined, the default size will be determined based on its shape.
Expand Mode
You can customize whether to expand all the palettes of symbol palette at a time or to expand only one palette at a time. This customization can be done using the expandMode property of symbol palette.
You can customize whether to expand all the palettes of the symbol palette at a time or to expand only one palette at a time. This customization can be done using the expandMode property of the symbol palette.
The following example demonstrates how to set the expandMode property to control the expansion behavior of the palettes:
//Initialize the basicshapes for the symbol palette
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
shape: { type: 'Basic', shape: 'Rectangle' },
style: { strokeWidth: 2 },
},
{
id: 'Ellipse',
shape: { type: 'Basic', shape: 'RightTriangle' },
style: { strokeWidth: 2 },
},
{
id: 'Hexagon',
shape: { type: 'Basic', shape: 'Hexagon' },
style: { strokeWidth: 2 },
},
];
return basicShapes;
}
//Initialize the flowshapes for the symbol palette
function getFlowShapes() {
var flowShapes = [
{
id: 'Process',
shape: { type: 'Flow', shape: 'Process' },
style: { strokeWidth: 2 },
},
{
id: 'Document',
shape: { type: 'Flow', shape: 'Document' },
style: { strokeWidth: 2 },
},
];
return flowShapes;
}
//Initialize connectors for symbol palette
function getConnectors() {
var connectors = [
{
id: 'Straight',
type: 'Straight',
sourcePoint: { x: 0, y: 0 },
targetPoint: { x: 60, y: 60 },
targetDecorator: {
shape: 'Arrow',
style: { strokeColor: '#757575', fill: '#757575' },
},
style: { strokeWidth: 1, strokeColor: '#757575' },
},
{
id: 'Orthogonal',
type: 'Orthogonal',
sourcePoint: { x: 0, y: 0 },
targetPoint: { x: 60, y: 60 },
style: { strokeWidth: 1, strokeColor: '#757575' },
targetDecorator: { shape: 'Arrow' },
},
{
id: 'Bezier',
type: 'Bezier',
sourcePoint: { x: 0, y: 0 },
targetPoint: { x: 60, y: 60 },
targetDecorator: {
shape: 'Arrow',
style: { strokeColor: '#757575', fill: '#757575' },
},
style: { strokeWidth: 1, strokeColor: '#757575' },
},
];
return connectors;
}
var palette = new ej.diagrams.SymbolPalette({
//Expands only one palette at a time
expandMode: 'Single',
palettes: [
{
id: 'flow',
expanded: true,
symbols: getFlowShapes(),
title: 'Flow Shapes',
},
{
id: 'basic',
expanded: true,
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
{
id: 'connectors',
expanded: true,
symbols: getConnectors(),
title: 'Connectors',
},
],
width: '100%',
height: '100%',
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Restrict expand/collapse of the palette
The symbol palette panel can be restricted from expanding. When we click on the expand icon of the palette, the paletteExpanding event is triggered. In this event, we can determine whether the palette’s panel should be expanded or collapsed by utilizing the cancel argument of the event. By default, the panel is expanded. This restriction can be applied to each palette in the symbol palette as desired.
In the following code example, the basic shapes palette is restricted from expanding, and the flow shapes palette is restricted from collapsing, whereas the swimlane shapes palette can be expanded or collapsed:
/**
* symbol palette expand mode
*/
//Initialize basic shapes palette
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
shape: { type: 'Basic', shape: 'Rectangle' },
style: { strokeWidth: 2 },
},
{
id: 'Ellipse',
shape: { type: 'Basic', shape: 'Ellipse' },
style: { strokeWidth: 2 },
},
];
return basicShapes;
}
//Initialize the flowshapes for the symbol palette
function getFlowShapes() {
var flowShapes = [
{
id: 'Process',
shape: { type: 'Flow', shape: 'Process' },
style: { strokeWidth: 2 },
},
{
id: 'Document',
shape: { type: 'Flow', shape: 'Document' },
style: { strokeWidth: 2 },
},
];
return flowShapes;
}
//Initializes the symbol palette
var symbolPalette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'swimlaneShapes',
expanded: true,
title: 'Swimlane Shapes',
symbols: [
{
id: 'stackCanvas1',
shape: {
type: 'SwimLane',
lanes: [
{
id: 'lane1',
style: { fill: '#f5f5f5' },
height: 60,
width: 150,
header: { width: 50, height: 50, style: { fill: '#C7D4DF' } },
},
],
orientation: 'Horizontal',
isLane: true,
},
height: 60,
width: 140,
style: { fill: '#f5f5f5' },
offsetX: 70,
offsetY: 30,
},
],
},
{
id: 'basic',
expanded: false,
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
{
id: 'flow',
expanded: true,
symbols: getFlowShapes(),
title: 'Flow shapes',
},
],
symbolHeight: 50,
symbolWidth: 50,
symbolPreview: { width: 100, height: 100 },
expandMode: 'Multiple',
height: '400px',
width: '100%',
paletteExpanding: function (args) {
if (args.palette.id === 'flow' || args.palette.id === 'basic') {
// Basic shapes panel does not expand and flow shape panel does not collapse
args.cancel = true;
} else {
// Swimlane shapes panel collapse and expand
args.cancel === false;
}
},
});
symbolPalette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<style>
@font-face {
font-family: 'e-ddb-icons';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tShgAAAEoAAAAVmNtYXDon+lDAAACIAAAAIJnbHlmw/gRIAAAAvgAACw0aGVhZBGJTLcAAADQAAAANmhoZWEIXQQpAAAArAAAACRobXR4oAAAAAAAAYAAAACgbG9jYdYyye4AAAKkAAAAUm1heHABOAD4AAABCAAAACBuYW1ldAwInAAALywAAAMVcG9zdNAiwIsAADJEAAABuQABAAAEAAAAAFwEAAAAAAAEAAABAAAAAAAAAAAAAAAAAAAAKAABAAAAAQAAJo24vV8PPPUACwQAAAAAANc1g90AAAAA1zWD3QAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAoAOwABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnJgQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAAAAAIAAAADAAAAFAADAAEAAAAUAAQAbgAAAAQABAABAADnJv//AADnAP//AAAAAQAEAAAAAQACAAMABAAFAAYABwAIAAkACgALAAwADQAOAA8AEAARABIAEwAUABUAFgAXABgAGQAaABsAHAAdAB4AHwAgACEAIgAjACQAJQAmACcAAAAAAAABBAICAn4CxgLeAyYDeAQUBHAEoAWEBZwGkgd8B+YH/ghMCMIJaAnaClYLMAuqC7gMpg2ODmQOwg8aD9IQoBF6ElYTRhRGFIQUwBVMFhoAAAADAAAAAAPOA84ACwBnAOsAAAEjFTMVMzUzNSM1IwUVDxQrAS8VPxYfFQUVHx07AT8LFxUXNycjJz8ONS8fDx4Ban19P319PwEZAQICAwMECQwNEBESFBYWDAsMDQwNDQwNDQwMDAsXFRQTEQ8NDAkEBAMCAQEBAQEBAgMEBAkMDQ8RExQVFwsMDAwNDQwNDQwNDAsMFhYUEhEQDQwJBAMDAgIB/a8BAwMEBAYGBwgICQoKCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XfoyEgkICQcIBgYGBQQEAwMCAQEBAgMEBQUGBwgICQoKCwwMDA0ODg4PDxAPERARERESERESEBEQEBAPDw4ODQ0NDAsLCgoJCAgHBgYEBAMDAQKWP319P32cDQ0MDA0LDBYWFBIRDw4LCgQDAwICAQECAgMDBAoLDg8REhQWFgwLDQwMDQ0NDA0MDAwLFxUUExEPDQwKAwQDAgEBAQEBAQIDBAMKDA0PERMUFRcLDAwMDQwNEhERERAREA8PDw4ODg0MDAwLCgoJCAgHBgUFBAMCAgECAwMDBQUFBw0QEhMy+l76EwsLDAwNDQ4ODg8ODw8PEA8REhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAQEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIAAwAAAAADzgPOAAMAXwDjAAATITUhBRUPFCsBLxU/Fh8VBR8eOwE/CxcVFzcnIyc/Dj0BLx4PHu0BOP7IAZYBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDQ0NDAwNCwwWFhQSEQ8OCwoEAwMCAgH9rgEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XvoyEwkJCAgHBwYFBQUDAwMCAQICAwQFBQYHCAgJCgoLDAwMDQ4ODg8PDxAREBERERIREhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAlc/Hw0NDAwNCwwWFhQSEQ8OCwoEAwMCAgEBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDRIREREQERAPDw8ODg4NDAwMCwoKCQgIBwYFBQQDAgIBAgMDAwUFBQcNEBITMvpe+hMLCwwMDQ0ODg4PDg8PDxAPERIREBEQEBAPDw4ODQ0NDAsLCwkJCQcHBgYFAwQCAQEBAQIEAwUGBgcHCQkJCwsLDA0NDQ4ODw8QEBAREBESAAAAAAIAAAAAA3cD1AADAGkAADchNSETFR8dOwE/HTURIxEPDy8PAyOJAu79Ej8BAgMDBQQGBgcICAkJCgoLCwwMDQ0ODQ8ODw8PEBAQEBAQDw8PDg8NDg0NDAwLCwoKCQkICAcGBgQFAwMCAXwCAwUHCAoLDQ4OEBARERESEhERERAQDg4NCwUJCAYEAgF8K30BdxAQDxAPDw4ODg4NDA0LDAsKCgkJCAgGBwUFBAQDAgEBAgMEBAUFBwYICAkJCgoLDAsNDA0ODg4ODw8QDxAQAbb+ShQTExERDw4OCwsJBwYFAgEBAgUGBwkLCw0PBxAREhMUAcAAAAAABAAAAAAD9AO1AAMABwAvADMAAAEVITUlFSM1IREzFSE1MxEvDyEPDjchNSECvP6IAjN9/RK8AnC8AQIDBAUGBwgJCgoLDAsNDf0SDQwMDAsKCggJBwYFBAMCuwJw/ZABg7u7u3x8/si8vAE4DQ0MCwsKCgkIBwYGBAMCAQECAwQGBgcICQoKCwwMDK+8AAAAAQAAAAADdwN3AAsAAAEhFSERMxEhNSERIwHC/scBOXwBOf7HfAI+fP7HATl8ATkABAAAAAADdwN3AAMABwALADIAACUzNSMBFSM1IxUhNSMRFzMRIRE7AT8HNRE1LwcjISMPBwGDfX0BtT4+/kp9fT4BeHwFBAoLCgkHBQICBQcJCgsKBAX9kAUECgsKCQcFAsi7AbU+Pvr6/c59ATn+xwIFBwkKCwoEBQJwBQQKCwoJBwUCAgUHCQoLCgQAAAAAAgAAAAADtQP0ADcAPgAAExEfCTMhMz8JES8JKwEVMxEhETM1KwEPCDczETMRMydKAQEBBQcICgsGBwYC7gYHBgsKCAcFAQEBAQEBBQcICgsGBwZ9Pv2QPn0GBwYLCggHBQEB+X58frwCvP2OBgYGCwoJBgUCAQECBQYJCgsGBgYCcgYGBgsKCQYFAgF9/gwB9H0BAgUGCQoLBgZ2/ooBdrwAAAADAAAAAAMoA3cAIgBFAIUAAAEfDw8OKwE1EzMfDR0BDw4jNQMhPw8vDz8MLw8hAi8KCQkJCAcIBgYGBAQEAgEBAQECBAQEBgYGCAcJCAkJCpx9CQoJCAgIBwcGBQUEAwMBAQMDBAUFBgcHCAgICQoJfbwBhxQVExMRERAODQwKCQcFAwEBAQMEBAYGCAgJCQsLCwwNExAPBgYFBQQDAwIBAQECBAcICgwNDxASEhQVFRb+nQHCAQEDAwQEBgYHBwgICAkKCQoJCQkICAcHBgUFBAMCArwBOAICAwQFBQYHBwgICQkJCgkKCQgJBwgGBgYEBAMDAQG8/Y8BAwUHCQoLDg4QEBITExQVDw8ODg4NDQwLCwsJCQgIBg8PEggKCQoKCQsKCgoLFhYUFBMREA8NDAoJBgQDAAACAAAAAAP0A5YAAwBJAAABESERJxEfDjMhMz8OES8OIyEnKwEPDQN3/RJ9AQIDBAUGCAgJCQoLDAwMDQLuDQwMDAsKCQkICAYFBAMCAQECAwQFBggICQkKCwwMDA3+iX36DQwMDAsKCQkICAYFBAMCApz+SwG1ff3ODQwMDAsKCgkIBwYFBQMCAgMFBQYHCAkKCgsMDAwNAbUNDAwMCwoKCQgHBgUFAwJ9AgMFBQYHCAkKCgsMDAwAAgAAAAADdwO1ABkAIQAANxUfCSE/CTURITcjFSE1IzUjyAEBBQcICgsGBwYB9AYHBgsKCAcFAQH9kLv6Au76+okGBwYLCggHBQEBAQEBAQUHCAoLBgcGAjO7fX0/AAAAAQAAAAADdwN3ANEAABMhJz8LOwEfHR0BDx0jLw8jHx47AT8dPQEvHSMPDyeJATmKCxYXGQwNDQ0NDg0ODg8ODg4ODQ0NDA0LDAsKCwkKCAkIBwcGBQUFBAMCAgEBAgIDBAUFBQYHBwgJCAoJCwoLDAsNDA0NDQ4ODg4PGBgXFxYUFBMSEA8NDAsIB14EBAQFBgcHCAgJCQoLCwsMDA0ODQ4PDw8PEBAREBESERMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgICAgQEBQYHBwgKCQsLDAwNDg4PDxAQEBESEhISExMTExISExESEREREA8QDg8NDXECPooJEQ8NBQUFAwQCAgEBAgIEAwUFBQcGCAcJCQkKCgoLDAwMDA0NDQ4ODg8ODw4ODg4NDQ0MDQsMCwoLCQoICQgHBwYFBQUEAwICAQEDBQcJCwwODxESExUVFhcQEBAPDw8PDg4ODQwNCwwKCwkKCAgIBwYFBQQEAgICAgIEBAUGBwcICgkLCwwMDQ4ODw8QEBAREhISEhMTExMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgIBAQIEBAUHBggJCQoLCwwNcQAAAQAAAAADdwN3AAsAAAEzAyMVITUjEzM1IQGDoeS3AfSh5Lf+DAL6/gx9fQH0fQAAAwAAAAADvAO8AAsAbADWAAABIxUzFTM1MzUjNSM3Hw8dAQ8VKwEvFDUnNzU/FDsBHwUnDxIdAR8WPwcBHwI7AT8FPQEvAgE/By8WKwEPAQFZb284b284fQwKFRMSEA4NCgUEAwMCAgEBAgIDAwQFCg0OEBITFRYLDAwMDAwNDQ0MDQwMDAwLFhUTEREODAsFBAMDAgIBAQICAwMEBQsMDhERExUWCwwMDAwNDA0NDQwMDAwMpxMTEhERDxAODQ0LCwkICAYEBAICBAQGBwkJCwsNDQ4PEBEREhMTFBQUFRsaGhkYGBYVAVUEBQUGBQUFBAQCAgICBP6sEA4MCggGAwIBAgMFBgcJCQoMDA4ODxARERISFBMVFBUVFBQCpzhvbzhvWwUGDA4QEhMVFgsMDAwMDQwNDQwNDAwMDAsWFRMSEA4MCwUEAwMCAgEBAgIDAwQFCwwOEBITFRYLDAwMDA0MDQ0MDQwMDAwLFhUTEhAODAsFBAMDAgIBAQICAwMEPAYICAkLCw0NDhAPERESExMUFBQVFRQVExQSEhEREA8ODgwMCgkJBwYFAwIBAgMGCAoMDhD+rAQCAgICBAQFBQUGBQUEAVUVFhgYGRoaGxUUFBQTExIREQ8QDg0NCwsJCAgGBAQCAgQAAAAAAwAAAAADuQO8AAMAYQDLAAATITUhNx8OHQEPFSsBLxU9AT8UHwYnDxMVHxY/BwEfAjsBPwU9AS8CAT8HLxYrAQ8B7AEW/urtDBUTExAPDgsKBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDQwNDQwMDAwMCxYUExIQDgwLBAQEAgICAQECAgMEBAoLDg8REhQVFwwMDAwMDRkNDA0MCwymExMREhAQDw4ODQsLCQgIBgUDAgECBAQGBwgKCgsNDQ4PEBAREhMTExQVFRoaGhkZFxYWAVEEBQUFBgUEBQMDAgICBP6vEA4NCggGAwIBAgMFBgcICQoMDA0PDw8RERISExQUFBUVFBQCbzfLBgsODxESFBYWDAwMDAwNDQwNDA0MCwwLFhUTERAODQoFBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDA0NDQwMDAwMFhUUEhEPDQwJBAMDAgIBAQEBAgMEBD0GBwgJCwsMDg4PEBAREhIUExQVFBUVFBMTExIREQ8QDg0NDAoKCAcGBQQCAQEEBQgKDA4Q/qsEAgICAgQEBQUFBQYEBQFVFRYYGBkZGhsVFBQUExMSEREPDw8NDQsLCQkHBgUDAwIEAAAABQAAAAADvAO8AAMAIwArAC8ASgAAARUhNScPAh0BHwU7AT8FPQEvBSsBDwElESM1IRUjEQERIREDKwEPBhEzFSE1MxEvBiMRIQKn/rKeBAICAgIEBAUFBQYFBQQEAgICAgQEBQUGBQUFAsan/kSnAiz+sjenBgoKCQgGBALeAbzeAgQGCAkKC6z+RAFZ3t6fBAUFBQYFBQQEAgICAgQEBQUGBQUFBAQCAgICPP6yp6cBTgFN/uoBFv7qAgUGBwkKC/52b28BigsKCQgFBQIBTQAAAAABAAAAAAO8A7wACwAAASEVIREzESE1IREjAeT+YAGgOAGg/mA4Ahw4/mABoDgBoAAEAAAAAAO8A7wABwALABgAMwAAARUjNSMVIzUBESERIxEhETMRIxEhESMnESMRFyE/BhEvBiEPBgJvpzc4Ab391DcCmjje/ntSVTdvAtgKCgkIBgQCAgQGCAkKCvzwCwoKCAcFAwFZ3qen3gIs/rMBTf57AYX89gEW/upVArX9Lm8CBAYICQoKAxYKCgkIBgQCAQMFBwgKCgAAAAADAAAAAAO8A5EABwAyAGAAADchNQcVIREjBQc1Iw8OPxUzNQcrAQ8WFT8PFQkBRAKwOv3DOQMnsU8XFhYWFhUWFRUVFBQUExMFBgcJCgoMDA4OEBAREhITGRgWFxcXNDoODRsbGhkYGBcWFBQTEREPDgwLCQgEBQMCFBUWFhgYGRkaGhsbGxwcHQE7/sVvrDo5AgRWsVsCAgIEBAYGBggICQoLCwwUFBMTExEREQ8PDg0MCwkJCgcEAwIBWyIDBQYICQsNDQ8RERMUFRUXGBgZDRobG0cTExIQEA4NDAoJCAYFBAIBrAE7ATsAAAMAAAAAAvoDhAAiAEUAkAAAATMfDR0BDw4jNRMfDw8OKwE1AzsBPxU1Lw41Pw81Lw4jAckSERAPDgwLCgkIBgYEAwICAwQFBgcICgoLDA0ODxBjXhAPDg4MCwkJCAcGBAQDAQEBAgMEBQcHCQsKDA0ODhAQVG/tDhsaGRgWFRQTCAgHBwYGBQQEAwMCAQECBAUGCAoKDA0ODw8REhIPDg4NDAsKCQkHBgUEAwEBAgQGCAoLDhAREhQVFxga9wHIAQIDBAUFBwcICQoLCw0NDQwLCwoJCQgHBgUEBAIBAd4BTgEBAgMDBAUGBwcJCQkLCwwPDQwMCwoJCQcHBQQEAgLe/WUCBAYICQwNEAgICQkKCQoLCgsLCwwZExMSEBAPDg0MCgoIBwUEAwMFBwcICQoLDAwNDg4PDxAQChMSERAPDg0NCgoHBgUDAgAAAwAAAAAD9AN3AAMAHwBUAAABAyETJzMfDCEVIQ8HAxEnDwYRIRM/Aj0BLwgjNS8IJS8MIw8BA7a8/WS8JAgHBgYLCgoVBQ0OEAkKAXL+IAkJCAcHBwUFlhkFCgkGBQIBAxXMAwICAQIFBgkKCwYGhAEBBQcICgsGB/6LBwYGCwoKFQUNDhAJCr0GBgI+/okBd/oBAQIFBwcQAwcGBAIBfQEBAwQFBgcI/tMCCzoCBwkKCwYG/UoBmgcHBwcGBgYLCgkGBQIBgwcGCwoIBwUBAQEBAQIFBwcQAwcGBAIBAQIAAAAABgAAAAADaQO8AAMABwALAB8AIwBeAAAlMxEjAzMRIwMzESMlEQ8HIS8GNRElFSM1Jw8FFSMVMxEfDjMhMz8OETM1IzUvBiMHAlM4OG84OG84OAGFAQEDAwUEBQb+RAYFBAUDAwIBTaYWBQkHBgQD3jcBAQIDAwUEBgYGBwcICAgJAbwJCAgIBwcGBgYEBQMDAgEBN94DBAYHCQoLrAzqAb3+QwG9/kMBvW/9gQYFBAUDAwEBAQEDAwUEBQYCf284ODMCBggJCgo+N/2BCQgICAcHBgYGBAQEAwIBAQIDBAQFBQYGBwcICAgJAn83PgsKCAgGBAIBAAABAAAAAAO8A7wAxgAAAQ8MNSMVMzUjPw8fFw8XLx4HHx4zPxcvFyMPAQGKDg4cGhoZFxcVFBMQEDfegQ0OEBITFBUWGBgZGhsbGxwaGhoZGRcXFhUUFBIREA4ODAoJCAYFAgEBAgUGCAkKDA4OEBESFBQVFhcXGQwaGRsdEBAQEA8PDw8PDg4ODQ0MDAwLCwsKChIIBwcHBgUENgUGBwcICQkKCwsLDA0NDQ4PDg8QEBAREREREhISEhITHh4dHRwbGhkZFxYUFBIRDw4MCgkHBAMBAQMFBgkLDA0PERIUFBYXGRkaGxwdHR4eHh4dA60FBAsMDhARExQWGBgad984GRcXFRQSEQ8ODAoJBgUDAQECBQYHCQsMDQ8QERITFRUWFxcZGRkaGxobGRkYGBcWFRQTExEQDg4MCgkIAwUEAgEBAQIDBAQFBgYGBwgICQkKCgoMCwwMGg4ODg8PDw8OEhIREBEQDw8PDg4NDQwLCwsKCQkIBwcHBQUEAwMCAQEDBAcJCwwNDxESExUWFxkZGhscHR0eHh4eHR0cGxoZGRcWFBQSEQ8ODAoJBwQDAQMFAAAAAgAAAAADFQO8AAMAaAAANyE1IREfHjsBPx4RIxEPDiMvDgMj6gIs/dQBAQEDAwMFBQYGBggHCAkJCgoKCwsMDA0MDQ4NDg0PDg4ODg4NDQ0NDQwLDAoLCgkKCAkHBwcGBgUEBAMDAQEBOAIFBgkLDA0PEBITFBUWFhcWFhQVExERDw0MCgkHBAIBN0Q3AU0ODg4ODQ0NDQwMDAsLCwoJCQkICAcHBgYFBAQDAgIBAQICAwQEBQYGBwcICAkJCQoLCwsMDAwNDQ0NDg4ODgH0/gEWFhUUExERDw0MCwgHBAMDBAcICwwNDxERExQVFhYB/wAAAAEAAAAAArEDvAADAAAlMwEjAU86ASg6RAN4AAADAAAAAAOQA5AACwBMANMAAAEjFTMVMzUzNSM1IzcfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBnGRkZGRkZL8HBw0LCQcFAwEBAwUHCQsNDhERERMUFBUWFRUVExMSERAPDAsJBwUDAQEDBQcJCwwPEBESExMVFRUWFRUTExER/vUPDw8NDgwMDAsLCgkJCAcHBwUFAwMCAgICAwMFBQcHBwgJCQoLCwsNDA4NDw4QEBAQEBEQEREbGRkYGBcWFqoEBQYFBgYNDAUFCgkHAwEDAwEDB6kODAsIBwQDAQEBAgMEBAYGBwcICQoJCwsMDAwODQ8PDxAQEBARERASERARERAQEAJkZGRkZGQOCAkRERMTFRUWFRUVExMREREODQsJBwUDAQEDBQcJCw0OERERExMVFRUWFRUTExEREQ4NCwkHBQMBAQMFBwkLDZEHBwgJCQoLCwsNDA4NDw8PEBAQEBEQERESEBEREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAQMEBwgLDA6pBAMCAgIBAgIDBwkKBQUMDQwFBQqqFhYXGBgZGRsRERAREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAgIDAwUFAAMAAAAAA5ADkAADAEQAywAAASE1ISUfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBOAEs/tQBIwcHDQsJBwUDAQEDBQcJCw0OERERExQUFRYVFRUTExIREA8MCwkHBQMBAQMFBwkLDA8QERITExUVFRYVFRMTERH+9Q8PDw0ODAwMCwsKCQkIBwcHBQUDAwICAgIDAwUFBwcHCAkJCgsLCw0MDg0PDhAQEBAQERARERsZGRgYFxYWqgQFBgUGBg0MBQUKCQcDAQMDAQMHqQ4MCwgHBAMBAQECAwQEBgYHBwgJCgkLCwwMDA4NDw8PEBAQEBEREBIREBEREBAQAgBkcggJERETExUVFhUVFRMTERERDg0LCQcFAwEBAwUHCQsNDhERERMTFRUVFhUVExMREREODQsJBwUDAQEDBQcJCw2RBwcICQkKCwsLDQwODQ8PDxAQEBAREBEREhARERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgEDBAcICwwOqQQDAgICAQICAwcJCgUFDA0MBQUKqhYWFxgYGRkbEREQERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgICAwMFBQAAAgAAAAADkAOQABsAtgAANw8CFR8FIT8FNS8FIQ8BARc7AR8KDxArAS8WPwgnNw8BJyMfCRUfGj8WLwM1PwUzPwMvAQcjJyN1AgIBAQICAgMDAwYDAwICAgEBAgICAwP8+gMDAg8HOgUFBgkJAwQDAgULAQEDBAIFBwcLCw8SDA0OGBgZGwsMDAsMCwwLCA4HBgUKBgUEAwMDAgEHAQMDAwQECg0pHwEBpCyCJAImGg4MBQUCAwMCAgMFBAQFBgYHCAgKCgsMDQ4PEBASEhMTFRUlIhEPDw8bGAwLCwoSEA0LBgYHBQIDAQEIAwEBAgQBBiIKCwsMAgMKOCN1LM4CAwNJAwMCAgIBAQICAgMDSQMDAgICAQECApMBAgIFCAMJCw89fVYjHhgLDw8OEwwNDAgGBQYFAwECAwMEBQYECwYGBg8KDAwNDQ4PEJKxIAgFAgIEAQIDJgcEAQYuAwMEBAQFBBEl4jgfGhoODg0MDAsKCgkICQcIBgcFBQQEAgIBAQEEAgMEBAkKBgcHBw8QEBENDxoYESUqMLYYFRAFBQUBAQcCAgIQGwEFBQAEAAAAAAOQA5AAAwAjACcARQAAARUhNScfAh0BDwYvBj0BPwU7AR8BJRUhNQcrAQ8IETMVITUzES8HIzUhApb+1GsDAgICAgMEBAUFBQQFAwQCAgICBAMFBAUFBQQBm/7UZDIyCQ0HBgUEAwIBlgH0lgEBBQUGCAkKaf4MAZzIyKgEBAUFBQQEBAMDAQEBAQMDBAQEBQUFBAQDAgIBA+WWlpYBBQQFBgYHCAj+opaWAV4HCAsGBwUEAvoAAAEAAAAAA48DkABEAAABDwMVIw8GFR8GMxUfBjM/BjUzPwY1LwYjNS8GIw8CAawDBwQC+QsKCQgHBAICBAcICQoL+QIEBwgJCgtjCgoJCAcEAvkLCgkIBwQCAgQHCAkKC/kCBAcICQoKXgsKCgOABQkKCvoCBAcICQoLYwoKCQgHBAL5CwoJCAcEAgIEBwgJCgv5AgQHCAkKC2MKCgkIBwQC+goKCQgHBAIBAwUAAAAABQAAAAADwgPCAAMABwAJAFUAmwAAARUhNQEVIzUHNSMVHw8hPw81FxEjNS8PIQ8PFSMRNQ8PER8PIT8PETUvDzECyP5wASyWlmQBAQIEBAUGBgcICAkJCgoKASwKCgoJCQgIBwYGBQQDAwEBljIBAQMDBAUGBgcICAkJCgoK/nAKCgoJCQgIBwYGBQQDAwEBMgoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKArwKCgoJCQgIBwYGBQQEAgEBAgIDBAQGBp8HBwcICAgJCgFqyMgB9MjIyMjICgoKCQkICAcGBgUEAwMBAQEBAwMEBQYGBwgICQkKCgq+oP3uyAoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKyAK8ZAEBAgQEBQYGBwgICQkKCgr9RAoKCgkJCAgHBgYFBAQCAQEBAQIEBAUGBgcICAkJCgoKAhIKCQkJCQgHCKkHBQUFAwMCAgAAAAACAAAAAAOQA5AAbQCxAAABHwQPCC8IPQEPFhUfAQ8ELw4/Fz0BPwgfAiUPBxEfDyE/DxEvDyEPBgJ7uAQDAgEBAgMEuAUFBgcGAwgFAwMCAgEjHxsYCwoJCQgIBgcGBgYFBAMDAgIBAQIFAQIEBgQDBAMDChMRDQsIAwMBAQECAwIHBQUGBwgKCgwNDw8REhQWGBocHB8BAgIDAwUFBwcGBQX+JgoJCAYFAwIBAQIDBQYICQoLDAwNDg4PDwH0Dw8ODgwNDAsKCQgGBQMCAQECAwUGCAkKCwwNDA4ODw/+DA8PDg4NDAwDM7gFBQYHBwYFBbgEAwIBAQEDAwMEBAUEBlMBAgQFBAMEBQUGBgcICQoLDA0ODxAREhIpLwUFAwIBAQECAg8cHBsaGgwNDAwbHRsOHw8PDQ0NDA0MDAsJCQgHBgYEAwIBUwUFBQQDBAMCAgEBAgMtCwwNDQ0ODw/+DA8PDg0NDQwLCgkIBgUDAgEBAgMFBggJCgsMDQ0NDg8PAfQPDw4NDQ0MCwoJCAYFAwIBAQIDBQYICQAAAwAAAAADbgOPADEAVgC4AAABMx8TFQ8PLwYTPwITHwsPDy8BAz8BMx8BJyMHHwkTDwg3Fz8VLw8/Di8TAhEKFhcLCgkJCQkJCAkHCAUEBAMCAgEBAgQFBwgKDA0OEBITFRYYERITEwEDBAEEERdUDw4ODQ0LCQgHBQMBAQMEBgcJCgwODg4QEBIUFCAZBBQiHhEQ2Q+iAioZEwkGAQECBQQCBQMDAwUaRQHxyRcXFhUWFRUUExEQBw4MCwkDBAICAgEBAwQGBwkLDQ0PEBAREhMTDScTFQkIBgYFBQQEAwEBAQMEBggJCwsNDQ8PERARERIREkECBwMFAwMEBQYGBwkJCgsJCgoLDQ0NDxUUEhEQDg0MCgkHBgUDAgEBAwUIAhAyAQQBAwEBSwQFBggICgsNDhAQEhUTEhAODQsJBwcFBAMCAQEBAwEUAwQBAzUGKwQEBAMEAgILVv4rIR4ICAcBCA0xCwICAgMEBgcICgoMDQcPERMUCwsMDAwZExMREBAPDg4MCwsJCAcGBQYUCw8IBwcICQoLDAwMDhMSEhAQDg0MCgoJCAcGBQQDAgEBAAAAAAMAAAAAA/QDcAAqAFYAuQAAAR8GFQ8MJS8FPQE/CwMzHwYVHwYhHwYVIQ8IET8GJw8HER8PJT8OPQEvCiM1Lw8hPQEvDiMPBgOVBwUFBAMCAgEBAwSaCAgKDAsMCwv9wAYFAwMDAQIDBJoICAoMCwwLCjIFCgkIBwYDAgIEBQgICQkBOAoJCAcGAwL+bhISEhMSEA4NhgIEBQcJCQlNCAgFBQQDAQEBAQMEBQUICAgKCQsKCwsMAkMSEhMTEQ8NoQYEBQMDAQICAgQDBwkKDAwNDmsBAgIEBQYHCAkJCgoKCwwM/uMCAgQFBgcICQkKCgsLCwyoCwwLCgsJCgHfAQEBAgMDAwUEBQYFvggHBwYFBAIBAQEBAgMDAwUEBQYGvggHBwUFBAIBAU8CBAUICAkJLAoJCAcGAwICBAUICAkJWQEEBgcKCwwNpQHECQkJBwUEAiAJCQoKCgsMDP4KDAwLCgoKCQkIBwYFBAMBAQECBAcJCgwMxQgIBwgICAgICQkJCQYKCQgHBAQBVAwMCwoKCgkJCAcGBQQDAQEQDAwLCgoKCQkIBwYFBAMBAQEBAwQFBgcAAAAABQAAAAADXgOQACEAQwBlAGkAxQAAAREPBy8HET8HHwYHEQ8HLwcRPwcfBgcRDwcvBxE/Bx8GNxcjNycHIw8HFR8HMxEVHw0zITM/DTURMz8HNS8HIy8IIw8GApYBAQIDBAQFBQUFBAQDAgEBAQECAwQEBQUFBQQEAwIBfAEBAgMEBAUFBQUEBAMCAQEBAQIDBAQFBQUFBAQDAgF8AQECAwQEBQUFBQQEAwIBAQEBAgMEBAUFBQUEBAMCAbAU1xRCIn0FBQQEAwIBAQEBAgMEBAUFGQIBAwMEBAUFBgYHBwcHCAHCCAcHBwcGBgUFBAQDAwECGQUFBAQDAgEBAQECAwQEBQWWIgQFBwcICAkKvwkKCAgHBwUCcP68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEzzIyJFYBAQIDBAQFBRkFBQQEAwIBAf3zCAcHBwcGBgUFBAQDAwECAgEDAwQEBQUGBgcHBwcIAg0BAQIDBAQFBRkFBQQEAwIBAVYICAcFBQMCAQECAwUFBwgAAAAAAQAAAAADjwOPAOgAAAEPBy8DKwEPBx0BHwY7Aj8ILwQ/Bx8dDx4vESsBDwUVHxAzPx4vHisBDwUBbBIRERAPEA4OSAQFBAUEBQoEBAMCAgEBAgMEBQYGBuoFBQQEBAMDBAEBAQECA0sTFBUXGBgZGQ0ODQ0NDA0MGAsLCwoJCQkJBwgHBgYKBQMDAwEBAQEBAQMDAwUKBgYHCAcJCQkJCgsLCwwMDA0MDQ0NDg0PEA8ODw4ODg4NDAwMCgsMAgQDBAQDAkgDAQMPDxARERMTFBQUFRUWFhYWFBQUExQTEhMSEhEQEA8ODg0MDAsKCgkICAYGBAMDAQEBAQMDBAYGCAgJCgoLDAwNDg4PEBAREhITEhMUExQUFBMTExITEhIDcwcJCQoKCw0MRgMCAgEEAwMEBAQFBukGBwUFBQMCAQICAwQECgQFBQQEBUsRDgwKCAYEAQEBAQIDBAQFDAYHBwgJCAkKCgsKDAsZDA0NDQ0NDg0ODQ0NDA0YDAsLCwoJCggJBwgHBgYGBAUDAwMBAQEBAQIDBAUFBggHCQkKCwsOAgIBAQJIBQYGBhAQDw4NCwsKCQgGBgQDAQECAgQEBgYICAkKCgsMDA0ODg8QEBESEhITExQTFBQUFBQUExQTExISEhEQEA8ODg0MDAsKCgkICAYGBAQCAgICAwQFBgABAAAAAAMKA48AKAAAATMfBBUHCwEPBjcfAj8CLwE3Ez8GBysBLwEBkAYiGg8HBwM1QwUGBg8QRgl7giwiJgYCYAEIWRkIBAtjBgSNGR8gjANaAwQDAwMNF/7x/soPDAoHBRItCgEGBAIbGBAPLwGZiiEKBB0YFggBBwAABAAAAAAEAAQAAAMABwALACMAAAEVITUhFSE1ARUhNQMzFSERIxEhESM1IRUjESERIxEhNTMRIQPA/wD+gP8AAkD+wEDA/sCAAYDAAoDAAYCA/oDA/kABAMDAwMACwMDA/wCA/wD+wAFAwMD+wAFAAQCAAUAAAAAAAQAAAAAEAAQAAHYAAAEHIREhLwcPDx8PPw8hETMfDz8PLw8PBgMSAf7v/u8LCwwNDw8REQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NDQ0MDAsLCQoIBwcFBAMCAQFAwAECAwQFBwcICgkLCwwMDQ0NDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDRERDw8NDAsDwgL9ABAMCgkHBgMBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NAwANDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAwYHCQoMAAAAAAQAAAAAA/8EAAAWAFcAbQCrAAABDwEVHxAFAQUVDw8vDz8PHw4DEQ8PJwMjEQMzAyEnHwEzPx09AS8TESEBwgEBAQIDBQYHCAoKDAwNDw8PEjP92QEcAkABBAUICQsNDxAREhQUFhYXFxYVFRQSERAPDQsJCAUEAQEEBQgJCw0PEBESFBUVFhcXFhYUFBIREA8NCwkIBQT/FxESEBEPEA4ODQ0LCwsJC1uMtEDS0gMARxUSDw4PDg4NDg0NDAwMCwsKCwkJCQgHBwcFBQUEAwMBAgECAgMDBAkMDQ8RExQVFxgZDA0S/QABwgcNDhQUFBMSEhIQEA8PDQ0MCwphAQIAoAwLFhYUFBIREA8NCwkIBQQBAQQFCAkLDQ8QERIUFBYWFxcWFhQUEhEQDw0LCQgFBAEBBAUICQsNDxAREhQUFhYCCf7+AwQFBgcICQoLDAwNDg4PFqf/AAIA/cD+gIMCAQECAwMEBQUFBwcHCAkJCQoLCwsMDAwNDQ0ODg4PDg8ODQ0ODA0NGBcWFBMSEA4MCggDAwIBQgAAAAAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABABsAAQABAAAAAAACAAcAHAABAAAAAAADABsAIwABAAAAAAAEABsAPgABAAAAAAAFAAsAWQABAAAAAAAGABsAZAABAAAAAAAKACwAfwABAAAAAAALABIAqwADAAEECQAAAAIAvQADAAEECQABADYAvwADAAEECQACAA4A9QADAAEECQADADYBAwADAAEECQAEADYBOQADAAEECQAFABYBbwADAAEECQAGADYBhQADAAEECQAKAFgBuwADAAEECQALACQCEyBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJSZWd1bGFyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyVmVyc2lvbiAxLjBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJGb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAFIAZQBnAHUAbABhAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIAVgBlAHIAcwBpAG8AbgAgADEALgAwAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACgBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0BDgEPARABEQESARMBFAEVARYBFwEYARkBGgEbARwBHQEeAR8BIAEhASIBIwEkASUBJgEnASgBKQAHWm9vbUluTQhab29tT3V0TQpVbmRlcmxpbmVNBlByaW50TQROZXdNBVNhdmVNB0V4cG9ydE0FQm9sZE0LT3BlbkZvbGRlck0HRGVsZXRlTQhSZWZyZXNoTQdJdGFsaWNNB1pvb21JbkYIWm9vbU91dEYGUHJpbnRGBE5ld0YFU2F2ZUYHRXhwb3J0RgVCb2xkRgtPcGVuRm9sZGVyRgdEZWxldGVGCFJlZnJlc2hGClVuZGVybGluZUYHSXRhbGljRgdab29tSW5CCFpvb21PdXRCClVuZGVybGluZUIGUHJpbnRCBE5ld0IFU2F2ZUIHRXhwb3J0QgVCb2xkQgtPcGVuRm9sZGVyQgdEZWxldGVCCFJlZnJlc2hCB0l0YWxpY0IKRmxvd1NoYXBlcwlDb25uZWN0b3ILQmFzaWNTaGFwZXMAAAAAAA==) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-ddb-icons {
font-family: 'e-ddb-icons';
speak: none;
font-size: 16px;
font-style: normal;
font-weight: normal;
font-variant: normal;
text-transform: none;
line-height: 1;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
}
.e-basic::before {
content: "\e726";
}
.e-flow::before {
content: "\e724";
}
.e-connector::before {
content: "\e725";
}
</style>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Tooltip for symbols in symbol palette
The Symbol palette supports displaying tooltips when mouse hovers over the symbols. You can customize the tooltip for each symbol in the symbol palette.
Default tooltip for symbols
When hovering over symbols in the symbol palette, the default tooltip displays the symbol’s ID.

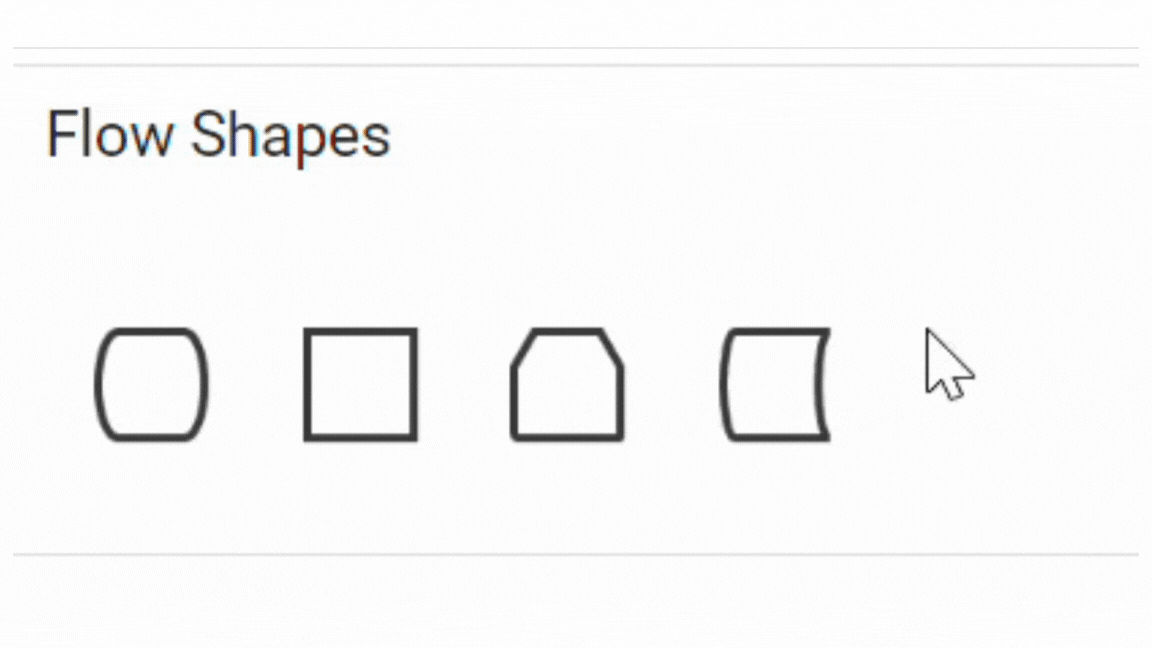

Refer to the image below for an illustration of the tooltip behavior in the symbol palette.
Custom tooltip for symbols
To customize the tooltips for symbols in the symbol palette, assign a custom tooltip to the content property of tooltip for each symbol. Once you define the custom tooltip, enable the Tooltip constraints for each symbol to ensure the tooltips are displayed when users hover over them.
The code provided below demonstrates how to define tooltip content for symbols within a symbol palette.
/**
* Symbol palette tooltip
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
// Defines the tooltip for the shape
tooltip: { content: 'Rectangle Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
// Defines the tooltip for the shape
tooltip: { content: 'Plus Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
// Defines the tooltip for the shape
tooltip: { content: 'RightTriangle Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>How to enable or disable the default tooltip for shapes in the symbol palette
«««< HEAD
By default, the symbol ID is displayed as a tooltip when hovering over a symbol in the Symbol Palette. To disable this default tooltip, you can use the showTooltip property within the getSymbolInfo method. The showTooltip property is set to true by default, which enables the tooltip.
=======
By default, the symbol ID is displayed as a tooltip when hovering over a symbol in the Symbol Palette. To disable this default tooltip, you can use the showTooltip property within the getSymbolInfo method. The showTooltip property is set to true by default, which enables the tooltip.
6d423ae3a72932cc7a70f3b683cc6314d695c6cf
The following example demonstrates how to configure selective tooltip display:
function getBasicShapes() {
var basicShapes = [
{
id: 'Rectangle',
shape: { type: 'Basic', shape: 'Rectangle' },
},
{ id: 'Ellipse', shape: { type: 'Basic', shape: 'Ellipse' } },
{ id: 'Hexagon', shape: { type: 'Basic', shape: 'Triangle' } },
{ id: 'Star', shape: { type: 'Basic', shape: 'Hexagon' } },
{ id: 'Pentagon', shape: { type: 'Basic', shape: 'Parallelogram' } },
{ id: 'Diamond', shape: { type: 'Basic', shape: 'Diamond' } },
{ id: 'Pentagon', shape: { type: 'Basic', shape: 'Pentagon' } },
{ id: 'Heptagon', shape: { type: 'Basic', shape: 'Heptagon' } },
];
return basicShapes;
}
function getFlowShapes() {
var flowShapes = [
{ id: 'Terminator', shape: { type: 'Flow', shape: 'Terminator' } },
{ id: 'Process', shape: { type: 'Flow', shape: 'Process' } },
{ id: 'Decision', shape: { type: 'Flow', shape: 'Decision' } },
{ id: 'Document', shape: { type: 'Flow', shape: 'Document' } },
{
id: 'PreDefinedProcess',
shape: { type: 'Flow', shape: 'PreDefinedProcess' },
},
{ id: 'DirectData', shape: { type: 'Flow', shape: 'DirectData' } },
{ id: 'SequentialData', shape: { type: 'Flow', shape: 'Card' } },
{ id: 'Sort', shape: { type: 'Flow', shape: 'Collate' } },
];
return flowShapes;
}
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
palettes: [
{
id: 'flow',
expanded: true,
symbols: getFlowShapes(),
title: 'Flow Shapes',
},
{
id: 'basic',
expanded: true,
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
getNodeDefaults: function (symbol) {
symbol.style.fill = '#6495ED';
symbol.style.strokeColor = '#6495ED';
},
width: '600px',
height: '300px',
symbolHeight: 70,
symbolWidth: 70,
symbolPreview: { height: 80, width: 80 },
symbolMargin: { left: 15, right: 15, top: 15, bottom: 15 },
getSymbolInfo: function (symbol) {
return { showTooltip: true };
},
});
palette.appendTo('#element');
document.getElementById('showTooltip').onclick = function (args) {
var checkBox = document.getElementById('showTooltip');
palette.getSymbolInfo = function (symbol) {
return { showTooltip: checkBox.checked };
};
palette.dataBind();
};<!DOCTYPE html>
<html lang="en">
<head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div class='container'>
<div id='element' style="width:25%;height:550px;"></div>
<input id="showTooltip" checked type="checkbox">Show Tooltip
</div>
<script>
var ele = document.getElementById('container');
if (ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body>
</html>NOTE
This property is effective only when tooltip constraints are disabled for the symbol palette element.
How to provide different tooltip for Symbol palette and diagram elements.
To differentiate the tooltips between symbols in the symbol palette and the dropped nodes, utilize the dragEnter event. In the symbol palette, you can define tooltips for the symbols. When a symbol is dragged from the symbol palette and enters the diagram canvas, the dragEnter event is triggered. Within this event, you can define a new tooltip for the dropped node. By assigning custom tooltip content to the node.
The following code example demonstrates how to define different tooltips for the same symbol in the symbol palette and for the dropped node in the diagram canvas.
/**
* Symbol palette tooltip
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
// Defines the tooltip for the shape
tooltip: { content: 'Rectangle Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
// Defines the tooltip for the shape
tooltip: { content: 'Plus Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
// Defines the tooltip for the shape
tooltip: { content: 'RightTriangle Basic shape', relativeMode: 'Object' },
constraints:
ej.diagrams.NodeConstraints.Default |
ej.diagrams.NodeConstraints.Tooltip,
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
});
palette.appendTo('#element');
var diagram = new ej.diagrams.Diagram(
{
width: 1000,
height: 500,
dragEnter: function (args) {
let node = args.element;
node.tooltip.content = 'New ' + node.id + ' tooltip';
diagram.dataBind();
},
},
'#diagram'
);<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
<div id='diagram'></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>The following image illustrates the differentiation of tooltips displayed in the Symbol Palette and the Diagram.
The following code snippet will demonstrate how to define two different tooltip for symbol in the symbol palette and dropped node in the diagram canvas.
Localization
«««< HEAD
To localize the symbol palette search box, we need to define the locale property of the symbol palette with our preferred culture. In the example below, we use de-DE, which is the locale code for German as used in Germany.
=======
To localize the symbol palette search box, we need to define the locale property of the symbol palette with our preferred culture. In the example below, we use ‘de-DE’, which is the locale code for German as used in Germany.
6d423ae3a72932cc7a70f3b683cc6314d695c6cf
The following code shows how to localize symbol palette.
/**
* Locale symbol palette sample
*/
//Initialize the basicshapes for the symbol palatte
var basicShapes = [{
id: 'Rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle'
}
},
{
id: 'Ellipse',
shape: {
type: 'Basic',
shape: 'Ellipse'
}
},
{
id: 'Hexagon',
shape: {
type: 'Basic',
shape: 'Hexagon'
}
}
];
// Set the default culture to German
ej.base.setCulture('de')
// Load locale text for the SearchShapes
ej.base.L10n.load({
'de-DE': {
SymbolPalette: {
'SearchShapes':'Formen suchen',
}
}
});
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
expandMode: 'Multiple',
locale:'de-DE',
enableSearch: true,
palettes: [{
id: 'basic',
expanded: true,
symbols: basicShapes,
title: 'Basic Shapes',
iconCss: 'e-ddb-icons e-basic'
}],
symbolHeight: 80,
symbolWidth: 80,
symbolMargin: {
left: 15,
right: 15,
top: 15,
bottom: 15
}
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<style>
@font-face {
font-family: 'e-ddb-icons';
src: url(data:application/x-font-ttf;charset=utf-8;base64,AAEAAAAKAIAAAwAgT1MvMj1tShgAAAEoAAAAVmNtYXDon+lDAAACIAAAAIJnbHlmw/gRIAAAAvgAACw0aGVhZBGJTLcAAADQAAAANmhoZWEIXQQpAAAArAAAACRobXR4oAAAAAAAAYAAAACgbG9jYdYyye4AAAKkAAAAUm1heHABOAD4AAABCAAAACBuYW1ldAwInAAALywAAAMVcG9zdNAiwIsAADJEAAABuQABAAAEAAAAAFwEAAAAAAAEAAABAAAAAAAAAAAAAAAAAAAAKAABAAAAAQAAJo24vV8PPPUACwQAAAAAANc1g90AAAAA1zWD3QAAAAAEAAQAAAAACAACAAAAAAAAAAEAAAAoAOwABgAAAAAAAgAAAAoACgAAAP8AAAAAAAAAAQQAAZAABQAAAokCzAAAAI8CiQLMAAAB6wAyAQgAAAIABQMAAAAAAAAAAAAAAAAAAAAAAAAAAAAAUGZFZABA5wDnJgQAAAAAXAQAAAAAAAABAAAAAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAQAAAAEAAAABAAAAAAAAAIAAAADAAAAFAADAAEAAAAUAAQAbgAAAAQABAABAADnJv//AADnAP//AAAAAQAEAAAAAQACAAMABAAFAAYABwAIAAkACgALAAwADQAOAA8AEAARABIAEwAUABUAFgAXABgAGQAaABsAHAAdAB4AHwAgACEAIgAjACQAJQAmACcAAAAAAAABBAICAn4CxgLeAyYDeAQUBHAEoAWEBZwGkgd8B+YH/ghMCMIJaAnaClYLMAuqC7gMpg2ODmQOwg8aD9IQoBF6ElYTRhRGFIQUwBVMFhoAAAADAAAAAAPOA84ACwBnAOsAAAEjFTMVMzUzNSM1IwUVDxQrAS8VPxYfFQUVHx07AT8LFxUXNycjJz8ONS8fDx4Ban19P319PwEZAQICAwMECQwNEBESFBYWDAsMDQwNDQwNDQwMDAsXFRQTEQ8NDAkEBAMCAQEBAQEBAgMEBAkMDQ8RExQVFwsMDAwNDQwNDQwNDAsMFhYUEhEQDQwJBAMDAgIB/a8BAwMEBAYGBwgICQoKCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XfoyEgkICQcIBgYGBQQEAwMCAQEBAgMEBQUGBwgICQoKCwwMDA0ODg4PDxAPERARERESERESEBEQEBAPDw4ODQ0NDAsLCgoJCAgHBgYEBAMDAQKWP319P32cDQ0MDA0LDBYWFBIRDw4LCgQDAwICAQECAgMDBAoLDg8REhQWFgwLDQwMDQ0NDA0MDAwLFxUUExEPDQwKAwQDAgEBAQEBAQIDBAMKDA0PERMUFRcLDAwMDQwNEhERERAREA8PDw4ODg0MDAwLCgoJCAgHBgUFBAMCAgECAwMDBQUFBw0QEhMy+l76EwsLDAwNDQ4ODg8ODw8PEA8REhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAQEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIAAwAAAAADzgPOAAMAXwDjAAATITUhBRUPFCsBLxU/Fh8VBR8eOwE/CxcVFzcnIyc/Dj0BLx4PHu0BOP7IAZYBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDQ0NDAwNCwwWFhQSEQ8OCwoEAwMCAgH9rgEBAgQDBQYGBwcJCQkLCwsMDQ0NDg4PDxAQEBEQERIRDw8PDw4PDg4NDhoZGBP6XvoyEwkJCAgHBwYFBQUDAwMCAQICAwQFBQYHCAgJCgoLDAwMDQ4ODg8PDxAREBERERIREhEQERAQEA8PDg4NDQ0MCwsLCQkJBwcGBgUDBAIBAlc/Hw0NDAwNCwwWFhQSEQ8OCwoEAwMCAgEBAgIDAwQKCw4PERIUFhYMCw0MDA0NDQwNDAwMCxcVFBMRDw0MCgMEAwIBAQEBAQECAwQDCgwNDxETFBUXCwwMDA0MDRIREREQERAPDw8ODg4NDAwMCwoKCQgIBwYFBQQDAgIBAgMDAwUFBQcNEBITMvpe+hMLCwwMDQ0ODg4PDg8PDxAPERIREBEQEBAPDw4ODQ0NDAsLCwkJCQcHBgYFAwQCAQEBAQIEAwUGBgcHCQkJCwsLDA0NDQ4ODw8QEBAREBESAAAAAAIAAAAAA3cD1AADAGkAADchNSETFR8dOwE/HTURIxEPDy8PAyOJAu79Ej8BAgMDBQQGBgcICAkJCgoLCwwMDQ0ODQ8ODw8PEBAQEBAQDw8PDg8NDg0NDAwLCwoKCQkICAcGBgQFAwMCAXwCAwUHCAoLDQ4OEBARERESEhERERAQDg4NCwUJCAYEAgF8K30BdxAQDxAPDw4ODg4NDA0LDAsKCgkJCAgGBwUFBAQDAgEBAgMEBAUFBwYICAkJCgoLDAsNDA0ODg4ODw8QDxAQAbb+ShQTExERDw4OCwsJBwYFAgEBAgUGBwkLCw0PBxAREhMUAcAAAAAABAAAAAAD9AO1AAMABwAvADMAAAEVITUlFSM1IREzFSE1MxEvDyEPDjchNSECvP6IAjN9/RK8AnC8AQIDBAUGBwgJCgoLDAsNDf0SDQwMDAsKCggJBwYFBAMCuwJw/ZABg7u7u3x8/si8vAE4DQ0MCwsKCgkIBwYGBAMCAQECAwQGBgcICQoKCwwMDK+8AAAAAQAAAAADdwN3AAsAAAEhFSERMxEhNSERIwHC/scBOXwBOf7HfAI+fP7HATl8ATkABAAAAAADdwN3AAMABwALADIAACUzNSMBFSM1IxUhNSMRFzMRIRE7AT8HNRE1LwcjISMPBwGDfX0BtT4+/kp9fT4BeHwFBAoLCgkHBQICBQcJCgsKBAX9kAUECgsKCQcFAsi7AbU+Pvr6/c59ATn+xwIFBwkKCwoEBQJwBQQKCwoJBwUCAgUHCQoLCgQAAAAAAgAAAAADtQP0ADcAPgAAExEfCTMhMz8JES8JKwEVMxEhETM1KwEPCDczETMRMydKAQEBBQcICgsGBwYC7gYHBgsKCAcFAQEBAQEBBQcICgsGBwZ9Pv2QPn0GBwYLCggHBQEB+X58frwCvP2OBgYGCwoJBgUCAQECBQYJCgsGBgYCcgYGBgsKCQYFAgF9/gwB9H0BAgUGCQoLBgZ2/ooBdrwAAAADAAAAAAMoA3cAIgBFAIUAAAEfDw8OKwE1EzMfDR0BDw4jNQMhPw8vDz8MLw8hAi8KCQkJCAcIBgYGBAQEAgEBAQECBAQEBgYGCAcJCAkJCpx9CQoJCAgIBwcGBQUEAwMBAQMDBAUFBgcHCAgICQoJfbwBhxQVExMRERAODQwKCQcFAwEBAQMEBAYGCAgJCQsLCwwNExAPBgYFBQQDAwIBAQECBAcICgwNDxASEhQVFRb+nQHCAQEDAwQEBgYHBwgICAkKCQoJCQkICAcHBgUFBAMCArwBOAICAwQFBQYHBwgICQkJCgkKCQgJBwgGBgYEBAMDAQG8/Y8BAwUHCQoLDg4QEBITExQVDw8ODg4NDQwLCwsJCQgIBg8PEggKCQoKCQsKCgoLFhYUFBMREA8NDAoJBgQDAAACAAAAAAP0A5YAAwBJAAABESERJxEfDjMhMz8OES8OIyEnKwEPDQN3/RJ9AQIDBAUGCAgJCQoLDAwMDQLuDQwMDAsKCQkICAYFBAMCAQECAwQFBggICQkKCwwMDA3+iX36DQwMDAsKCQkICAYFBAMCApz+SwG1ff3ODQwMDAsKCgkIBwYFBQMCAgMFBQYHCAkKCgsMDAwNAbUNDAwMCwoKCQgHBgUFAwJ9AgMFBQYHCAkKCgsMDAwAAgAAAAADdwO1ABkAIQAANxUfCSE/CTURITcjFSE1IzUjyAEBBQcICgsGBwYB9AYHBgsKCAcFAQH9kLv6Au76+okGBwYLCggHBQEBAQEBAQUHCAoLBgcGAjO7fX0/AAAAAQAAAAADdwN3ANEAABMhJz8LOwEfHR0BDx0jLw8jHx47AT8dPQEvHSMPDyeJATmKCxYXGQwNDQ0NDg0ODg8ODg4ODQ0NDA0LDAsKCwkKCAkIBwcGBQUFBAMCAgEBAgIDBAUFBQYHBwgJCAoJCwoLDAsNDA0NDQ4ODg4PGBgXFxYUFBMSEA8NDAsIB14EBAQFBgcHCAgJCQoLCwsMDA0ODQ4PDw8PEBAREBESERMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgICAgQEBQYHBwgKCQsLDAwNDg4PDxAQEBESEhISExMTExISExESEREREA8QDg8NDXECPooJEQ8NBQUFAwQCAgEBAgIEAwUFBQcGCAcJCQkKCgoLDAwMDA0NDQ4ODg8ODw4ODg4NDQ0MDQsMCwoLCQoICQgHBwYFBQUEAwICAQEDBQcJCwwODxESExUVFhcQEBAPDw8PDg4ODQwNCwwKCwkKCAgIBwYFBQQEAgICAgIEBAUGBwcICgkLCwwMDQ4ODw8QEBAREhISEhMTExMTExISEhIREBAQDw8ODg0MDAsLCQoIBwcGBQQEAgIBAQIEBAUHBggJCQoLCwwNcQAAAQAAAAADdwN3AAsAAAEzAyMVITUjEzM1IQGDoeS3AfSh5Lf+DAL6/gx9fQH0fQAAAwAAAAADvAO8AAsAbADWAAABIxUzFTM1MzUjNSM3Hw8dAQ8VKwEvFDUnNzU/FDsBHwUnDxIdAR8WPwcBHwI7AT8FPQEvAgE/By8WKwEPAQFZb284b284fQwKFRMSEA4NCgUEAwMCAgEBAgIDAwQFCg0OEBITFRYLDAwMDAwNDQ0MDQwMDAwLFhUTEREODAsFBAMDAgIBAQICAwMEBQsMDhERExUWCwwMDAwNDA0NDQwMDAwMpxMTEhERDxAODQ0LCwkICAYEBAICBAQGBwkJCwsNDQ4PEBEREhMTFBQUFRsaGhkYGBYVAVUEBQUGBQUFBAQCAgICBP6sEA4MCggGAwIBAgMFBgcJCQoMDA4ODxARERISFBMVFBUVFBQCpzhvbzhvWwUGDA4QEhMVFgsMDAwMDQwNDQwNDAwMDAsWFRMSEA4MCwUEAwMCAgEBAgIDAwQFCwwOEBITFRYLDAwMDA0MDQ0MDQwMDAwLFhUTEhAODAsFBAMDAgIBAQICAwMEPAYICAkLCw0NDhAPERESExMUFBQVFRQVExQSEhEREA8ODgwMCgkJBwYFAwIBAgMGCAoMDhD+rAQCAgICBAQFBQUGBQUEAVUVFhgYGRoaGxUUFBQTExIREQ8QDg0NCwsJCAgGBAQCAgQAAAAAAwAAAAADuQO8AAMAYQDLAAATITUhNx8OHQEPFSsBLxU9AT8UHwYnDxMVHxY/BwEfAjsBPwU9AS8CAT8HLxYrAQ8B7AEW/urtDBUTExAPDgsKBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDQwNDQwMDAwMCxYUExIQDgwLBAQEAgICAQECAgMEBAoLDg8REhQVFwwMDAwMDRkNDA0MCwymExMREhAQDw4ODQsLCQgIBgUDAgECBAQGBwgKCgsNDQ4PEBAREhMTExQVFRoaGhkZFxYWAVEEBQUFBgUEBQMDAgICBP6vEA4NCggGAwIBAgMFBgcICQoMDA0PDw8RERISExQUFBUVFBQCbzfLBgsODxESFBYWDAwMDAwNDQwNDA0MCwwLFhUTERAODQoFBAMDAgEBAQICAwMEBQsMDxASExQWDAsMDA0MDA0NDQwMDAwMFhUUEhEPDQwJBAMDAgIBAQEBAgMEBD0GBwgJCwsMDg4PEBAREhIUExQVFBUVFBMTExIREQ8QDg0NDAoKCAcGBQQCAQEEBQgKDA4Q/qsEAgICAgQEBQUFBQYEBQFVFRYYGBkZGhsVFBQUExMSEREPDw8NDQsLCQkHBgUDAwIEAAAABQAAAAADvAO8AAMAIwArAC8ASgAAARUhNScPAh0BHwU7AT8FPQEvBSsBDwElESM1IRUjEQERIREDKwEPBhEzFSE1MxEvBiMRIQKn/rKeBAICAgIEBAUFBQYFBQQEAgICAgQEBQUGBQUFAsan/kSnAiz+sjenBgoKCQgGBALeAbzeAgQGCAkKC6z+RAFZ3t6fBAUFBQYFBQQEAgICAgQEBQUGBQUFBAQCAgICPP6yp6cBTgFN/uoBFv7qAgUGBwkKC/52b28BigsKCQgFBQIBTQAAAAABAAAAAAO8A7wACwAAASEVIREzESE1IREjAeT+YAGgOAGg/mA4Ahw4/mABoDgBoAAEAAAAAAO8A7wABwALABgAMwAAARUjNSMVIzUBESERIxEhETMRIxEhESMnESMRFyE/BhEvBiEPBgJvpzc4Ab391DcCmjje/ntSVTdvAtgKCgkIBgQCAgQGCAkKCvzwCwoKCAcFAwFZ3qen3gIs/rMBTf57AYX89gEW/upVArX9Lm8CBAYICQoKAxYKCgkIBgQCAQMFBwgKCgAAAAADAAAAAAO8A5EABwAyAGAAADchNQcVIREjBQc1Iw8OPxUzNQcrAQ8WFT8PFQkBRAKwOv3DOQMnsU8XFhYWFhUWFRUVFBQUExMFBgcJCgoMDA4OEBAREhITGRgWFxcXNDoODRsbGhkYGBcWFBQTEREPDgwLCQgEBQMCFBUWFhgYGRkaGhsbGxwcHQE7/sVvrDo5AgRWsVsCAgIEBAYGBggICQoLCwwUFBMTExEREQ8PDg0MCwkJCgcEAwIBWyIDBQYICQsNDQ8RERMUFRUXGBgZDRobG0cTExIQEA4NDAoJCAYFBAIBrAE7ATsAAAMAAAAAAvoDhAAiAEUAkAAAATMfDR0BDw4jNRMfDw8OKwE1AzsBPxU1Lw41Pw81Lw4jAckSERAPDgwLCgkIBgYEAwICAwQFBgcICgoLDA0ODxBjXhAPDg4MCwkJCAcGBAQDAQEBAgMEBQcHCQsKDA0ODhAQVG/tDhsaGRgWFRQTCAgHBwYGBQQEAwMCAQECBAUGCAoKDA0ODw8REhIPDg4NDAsKCQkHBgUEAwEBAgQGCAoLDhAREhQVFxga9wHIAQIDBAUFBwcICQoLCw0NDQwLCwoJCQgHBgUEBAIBAd4BTgEBAgMDBAUGBwcJCQkLCwwPDQwMCwoJCQcHBQQEAgLe/WUCBAYICQwNEAgICQkKCQoLCgsLCwwZExMSEBAPDg0MCgoIBwUEAwMFBwcICQoLDAwNDg4PDxAQChMSERAPDg0NCgoHBgUDAgAAAwAAAAAD9AN3AAMAHwBUAAABAyETJzMfDCEVIQ8HAxEnDwYRIRM/Aj0BLwgjNS8IJS8MIw8BA7a8/WS8JAgHBgYLCgoVBQ0OEAkKAXL+IAkJCAcHBwUFlhkFCgkGBQIBAxXMAwICAQIFBgkKCwYGhAEBBQcICgsGB/6LBwYGCwoKFQUNDhAJCr0GBgI+/okBd/oBAQIFBwcQAwcGBAIBfQEBAwQFBgcI/tMCCzoCBwkKCwYG/UoBmgcHBwcGBgYLCgkGBQIBgwcGCwoIBwUBAQEBAQIFBwcQAwcGBAIBAQIAAAAABgAAAAADaQO8AAMABwALAB8AIwBeAAAlMxEjAzMRIwMzESMlEQ8HIS8GNRElFSM1Jw8FFSMVMxEfDjMhMz8OETM1IzUvBiMHAlM4OG84OG84OAGFAQEDAwUEBQb+RAYFBAUDAwIBTaYWBQkHBgQD3jcBAQIDAwUEBgYGBwcICAgJAbwJCAgIBwcGBgYEBQMDAgEBN94DBAYHCQoLrAzqAb3+QwG9/kMBvW/9gQYFBAUDAwEBAQEDAwUEBQYCf284ODMCBggJCgo+N/2BCQgICAcHBgYGBAQEAwIBAQIDBAQFBQYGBwcICAgJAn83PgsKCAgGBAIBAAABAAAAAAO8A7wAxgAAAQ8MNSMVMzUjPw8fFw8XLx4HHx4zPxcvFyMPAQGKDg4cGhoZFxcVFBMQEDfegQ0OEBITFBUWGBgZGhsbGxwaGhoZGRcXFhUUFBIREA4ODAoJCAYFAgEBAgUGCAkKDA4OEBESFBQVFhcXGQwaGRsdEBAQEA8PDw8PDg4ODQ0MDAwLCwsKChIIBwcHBgUENgUGBwcICQkKCwsLDA0NDQ4PDg8QEBAREREREhISEhITHh4dHRwbGhkZFxYUFBIRDw4MCgkHBAMBAQMFBgkLDA0PERIUFBYXGRkaGxwdHR4eHh4dA60FBAsMDhARExQWGBgad984GRcXFRQSEQ8ODAoJBgUDAQECBQYHCQsMDQ8QERITFRUWFxcZGRkaGxobGRkYGBcWFRQTExEQDg4MCgkIAwUEAgEBAQIDBAQFBgYGBwgICQkKCgoMCwwMGg4ODg8PDw8OEhIREBEQDw8PDg4NDQwLCwsKCQkIBwcHBQUEAwMCAQEDBAcJCwwNDxESExUWFxkZGhscHR0eHh4eHR0cGxoZGRcWFBQSEQ8ODAoJBwQDAQMFAAAAAgAAAAADFQO8AAMAaAAANyE1IREfHjsBPx4RIxEPDiMvDgMj6gIs/dQBAQEDAwMFBQYGBggHCAkJCgoKCwsMDA0MDQ4NDg0PDg4ODg4NDQ0NDQwLDAoLCgkKCAkHBwcGBgUEBAMDAQEBOAIFBgkLDA0PEBITFBUWFhcWFhQVExERDw0MCgkHBAIBN0Q3AU0ODg4ODQ0NDQwMDAsLCwoJCQkICAcHBgYFBAQDAgIBAQICAwQEBQYGBwcICAkJCQoLCwsMDAwNDQ0NDg4ODgH0/gEWFhUUExERDw0MCwgHBAMDBAcICwwNDxERExQVFhYB/wAAAAEAAAAAArEDvAADAAAlMwEjAU86ASg6RAN4AAADAAAAAAOQA5AACwBMANMAAAEjFTMVMzUzNSM1IzcfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBnGRkZGRkZL8HBw0LCQcFAwEBAwUHCQsNDhERERMUFBUWFRUVExMSERAPDAsJBwUDAQEDBQcJCwwPEBESExMVFRUWFRUTExER/vUPDw8NDgwMDAsLCgkJCAcHBwUFAwMCAgICAwMFBQcHBwgJCQoLCwsNDA4NDw4QEBAQEBEQEREbGRkYGBcWFqoEBQYFBgYNDAUFCgkHAwEDAwEDB6kODAsIBwQDAQEBAgMEBAYGBwcICQoJCwsMDAwODQ8PDxAQEBARERASERARERAQEAJkZGRkZGQOCAkRERMTFRUWFRUVExMREREODQsJBwUDAQEDBQcJCw0OERERExMVFRUWFRUTExEREQ4NCwkHBQMBAQMFBwkLDZEHBwgJCQoLCwsNDA4NDw8PEBAQEBEQERESEBEREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAQMEBwgLDA6pBAMCAgIBAgIDBwkKBQUMDQwFBQqqFhYXGBgZGRsRERAREBAQEA8PDw0ODA0LCwsKCQkIBwcHBQUDAwICAgIDAwUFAAMAAAAAA5ADkAADAEQAywAAASE1ISUfCA8PLw8/Dx8GJQ8WHQEfHTM/Bx8GMz8INS8EPwcvHisBDwUBOAEs/tQBIwcHDQsJBwUDAQEDBQcJCw0OERERExQUFRYVFRUTExIREA8MCwkHBQMBAQMFBwkLDA8QERITExUVFRYVFRMTERH+9Q8PDw0ODAwMCwsKCQkIBwcHBQUDAwICAgIDAwUFBwcHCAkJCgsLCw0MDg0PDhAQEBAQERARERsZGRgYFxYWqgQFBgUGBg0MBQUKCQcDAQMDAQMHqQ4MCwgHBAMBAQECAwQEBgYHBwgJCgkLCwwMDA4NDw8PEBAQEBEREBIREBEREBAQAgBkcggJERETExUVFhUVFRMTERERDg0LCQcFAwEBAwUHCQsNDhERERMTFRUVFhUVExMREREODQsJBwUDAQEDBQcJCw2RBwcICQkKCwsLDQwODQ8PDxAQEBAREBEREhARERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgEDBAcICwwOqQQDAgICAQICAwcJCgUFDA0MBQUKqhYWFxgYGRkbEREQERAQEBAPDw8NDgwNCwsLCgkJCAcHBwUFAwMCAgICAwMFBQAAAgAAAAADkAOQABsAtgAANw8CFR8FIT8FNS8FIQ8BARc7AR8KDxArAS8WPwgnNw8BJyMfCRUfGj8WLwM1PwUzPwMvAQcjJyN1AgIBAQICAgMDAwYDAwICAgEBAgICAwP8+gMDAg8HOgUFBgkJAwQDAgULAQEDBAIFBwcLCw8SDA0OGBgZGwsMDAsMCwwLCA4HBgUKBgUEAwMDAgEHAQMDAwQECg0pHwEBpCyCJAImGg4MBQUCAwMCAgMFBAQFBgYHCAgKCgsMDQ4PEBASEhMTFRUlIhEPDw8bGAwLCwoSEA0LBgYHBQIDAQEIAwEBAgQBBiIKCwsMAgMKOCN1LM4CAwNJAwMCAgIBAQICAgMDSQMDAgICAQECApMBAgIFCAMJCw89fVYjHhgLDw8OEwwNDAgGBQYFAwECAwMEBQYECwYGBg8KDAwNDQ4PEJKxIAgFAgIEAQIDJgcEAQYuAwMEBAQFBBEl4jgfGhoODg0MDAsKCgkICQcIBgcFBQQEAgIBAQEEAgMEBAkKBgcHBw8QEBENDxoYESUqMLYYFRAFBQUBAQcCAgIQGwEFBQAEAAAAAAOQA5AAAwAjACcARQAAARUhNScfAh0BDwYvBj0BPwU7AR8BJRUhNQcrAQ8IETMVITUzES8HIzUhApb+1GsDAgICAgMEBAUFBQQFAwQCAgICBAMFBAUFBQQBm/7UZDIyCQ0HBgUEAwIBlgH0lgEBBQUGCAkKaf4MAZzIyKgEBAUFBQQEBAMDAQEBAQMDBAQEBQUFBAQDAgIBA+WWlpYBBQQFBgYHCAj+opaWAV4HCAsGBwUEAvoAAAEAAAAAA48DkABEAAABDwMVIw8GFR8GMxUfBjM/BjUzPwY1LwYjNS8GIw8CAawDBwQC+QsKCQgHBAICBAcICQoL+QIEBwgJCgtjCgoJCAcEAvkLCgkIBwQCAgQHCAkKC/kCBAcICQoKXgsKCgOABQkKCvoCBAcICQoLYwoKCQgHBAL5CwoJCAcEAgIEBwgJCgv5AgQHCAkKC2MKCgkIBwQC+goKCQgHBAIBAwUAAAAABQAAAAADwgPCAAMABwAJAFUAmwAAARUhNQEVIzUHNSMVHw8hPw81FxEjNS8PIQ8PFSMRNQ8PER8PIT8PETUvDzECyP5wASyWlmQBAQIEBAUGBgcICAkJCgoKASwKCgoJCQgIBwYGBQQDAwEBljIBAQMDBAUGBgcICAkJCgoK/nAKCgoJCQgIBwYGBQQDAwEBMgoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKArwKCgoJCQgIBwYGBQQEAgEBAgIDBAQGBp8HBwcICAgJCgFqyMgB9MjIyMjICgoKCQkICAcGBgUEAwMBAQEBAwMEBQYGBwgICQkKCgq+oP3uyAoKCgkJCAgHBgYFBAMDAQEBAQMDBAUGBgcICAkJCgoKyAK8ZAEBAgQEBQYGBwgICQkKCgr9RAoKCgkJCAgHBgYFBAQCAQEBAQIEBAUGBgcICAkJCgoKAhIKCQkJCQgHCKkHBQUFAwMCAgAAAAACAAAAAAOQA5AAbQCxAAABHwQPCC8IPQEPFhUfAQ8ELw4/Fz0BPwgfAiUPBxEfDyE/DxEvDyEPBgJ7uAQDAgEBAgMEuAUFBgcGAwgFAwMCAgEjHxsYCwoJCQgIBgcGBgYFBAMDAgIBAQIFAQIEBgQDBAMDChMRDQsIAwMBAQECAwIHBQUGBwgKCgwNDw8REhQWGBocHB8BAgIDAwUFBwcGBQX+JgoJCAYFAwIBAQIDBQYICQoLDAwNDg4PDwH0Dw8ODgwNDAsKCQgGBQMCAQECAwUGCAkKCwwNDA4ODw/+DA8PDg4NDAwDM7gFBQYHBwYFBbgEAwIBAQEDAwMEBAUEBlMBAgQFBAMEBQUGBgcICQoLDA0ODxAREhIpLwUFAwIBAQECAg8cHBsaGgwNDAwbHRsOHw8PDQ0NDA0MDAsJCQgHBgYEAwIBUwUFBQQDBAMCAgEBAgMtCwwNDQ0ODw/+DA8PDg0NDQwLCgkIBgUDAgEBAgMFBggJCgsMDQ0NDg8PAfQPDw4NDQ0MCwoJCAYFAwIBAQIDBQYICQAAAwAAAAADbgOPADEAVgC4AAABMx8TFQ8PLwYTPwITHwsPDy8BAz8BMx8BJyMHHwkTDwg3Fz8VLw8/Di8TAhEKFhcLCgkJCQkJCAkHCAUEBAMCAgEBAgQFBwgKDA0OEBITFRYYERITEwEDBAEEERdUDw4ODQ0LCQgHBQMBAQMEBgcJCgwODg4QEBIUFCAZBBQiHhEQ2Q+iAioZEwkGAQECBQQCBQMDAwUaRQHxyRcXFhUWFRUUExEQBw4MCwkDBAICAgEBAwQGBwkLDQ0PEBAREhMTDScTFQkIBgYFBQQEAwEBAQMEBggJCwsNDQ8PERARERIREkECBwMFAwMEBQYGBwkJCgsJCgoLDQ0NDxUUEhEQDg0MCgkHBgUDAgEBAwUIAhAyAQQBAwEBSwQFBggICgsNDhAQEhUTEhAODQsJBwcFBAMCAQEBAwEUAwQBAzUGKwQEBAMEAgILVv4rIR4ICAcBCA0xCwICAgMEBgcICgoMDQcPERMUCwsMDAwZExMREBAPDg4MCwsJCAcGBQYUCw8IBwcICQoLDAwMDhMSEhAQDg0MCgoJCAcGBQQDAgEBAAAAAAMAAAAAA/QDcAAqAFYAuQAAAR8GFQ8MJS8FPQE/CwMzHwYVHwYhHwYVIQ8IET8GJw8HER8PJT8OPQEvCiM1Lw8hPQEvDiMPBgOVBwUFBAMCAgEBAwSaCAgKDAsMCwv9wAYFAwMDAQIDBJoICAoMCwwLCjIFCgkIBwYDAgIEBQgICQkBOAoJCAcGAwL+bhISEhMSEA4NhgIEBQcJCQlNCAgFBQQDAQEBAQMEBQUICAgKCQsKCwsMAkMSEhMTEQ8NoQYEBQMDAQICAgQDBwkKDAwNDmsBAgIEBQYHCAkJCgoKCwwM/uMCAgQFBgcICQkKCgsLCwyoCwwLCgsJCgHfAQEBAgMDAwUEBQYFvggHBwYFBAIBAQEBAgMDAwUEBQYGvggHBwUFBAIBAU8CBAUICAkJLAoJCAcGAwICBAUICAkJWQEEBgcKCwwNpQHECQkJBwUEAiAJCQoKCgsMDP4KDAwLCgoKCQkIBwYFBAMBAQECBAcJCgwMxQgIBwgICAgICQkJCQYKCQgHBAQBVAwMCwoKCgkJCAcGBQQDAQEQDAwLCgoKCQkIBwYFBAMBAQEBAwQFBgcAAAAABQAAAAADXgOQACEAQwBlAGkAxQAAAREPBy8HET8HHwYHEQ8HLwcRPwcfBgcRDwcvBxE/Bx8GNxcjNycHIw8HFR8HMxEVHw0zITM/DTURMz8HNS8HIy8IIw8GApYBAQIDBAQFBQUFBAQDAgEBAQECAwQEBQUFBQQEAwIBfAEBAgMEBAUFBQUEBAMCAQEBAQIDBAQFBQUFBAQDAgF8AQECAwQEBQUFBQQEAwIBAQEBAgMEBAUFBQUEBAMCAbAU1xRCIn0FBQQEAwIBAQEBAgMEBAUFGQIBAwMEBAUFBgYHBwcHCAHCCAcHBwcGBgUFBAQDAwECGQUFBAQDAgEBAQECAwQEBQWWIgQFBwcICAkKvwkKCAgHBwUCcP68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEBv68BgQEBAMDAQEBAQMDBAQEBgFEBgQEBAMDAQEBAQMDBAQEzzIyJFYBAQIDBAQFBRkFBQQEAwIBAf3zCAcHBwcGBgUFBAQDAwECAgEDAwQEBQUGBgcHBwcIAg0BAQIDBAQFBRkFBQQEAwIBAVYICAcFBQMCAQECAwUFBwgAAAAAAQAAAAADjwOPAOgAAAEPBy8DKwEPBx0BHwY7Aj8ILwQ/Bx8dDx4vESsBDwUVHxAzPx4vHisBDwUBbBIRERAPEA4OSAQFBAUEBQoEBAMCAgEBAgMEBQYGBuoFBQQEBAMDBAEBAQECA0sTFBUXGBgZGQ0ODQ0NDA0MGAsLCwoJCQkJBwgHBgYKBQMDAwEBAQEBAQMDAwUKBgYHCAcJCQkJCgsLCwwMDA0MDQ0NDg0PEA8ODw4ODg4NDAwMCgsMAgQDBAQDAkgDAQMPDxARERMTFBQUFRUWFhYWFBQUExQTEhMSEhEQEA8ODg0MDAsKCgkICAYGBAMDAQEBAQMDBAYGCAgJCgoLDAwNDg4PEBAREhITEhMUExQUFBMTExITEhIDcwcJCQoKCw0MRgMCAgEEAwMEBAQFBukGBwUFBQMCAQICAwQECgQFBQQEBUsRDgwKCAYEAQEBAQIDBAQFDAYHBwgJCAkKCgsKDAsZDA0NDQ0NDg0ODQ0NDA0YDAsLCwoJCggJBwgHBgYGBAUDAwMBAQEBAQIDBAUFBggHCQkKCwsOAgIBAQJIBQYGBhAQDw4NCwsKCQgGBgQDAQECAgQEBgYICAkKCgsMDA0ODg8QEBESEhITExQTFBQUFBQUExQTExISEhEQEA8ODg0MDAsKCgkICAYGBAQCAgICAwQFBgABAAAAAAMKA48AKAAAATMfBBUHCwEPBjcfAj8CLwE3Ez8GBysBLwEBkAYiGg8HBwM1QwUGBg8QRgl7giwiJgYCYAEIWRkIBAtjBgSNGR8gjANaAwQDAwMNF/7x/soPDAoHBRItCgEGBAIbGBAPLwGZiiEKBB0YFggBBwAABAAAAAAEAAQAAAMABwALACMAAAEVITUhFSE1ARUhNQMzFSERIxEhESM1IRUjESERIxEhNTMRIQPA/wD+gP8AAkD+wEDA/sCAAYDAAoDAAYCA/oDA/kABAMDAwMACwMDA/wCA/wD+wAFAwMD+wAFAAQCAAUAAAAAAAQAAAAAEAAQAAHYAAAEHIREhLwcPDx8PPw8hETMfDz8PLw8PBgMSAf7v/u8LCwwNDw8REQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NDQ0MDAsLCQoIBwcFBAMCAQFAwAECAwQFBwcICgkLCwwMDQ0NDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDRERDw8NDAsDwgL9ABAMCgkHBgMBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAgMEBQcHCAoJCwsMDA0NAwANDQwMCwsJCggHBwUEAwIBAQIDBAUHBwgKCQsLDAwNDQ0NDAwLCwkKCAcHBQQDAgEBAwYHCQoMAAAAAAQAAAAAA/8EAAAWAFcAbQCrAAABDwEVHxAFAQUVDw8vDz8PHw4DEQ8PJwMjEQMzAyEnHwEzPx09AS8TESEBwgEBAQIDBQYHCAoKDAwNDw8PEjP92QEcAkABBAUICQsNDxAREhQUFhYXFxYVFRQSERAPDQsJCAUEAQEEBQgJCw0PEBESFBUVFhcXFhYUFBIREA8NCwkIBQT/FxESEBEPEA4ODQ0LCwsJC1uMtEDS0gMARxUSDw4PDg4NDg0NDAwMCwsKCwkJCQgHBwcFBQUEAwMBAgECAgMDBAkMDQ8RExQVFxgZDA0S/QABwgcNDhQUFBMSEhIQEA8PDQ0MCwphAQIAoAwLFhYUFBIREA8NCwkIBQQBAQQFCAkLDQ8QERIUFBYWFxcWFhQUEhEQDw0LCQgFBAEBBAUICQsNDxAREhQUFhYCCf7+AwQFBgcICQoLDAwNDg4PFqf/AAIA/cD+gIMCAQECAwMEBQUFBwcHCAkJCQoLCwsMDAwNDQ0ODg4PDg8ODQ0ODA0NGBcWFBMSEA4MCggDAwIBQgAAAAAAABIA3gABAAAAAAAAAAEAAAABAAAAAAABABsAAQABAAAAAAACAAcAHAABAAAAAAADABsAIwABAAAAAAAEABsAPgABAAAAAAAFAAsAWQABAAAAAAAGABsAZAABAAAAAAAKACwAfwABAAAAAAALABIAqwADAAEECQAAAAIAvQADAAEECQABADYAvwADAAEECQACAA4A9QADAAEECQADADYBAwADAAEECQAEADYBOQADAAEECQAFABYBbwADAAEECQAGADYBhQADAAEECQAKAFgBuwADAAEECQALACQCEyBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJSZWd1bGFyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyTmV3IE1hdGVyaWFsX0RpYWdyYW1CdWlsZGVyVmVyc2lvbiAxLjBOZXcgTWF0ZXJpYWxfRGlhZ3JhbUJ1aWxkZXJGb250IGdlbmVyYXRlZCB1c2luZyBTeW5jZnVzaW9uIE1ldHJvIFN0dWRpb3d3dy5zeW5jZnVzaW9uLmNvbQAgAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAFIAZQBnAHUAbABhAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIATgBlAHcAIABNAGEAdABlAHIAaQBhAGwAXwBEAGkAYQBnAHIAYQBtAEIAdQBpAGwAZABlAHIAVgBlAHIAcwBpAG8AbgAgADEALgAwAE4AZQB3ACAATQBhAHQAZQByAGkAYQBsAF8ARABpAGEAZwByAGEAbQBCAHUAaQBsAGQAZQByAEYAbwBuAHQAIABnAGUAbgBlAHIAYQB0AGUAZAAgAHUAcwBpAG4AZwAgAFMAeQBuAGMAZgB1AHMAaQBvAG4AIABNAGUAdAByAG8AIABTAHQAdQBkAGkAbwB3AHcAdwAuAHMAeQBuAGMAZgB1AHMAaQBvAG4ALgBjAG8AbQAAAAACAAAAAAAAAAoAAAAAAAAAAAAAAAAAAAAAAAAAAAAAACgBAgEDAQQBBQEGAQcBCAEJAQoBCwEMAQ0BDgEPARABEQESARMBFAEVARYBFwEYARkBGgEbARwBHQEeAR8BIAEhASIBIwEkASUBJgEnASgBKQAHWm9vbUluTQhab29tT3V0TQpVbmRlcmxpbmVNBlByaW50TQROZXdNBVNhdmVNB0V4cG9ydE0FQm9sZE0LT3BlbkZvbGRlck0HRGVsZXRlTQhSZWZyZXNoTQdJdGFsaWNNB1pvb21JbkYIWm9vbU91dEYGUHJpbnRGBE5ld0YFU2F2ZUYHRXhwb3J0RgVCb2xkRgtPcGVuRm9sZGVyRgdEZWxldGVGCFJlZnJlc2hGClVuZGVybGluZUYHSXRhbGljRgdab29tSW5CCFpvb21PdXRCClVuZGVybGluZUIGUHJpbnRCBE5ld0IFU2F2ZUIHRXhwb3J0QgVCb2xkQgtPcGVuRm9sZGVyQgdEZWxldGVCCFJlZnJlc2hCB0l0YWxpY0IKRmxvd1NoYXBlcwlDb25uZWN0b3ILQmFzaWNTaGFwZXMAAAAAAA==) format('truetype');
font-weight: normal;
font-style: normal;
}
.e-ddb-icons {
font-family: 'e-ddb-icons';
speak: none;
font-size: 16px;
font-style: normal;
font-weight: normal;
font-variant: normal;
text-transform: none;
line-height: 1;
-webkit-font-smoothing: antialiased;
-moz-osx-font-smoothing: grayscale;
}
.e-basic::before {
content: "\e726";
}
.e-flow::before {
content: "\e724";
}
.e-connector::before {
content: "\e725";
}
</style>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Restrict symbol dragging from palette
You can restrict the symbols getting dragged from the symbol palette by setting the allowDrag property of symbol palette as false. By default, the allowDrag is set as true.
/**
* Symbol palette AllowDrag
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
//Prevents dragging symbol from palette
allowDrag: false,
});
palette.appendTo('#element');
var diagram = new ej.diagrams.Diagram(
{
width: 1000,
height: 500,
dragEnter: function (args) {
let node = args.element;
node.tooltip.content = 'New ' + node.id + ' tooltip';
diagram.dataBind();
},
},
'#diagram'
);<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
<div id='diagram'></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Search symbol
The diagram provides support for enabling the search option in the palette. The enableSearch property of the palette is used to show or hide the search textbox in the palette. You can search for symbols in the palette by entering the symbol ID (e.g., “rectangle”) and search keywords into the search text box. The symbols are retrieved by matching the value of the ID property with the string entered in the search textbox.
/**
* Default symbol palette sample
*/
//Initialize the flowshapes for the symbol palatte
var flowShapes = [
{ id: 'terminator', shape: { type: 'Flow', shape: 'Terminator' } },
{ id: 'process', shape: { type: 'Flow', shape: 'Process' } },
{ id: 'decision', shape: { type: 'Flow', shape: 'Decision' } },
{ id: 'document', shape: { type: 'Flow', shape: 'Document' } },
{
id: 'preDefinedProcess',
shape: { type: 'Flow', shape: 'PreDefinedProcess' },
},
{ id: 'paperTap', shape: { type: 'Flow', shape: 'PaperTap' } },
{ id: 'directData', shape: { type: 'Flow', shape: 'DirectData' } },
{ id: 'sequentialData', shape: { type: 'Flow', shape: 'SequentialData' } },
{ id: 'sort', shape: { type: 'Flow', shape: 'Sort' } },
];
//Initializes the symbol palette
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'flow',
symbols: flowShapes,
title: 'Flow Shapes',
},
],
//Enables search option for symbol palette
enableSearch: true,
width: '100%',
height: '100%',
symbolHeight: 60,
symbolWidth: 60,
});
palette.appendTo('#element');
var diagram = new ej.diagrams.Diagram(
{
width: 1000,
height: 500,
},
'#diagram'
);<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
<div id="diagram"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Ignore symbols on search
The ignoreSymbolsOnSearch property allows you to specify which symbols should be excluded from search results within the symbol palette. By setting this property, you can control the visibility of specific symbols during a search operation. This feature is useful for hiding certain symbols that you don’t want to be shown via search.
In the following example, we ignored the symbol with the ID of ‘plus’, so it will not appear in the search results.
/**
* Default symbol palette sample
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
enableSearch: true,
//The plus symbol will be ignored while searching shapes
ignoreSymbolsOnSearch: ['plus'],
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
],
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>Filter search
You can filter the search results based on your specific requirements. To achieve this, customize the filterSymbols method of the symbol palette according to your needs. In the following example, we filter the results to display only flow shapes in the search palette.
/**
* Symbol palette Filter search
*/
//Initialize the basic shapes for the symbol palette
function getBasicShapes() {
let nodes = [
{
id: 'rectangle',
shape: {
type: 'Basic',
shape: 'Rectangle',
},
},
{
id: 'plus',
shape: {
type: 'Basic',
shape: 'Plus',
},
},
{
id: 'triangle',
shape: {
type: 'Basic',
shape: 'RightTriangle',
},
},
];
return nodes;
}
//Initialize the flow shapes for the symbol palette
function getFlowShapes() {
let nodes = [
{
id: 'process',
shape: {
type: 'Flow',
shape: 'Process',
},
},
{
id: 'terminator',
shape: {
type: 'Flow',
shape: 'Terminator',
},
},
{
id: 'decision',
shape: {
type: 'Flow',
shape: 'Decision',
},
},
{
id: 'document',
shape: {
type: 'Flow',
shape: 'Document',
},
},
{
id: 'data',
shape: {
type: 'Flow',
shape: 'Data',
},
},
];
return nodes;
}
var palette = new ej.diagrams.SymbolPalette({
palettes: [
{
id: 'basic',
symbols: getBasicShapes(),
title: 'Basic Shapes',
},
{
id: 'flow',
symbols: getFlowShapes(),
title: 'Flow Shapes',
},
],
symbolHeight: 50,
symbolWidth: 70,
enableSearch: true,
filterSymbols: function (symbols) {
let symbolGroup = [];
for (let i = 0; i < symbols.length; i++) {
let symbol = symbols[i];
//Filters symbol based on type
if (symbol.shape.type === 'Flow') {
symbolGroup.push(symbol);
}
}
return symbolGroup;
},
});
palette.appendTo('#element');<!DOCTYPE html><html lang="en"><head>
<title>EJ2 Diagram</title>
<meta charset="utf-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<meta name="description" content="Typescript UI Controls">
<meta name="author" content="Syncfusion">
<link href="index.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
<link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">
<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>
<body>
<div id="container">
<div id="element"></div>
</div>
<script>
var ele = document.getElementById('container');
if(ele) {
ele.style.visibility = "visible";
}
</script>
<script src="index.js" type="text/javascript"></script>
</body></html>NOTE
The diagram provides support to cancel the drag and drop operation from the symbol palette to the diagram when the ESC key is pressed
