Annotation Interactions

Diagram allows annotation to be interacted by selecting, dragging, rotating, and resizing. Annotation interaction is disabled, by default. You can enable annotation interaction with the constraints property of annotation. You can also curtail the services of interaction by enabling either selecting, dragging, rotating, or resizing individually with the respective constraints property of annotation. The following code illustrates how to enable interactive mode.

var node = {
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    style: { fill: '#6BA5D7', strokeColor: 'white' },
    annotations: [
      {
        content: 'Annotation Text',
        constraints: ej.diagrams.AnnotationConstraints.Interaction,
      },
    ],
  };

  // initialize Diagram component

  var diagram = new ej.diagrams.Diagram(
    {
      width: '100%',
      height: '600px',
      nodes: [node],
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Constraints

The constraints property of annotation allows you to enable/disable certain annotation behaviors.

Annotation rotation

The rotationReference property of an annotation allows you to control whether the text should rotate relative to its parent node or the Page. The following code examples illustrate how to configure rotationReference for an annotation.

var node = {
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    sstyle: { fill: '#6BA5D7', strokeColor: 'white' },
    annotations: [{ content: 'Annotation', rotationReference: "Page"}]
    };

// initialize Diagram component

var diagram = new ej.diagrams.Diagram({
    width: '100%', height: '600px', nodes: [node]
    }, '#element');

diagram.nodes[0].annotations[0].content = 'Updated Annotation';
diagram.dataBind();
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Value Description Image

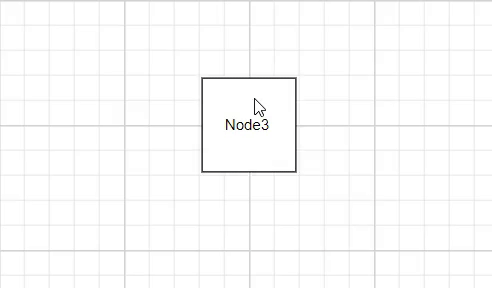

Page When this option is set, the annotation remains fixed in its original orientation even if its parent node is rotated. No_Rotation

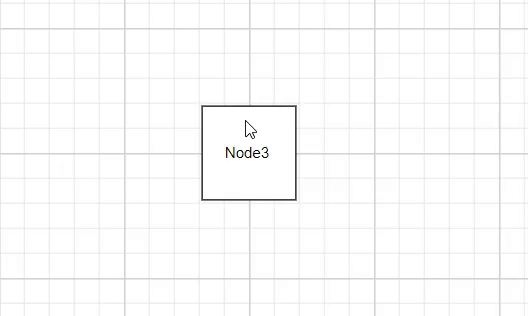

Parent In this case, the annotation rotates along with its parent node. Rotation

Read-only annotations

Diagram allows to create read-only annotations. You have to set the read-only constraints to the annotation’s constraints. property. The following code illustrates how to enable read-only mode.

var node = {
    // Position of the node
    offsetX: 250,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    style: { fill: '#6BA5D7', strokeColor: 'white' },
    annotations: [{ content: 'Annotation Text',  constraints: ej.diagrams.AnnotationConstraints.ReadOnly}]
        };

// initialize Diagram component

var diagram = new ej.diagrams.Diagram({
    width: '100%', height: '600px', nodes: [node]
    }, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Edit

Diagram provides support to edit an annotation at runtime, either programmatically or interactively. By default, annotation is in view mode. But it can be brought to edit mode in two ways;

Programmatically

By using startTextEdit method, edit the text through programmatically.

var node = {
  // Position of the node
  offsetX: 250,
  offsetY: 250,
  // Size of the node
  width: 100,
  height: 100,
  style: { fill: '#6BA5D7', strokeColor: 'white' },
  annotations: [{ content: 'Center' }],
};
// initialize Diagram component

var diagram = new ej.diagrams.Diagram(
  {
    width: '100%',
    height: '600px',
    nodes: [node],
  },
  '#element'
);
document.getElementById('startTextEdit').onclick = () => {
  //Pass the node which you want to edit
  diagram.startTextEdit(diagram.nodes[0]);
};
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <input type="button" value="startTextEdit" id="startTextEdit" />
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Interactively

1. By double-clicking the annotation.
2. By selecting the item and pressing the F2 key.

Double-clicking any annotation will enables editing mode. When the focus of editor is lost, the annotation for the node is updated. When you double-click on the node/connector/diagram model, the doubleClick event gets triggered.

Drag Limit

  • The diagram control now supports defining the dragLimit to the label while dragging from the connector and also update the position to the nearest segment offset.

  • You can set the value to dragLimit left, right, top, and bottom properties which allow the dragging of connector labels to a certain limit based on the user defined values.

  • By default, drag limit will be disabled for the connector. It can be enabled by setting connector constraints as drag.

  • The following code illustrates how to set a dragLimit for connector annotations.

var connector = {
     id: 'connector', type: 'Orthogonal',
        sourcePoint: { x: 200, y: 200 },
        targetPoint: { x: 300, y: 300 },
        annotations: [
            {
                content: 'connector1', offset: 0.5,
                constraints: ej.diagrams.AnnotationConstraints.Interaction | ej.diagrams.AnnotationConstraints.Drag,
                dragLimit: { left: 20, right: 20, top: 20, bottom: 20 }
            }
        ]
        };

// initialize Diagram component

var diagram = new ej.diagrams.Diagram({
    width: '100%', height: '600px', connectors: [connector]
    }, '#element');
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>

Multiple annotations

You can add any number of annotations to a node or connector. The following code illustrates how to add multiple annotations to a node and connector.

var node = {
    // Position of the node
    offsetX: 450,
    offsetY: 250,
    // Size of the node
    width: 100,
    height: 100,
    style: { fill: '#6BA5D7', strokeColor: 'white' },
    annotations: [
      { content: 'Left', offset: { x: 0.12, y: 0.1 } },
      { content: 'Center', offset: { x: 0.5, y: 0.5 } },
      { content: 'Right', offset: { x: 0.82, y: 0.9 } },
    ],
  };
  var connector = {
    id: 'connector',
    type: 'Orthogonal',
    sourcePoint: { x: 200, y: 200 },
    targetPoint: { x: 300, y: 300 },
    // Sets the multiple annotation for the node
    annotations: [
      {
        content: 'connector1',
        offset: 0.2,
      },
      {
        content: 'connector1',
        offset: 0.6,
      },
      {
        content: 'connector1',
        offset: 0.8,
      },
    ],
  };
  // initialize Diagram component

  var diagram = new ej.diagrams.Diagram(
    {
      width: '100%',
      height: '600px',
      nodes: [node],
      connectors: [connector],
    },
    '#element'
  );
<!DOCTYPE html><html lang="en"><head>
    <title>EJ2 Diagram</title>
    <meta charset="utf-8">
    <meta name="viewport" content="width=device-width, initial-scale=1.0">
    <meta name="description" content="Typescript UI Controls">
    <meta name="author" content="Syncfusion">
    <link href="index.css" rel="stylesheet">

    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-base/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-buttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-popups/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-splitbuttons/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-diagrams/styles/tailwind3.css" rel="stylesheet">
    <link href="https://cdn.syncfusion.com/ej2/33.2.3/ej2-navigations/styles/tailwind3.css" rel="stylesheet">

<script src="https://cdn.syncfusion.com/ej2/33.2.3/dist/ej2.min.js" type="text/javascript"></script>
</head>

<body>

    <div id="container">
        <div id="element"></div>
    </div>


<script>
var ele = document.getElementById('container');
if(ele) {
  ele.style.visibility = "visible";
}
      </script>
<script src="index.js" type="text/javascript"></script>
</body></html>
