Selection in WPF Sunburst Chart (SfSunburstChart)

18 Nov 20185 minutes to read

The Sunburst Chart supports selection that enables you to select a segment by using the SunburstSelectionBehavior.

The below code shows how to enable the selection behavior:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();

chart.Behaviors.Add(selection);

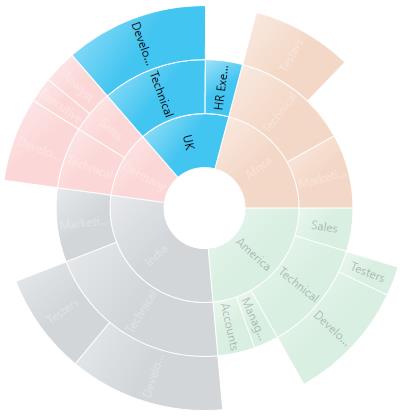

Selection_img1

SelectionDisplayMode

You can customize the selected segment appearance by using a brush or opacity. You can choose between color or opacity using the SelectionDisplayMode property in the selection behavior:

  • HighlightByColor – To display the selected segment appearance using a brush.
  • HighlightByOpacity – To display the selected segment appearance using opacity.

The following code shows how to set the display mode using a brush:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior
        EnableSelection="True"
        SelectionBrush="Black"
        SelectionDisplayMode="HighlightByColor">
    </sunburst:SunburstSelectionBehavior>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionBrush = new SolidColorBrush(Colors.Black);
selection.SelectionDisplayMode = SelectionDisplayMode.HighlightByColor;

chart.Behaviors.Add(selection);

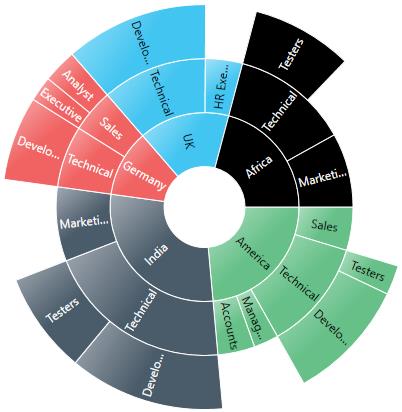

Selection_img2

NOTE

The default value of SelectionDisplayMode is HighlightByOpacity.

SelectionMode

The Sunburst Chart provides support to select or highlight the segment by clicking or hovering the mouse over a segment. By default, this property value is MouseClick.

  • Both – Select the segment using mouse move and mouse click.
  • MouseClick – Select the segment using mouse click.
  • MouseMove – Select the segment using mouse move.
<sunburst:SfSunburstChart.Behaviors>
     <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionMode="MouseClick"/>
 </sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionMode = Syncfusion.UI.Xaml.SunburstChart.SelectionMode.MouseClick;

chart.Behaviors.Add(selection);

SelectionType

The Sunburst Chart provides multiple options to represent the selected categories. You can select the segment categories by using the SelectionType property in the selection behavior.

  • Child – To select the child of the selected parent.
  • Group – To select the entire categories in the group.
  • Parent – To select the parent of the selected child.
  • Single - To select a single item in the category.

Child

The following code shows how to set the selection type as Child:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionType="Child"/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionType = SelectionType.Child;

chart.Behaviors.Add(selection);

Selection_img3

Group

The following code shows how to set the selection type as Group:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionType="Group"/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionType = SelectionType.Group;

chart.Behaviors.Add(selection);

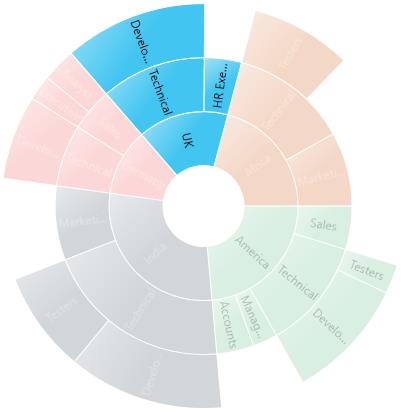

Selection_img4

Parent

The following code shows how to set the selection type as Parent:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionType="Parent"/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionType = SelectionType.Parent;

chart.Behaviors.Add(selection);

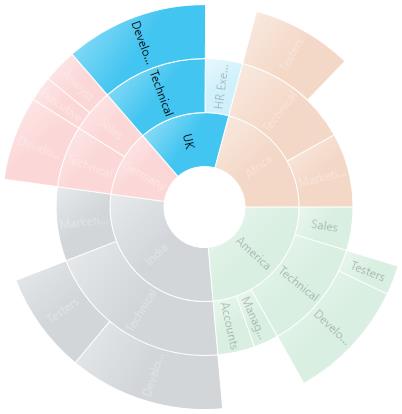

Selection_img5

Single

The following code shows how to set the selection type as Single:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionType="Single"/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionType = SelectionType.Single;

chart.Behaviors.Add(selection);

Selection_img6

Selection Cursor

The SelectionCursor property allows you to customize the cursor when the mouse is hovered over the segment.

The following code shows how to set the selection cursor as Hand:

<sunburst:SfSunburstChart.Behaviors>
    <sunburst:SunburstSelectionBehavior EnableSelection="True" SelectionCursor="Hand"/>
</sunburst:SfSunburstChart.Behaviors>
SunburstSelectionBehavior selection = new SunburstSelectionBehavior();
selection.EnableSelection = true;
selection.SelectionCursor = Cursors.Hand;

chart.Behaviors.Add(selection);

Selection_img7
