Stacked 100 Charts in WinUI Chart (SfCartesianChart)

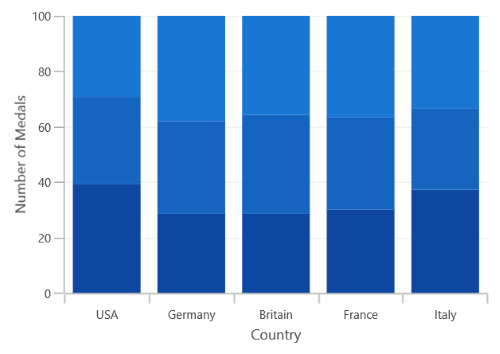

Stacked Column 100 Chart

The StackedColumn100Series resembles StackedColumnSeries but the cumulative portion of each stacked element always comes to a total of 100%.

XAML

<chart:SfCartesianChart>
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis LabelPlacement="BetweenTicks"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>

    <chart:StackedColumn100Series
        XBindingPath="CountryName"
        YBindingPath="GoldMedals"
        ItemsSource="{Binding MedalDetails}"/>

    <chart:StackedColumn100Series
        XBindingPath="CountryName"
        YBindingPath="SilverMedals"
        ItemsSource="{Binding MedalDetails}"/>

    <chart:StackedColumn100Series
        XBindingPath="CountryName"
        YBindingPath="BronzeMedals"
        ItemsSource="{Binding MedalDetails}"/>
    ...
</chart:SfCartesianChart>

C#

SfCartesianChart chart = new SfCartesianChart();
ViewModel viewModel = new ViewModel();

CategoryAxis primaryAxis = new CategoryAxis();
primaryAxis.LabelPlacement = LabelPlacement.BetweenTicks;
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

StackedColumn100Series series1 = new StackedColumn100Series()
{
    ItemsSource = viewModel.MedalDetails,
    XBindingPath = "CountryName",
    YBindingPath = "GoldMedals",
};

StackedColumn100Series series2 = new StackedColumn100Series()
{
    ItemsSource = viewModel.MedalDetails,
    XBindingPath = "CountryName",
    YBindingPath = "SilverMedals",
};

StackedColumn100Series series3 = new StackedColumn100Series()
{
    ItemsSource = viewModel.MedalDetails,
    XBindingPath = "CountryName",
    YBindingPath = "BronzeMedals",
};

chart.Series.Add(series1);
chart.Series.Add(series2);
chart.Series.Add(series3);
...

NOTE

You can refer to our WinUI 100% Stacked Column Chart feature tour page for its groundbreaking feature representations. You can also explore our WinUI 100% Stacked Column Chart example that shows how to easily configure with built-in support for creating stunning visual effects.

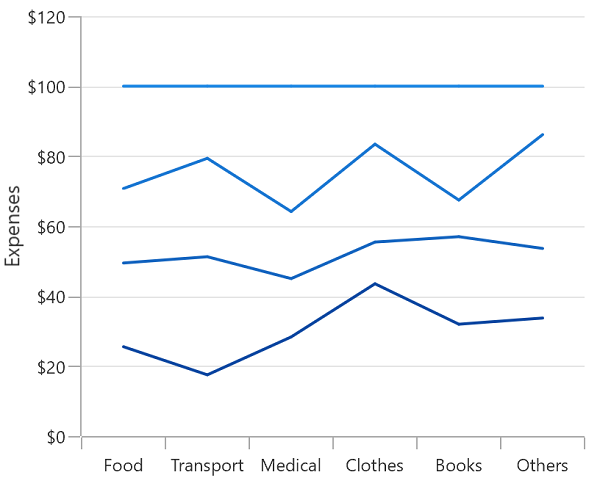

Stacked Line 100 Chart

The StackedLine100Series resembles StackedLineSeries but the cumulative portion of each stacked element always comes to a total of 100%.

XAML

<chart:SfCartesianChart>
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis LabelPlacement="BetweenTicks"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>

    <chart:StackedLine100Series
        ItemsSource="{Binding Data}"
        XBindingPath="MonthlyExpenses"
        YBindingPath="Father"/>

    <chart:StackedLine100Series
        ItemsSource="{Binding Data}"
        XBindingPath="MonthlyExpenses"
        YBindingPath="Mother"/>

    <chart:StackedLine100Series
        ItemsSource="{Binding Data}"
        XBindingPath="MonthlyExpenses"
        YBindingPath="Son"/>
</chart:SfCartesianChart>

C#

SfCartesianChart chart = new SfCartesianChart();
ViewModel viewModel = new ViewModel();

CategoryAxis primaryAxis = new CategoryAxis();
primaryAxis.LabelPlacement = LabelPlacement.BetweenTicks;
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

StackedLine100Series series1 = new StackedLine100Series()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "MonthlyExpenses",
    YBindingPath = "Father",
};

StackedLine100Series series2 = new StackedLine100Series()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "MonthlyExpenses",
    YBindingPath = "Mother",
};

StackedLine100Series series3 = new StackedLine100Series()
{
    ItemsSource = viewModel.Data,
    XBindingPath = "MonthlyExpenses",
    YBindingPath = "Son",
};

chart.Series.Add(series1);
chart.Series.Add(series2);
chart.Series.Add(series3);
...

NOTE

You can refer to our WinUI 100% Stacked Line Chart feature tour page for its groundbreaking feature representations. You can also explore our WinUI 100% Stacked Line Chart example that shows how to easily configure with built-in support for creating stunning visual effects.

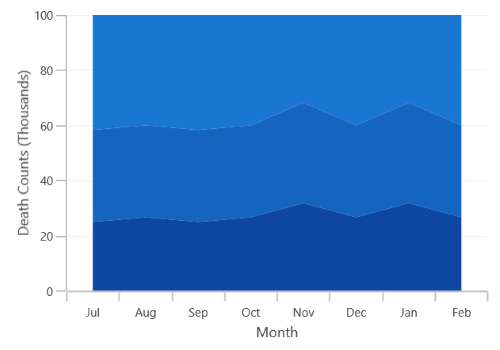

Stacked Area 100 Chart

The StackedArea100Series is similar to StackedAreaSeries, but the cumulative portion of each stacked element always comes to a total of 100%.

XAML

<chart:SfCartesianChart>
    <chart:SfCartesianChart.XAxes>
        <chart:CategoryAxis LabelPlacement="BetweenTicks"/>
    </chart:SfCartesianChart.XAxes>

    <chart:SfCartesianChart.YAxes>
        <chart:NumericalAxis/>
    </chart:SfCartesianChart.YAxes>

    <chart:StackedArea100Series
        XBindingPath="Month"
        YBindingPath="Bus"
        ItemsSource="{Binding Accidents}"/>

    <chart:StackedArea100Series
        XBindingPath="Month"
        YBindingPath="Car"
        ItemsSource="{Binding Accidents}"/>

    <chart:StackedArea100Series
        XBindingPath="Month"
        YBindingPath="Truck"
        ItemsSource="{Binding Accidents}"/>
</chart:SfCartesianChart>

C#

SfCartesianChart chart = new SfCartesianChart();
ViewModel viewModel = new ViewModel();

CategoryAxis primaryAxis = new CategoryAxis();
primaryAxis.LabelPlacement = LabelPlacement.BetweenTicks;
chart.XAxes.Add(primaryAxis);

NumericalAxis secondaryAxis = new NumericalAxis();
chart.YAxes.Add(secondaryAxis);

StackedArea100Series series1 = new StackedArea100Series()
{
    ItemsSource = viewModel.Accidents,
    XBindingPath = "Month",
    YBindingPath = "Bus",
};

StackedArea100Series series2 = new StackedArea100Series()
{
    ItemsSource = viewModel.Accidents,
    XBindingPath = "Month",
    YBindingPath = "Car",
};

StackedArea100Series series3 = new StackedArea100Series()
{
    ItemsSource = viewModel.Accidents,
    XBindingPath = "Month",
    YBindingPath = "Truck",
};

chart.Series.Add(series1);
chart.Series.Add(series2);
chart.Series.Add(series3);
...

NOTE

You can refer to our WinUI 100% Stacked Area Chart feature tour page for its groundbreaking feature representations. You can also explore our WinUI 100% Stacked Area Chart example that shows how to easily configure with built-in support for creating stunning visual effects.
