Getting Started with the Vue HeatMap Component in Vue 3

This article provides a step-by-step guide to creating a Vite JavaScript project and integrating the Syncfusion® Vue HeatMap component using either the Composition API or the Options API.

The HeatMap represents two-dimensional data through color variations. Each matrix value is rendered as a cell whose color indicates its magnitude.

You can explore some useful features in the HeatMap component using the video below.

Prerequisites

Ensure that the development environment meets the system requirements for Syncfusion® Vue UI components.

Set Up the Vite Project

Create a Vite project using either npm or yarn.

npm

npm create vite@latest my-app -- --template vue

yarn

yarn create vite my-app --template vue

Navigate to the project directory:

cd my-app

Install the project dependencies.

npm

npm install

yarn

yarn install

Note: To create a TypeScript project, use the vue-ts template instead of vue.

Add the Syncfusion® Vue HeatMap Package

Syncfusion® Vue packages are published on npm.

Install the @syncfusion/ej2-vue-heatmap package using either npm or yarn.

npm

npm install @syncfusion/ej2-vue-heatmap

yarn

yarn add @syncfusion/ej2-vue-heatmap

Confirm that @syncfusion/ej2-vue-heatmap appears in package.json and the package-manager lock file.

Add the Syncfusion® Vue HeatMap Component

The following steps build the component progressively. Use the complete examples later in this article as the copy-ready versions.

Step 1: Import and Register the Component

Import the HeatMap component in src/App.vue.

In the Composition API example, use the <script setup> syntax. Components imported in this block are available to the template without a components option.

<script setup>
import { HeatMapComponent as EjsHeatmap } from '@syncfusion/ej2-vue-heatmap';
</script>
<script>
import { HeatMapComponent } from '@syncfusion/ej2-vue-heatmap';

export default {
  name: 'App',
  components: {
    'ejs-heatmap': HeatMapComponent
  }
};
</script>

Step 2: Declare the HeatMap Data

Add the following values to the existing <script setup> block for the Composition API or to data() inside the existing export default object for the Options API.

Each inner array represents one x-axis category and must contain one numeric value for every y-axis category. All rows must have the same length.

<script setup>
const dataSource = [
  [73, 39, 26, 39, 94, 0],
  [93, 58, 53, 38, 26, 68],
  [99, 28, 22, 4, 66, 90],
  [14, 26, 97, 69, 69, 3],
  [7, 46, 47, 47, 88, 6],
  [41, 55, 73, 23, 3, 79],
  [56, 69, 21, 86, 3, 33],
  [45, 7, 53, 81, 95, 79],
  [60, 77, 74, 68, 88, 51],
  [25, 25, 10, 12, 78, 14],
  [25, 56, 55, 58, 12, 82],
  [74, 33, 88, 23, 86, 59]
];

</script>
<script>
export default {
  data() {
    return {
      dataSource: [
        [73, 39, 26, 39, 94, 0],
        [93, 58, 53, 38, 26, 68],
        [99, 28, 22, 4, 66, 90],
        [14, 26, 97, 69, 69, 3],
        [7, 46, 47, 47, 88, 6],
        [41, 55, 73, 23, 3, 79],
        [56, 69, 21, 86, 3, 33],
        [45, 7, 53, 81, 95, 79],
        [60, 77, 74, 68, 88, 51],
        [25, 25, 10, 12, 78, 14],
        [25, 56, 55, 58, 12, 82],
        [74, 33, 88, 23, 86, 59]
      ],
    };
  }
};
</script>

Step 3: Define the HeatMap in the Template

Add the HeatMap to the template section of src/App.vue.

  • dataSource supplies the two-dimensional numeric data.
<template>
  <div id="app">
    <ejs-heatmap id="heatmap" :dataSource="dataSource"></ejs-heatmap>
  </div>
</template>

Here is the summarized code for the above steps. Replace the contents of src/App.vue with either complete example.

<template>
  <div id="app">
    <ejs-heatmap id="heatmap" :dataSource="dataSource"
    ></ejs-heatmap>
  </div>
</template>

<script setup>
import { HeatMapComponent as EjsHeatmap } from '@syncfusion/ej2-vue-heatmap';

const dataSource = [
  [73, 39, 26, 39, 94, 0],
  [93, 58, 53, 38, 26, 68],
  [99, 28, 22, 4, 66, 90],
  [14, 26, 97, 69, 69, 3],
  [7, 46, 47, 47, 88, 6],
  [41, 55, 73, 23, 3, 79],
  [56, 69, 21, 86, 3, 33],
  [45, 7, 53, 81, 95, 79],
  [60, 77, 74, 68, 88, 51],
  [25, 25, 10, 12, 78, 14],
  [25, 56, 55, 58, 12, 82],
  [74, 33, 88, 23, 86, 59]
];
</script>
<template>
  <div id="app">
    <ejs-heatmap id="heatmap" :dataSource="dataSource"
    ></ejs-heatmap>
  </div>
</template>

<script>
import { HeatMapComponent } from '@syncfusion/ej2-vue-heatmap';

export default {
  name: 'App',
  components: {
    'ejs-heatmap': HeatMapComponent
  },
  data() {
    return {
      dataSource: [
        [73, 39, 26, 39, 94, 0],
        [93, 58, 53, 38, 26, 68],
        [99, 28, 22, 4, 66, 90],
        [14, 26, 97, 69, 69, 3],
        [7, 46, 47, 47, 88, 6],
        [41, 55, 73, 23, 3, 79],
        [56, 69, 21, 86, 3, 33],
        [45, 7, 53, 81, 95, 79],
        [60, 77, 74, 68, 88, 51],
        [25, 25, 10, 12, 78, 14],
        [25, 56, 55, 58, 12, 82],
        [74, 33, 88, 23, 86, 59]
      ],
    };
  }
};
</script>

Run the Application

Save src/App.vue, and then start the development server.

npm

npm run dev

yarn

yarn run dev

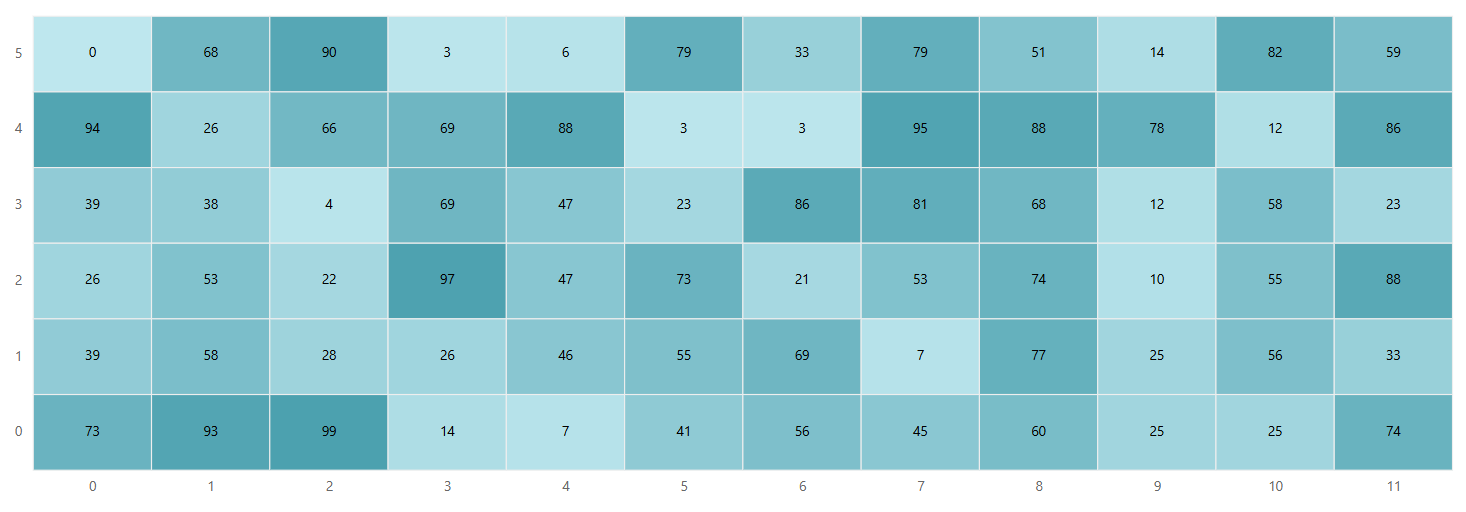

Open the URL displayed in the terminal, commonly http://localhost:5173, and verify that the HeatMap displays. Press Ctrl+C to stop the server.

vue-3-js-HeatMap

Troubleshooting

  • The HeatMap is not rendered. Verify that HeatMapComponent is imported or registered correctly and check the browser console for package, runtime, or licensing errors.
  • The HeatMap is blank. Verify that dataSource is a nonempty rectangular array containing numeric values.
  • A module-not-found error occurs. Verify that @syncfusion/ej2-vue-heatmap appears in package.json, reinstall dependencies, and restart the development server.
  • A package or Vue version error occurs. Confirm that the installed package release supports Vue 3 and the project’s Node.js version.

For additional assistance, refer to the Vue HeatMap API documentation.
