Arc Layer in .NET MAUI Maps (SfMaps)
18 Nov 201824 minutes to read
NOTE
Prerequisite: Ensure that the required NuGet package is installed, the necessary namespaces are imported, and the Maps control is properly configured in your application. For detailed setup and configuration instructions, refer to the Getting Started guide.
The arc layer is a sublayer that renders a group of MapArc on a MapArcLayer, which can be added as a sublayer of MapShapeLayer. This section explains how to add and customize arcs.

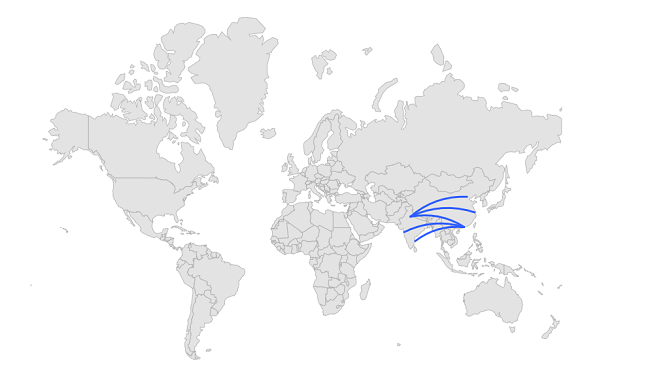

Adding arcs
The Arcs is a collection of MapArc. Each MapArc connects two location coordinates with a curved line. The start coordinate is set to the MapArc.From property and the end coordinate is set to the MapArc.To property. When the MapArc.Stroke property is not set, the default stroke color is applied.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc>
<map:MapArc.From>
<map:MapLatLng Latitude="28.6139"
Longitude="77.2090" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc>
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="31.2304"
Longitude="121.4737" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc>
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc>
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc>
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
Height factor
The HeightFactor is the distance from the line connecting two points to the arc bend point. The default value of the HeightFactor property is 0.2, and the value ranges from -1 to 1.
By default, the arc always renders above the MapArc.From and MapArc.To points. To render the arc below the points, set a value between -1 and 0. Values outside the range are clamped to the nearest boundary.

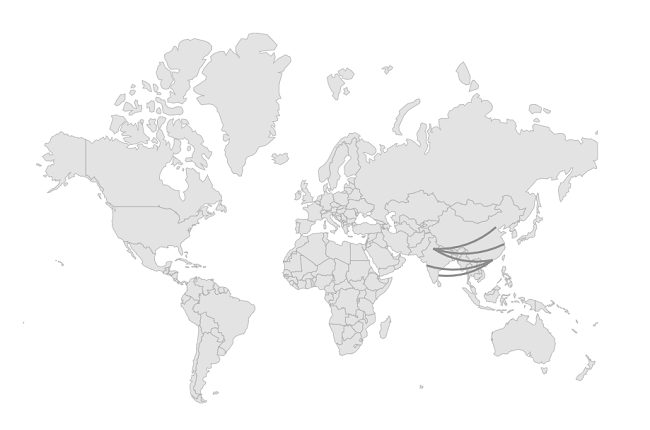

The example below applies the HeightFactor property. The Stroke property is also set for visibility and is documented in the Stroke color section.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc Stroke="#959595"
HeightFactor="-0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.6139"
Longitude="77.2090" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
HeightFactor="-0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="31.2304"
Longitude="121.4737" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
HeightFactor="-0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
HeightFactor="-0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
HeightFactor="-0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
arc1.Stroke = Color.FromRgb(149, 149, 149);
arc1.HeightFactor = -0.2;
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
arc2.Stroke = Color.FromRgb(149, 149, 149);
arc2.HeightFactor = -0.2;
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
arc3.Stroke = Color.FromRgb(149, 149, 149);
arc3.HeightFactor = -0.2;
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
arc4.Stroke = Color.FromRgb(149, 149, 149);
arc4.HeightFactor = -0.2;
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arc5.Stroke = Color.FromRgb(149, 149, 149);
arc5.HeightFactor = -0.2;
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
Control point factor
The MapArc.ControlPointFactor is the arc bending position. The default value of the MapArc.ControlPointFactor property is 0.5, and the value ranges from 0 to 1. Values outside the range are clamped to the nearest boundary. A value of 0 bends the arc near the MapArc.From point, and a value of 1 bends it near the MapArc.To point.
By default, the arc bends at the center between the MapArc.From and MapArc.To points.

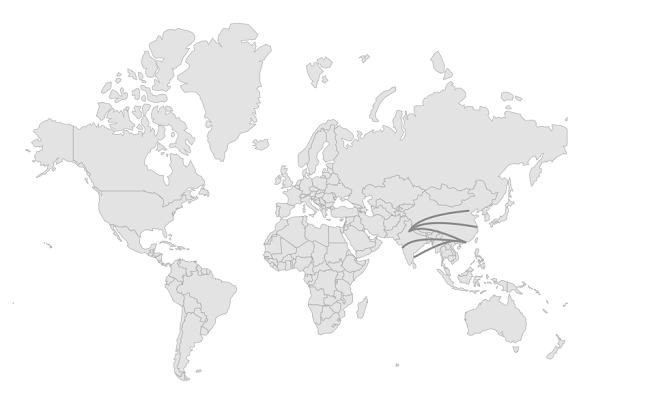

The example below applies the MapArc.ControlPointFactor property. The Stroke property is also set for visibility and is documented in the Stroke color section.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc Stroke="#959595"
ControlPointFactor="0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.6139"
Longitude="77.2090" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
ControlPointFactor="0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="31.2304"
Longitude="121.4737" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
ControlPointFactor="0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
ControlPointFactor="0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
ControlPointFactor="0.2">
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
arc1.Stroke = Color.FromRgb(149, 149, 149);
arc1.ControlPointFactor = 0.2;
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
arc2.Stroke = Color.FromRgb(149, 149, 149);
arc2.ControlPointFactor = 0.2;
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
arc3.Stroke = Color.FromRgb(149, 149, 149);
arc3.ControlPointFactor = 0.2;
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
arc4.Stroke = Color.FromRgb(149, 149, 149);
arc4.ControlPointFactor = 0.2;
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arc5.Stroke = Color.FromRgb(149, 149, 149);
arc5.ControlPointFactor = 0.2;
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
Stroke color

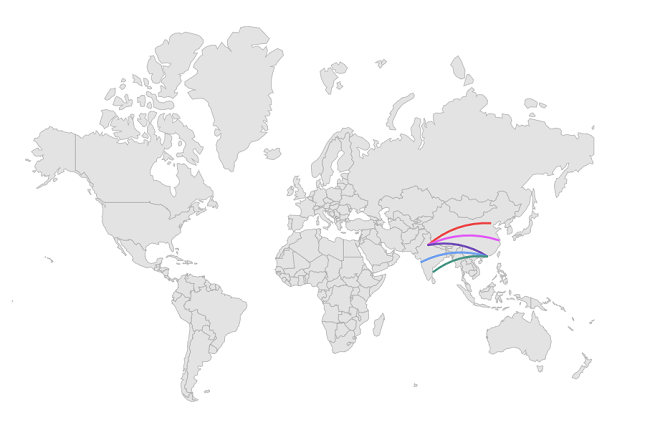

You can apply color to each MapArc in the Arcs collection using the individual MapArc.Stroke property.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc Stroke="#ed4545">
<map:MapArc.From>
<map:MapLatLng Latitude="28.6139"
Longitude="77.2090" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#e35bf8">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="31.2304"
Longitude="121.4737" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#704cb9">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#6da0f2">
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#499787">
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
arc1.Stroke = Color.FromRgb(237, 69, 69);
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
arc2.Stroke = Color.FromRgb(227, 91, 248);
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
arc3.Stroke = Color.FromRgb(112, 76, 185);
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
arc4.Stroke = Color.FromRgb(109, 160, 242);
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arc5.Stroke = Color.FromRgb(73, 151, 135);
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
Stroke thickness

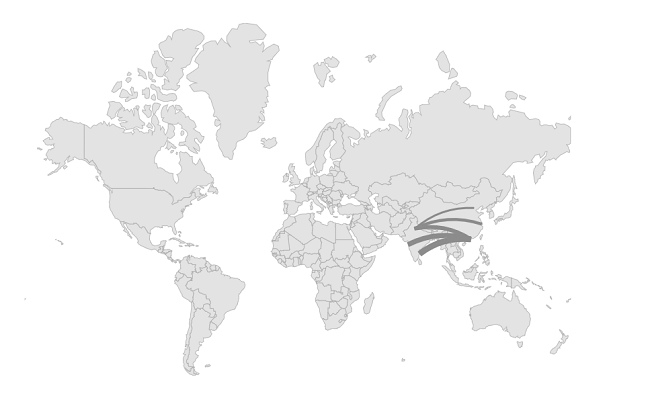

You can apply stroke thickness to each MapArc in the Arcs collection using the individual MapArc.StrokeThickness property. The default value of the MapArc.StrokeThickness property is 2.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc Stroke="#959595"
StrokeThickness="2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.6139"
Longitude="77.2090" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
StrokeThickness="3">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="31.2304"
Longitude="121.4737" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
StrokeThickness="4">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
StrokeThickness="5">
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
</map:MapArc>
<map:MapArc Stroke="#959595"
StrokeThickness="6">
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
arc1.Stroke = Color.FromRgb(149, 149, 149);
arc1.StrokeThickness = 2;
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
arc2.Stroke = Color.FromRgb(149, 149, 149);
arc2.StrokeThickness = 3;
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
arc3.Stroke = Color.FromRgb(149, 149, 149);
arc3.StrokeThickness = 4;
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
arc4.Stroke = Color.FromRgb(149, 149, 149);
arc4.StrokeThickness = 5;
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arc5.Stroke = Color.FromRgb(149, 149, 149);
arc5.StrokeThickness = 6;
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
Dash array

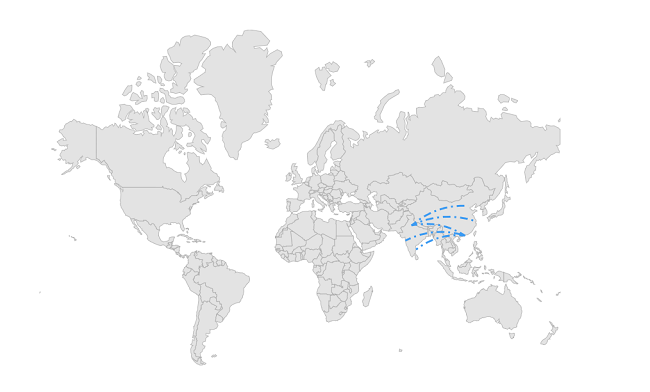

You can apply dash support for an arc using the MapArc.StrokeDashArray property.
A sequence of dashes and gaps is rendered based on the values in this list. Once all the values in the list are rendered, the sequence repeats until the end of the arc. When the MapArc.StrokeDashArray property is not set, a solid line is rendered. The values are specified in device-independent units that match the StrokeThickness coordinate space.
<map:SfMaps>
<map:SfMaps.Layer>
<map:MapShapeLayer ShapesSource="https://cdn.syncfusion.com/maps/map-data/world-map.json"
ShapeStroke="DarkGray">
<map:MapShapeLayer.Sublayers>
<map:MapArcLayer>
<map:MapArcLayer.Arcs>
<map:MapArc Stroke="#3d9bf2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="39.9042"
Longitude="116.4074" />
</map:MapArc.To>
<map:MapArc.StrokeDashArray>
<DoubleCollection>
<x:Double>4</x:Double>
<x:Double>2</x:Double>
<x:Double>1</x:Double>
<x:Double>2</x:Double>
</DoubleCollection>
</map:MapArc.StrokeDashArray>
</map:MapArc>
<map:MapArc Stroke="#3d9bf2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="23.1291"
Longitude="113.2644" />
</map:MapArc.To>
<map:MapArc.StrokeDashArray>
<DoubleCollection>
<x:Double>4</x:Double>
<x:Double>2</x:Double>
<x:Double>1</x:Double>
<x:Double>2</x:Double>
</DoubleCollection>
</map:MapArc.StrokeDashArray>
</map:MapArc>
<map:MapArc Stroke="#3d9bf2">
<map:MapArc.From>
<map:MapLatLng Latitude="28.7041"
Longitude="77.1025" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
<map:MapArc.StrokeDashArray>
<DoubleCollection>
<x:Double>4</x:Double>
<x:Double>2</x:Double>
<x:Double>1</x:Double>
<x:Double>2</x:Double>
</DoubleCollection>
</map:MapArc.StrokeDashArray>
</map:MapArc>
<map:MapArc Stroke="#3d9bf2">
<map:MapArc.From>
<map:MapLatLng Latitude="19.0760"
Longitude="72.8777" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.To>
<map:MapArc.StrokeDashArray>
<DoubleCollection>
<x:Double>4</x:Double>
<x:Double>2</x:Double>
<x:Double>1</x:Double>
<x:Double>2</x:Double>
</DoubleCollection>
</map:MapArc.StrokeDashArray>
</map:MapArc>
<map:MapArc Stroke="#3d9bf2">
<map:MapArc.From>
<map:MapLatLng Latitude="22.3193"
Longitude="114.1694" />
</map:MapArc.From>
<map:MapArc.To>
<map:MapLatLng Latitude="13.0827"
Longitude="80.2707" />
</map:MapArc.To>
<map:MapArc.StrokeDashArray>
<DoubleCollection>
<x:Double>4</x:Double>
<x:Double>2</x:Double>
<x:Double>1</x:Double>
<x:Double>2</x:Double>
</DoubleCollection>
</map:MapArc.StrokeDashArray>
</map:MapArc>
</map:MapArcLayer.Arcs>
</map:MapArcLayer>
</map:MapShapeLayer.Sublayers>
</map:MapShapeLayer>
</map:SfMaps.Layer>
</map:SfMaps>SfMaps maps = new SfMaps();
var layer = new MapShapeLayer();
layer.ShapesSource = MapSource.FromUri(new Uri("https://cdn.syncfusion.com/maps/map-data/world-map.json"));
layer.ShapeStroke = Brush.DarkGray;
var arcLayer = new MapArcLayer();
var arc1 = new MapArc();
arc1.From = new MapLatLng(28.6139, 77.2090);
arc1.To = new MapLatLng(39.9042, 116.4074);
arc1.Stroke = Color.FromRgb(61, 155, 242);
arc1.StrokeDashArray = new double[] { 4, 2, 1, 2 };
var arc2 = new MapArc();
arc2.From = new MapLatLng(28.7041, 77.1025);
arc2.To = new MapLatLng(31.2304, 121.4737);
arc2.Stroke = Color.FromRgb(61, 155, 242);
arc2.StrokeDashArray = new double[] { 4, 2, 1, 2 };
var arc3 = new MapArc();
arc3.From = new MapLatLng(28.7041, 77.1025);
arc3.To = new MapLatLng(22.3193, 114.1694);
arc3.Stroke = Color.FromRgb(61, 155, 242);
arc3.StrokeDashArray = new double[] { 4, 2, 1, 2 };
var arc4 = new MapArc();
arc4.From = new MapLatLng(19.0760, 72.8777);
arc4.To = new MapLatLng(22.3193, 114.1694);
arc4.Stroke = Color.FromRgb(61, 155, 242);
arc4.StrokeDashArray = new double[] { 4, 2, 1, 2 };
var arc5 = new MapArc();
arc5.From = new MapLatLng(22.3193, 114.1694);
arc5.To = new MapLatLng(13.0827, 80.2707);
arc5.Stroke = Color.FromRgb(61, 155, 242);
arc5.StrokeDashArray = new double[] { 4, 2, 1, 2 };
arcLayer.Arcs.Add(arc1);
arcLayer.Arcs.Add(arc2);
arcLayer.Arcs.Add(arc3);
arcLayer.Arcs.Add(arc4);
arcLayer.Arcs.Add(arc5);
layer.Sublayers.Add(arcLayer);
maps.Layer = layer;
this.Content = maps;
