Labels

18 Nov 20181 minute to read

Multilevel labels

The multi-level labels for the Range Selector can be enabled by setting the enableGrouping property to true. This is restricted to the DateTime axis alone.

Multilevel labels

Grouping

The multi-level labels can be grouped using the groupBy property with the following interval types:

  • Auto
  • Years
  • Quarter
  • Months
  • Weeks
  • Days
  • Hours
  • Minutes
  • Seconds

Grouping

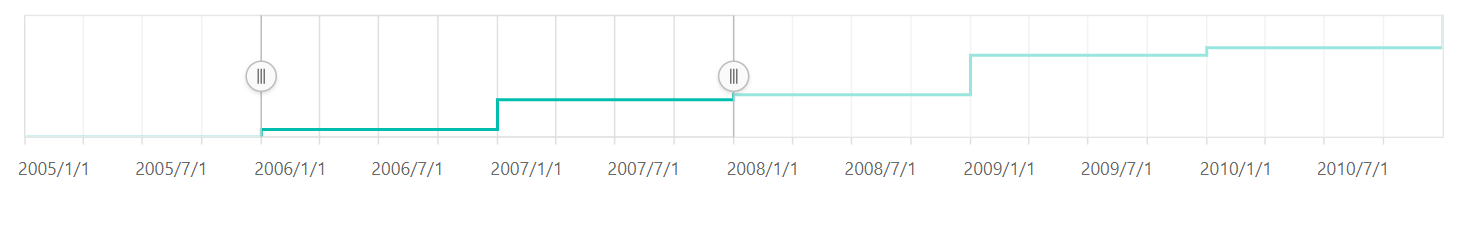

Smart labels

The labelIntersectAction property is used to avoid overlapping of labels. The following code sample shows the setting of labelIntersectAction property to Hide.

Smart labels

Label positioning

By default, the labels can be placed outside the Range Selector. It can also be placed inside the Range Selector using the labelPosition property.

Label positioning

Labels customization

The font size, color, family, etc. can be customized using the labelStyle setting.

Labels Customization
