100% Stacked Area Chart in Angular Charts

100% Stacked Area

A 100% stacked area chart normalizes stacked values so the total is always 100% at each point.
It is used to compare the percentage contribution of each series over time.

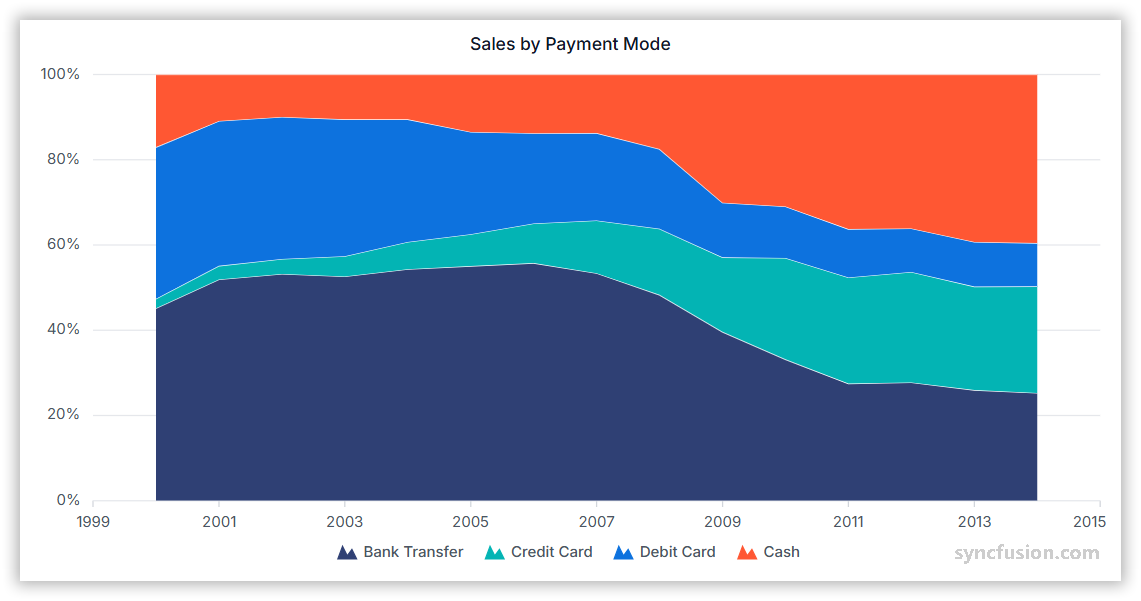

100% Stacked Area chart showing data trends over time

To render a 100% stacked area series in your chart, you need to follow a few steps to configure it correctly.

Here’s a concise guide on how to do this:

  1. Set the series type: Define the series type as StackingArea100 in your chart configuration. This indicates that the data should be represented as a 100% stacked area chart, where the cumulative values for each data point are expressed as a percentage of the total. This ensures that the sum of all series at each point is always 100%.

  2. Register the StackingAreaSeriesService provider: Register StackingAreaSeriesService (along with any other chart services you need) in the component’s providers array.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Binding data with series

Bind data via the dataSource property on the series. Map the fields from your records to xName and yName so the chart knows which value drives each point. The included basic sample renders four StackingArea100 series (USA, UK, Canada, China) on the same dataSource, with each series pointing to a different yName (y, y1, y2, y3).

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Series customization

The following properties customize the 100% stacked area series.

Solid fill

The fill property determines the color applied to the series. Default value is null.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' fill='red'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK' fill='yellow'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' fill='green'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China' fill='blue'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Gradient fill

The fill property can apply an SVG gradient to a 100% stacked area series. Define the gradient within an SVG <defs> element using a unique ID, and assign it to the series in the url(#gradientId) format. Place the following SVG elements in your application’s index.html file, inside the <body> element and outside the <app-container> element.

<svg>
    <defs>
        <linearGradient id="gradient1">
            <stop offset="0%" style="stop-color:blue;stop-opacity:1" />
            <stop offset="50%" style="stop-color:violet;stop-opacity:1" />
        </linearGradient>
    </defs>
</svg>

<svg>
    <defs>
        <linearGradient id="gradient2">
            <stop offset="0%" style="stop-color:darkred;stop-opacity:1" />
            <stop offset="50%" style="stop-color:darkorange;stop-opacity:1" />
        </linearGradient>
    </defs>
</svg>

<svg>
    <defs>
        <linearGradient id="gradient3">
            <stop offset="0%" style="stop-color:darkmagenta;stop-opacity:1" />
            <stop offset="50%" style="stop-color:darkcyan;stop-opacity:1" />
        </linearGradient>
    </defs>
</svg>

<svg>
    <defs>
        <linearGradient id="gradient4">
            <stop offset="0%" style="stop-color:darkviolet;stop-opacity:1" />
            <stop offset="50%" style="stop-color:darkgoldenrod;stop-opacity:1" />
        </linearGradient>
    </defs>
</svg>
import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' fill='url(#gradient1)'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK' fill='url(#gradient2)'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' fill='url(#gradient3)'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China' fill='url(#gradient4)'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Opacity

The opacity property specifies the transparency level of the fill. Valid range is 0 (completely transparent) to 1 (completely opaque). Default value is 1.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' opacity='0.5'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK' opacity='0.5'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' opacity='0.5'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China' opacity='0.5'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Series Border

Use the border property to style the series border. The border object supports these fields:

  • width - Border thickness in pixels.
  • color - Border stroke color.
  • dashArray - Dash pattern for the border (for example '5', '5,5', or '2,3,4').

Example: { width: 2.5, color: 'white', dashArray: '2,5' }.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' [border]='border' name='USA' ></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' [border]='border' name='UK' ></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' [border]='border' name='Canada' ></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' [border]='border' name='China' ></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public border?: Object;
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.border = {
            width: 2.5,
            color: 'white',
            dashArray: '2,5'
        }
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Empty points

Data points with null or undefined values are considered empty. How an empty point is rendered on the chart depends on the mode you choose.

Mode

Use the mode property to define how empty or missing data points are handled. Available values are:

  • Gap (default) - Leaves a gap at the empty point.
  • Drop - Drops the empty point and connects adjacent points.
  • Zero - Replaces the empty point with the value 0.
  • Average - Replaces the empty point with the average of adjacent points.
import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' [emptyPointSettings]='emptyPointSettings'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' [emptyPointSettings]='emptyPointSettings1'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    public emptyPointSettings1?: Object;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
        this.emptyPointSettings = {mode: 'Zero'};
        this.emptyPointSettings1 = {mode: 'Average'};
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
    { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
    { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
    { x: new Date(2008, 0, 1), y: null, y1: 37, y2: 73, y3: 53 },
    { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
    { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
    { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: undefined, y3: 37 },
    { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
    { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
    { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
];

Empty Point Fill

Use the fill property to customize the fill color of empty points in the series. Applies only when mode is Zero or Average.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' [marker]='marker' [emptyPointSettings]='emptyPointSettings'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' [emptyPointSettings]='emptyPointSettings1'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    public emptyPointSettings1?: Object;
    public marker?: Object;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.marker = {visible: true};
        this.title = 'Annual Temperature Comparison';
        this.emptyPointSettings = {mode: 'Zero', fill: 'red'};
        this.emptyPointSettings1 = {mode: 'Average'};
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
    { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
    { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
    { x: new Date(2008, 0, 1), y: null, y1: 37, y2: 73, y3: 53 },
    { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
    { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
    { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: undefined, y3: 37 },
    { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
    { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
    { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
];

Empty Point Border

Use the border property to customize the width and color of the border for empty points. Applies only when mode is Zero or Average.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA' [marker]='marker' [emptyPointSettings]='emptyPointSettings'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada' [emptyPointSettings]='emptyPointSettings1'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public emptyPointSettings?: Object;
    public emptyPointSettings1?: Object;
    public marker?: Object;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.marker = {visible: true};
        this.title = 'Annual Temperature Comparison';
        this.emptyPointSettings = {mode: 'Zero', fill: 'red', border:{width: 2, color: 'green'}};
        this.emptyPointSettings1 = {mode: 'Average'};
    }

}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
    { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
    { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
    { x: new Date(2008, 0, 1), y: null, y1: 37, y2: 73, y3: 53 },
    { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
    { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
    { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: undefined, y3: 37 },
    { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
    { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
    { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
];

Events

Series render

The seriesRender event allows you to customize series properties, such as data, fill, and name, before they are rendered on the chart. The included handler branches on args.series.index (0–3) and assigns a different args.fill per series.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { ISeriesRenderEventArgs } from '@syncfusion/ej2-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (seriesRender)='seriesRender($event)' [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y' name='USA'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y2' name='Canada'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
    }
    public seriesRender(args: ISeriesRenderEventArgs) {
        if (args.series.index === 0) {
            args.fill = '#ff4251';
        }
        else if (args.series.index === 1) {
            args.fill = '#4C4C4C';
        }
        else if (args.series.index === 2) {
            args.fill = '#794F1B';
        }
        else if (args.series.index === 3) {
            args.fill = '#1a9a6f';
        }
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Point render

The pointRender event allows you to customize each data point before it is rendered on the chart. The included handler branches on args.series.index (0–3) and assigns a different args.fill per series.

import { ChartModule, ChartAllModule } from '@syncfusion/ej2-angular-charts'
import { IPointRenderEventArgs } from '@syncfusion/ej2-charts'
import { StackingAreaSeriesService, DateTimeService } from '@syncfusion/ej2-angular-charts'


import { Component, OnInit } from '@angular/core';
import { stackedData } from './datasource';
@Component({
imports: [
         ChartModule, ChartAllModule
    ],

providers: [StackingAreaSeriesService, DateTimeService],
standalone: true,
    selector: 'app-container',
    template: `<ejs-chart id="chart-container" (pointRender)='pointRender($event)' [primaryXAxis]='primaryXAxis' [title]='title'>
        <e-series-collection>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' [marker]='marker' yName='y' name='USA'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' [marker]='marker' yName='y1' name='UK'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' [marker]='marker' yName='y2' name='Canada'></e-series>
            <e-series [dataSource]='chartData' type='StackingArea100' xName='x' [marker]='marker' yName='y3' name='China'></e-series>
        </e-series-collection>
    </ejs-chart>`
})
export class AppComponent implements OnInit {
    public primaryXAxis?: Object;
    public chartData?: Object[];
    public title?: string;
    public marker?: Object;
    ngOnInit(): void {
        this.chartData = stackedData;
        this.primaryXAxis = {
            valueType: 'DateTime'
        };
        this.title = 'Annual Temperature Comparison';
        this.marker = {visible: true}
    }
    public pointRender(args: IPointRenderEventArgs) {
        if (args.series.index === 0) {
            args.fill = '#ff4251';
        }
        else if (args.series.index === 1) {
            args.fill = '#4C4C4C';
        }
        else if (args.series.index === 2) {
            args.fill = '#794F1B';
        }
        else if (args.series.index === 3) {
            args.fill = '#1a9a6f';
        }
    }
}
import { bootstrapApplication } from '@angular/platform-browser';
import { AppComponent } from './app.component';
import 'zone.js';
bootstrapApplication(AppComponent).catch((err) => console.error(err));
export let stackedData: Object[] = [
        { x: new Date(2006, 0, 1), y: 34, y1: 51, y2: 14, y3: 37 },
        { x: new Date(2007, 0, 1), y: 20, y1: 26, y2: 34, y3: 15 },
        { x: new Date(2008, 0, 1), y: 40, y1: 37, y2: 73, y3: 53 },
        { x: new Date(2009, 0, 1), y: 51, y1: 51, y2: 51, y3: 51 },
        { x: new Date(2010, 0, 1), y: 26, y1: 26, y2: 26, y3: 26 },
        { x: new Date(2011, 0, 1), y: 37, y1: 37, y2: 37, y3: 37 },
        { x: new Date(2012, 0, 1), y: 54, y1: 43, y2: 12, y3: 54 },
        { x: new Date(2013, 0, 1), y: 44, y1: 23, y2: 16, y3: 44 },
        { x: new Date(2014, 0, 1), y: 48, y1: 55, y2: 34, y3: 23 }
    ];

Troubleshooting

  • Ensure StackingAreaSeriesService is registered in the providers; otherwise the 100% stacked area series will not render.
  • Empty-point customization has no visible effect: the fill and border settings on emptyPointSettings apply only when mode is Zero or Average. With Gap and Drop modes no marker is drawn.
  • Gradient fill renders as solid color: the SVG gradients referenced by fill='url(#gradient1)' etc. are not defined. Add matching <linearGradient> (or <radialGradient>) blocks inside a <defs> block in the chart template, or in a global stylesheet.

See Also
