Workflows in WinUI Kanban (SfKanban) control

28 Mar 20259 minutes to read

The WinUI Kanban workflow allows to define the flow of cards between columns, offering restrictions when moving cards from one column to another. It also supports preventing drag-and-drop actions on specific columns.

To define the flow of card transitions between different states, create an instance of the KanbanWorkflow class and add it to the Workflows property of the SfKanban to define the workflow for each column. The KanbanWorkflow class contains the following properties to specify the source and target categories.

• Category – Used to define the source category or state.
• AllowedTransitions – Used to define the list of categories or states to which a card can be moved from the current category.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
        <kanban:SfKanban.Workflows>
            <kanban:KanbanWorkflow Category="Open">
                <kanban:KanbanWorkflow.AllowedTransitions>
                    <x:String>In Progress</x:String>
                </kanban:KanbanWorkflow.AllowedTransitions>
            </kanban:KanbanWorkflow>
            <kanban:KanbanWorkflow Category="In Progress">
                <kanban:KanbanWorkflow.AllowedTransitions>
                    <x:String>Closed</x:String>
                    <x:String>Won't Fix</x:String>
                </kanban:KanbanWorkflow.AllowedTransitions>
            </kanban:KanbanWorkflow>
        </kanban:SfKanban.Workflows>
    <kanban:SfKanban.IndicatorColorPalette>
        <kanban:KanbanColorMapping Key="Low" Color="#0F7B0F"/>
        <kanban:KanbanColorMapping Key="Normal" Color="#FFB900"/>
        <kanban:KanbanColorMapping Key="High" Color="#C42B1C"/>
    </kanban:SfKanban.IndicatorColorPalette>
    <kanban:KanbanColumn HeaderText="To Do"
                         Categories="Open,Postponed" />
    <kanban:KanbanColumn HeaderText="In Progress"
                         Categories="In Progress"/>
    <kanban:KanbanColumn HeaderText="Done"
                         Categories="Closed,Won't Fix"/>
 </kanban:SfKanban>

C#

this.kanban.Workflows = new List<KanbanWorkflow>()
{
    new KanbanWorkflow() { Category = "Open", AllowedTransitions ={ "In Progress" } },
    new KanbanWorkflow() { Category = "In Progress", AllowedTransitions ={ "Closed", "Won't Fix" } },
};

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

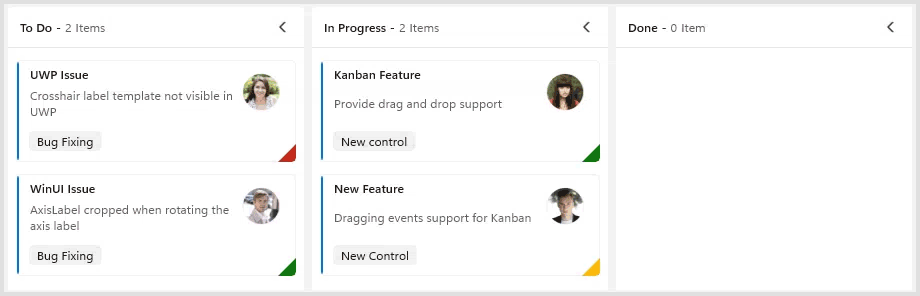

By following the code snippet, you will notice that a card picked from the In Progress state cannot be dropped into the Open state. This is because we have defined that the card can only transition from the In Progress state to the Closed, and Won't Fix states, and not to any other states.
