Columns in WinUI Kanban (SfKanban) control

28 Mar 202524 minutes to read

The WinUI Kanban control organizes its layout into columns, each representing a distinct stage of a workflow, such as to-do, in-progress, testing, validation, and completed. It supports various operations, including drag-and-drop, swim lane, and column toggling, all based on the defined columns.

Change column width

By default, the columns are sized smartly to arrange the default UI of the cards with better readability. You can also define the minimum and maximum widths for the columns in SfKanban using the MinimumColumnWidth and MaximumColumnWidth properties, respectively.

XAML

<kanban:SfKanban x:Name="kanban"
                 ItemsSource="{Binding TaskDetails}"
                 MinimumColumnWidth="200"
                 MaximumColumnWidth="250">
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.ItemsSource = new ViewModel().TaskDetails;
this.kanban.MinimumColumnWidth = 200;
this.kanban.MaximumColumnWidth = 250;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Closed";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

You can also define the exact width for the columns using ColumnWidth property of SfKanban.

XAML

<kanban:SfKanban x:Name="kanban"
                 ItemsSource="{Binding TaskDetails}"
                 ColumnWidth="280">
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.ItemsSource = new ViewModel().TaskDetails;
this.kanban.ColumnWidth = 280;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "24376";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "24376";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Closed";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

Categorizing columns

Columns are automatically generated based on the Category values in the KanbanModel from ItemsSource property. To categorize columns based on a specific property, you must explicitly define the property path using the ColumnMappingPath property. However, only the properties of KanbanModel can be assigned to ColumnMappingPath.

XAML

<kanban:SfKanban x:Name="kanban"
                 ColumnMappingPath="Id"
                 ItemsSource="{Binding TaskDetails}">
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.ColumnMappingPath = "Id";
this.kanban.ItemsSource = new ViewModel().TaskDetails;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Closed";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

To manually define columns, set AutoGenerateColumns to false, add KanbanColumn instances to the Columns property, and use the Categories property to assign categories to the columns. Cards will then be added accordingly.

The following example code generates the columns automatically based on the Category values.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="True"
                 ItemsSource="{Binding TaskDetails}">
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = true;
this.kanban.ItemsSource = new ViewModel().TaskDetails;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Closed";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

Populating Multi-Category Columns with Cards

The Kanban board allows user to render a single column by mapping multiple categories using Categories property of KanbanColumn in SfKanban. For example, you can map the In Progress and Validated types under the In progress column.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
    <kanban:KanbanColumn HeaderText="To Do" Categories="Open" />
    <kanban:KanbanColumn HeaderText="In Progress" Categories="In Progress,Validated" />
    <kanban:KanbanColumn HeaderText="Done" Categories="Done" />
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = false;
this.kanban.ItemsSource = new ViewModel().TaskDetails;

this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "To Do", Categories = "Open" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "In Progress", Categories = "In Progress,Validated" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "Done", Categories = "Done" });

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "Validated";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WF Issue";
        taskDetail.Id = "1254";
        taskDetail.Description = "HorizontalAlignment for tooltip is not working";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle5.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

Customize columns header appearance

The WinUI Kanban control allows you to customize the header text, column header template, and more.

Customize the header text

You can use the HeaderText property of KanbanColumn to customize the header text of a column in the kanban control.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
        <kanban:KanbanColumn HeaderText="To Do" Categories="Open" />
        <kanban:KanbanColumn HeaderText="In Progress" Categories="In Progress" />
        <kanban:KanbanColumn HeaderText="Done" Categories="Done" />
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = false;
this.kanban.ItemsSource = new ViewModel().TaskDetails;
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "To Do", Categories = "Open" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "In Progress", Categories = "In Progress" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "Done", Categories = "Done" });

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);

        return taskDetails;
    }

    #endregion
}

Customize column header appearance using DataTemplate

You can customize the column header appearance by using the ColumnHeaderTemplate property in the SfKanban control. The DataContext for the ColumnHeaderTemplate property in SfKanban is set to the KanbanModel.

XAML

<kanban:SfKanban x:Name="kanban"
                 ItemsSource="{Binding TaskDetails}">
    <kanban:SfKanban.ColumnHeaderTemplate>
        <DataTemplate>
            <Grid Height="40" Background="LightBlue" >
                <Grid.RowDefinitions>
                    <RowDefinition Height="5*"/>
                    <RowDefinition Height="5*"/>
                </Grid.RowDefinitions>
                <TextBlock Text="{Binding HeaderText}" Grid.Row="0"
                            Margin="6,2,0,0"
                            HighContrastAdjustment="None"
                            Foreground="Black"
                            FontWeight="Bold"
                            FontFamily="Lucida Handwriting"
                            FontStyle="Italic"
                            FontSize="13"></TextBlock>
                <StackPanel Orientation="Horizontal" Grid.Row="1">
                    <TextBlock Text="Items Count : "
                                HorizontalAlignment="Center"
                                Margin="6,1,0,0"
                                HighContrastAdjustment="None"
                                Foreground="Black"
                                FontWeight="Normal"
                                FontStyle="Italic"
                                FontSize="11">
                    </TextBlock>
                    <TextBlock Text="{Binding CardsCount}"
                                HorizontalAlignment="Center"
                                Margin="3,1,0,0"
                                HighContrastAdjustment="None"
                                Foreground="Black"
                                FontWeight="Normal"
                                FontStyle="Italic"
                                FontSize="11">
                    </TextBlock>
                </StackPanel>
            </Grid>
        </DataTemplate>
    </kanban:SfKanban.ColumnHeaderTemplate>
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.ItemsSource = new ViewModel().TaskDetails;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);

        return taskDetails;
    }

    #endregion
}

Expand/Collapse column

The Kanban allows you to programmatically expand or collapse columns using the IsExpanded property of KanbanColumn in the SfKanban control. By default, columns can be expanded or collapsed by tapping the toggle button placed at the top-right corner of the kanban column header.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
        <kanban:KanbanColumn HeaderText="To Do" Categories="Open" />
        <kanban:KanbanColumn HeaderText="In Progress" Categories="In Progress" />
        <kanban:KanbanColumn HeaderText="Done" Categories="Done" IsExpanded="False" />
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = false;
this.kanban.ItemsSource = new ViewModel().TaskDetails;

this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "To Do", Categories = "Open" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "In Progress", Categories = "In Progress" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "Done", Categories = "Done", IsExpanded = false });

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);

        return taskDetails;
    }

    #endregion
}

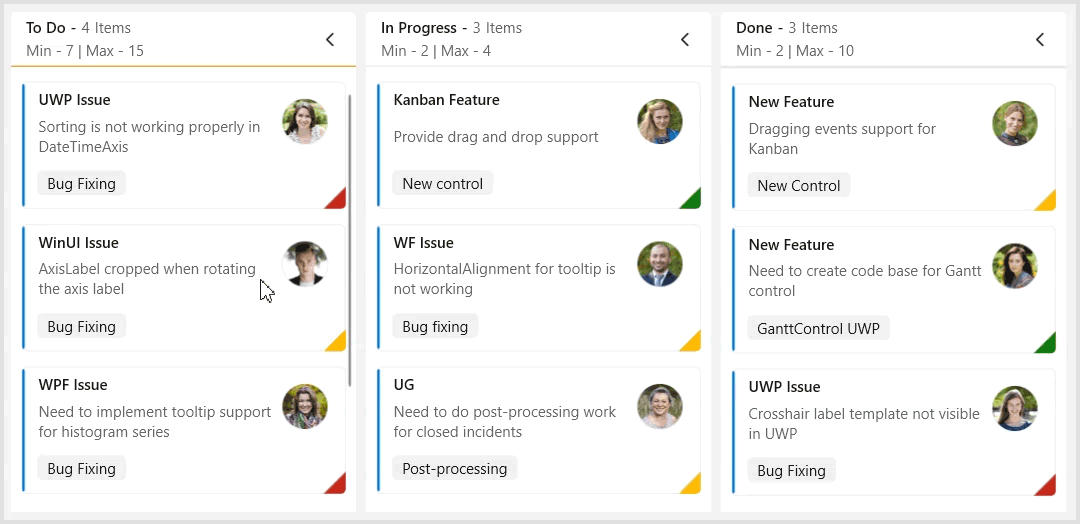

Card drag and drop

Cards can be dragged and dropped across columns, within columns, or across swimlane rows to modify the card’s status. To enable drag-and-drop functionality within the kanban, set the AllowDrag property of KanbanColumn to true. The default value is true.

To disable drag-and-drop, set AllowDrag and AllowDrop properties to false.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
        <kanban:KanbanColumn HeaderText="To Do" Categories="Open" AllowDrag="False" AllowDrop="False"/>
        <kanban:KanbanColumn HeaderText="In Progress" Categories="In Progress" />
        <kanban:KanbanColumn HeaderText="Done" Categories="Done" />
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = false;
this.kanban.ItemsSource = new ViewModel().TaskDetails;

this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "To Do", Categories = "Open", AllowDrag = false, AllowDrop = false });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "In Progress", Categories = "In Progress" });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "Done", Categories = "Done" });

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

Placeholder in WinUI Kanban control

The placeholders in the WinUI Kanban control visually indicate the exact position where a card is dragged and where it will be placed within a Kanban column during a drag-and-drop operation.

The appearance of drag-and-drop placeholders in the WinUI Kanban control can be customized by modifying the values of the predefined theme keys.

Drag placeholder theme keys

The following theme keys control the appearance of the drag placeholder:

• SyncfusionKanbanPlaceholderBackground
• SyncfusionKanbanPlaceholderBorderBrush
• SyncfusionKanbanPlaceholderBorderThickness

Drop placeholder theme keys

The following theme keys control the appearance of the drop placeholder:

• SyncfusionKanbanPlaceholderSelectedBackground
• SyncfusionKanbanPlaceholderSelectedBorderBrush
• SyncfusionKanbanPlaceholderSelectedBorderThickness

XAML

<Grid>
    <Grid.Resources>
            <SolidColorBrush x:Key="SyncfusionKanbanPlaceholderBackground" Color="LightBlue" />
            <SolidColorBrush x:Key="SyncfusionKanbanPlaceholderBorderBrush" Color="DarkBlue" />
            <Thickness x:Key="SyncfusionKanbanPlaceholderBorderThickness">2</Thickness>
            <SolidColorBrush x:Key="SyncfusionKanbanPlaceholderSelectedBackground" Color="OrangeRed" />
            <SolidColorBrush x:Key="SyncfusionKanbanPlaceholderSelectedBorderBrush" Color="DarkRed" />
            <Thickness x:Key="SyncfusionKanbanPlaceholderSelectedBorderThickness">3</Thickness>
    </Grid.Resources>

    <kanban:SfKanban x:Name="kanban"
                     ItemsSource="{Binding TaskDetails}">
        <kanban:SfKanban.DataContext>
            <local:ViewModel/>
        </kanban:SfKanban.DataContext>
    </kanban:SfKanban>
</Grid>

C#

this.kanban.ItemsSource = new ViewModel().TaskDetails;

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Closed";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}

Work-in-Progress (WIP) limit and indications

The WinUI Kanban control allows users to set limits on the number of tasks in each column at every stage of the workflow, helping to prevent overload. The minimum and maximum number of items allowed in a column can be customized using the MinimumCount and MaximumCount properties in KanbanColumn.

The Kanban control also supports built-in error bars that change color when the WIP limit is exceeded or when a task fails validation, making it easier to quickly identify bottlenecks in the process.

XAML

<kanban:SfKanban x:Name="kanban"
                 AutoGenerateColumns="False"
                 ItemsSource="{Binding TaskDetails}">
        <kanban:KanbanColumn HeaderText="To Do" Categories="Open" MaximumCount="1" />
        <kanban:KanbanColumn HeaderText="In Progress" Categories="In Progress" MinimumCount="2" />
        <kanban:KanbanColumn HeaderText="Done" Categories="Done" MinimumCount="1" MaximumCount="5" />
    <kanban:SfKanban.DataContext>
        <local:ViewModel/>
    </kanban:SfKanban.DataContext>
</kanban:SfKanban>

C#

this.kanban.AutoGenerateColumns = false;
this.kanban.ItemsSource = new ViewModel().TaskDetails;

this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "To Do", Categories = "Open", MaximumCount = 1 });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "In Progress", Categories = "In Progress", MinimumCount = 2 });
this.kanban.Columns.Add(new KanbanColumn() { HeaderText = "Done", Categories = "Done", MinimumCount = 1, MaximumCount = 5 });

ViewModel.cs

public class ViewModel
{
    #region Properties

    /// <summary>
    /// Gets or sets the collection of <see cref="KanbanModel"/> objects representing tasks in various stages.
    /// </summary>
    public ObservableCollection<KanbanModel> TaskDetails { get; set; }

    #endregion

    #region Constructor

    /// <summary>
    /// Initializes a new instance of the <see cref="ViewModel"/> class.
    /// </summary>
    public ViewModel()
    {
        this.TaskDetails = this.GetTaskDetails();
    }

    #endregion

    #region Private methods

    /// <summary>
    /// Method to get the kanban model collections.
    /// </summary>
    /// <returns>The kanban model collections.</returns>
    private ObservableCollection<KanbanModel> GetTaskDetails()
    {
        var taskDetails = new ObservableCollection<KanbanModel>();
        string path = @"ms-appx:///";

        KanbanModel taskDetail = new KanbanModel();
        taskDetail.Title = "UWP Issue";
        taskDetail.Id = "651";
        taskDetail.Description = "Crosshair label template not visible in UWP";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "High";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri("ms-appx:///Assets/Kanban/People_Circle1.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "WinUI Issue";
        taskDetail.Id = "646";
        taskDetail.Description = "AxisLabel cropped when rotating the axis label";
        taskDetail.Category = "Open";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "Bug Fixing" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle2.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "Kanban Feature";
        taskDetail.Id = "25678";
        taskDetail.Description = "Provide drag and drop support";
        taskDetail.Category = "In Progress";
        taskDetail.IndicatorColorKey = "Low";
        taskDetail.Tags = new List<string>() { "New control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle3.png"))
        };

        taskDetails.Add(taskDetail);

        taskDetail = new KanbanModel();
        taskDetail.Title = "New Feature";
        taskDetail.Id = "29574";
        taskDetail.Description = "Dragging events support for Kanban";
        taskDetail.Category = "Done";
        taskDetail.IndicatorColorKey = "Normal";
        taskDetail.Tags = new List<string>() { "New Control" };
        taskDetail.Image = new Image
        {
            Source = new BitmapImage(new Uri(path + "Assets/Kanban/People_Circle4.png"))
        };

        taskDetails.Add(taskDetail);
        return taskDetails;
    }

    #endregion
}
