Searching in WinUI ComboBox (SfComboBox)

7 Jan 202212 minutes to read

The ComboBox control provides rich text searching functionality. The TextSearchMode and IsTextSearchEnabled properties of the ComboBox can be used to regulate how the control behaves when it receives user input.

Search based on member path

The TextMemberPath and DisplayMemberPath properties of ComboBox control specify the property path, by which the searching must be done when a custom data is bound to the ItemsSource property.

TextMemberPath - Specifies the property path, by which the searching must be done when user input is received in the selection box portion of the ComboBox control. The default value is String.Empty. When TextMemberPath is null or string.Empty, searching will be performed based on DisplayMemberPath.

DisplayMemberPath - Specifies the property path, by which the searching must be done when user input is received in the drop-down portion of the ComboBox control. The default value is String.Empty.

NOTE

TextMemberPath and DisplayMemberPath will be effective for the collection item that holds two or more properties in it.

NOTE

When both the TextMemberPath and DisplayMemberPath properties have a null or string.Empty value, searching will be performed based on the class name with namespace of the item.

Edit mode Searching based on TextMemberPath

In edit mode, searching will be performed based on the TextMemberPath property while entering the text into the selection box. When TextMemberPath is null or string.Empty, searching will be performed based on DisplayMemberPath.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    IsTextSearchEnabled="true"
                    IsEditable="true"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="ID"
                    DisplayMemberPath="Name" />

C#

comboBox.TextMemberPath = "ID";

For e.g. After typing 4 in selection box.

Non-Editable mode Searching based on DisplayMemberPath

In non-editable mode, searching will be performed based on the DisplayMemberPath property when user input is received in drop-down.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    IsTextSearchEnabled="true"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="ID" />

C#

comboBox.DisplayMemberPath = "ID";

For e.g. After typing 4 in drop-down.

Auto appending of text

The ComboBox control provides support to auto append the text based on data source when end-user edits. If the IsTextSearchEnabled property is set as false, the matched suitable text will not append with the entered text.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    IsEditable="true"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="Name" />

NOTE

Auto appending of text is supported only in Editable mode and TextSearchMode property should be StartsWith.

Search Mode

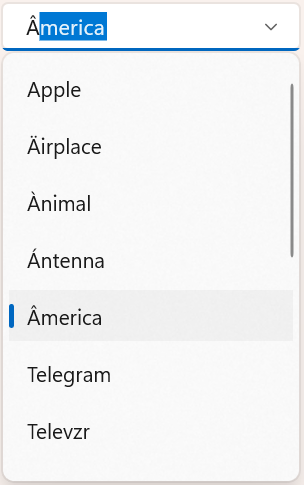

The TextSearchMode property of the ComboBox can be used to regulate how the control behaves when it receives user input. The default text searching type is StartsWith, ignoring accent and it is case insensitive. The available text search modes are,

• StartsWith
• Contains

Search with beginning text

Search the matching items based on the starting text, and the first item which fits the user input in the drop-down list, will be highlighted.

The following examples show how to perform text searching functionality in single selection mode.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    TextSearchMode="StartsWith"
                    ItemsSource="{Binding SocialMedias}"
                    DisplayMemberPath="Name"
                    TextMemberPath="Name" />

C#

comboBox.TextSearchMode = ComboBoxTextSearchMode.StartsWith;

The following examples show how to perform text searching functionality in multiple selection mode.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    SelectionMode="Multiple"
                    TextSearchMode="StartsWith"
                    ItemsSource="{Binding SocialMedias}"
                    DisplayMemberPath="Name"
                    TextMemberPath="Name" />

C#

comboBox.TextSearchMode = ComboBoxTextSearchMode.StartsWith;

Search with contains text

Search the matching items containing specific text, and the first item which fits the user input in the drop-down list, will be highlighted.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    IsEditable="True"
                    TextSearchMode="Contains"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="Name" />

C#

comboBox.TextSearchMode = ComboBoxTextSearchMode.Contains;

Custom searching

The ComboBox control provides support to apply your own custom search logic to highlight the item in the drop-down based on your search criteria by using the SearchBehavior property. The default value of SearchBehavior is null.

Now, let us create a custom searching class to apply our own search logic to ComboBox control by the following steps:

Step 1: Create a class that derives from the IComboBoxSearchBehavior interface.

C#

/// <summary>
/// Represents a custom searching behavior for `ComboBox` control.
/// </summary>
public class StringLengthSearchingBehavior : IComboBoxSearchBehavior
{

}

Step 2: Then, implement the GetHighlightIndex method of IComboBoxSearchBehavior interface to calculate the highlight index depending on the filtered items list and text entered in the ComboBox control that needs to be highlighted in drop-down. The GetHighlightIndex method contains the following arguments:

• source - The owner of the search behavior, which holds information about ItemsSource, Items properties, and so on.
• searchInfo - Contains details about the filtered items list and the text entered in ComboBox control. You may compute the index that has to be highlighted in the drop-down list using these details.

The following example demonstrates how to highlight the first item that fully matches the typed length entered in the ComboBox control.

C#

/// <summary>
/// Represents a custom searching behavior for `ComboBox` control.
/// </summary>
public class StringLengthSearchingBehavior : IComboBoxSearchBehavior
{
    private int charLength;

    /// <summary>
    /// Return the highlight index that fully matches the typed length entered in the ComboBox control.
    /// </summary>
    public int GetHighlightIndex(SfComboBox source, ComboBoxSearchInfo searchInfo)
    {
        if (int.TryParse(searchInfo.Text, out this.charLength))
        {
           var fullMatch = searchInfo.FilteredItems.OfType<SocialMedia>().FirstOrDefault(i => i.Name.Length == charLength);
           if (fullMatch != null)
           {
              return searchInfo.FilteredItems.IndexOf(fullMatch);
           }
        }

        return -1;
    }
}

Step3: Apply custom searching to the ComboBox control by using the SearchBehavior property.

XAML

<editors:SfComboBox IsEditable="True"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="Name">
        <editors:SfComboBox.SearchBehavior>
            <local:StringLengthSearchingBehavior/>
        </editors:SfComboBox.SearchBehavior>
</editors:SfComboBox>

For e.g. After typing 9 in selection box, the first item that fully matches the typed length will be highlighted.

How to disable searching

To disable searching and auto appending text functionalities, set the IsTextSearchEnabled property as false. The default value is true.

XAML

<editors:SfComboBox x:Name="comboBox"
                    Width="250"
                    IsTextSearchEnabled="false"
                    IsEditable="true"
                    ItemsSource="{Binding SocialMedias}"
                    TextMemberPath="Name"
                    DisplayMemberPath="Name" />

C#

comboBox.IsTextSearchEnabled = false;
