TreeView Appearance in WinForms TreeView(SfTreeView)
3 Feb 20229 minutes to read
This section provides options to the customize the tree structure and the nodes.
Background Settings
WinForms TreeView control lets you customize its background with colors and image.
Background Colors
The below properties sets the background color for the treeview and also the node text.
Property Table
TreeViewAdv Properties | Description |
---|---|
BackgroundColor | Indicates the background color of the control. It provides options to set style, back color, fore color, gradient color and gradient styles. |
BackColor | Indicates the background color of the text and the graphics of the control. |
NOTE
The Background property is available for individual nodes also.
Background Image
Use the BackgroundImage property to specify a custom image as the background of the chart. The image layout can also be specified using the properties below.
Property Table
TreeViewAdv Properties | Description |
---|---|
BackgroundImage | Indicates the background image that can be used for the control. |
BackgroundImageLayout | Indicates the layout for the background image in the control. |
More Customization for PlusMinus Controls
The controls in the TreeViewAdv like PlusMinus control will have a transparent background, if the TransparentControls property is set to true.
Property Table
TreeViewAdv Properties | Description |
---|---|
TransparentControls | Indicates if the control will have a transparent background. |
this.treeViewAdv1.TransparentControls = true;
Me.treeViewAdv1.TransparentControls = True
Themed TreeView Control
Themes can be enabled for the control by enabling ThemesEnabled property. This can also be enabled for individual nodes also by using the TreeNodeAdv.ThemesEnabled property.
Property Table
TreeViewAdv Properties | Description |
---|---|
ThemesEnabled | Indicates if the control is drawn themed. |
Property Table
TreeNodeAdv Properties | Description |
---|---|
ThemesEnabled | Indicates if the node control will be themed. |
Drawing Node Background
To draw the node’s background, users need to turn on OwnerDrawnNodesBackground property, in theTreeViewAdv and then listen to the tree’s NodeBackgroundPaint event which will be called for each node. This can be implemented by using the following code snippet.
Property Table
TreeViewAdv Properties | Description |
---|---|
OwnerDrawnNodesBackground | Indicates if the NodeBackgroundPaint event will be fired before drawing a node's background. |
Event Table
TreeViewAdv event | Description |
---|---|
NodeBackgroundPaint | This event when fired, paints the background of the node, when OwnerDrawNodes property is set to true. |
this.treeViewAdv1.OwnerDrawNodesBackground = true;
// Background Paint Event
private void treeViewAdv1_NodeBackgroundPaint(object sender, TreeNodeAdvPaintBackgroundEventArgs e)
{
if (e.Node.Index == 2 | e.Node.Index == 4)
{
Syncfusion.Drawing.BrushInfo br = new Syncfusion.Drawing.BrushInfo(Color.Orange);
e.BrushInfo = br;
}
}
Me.treeViewAdv1.OwnerDrawNodesBackground = True
' Background Pain Event
Private Sub treeViewAdv1_NodeBackgroundPaint(ByVal sender As Object, ByVal e As TreeNodeAdvPaintBackgroundEventArgs)
If e.Node.Index = 2 Or e.Node.Index = 4 Then
Dim br As Syncfusion.Drawing.BrushInfo = New Syncfusion.Drawing.BrushInfo(Color.Orange)
e.BrushInfo = br
End If
End Sub
Painting the Active and Inactive Nodes
Background for the selected node can be set using SelectedNodeBackground property. The selection rectangle gets grayed out when the TreeViewAdv loses focus. If the user still wishes to maintain the node’s active colors, then the InactiveSelectedNodeBackground and InactiveSelectedNodeForeColor properties can be set.
NOTE
HideSelection property should be set to false to effect this setting.
TreeViewAdv Properties | Description |
---|---|
SelectedNodeBackground | Paints the background of the selected node. |
InactiveSelectedNodeBackground | Indicates the background of the selected node when the control is not focused. |
InactiveSelectedNodeForeColor | Indicates the text color of the selected node when not focused. |
this.treeViewAdv1.InactiveSelectedNodeBackground = new Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.ForwardDiagonal, System.Drawing.Color.Ivory, System.Drawing.Color.DarkOrange);
this.treeViewAdv1.InactiveSelectedNodeForeColor = System.Drawing.Color.SteelBlue;
Me.treeViewAdv1.InactiveSelectedNodeBackground = New Syncfusion.Drawing.BrushInfo(Syncfusion.Drawing.GradientStyle.ForwardDiagonal, System.Drawing.Color.Ivory, System.Drawing.Color.DarkOrange)
Me.treeViewAdv1.InactiveSelectedNodeForeColor = System.Drawing.Color.SteelBlue
Foreground Settings
Foreground Settings for the tree node text
Using the Text and TextColor property, individual node’s text can be edited and colored respectively.
Using the Font and the ForeColor properties of the control, the text and text color of the nodes can be set for all the nodes in the TreeView control.
NOTE
The font style for individual nodes, can be set using the Font property available for individual nodes using NodeCollection Editor.
TreeViewAdv Properties | Description |
---|---|
Font | Specifies the Font style of the node text. |
ForeColor | Specifies the text color of the nodes. |
Property Table
TreeViewAdv Properties | Description |
---|---|
Text | Sets text for the node. |
TextColor | Sets the color for the specific node text. |
NOTE
When you set the ForeColor property for TreeViewAdv control, it will get reflected in the Node’s TextColor property. User can change the color for specific nodes using TreeNodeAdv.TextColor property.
Drawing Selected Node Foreground
Painting the foreground of the Specified Nodes
User can paint specific nodes using the BeforeNodePaint event.
Event Table
TreeNodeAdv event | Description |
---|---|
BeforeNodePaint | Handled before a node is being painted. |
NOTE
OwnerDrawNodes property should be set to true while handling this event.
treeViewAdv Properties | Description |
---|---|
OwnerDrawNodes | Indicates if the BeforeNodePaint event will be fired before drawing a node. |
this.treeViewAdv1.OwnerDrawNodes = true;
// Enabling Node's Foreground
private void treeViewAdv1_BeforeNodePaint(object sender, TreeNodeAdvPaintEventArgs e)
{
if (e.Node.Index == 2 | e.Node.Index == 4)
{
e.ForeColor=Color.Red;
}
}
Me.treeViewAdv1.OwnerDrawNodes = True
' Enabling Node's Foreground
Private Sub treeViewAdv1_BeforeNodePaint(ByVal sender As Object, ByVal e As TreeNodeAdvPaintEventArgs)
If e.Node.Index = 2 Or e.Node.Index = 4 Then
e.ForeColor = Color.Red
End If
End Sub
Active Node Foreground Settings
SelectedNodeForeColor property lets you paint the selected node.
Property Table
treeViewAdv Properties | Description |
---|---|
SelectedNodeForeColor | Indicates the fore color of the node that is selected. |
this.treeViewAdv1.SelectedNodeForeColor = System.Drawing.Color.Gray;
Me.treeViewAdv1.SelectedNodeForeColor = System.Drawing.Color.Gray
Post Default Drawing
Users can also draw on the node, after the default drawing routines have rendered the node appropriately. Users can do so by first turning on OwnerDrawnNodes in the tree and listening to the AfterNodePaint event.
Event Table
TooltipTreeNodeAdv event | Description |
---|---|
AfterNodePaint | Handled after a node is painted. |
See Also
Image Overlaying
Border Settings
3D Border for TreeView
The following properties sets 3D border for the treeview.
Property Table
TreeViewAdv Property | Description |
---|---|
BorderStyle |
Sets the border style for the Treeview control. FixedSingle - a normal border,Fixed3D - 3D appearance. |
Border3DStyle |
Indicates the style of the 3D border when BorderStyle is set to Fixed3D.RaisedOuter SunkenOuterRaisedInnerSunkenInnerRaisedEtchedBumpSunken (Default)Adjust Flat |
2D Border for TreeView
The following properties let you set customized 2D border.
NOTE
The settings will effect only when TreeViewAdv.BorderStyle property is set to FixedSingle.
TreeViewAdv Property | Description |
---|---|
BorderColor | Indicates the color of the 2D border. |
BorderSides | Specifies the sides of the control to which border should be set. |
BorderSingle | Indicates the 2D border style. The options are,Solid (Default),Dotted,Dashed,Inset,Outset,None. |
this.treeViewAdv1.BorderColor = System.Drawing.Color.SteelBlue;
this.treeViewAdv1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed;
this.treeViewAdv1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle;
Me.treeViewAdv1.BorderColor = System.Drawing.Color.SteelBlue
Me.treeViewAdv1.BorderSingle = System.Windows.Forms.ButtonBorderStyle.Dashed
Me.treeViewAdv1.BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle
Spacing
TreeViewAdv architecture gives a neat look by using the gutter space and indentation features.
GutterSpace
The space on the left side of a TreeViewAdv control is the gutter space which acts as a left margin to the control. It can be modified using GutterSpace property. By default it is 3.
this.treeViewAdv1.GutterSpace = 7;
Me.treeViewAdv1.GutterSpace = 5
Indentation
The space between the parent node and the child node is the Indentation. It indicates the indent of the child nodes from the parent node. By providing value to the Indent property of the TreeViewAdv control, Indentation can be altered. Default value is 19.
this.treeViewAdv1.Indent = 21
Me.treeViewAdv1.Indent = 21

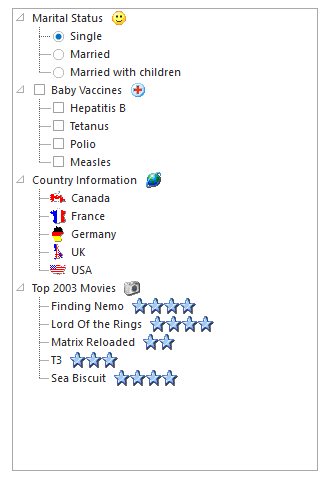

Visual Style
VisualStyles provides rich and professional look and feel UI for the TreeViewAdv control. Some of the available VisualStyles are as follows:
- Default
- Office2007
- Office2010
- Metro
- Office2016Colorful
- Office2016White
- Office2016Black
- Office2016DarkGray
The visual style can be applied for the TreeViewAdv using Style
property.
//Set the visual Style of the TreeViewAdv control.
this.treeViewAdv1.Style = Syncfusion.Windows.Forms.Tools.TreeStyle.Office2016Colorful;
'Set the visual Style of the TreeViewAdv control.
Me.treeViewAdv1.Style = Syncfusion.Windows.Forms.Tools.TreeStyle.Office2016Colorful
