Layout Customization in Windows Forms Tile Layout

29 Apr 2021 / 3 minutes to read

Alignment

This Alignment property sets the MainLayout group alignment in TileLayout control.

c#
vb
//Gets or sets the MainLayout alignment

this.tileLayout1.MainLayout.Alignment = Syncfusion.Windows.Forms.Tools.FlowAlignment.Near;
‘Gets or sets the MainLayout alignment

Me.tileLayout1.MainLayout.Alignment = Syncfusion.Windows.Forms.Tools.FlowAlignment.Near

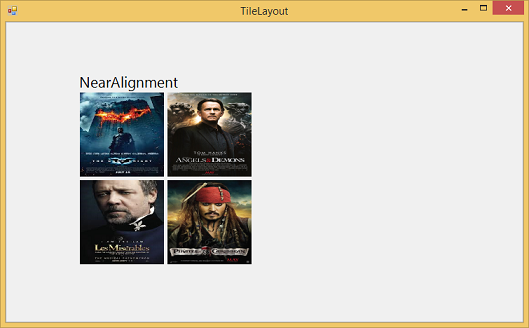

Near alignment

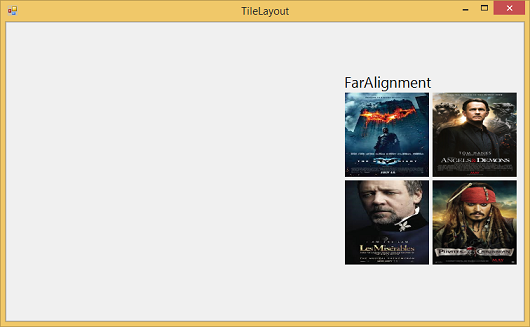

Far alignment

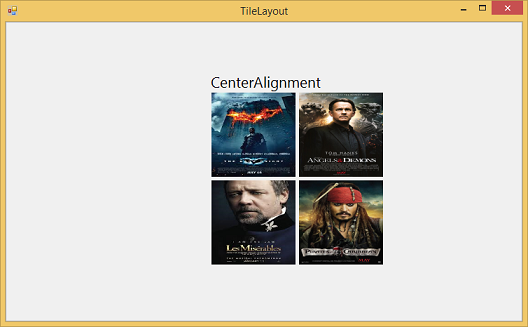

Center alignment

HorzNearMargin

HorzNearMargin indicates the left margin between the client rectangle and layout rectangle.

c#
vb
//Gets or sets the left margin between client rectangle and layout rectangle

this.tileLayout1.MainLayout.HorzNearMargin = 100;
‘Gets or sets the left margin between client rectangle and layout rectangle

Me.tileLayout1.MainLayout.HorzNearMargin = 100

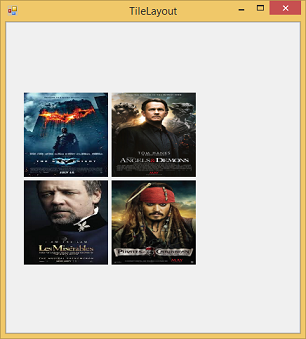

Horizontal near margin

HorzFarMargin

HorzFarMargin indicates the right margin between the client rectangle and the layout rectangle.

c#
vb
//Gets or sets the right margin between client rectangle and layout rectangle

this.tileLayout1.MainLayout.HorzFarMargin = 100;
‘Gets or sets the right margin between client rectangle and layout rectangle

Me.tileLayout1.MainLayout.HorzFarMargin = 100

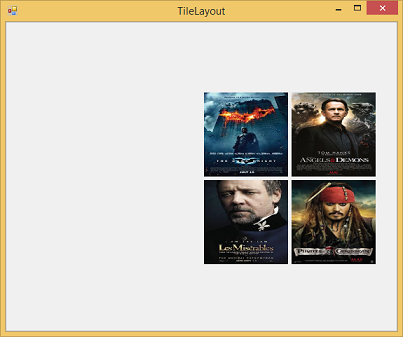

Horizontal far margin

TopMargin

TopMargin indicates the Top margin between the client rectangle and layout rectangle.

c#
vb
//Gets or sets the Top margin between client rectangle and layout rectangle

this.tileLayout1.MainLayout.TopMargin = 20;
‘Gets or sets the Top margin between client rectangle and layout rectangle

Me.tileLayout1.MainLayout.TopMargin = 20

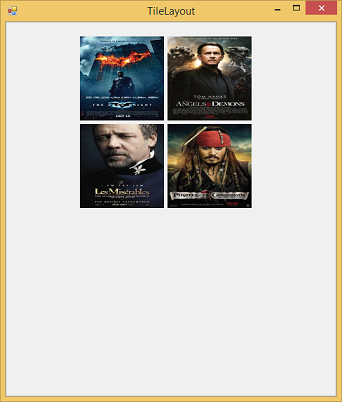

Top margin

BottomMargin

BottomMargin indicates the Bottom margin between the client rectangle and layout rectangle.

c#
vb
//Gets or sets the Bottom margin between client rectangle and layout rectangle

this.tileLayout1.MainLayout.BottomMargin = 100;
‘Gets or sets the Bottom margin between client rectangle and layout rectangle

Me.tileLayout1.MainLayout.BottomMargin = 100

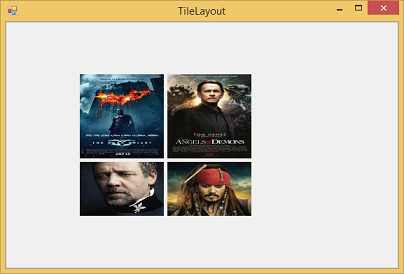

Bottom margin

ReverseRows

This ReverseRows property lays out the rows in opposite direction. If the LayoutMode is Horizontal then it lays out rows in Top to Bottom direction. If the LayoutMode is Vertical then it lays out the rows in Left to Right direction.

c#
vb
//Lays out the rows in opposite direction

this.tileLayout1.MainLayout.ReverseRows = true;
‘Lays out the rows in opposite direction

Me.tileLayout1.MainLayout.ReverseRows = true

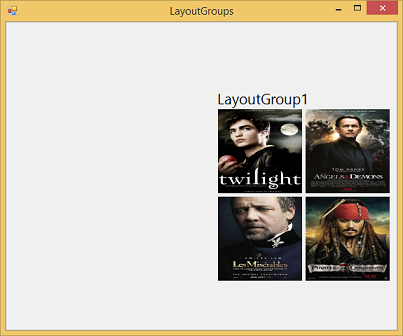

Reverse transition
