How to Create Custom Tab Renderer Class in TabControlAdv

18 Nov 20181 minute to read

‘ITabRenderer’ interface (or derive from TabRendererBase, a base implementation of ITabRenderer), could be implemented to gain more control over the display of Tabs.

The Renderer property returns the current ‘Syncfusion.Windows.Forms.Tools.ITabRenderer’ used by the TabControlAdv to render the TabPanel.

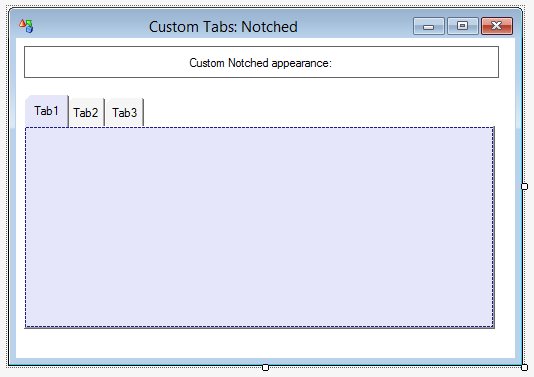

Custom ITabRenderer rendering TabControlAdv

Once you have a Custom ITabRenderer implementation, you can, if necessary, make it available to the TabControlAdv at design-time. To do so,

  1. First select the Add Custom Tabs entry in the drop-down list that pops-up from the TabStyle property editor. This will insert a new DesignTimeTabTypeLoader component into your forms designer.

    Add Custom Tabs entry in the TabStyle property editor

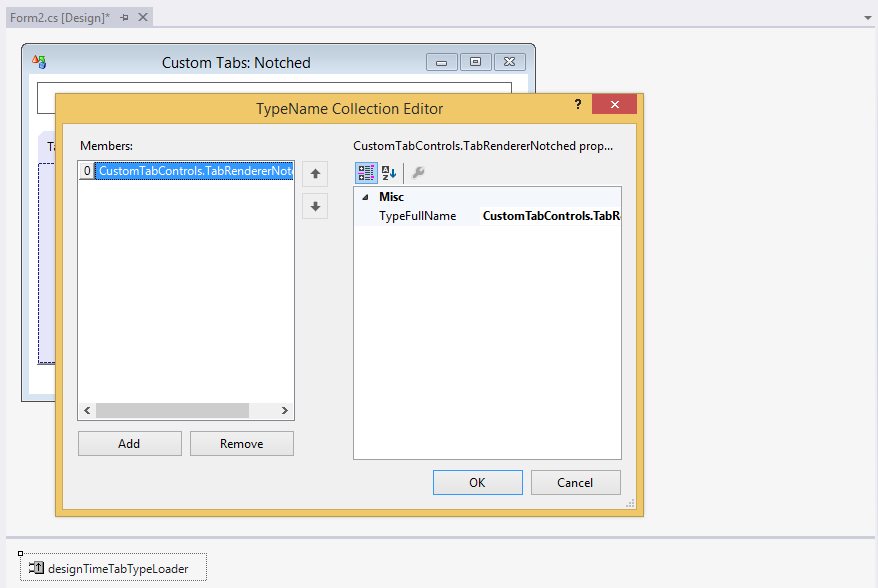

  2. Insert the fully qualified type name of your Custom TabRenderer class (for example: Syncfusion.Samples.Tools.TabRendererNotched) to the DesignTimeTabTypeLoader’s TypesToLoadList. This will try to load your class into the DesignTimeTabTypeLoader’s TypesToLoadList, assuming the type is in the same project as the designer or the assembly in which this type resides is referenced. You will now find an entry in the TabStyle editor list corresponding to your Custom TabRenderer.

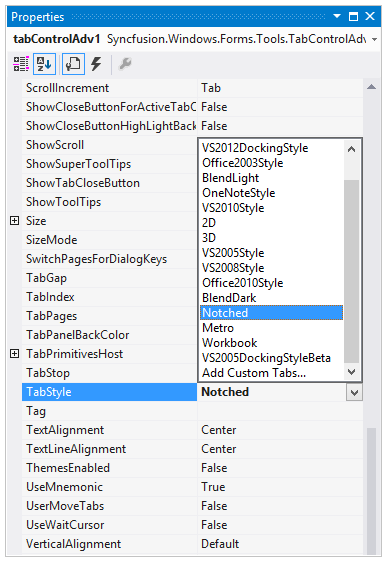

    Custom TabRenderer entry in the TabStyle editor list
