Getting Started with WinForms TabbedMDI

18 Nov 20186 minutes to read

This section explains how to design a WinForms TabbedMDI control in a Windows Forms application and overview its basic functionalities.

Assembly deployment

Refer to the Control Dependencies section to get the list of assemblies or details of NuGet package that needs to be added as reference to use the control in any application.

Refer to NuGet Packages to learn how to install nuget packages in a Windows Forms application.

Adding WinForms TabbedMDI control via designer

  1. Create a new Windows Forms project in Visual Studio.

  2. Add the WinForms TabbedMDI control to an application by dragging it from the toolbox to a designer view. The following dependent assemblies will be added automatically:

    • Syncfusion.Grid.Base
    • Syncfusion.Grid.Windows
    • Syncfusion.Shared.Base
    • Syncfusion.Shared.Windows
    • Syncfusion.Tools.Base
    • Syncfusion.Tools.Windows

Windows Forms TabbedMDI drag and drop from toolbox

As soon as the control is dropped, the Form1’s IsMDIContainer property will be set to true and it is changed to an MDIContainer. Also, the AttachedTo property of the WinForms TabbedMDI will be set to Form1.

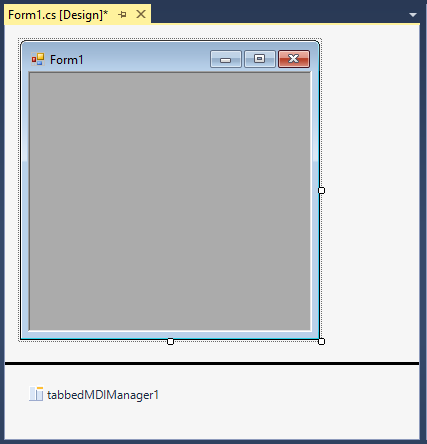

Windows Forms TabbedMDI added into the form

Adding control manually in code

To add the control manually in C#, follow the given steps:

  1. Create a C# or VB application via Visual Studio.

  2. Add the following assembly references to the project:

    • Syncfusion.Grid.Base
    • Syncfusion.Grid.Windows
    • Syncfusion.Shared.Base
    • Syncfusion.Shared.Windows
    • Syncfusion.Tools.Base
    • Syncfusion.Tools.Windows

  3. Include the required namespace.

    using Syncfusion.Windows.Forms.Tools;
    Imports Syncfusion.Windows.Forms.Tools

  4. Create an instance of the WinForms TabbedMDI control.

    TabbedMDIManager tabbedMDIManager = new TabbedMDIManager();
    Dim tabbedMDIManager As TabbedMDIManager = New TabbedMDIManager()

Add Form as WinForms TabbedMDI child

We can attach the Form1 to WinForms TabbedMDI container by using its AttachToMdiContainer function. Make sure whether the IsMdIContainer property of Form1 is set to true. Now the TabbedMDI mode will be turned on and any new MDIChildren created will be grouped as Tabs. Then, create a new Form and displays it in Form1.

this.IsMdiContainer = true;

// Use the [AttachToMdiContainer](https://help.syncfusion.com/cr/windowsforms/Syncfusion.Windows.Forms.Tools.TabbedMDIManager.html#Syncfusion_Windows_Forms_Tools_TabbedMDIManager_AttachToMdiContainer_System_Windows_Forms_Form_) function only when the `AttachedTo` property of WinForms TabbedMDI is not set to Form1.

this.tabbedMDIManager.AttachToMdiContainer(this);
this.tabbedMDIManager.TabStyle = typeof(Syncfusion.Windows.Forms.Tools.TabRendererOffice2016Colorful);

Form form = new Form();
form.MdiParent = this;
form.Text = "Tab1";
form.Show();

Form form1 = new Form();
form1.Text = "Tab2";
form1.MdiParent = this;
form1.Show();
Me.IsMdiContainer = True

' Use `AttachToMdiContainer` function only when `AttachedTo` property of TabbedMDIManager is not set to Form1.

Me.tabbedMDIManager.AttachToMdiContainer(Me)
Me.tabbedMDIManager.TabStyle = GetType(Syncfusion.Windows.Forms.Tools.TabRendererOffice2016Colorful)

Dim form As Form = New Form
form.MdiParent = Me
form.Text = "Tab1"
form.Show()

Dim form1 As New Form()
form1.Text = "Tab2"
form1.MdiParent = Me
form1.Show()

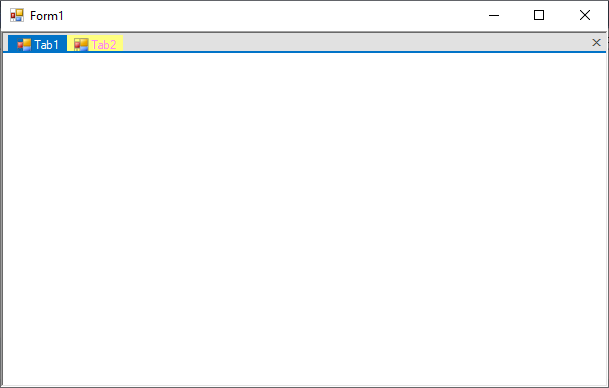

The following screenshot illustrates new form will be tabbed inside form1.

Windows Forms TabbedMDI with forms added as its child

Create tab group

The WinForms TabbedMDI provides support to create a tab group horizontally or vertically.

CreateNewHorizontalGroup function helps to create a new tab group horizontally in WinForms TabbedMDI.

Form form = new Form();
form.MdiParent = this;
form.Text = "Tab1";
form.Show();


Form form1 = new Form();
form1.MdiParent = this;
form1.Text = "Tab2";
form1.Show();

this.tabbedMDIManager.CreateNewHorizontalGroup();
Dim form As Form = New Form
form.MdiParent = Me
form.Text = "Tab1"
form.Show()


Dim form1 As Form = New Form
form1.MdiParent = Me
form1.Text = "Tab2"
form1.Show()

Me.tabbedMDIManager.CreateNewHorizontalGroup()

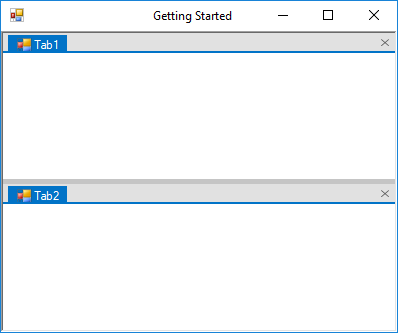

Horizontal tab group created in Tabbed MDI Manager

CreateNewVerticalGroup function helps to create a new tab group vertically in WinForms TabbedMDI.

Form form = new Form();
form.MdiParent = this;
form.Text = "Tab1";
form.Show();


Form form1 = new Form();
form1.MdiParent = this;
form1.Text = "Tab2";
form1.Show();

this.tabbedMDIManager.CreateNewVerticalGroup();
Dim form As Form = New Form
form.MdiParent = Me
form.Text = "Tab1"
form.Show()

Dim form1 As Form = New Form
form1.MdiParent = Me
form1.Text = "Tab2"
form1.Show()

Me.tabbedMDIManager.CreateNewVerticalGroup()

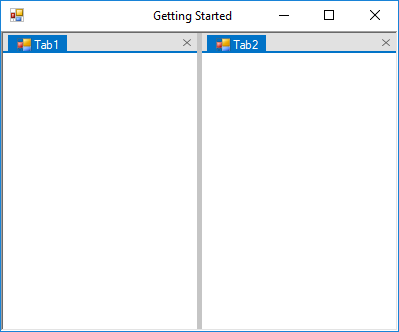

Vertical tab group created in Tabbed MDI Manager
