Creating GroupBar in Windows Forms GroupBar

14 Jun 20214 minutes to read

This tutorial will show you how a GroupBar is created through the following ways.

Through designer

The GroupBar’s designer allows you to add new groups using it’s design-time verbs or the property browser, while adding a Child control to a group involves merely activating the particular group and dropping the control onto the GroupBar.

To create a GroupBar through designer,

  • Drag-and-drop a GroupBar object from the controls toolbox onto your form.

Drag-and-drop a GroupBar

  • To add a GroupBar Item using design-time verbs, follow the given procedure.

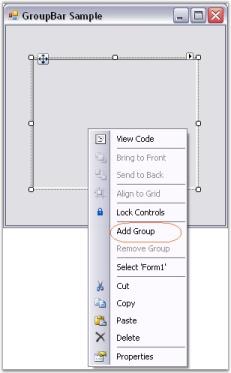

  • To add a GroupBar Item using the design-time verbs, right-click on the GroupBar and select the Add Group option. This adds a GroupBar Item to the GroupBar control.

Add a GroupBar

  • To add a GroupBar Item using the property browser, follow the procedure given below.

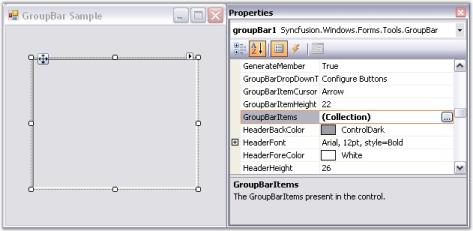

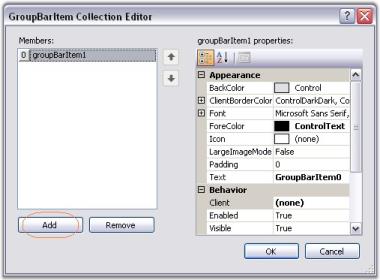

  • In the Properties window, select the GroupBarItems property. The GroupBarItem Collection Editor will be opened. Click Add, a GroupBar Item will be added to the GroupBar control.

Add a GroupBar Item

Select GroupBar Item

GroupBar Item Added

You can also add child controls to the GroupBar. Refer Integrating Child Controls to the GroupBarItem topic, for information on this topic.

Through code

The following code shows how to create a GroupBar control and add GroupBar Items to the control.

  1. Include the required namespace.
using Syncfusion.Windows.Forms.Tools;
Imports Syncfusion.Windows.Forms.Tools
  1. Create instances of GroupBar and GroupBar Items.
private Syncfusion.Windows.Forms.Tools.GroupBar groupBar1;

		private Syncfusion.Windows.Forms.Tools.GroupBarItem groupBarItem1;

		private Syncfusion.Windows.Forms.Tools.GroupBarItem groupBarItem2;

		private Syncfusion.Windows.Forms.Tools.GroupBarItem groupBarItem3;
this.groupBar1 = new GroupBar();

		this.groupBarItem1 = new GroupBarItem();

		this.groupBarItem2 = new GroupBarItem();

		this.groupBarItem3 = new GroupBarItem();
Private groupBar1 As Syncfusion.Windows.Forms.Tools.GroupBar

		Private groupBarItem1 As Syncfusion.Windows.Forms.Tools.GroupBarItem

		Private groupBarItem2 As Syncfusion.Windows.Forms.Tools.GroupBarItem

		Private groupBarItem3 As Syncfusion.Windows.Forms.Tools.GroupBarItem
Me.groupBar1 = New GroupBar()

		Me.groupBarItem1 = New GroupBarItem()

		Me.groupBarItem2 = New GroupBarItem()

		Me.groupBarItem3 = New GroupBarItem()
  1. Add GroupBar Items to the GroupBar and specify the size of the GroupBar. Finally add a GroupBar control to the Form.
this.groupBar1.GroupBarItems.AddRange(new Syncfusion.Windows.Forms.Tools.GroupBarItem[]{this.groupBarItem1, this.groupBarItem2, this.groupBarItem3});

		this.groupBar1.Size = new System.Drawing.Size(192, 120);

		this.Controls.Add(this.groupBar1);

		this.groupBarItem1.Text = "GroupBarItem0";

		this.groupBarItem2.Text = "GroupBarItem1";

		this.groupBarItem3.Text = "GroupBarItem2";
Me.groupBar1.GroupBarItems.AddRange(New Syncfusion.Windows.Forms.Tools.GroupBarItem(){Me.groupBarItem1, Me.groupBarItem2, Me.groupBarItem3})

		Me.groupBar1.Size = New System.Drawing.Size(192, 120)

		Me.Controls.Add(Me.groupBar1)

		Me.groupBarItem1.Text = "GroupBarItem0"

		Me.groupBarItem2.Text = "GroupBarItem1"

		Me.groupBarItem3.Text = "GroupBarItem2"

GroupBar sample created in Windows Forms
